Product Overview

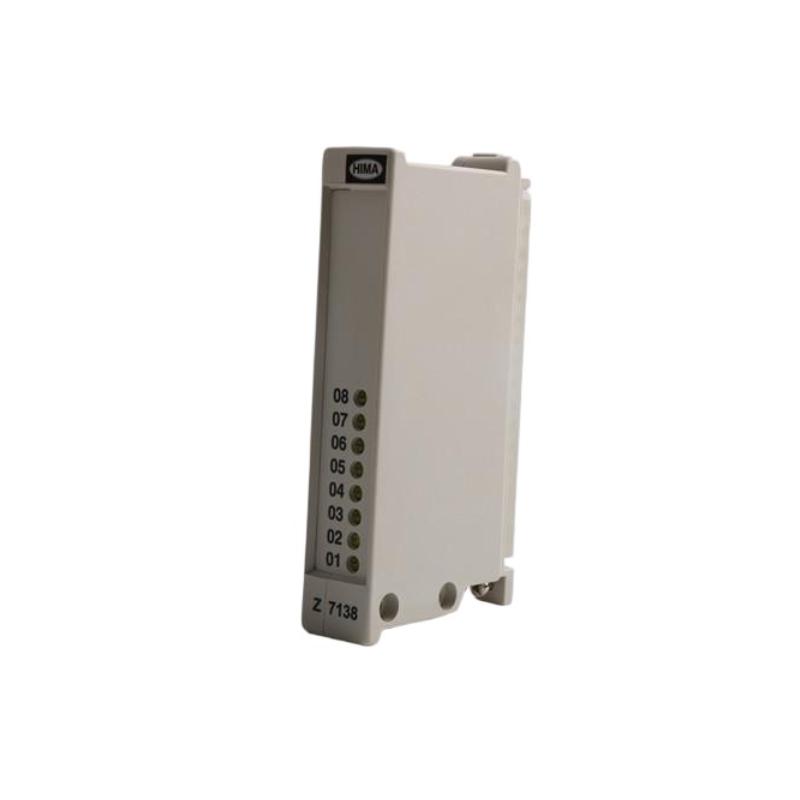

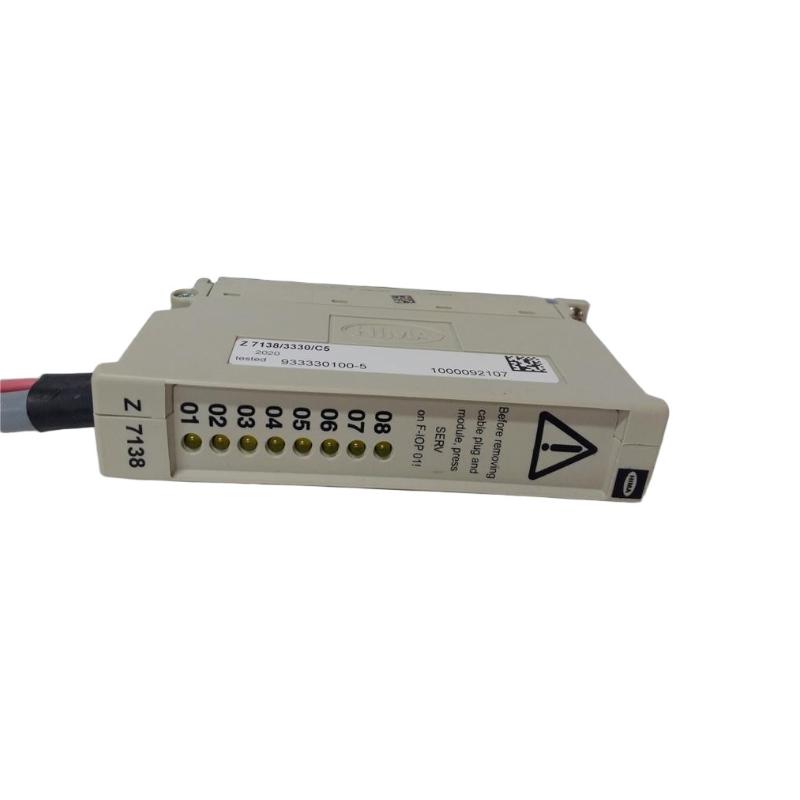

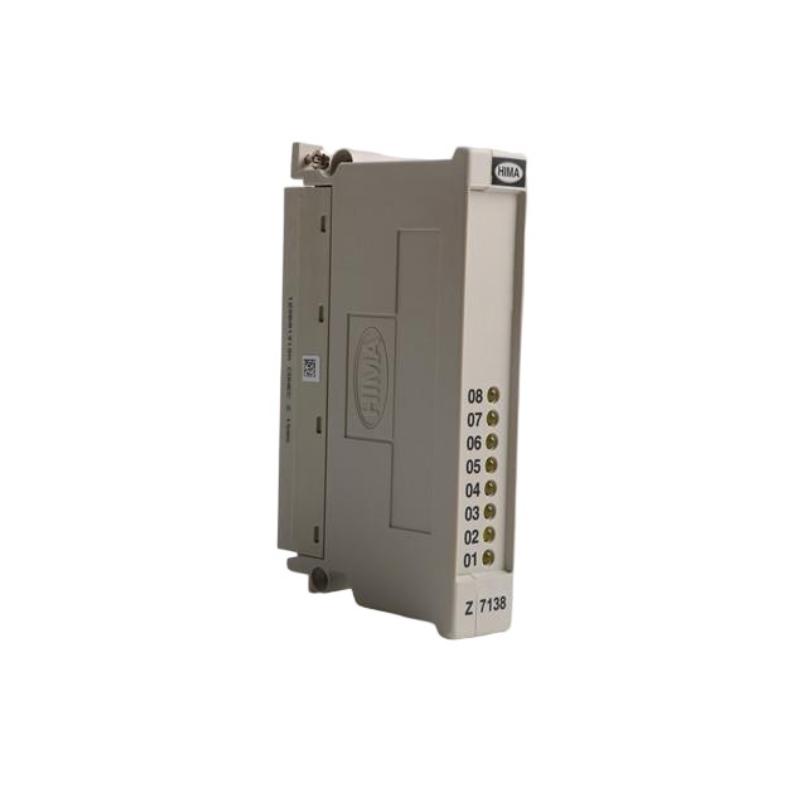

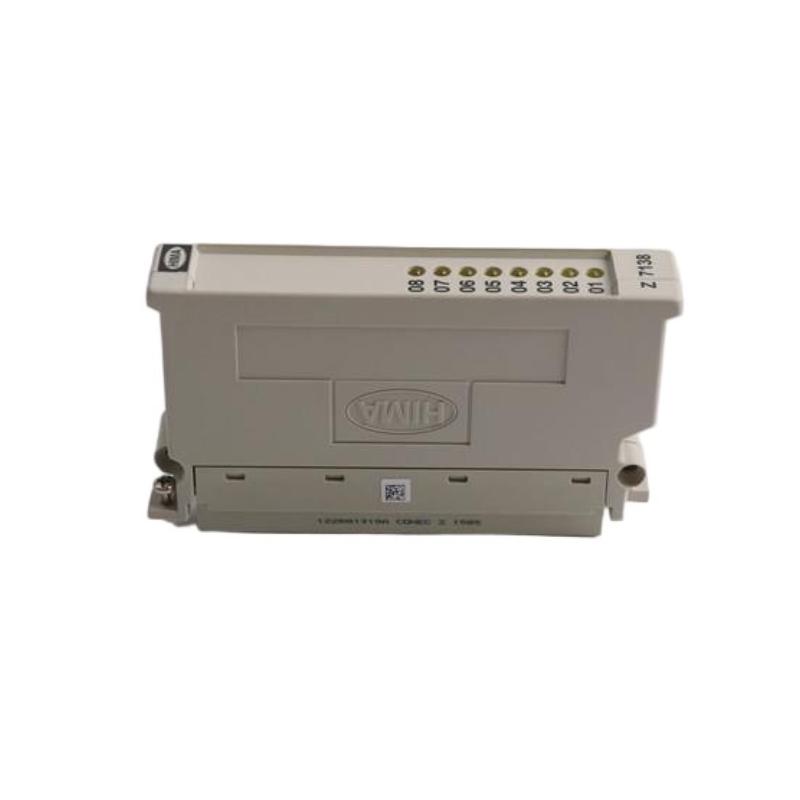

The HIMA Z7138/3330/C5 Cable Plug is a rugged, industrial‑grade connector designed to deliver dependable electrical connections in safety‑critical automation systems. Built with robust materials and precision contacts, this cable plug ensures consistent performance in environments where signal integrity and durability are essential.
Specifically engineered for use with HIMA safety PLCs, I/O modules, and field‑device interfaces, the Z7138/3330/C5 Cable Plug supports reliable communication and power routing in control panels, field junctions, and machinery harnesses. Its ergonomic form factor simplifies installation, reducing wiring complexity while maintaining high reliability in mission‑critical applications.
Technical Specifications
| Parameter | Specification |
|---|
| Model | Z7138/3330/C5 |
| Component Type | Cable Plug / Industrial Connector |
| Compatible Systems | HIMA Safety PLC & I/O Platforms |
| Contact Configuration | Precision multi‑pin contacts |
| Rated Voltage | 24 VDC (nominal) |
| Current Rating | Industrial‑standard level |
| Contact Material | Corrosion‑resistant metal alloy |
| Housing Material | Reinforced industrial thermoplastic |
| Protection Rating | Suited for enclosed industrial environments |
| Operating Temperature | -20°C to +60°C |
| Mounting Style | Panel or cable interface plug |
| Mechanical Durability | High cycle reliability |
Typical Applications
The HIMA Z7138/3330/C5 Cable Plug is ideal for systems requiring secure and reliable connections in safety and control circuits:
-
Safety interlock cabling
-
Field sensor and actuator interfaces
-
Emergency stop and guard monitoring wiring
-
Control panel harness assemblies
-
Safety I/O module connections
-
Field termination for PLC interfaces
Its compact footprint and industrial build make it suitable for both new installations and retrofit environments.
Key Advantages
✔ Precision‑engineered contacts for reliable signal integrity
✔ Durable construction for long operational life
✔ Designed for safety‑critical automation applications
✔ Helps simplify wiring and reduce installation errors
✔ Compatible with HIMA safety PLC systems
✔ Resilient against vibration and shock environments
✔ Compact size fits space‑constrained panels
✔ Ideal for control and safety circuitry
Technical FAQs
1. What is the HIMA Z7138/3330/C5 Cable Plug used for?
It’s an industrial connector for reliable electrical connections in safety and control systems.
2. What voltage does it support?
Nominally 24 VDC operation.
3. Where is this plug typically installed?
In control cabinets, field junctions, or module interfaces.
4. Is it suitable for safety circuits?
Yes — ideal for safety interlocks, emergency stops, and guard monitoring.
5. What environments can it withstand?
It performs reliably from –20°C to +60°C in industrial settings.
6. What type of contacts does it use?
Precision multi‑pin corrosion‑resistant metal contacts.
7. How durable is the plug?
It offers high mechanical cycle reliability and robust construction.
8. Is it compatible with HIMA PLC systems?
Yes — designed for HIMA safety PLC and I/O modules.
9. Does it reduce wiring complexity?
Yes — its design helps simplify cabling and connection procedures.
10. What is its primary benefit?
Provides dependable, mission‑critical connectivity in safety and control applications.
