Introduction

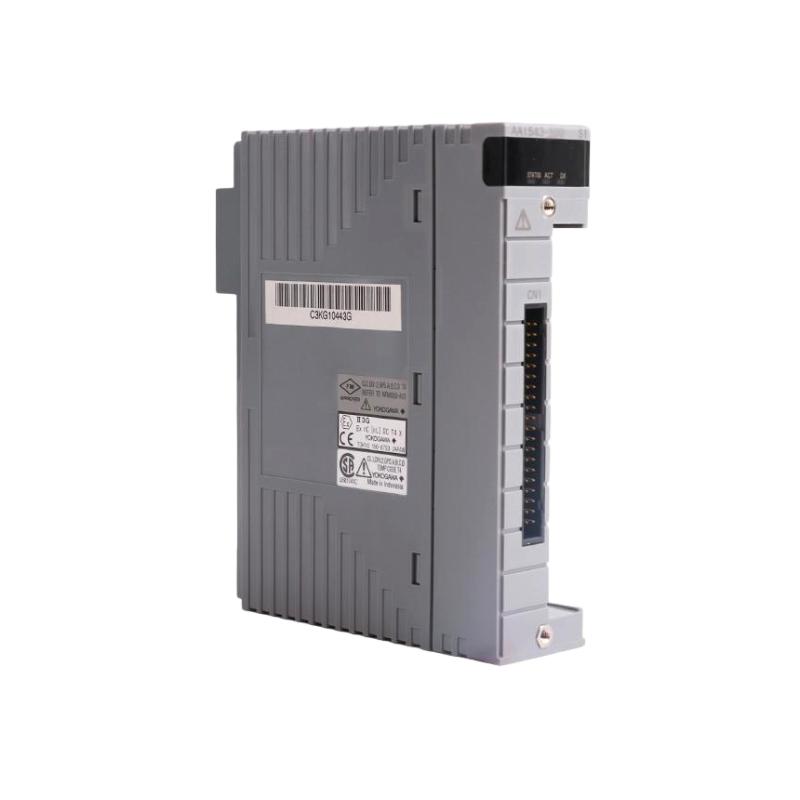

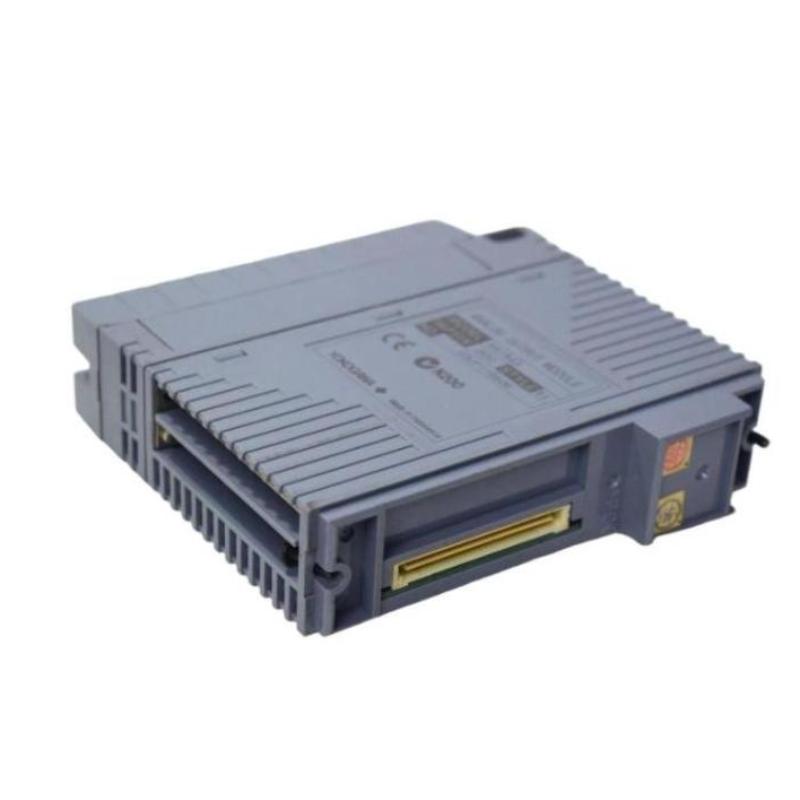

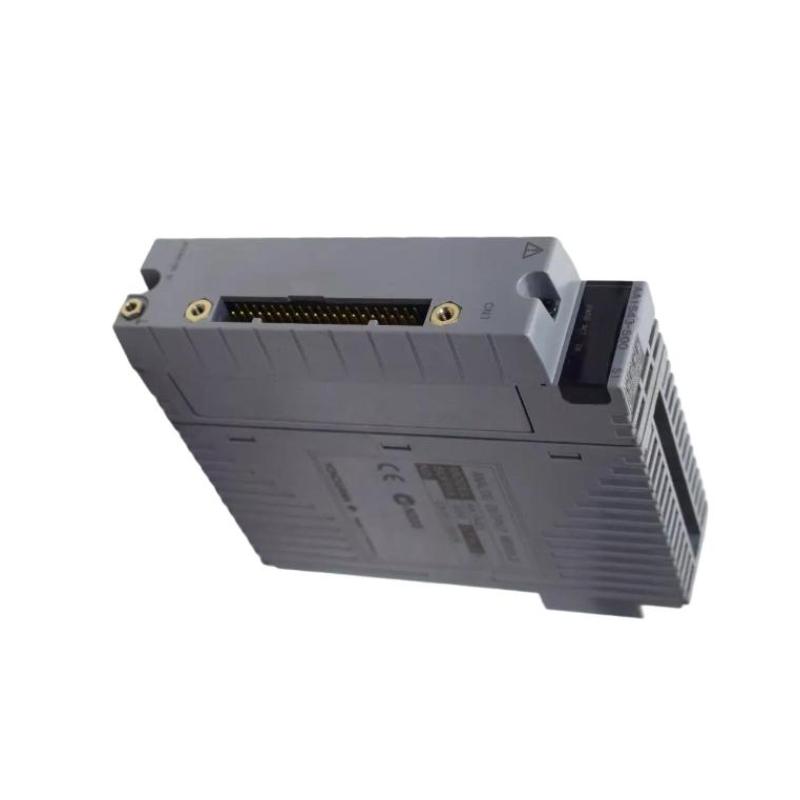

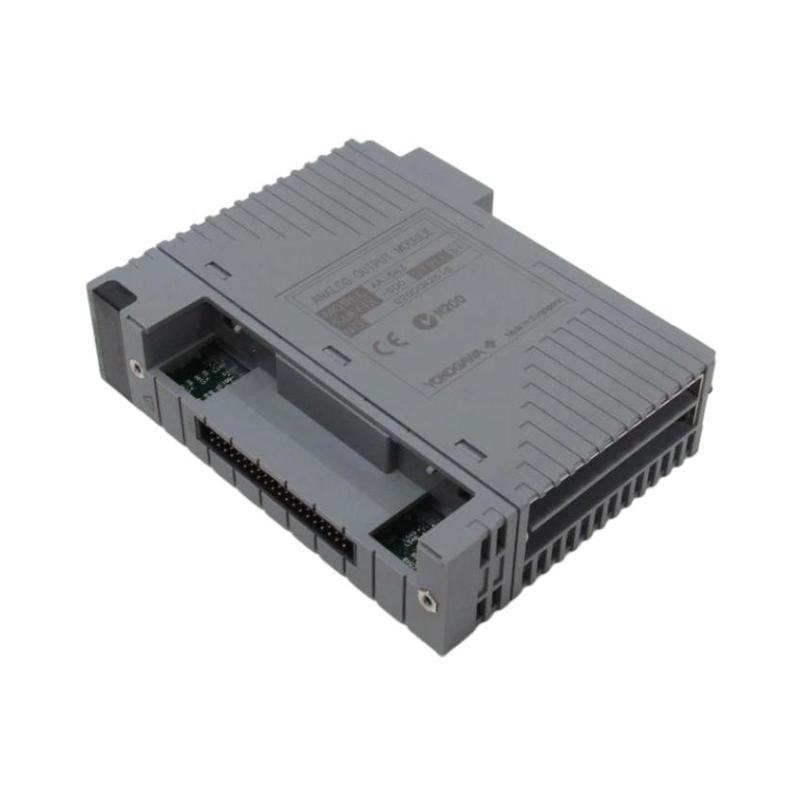

The Yokogawa AAI543-S00/A4S00 Analog Output Module is a high-precision component designed for industrial control systems, converting digital control signals into accurate analog outputs for seamless communication with various field devices. Part of the Yokogawa AAI series, this module provides reliable control over actuators, valves, and other critical components, ensuring smooth and efficient process operations.
Engineered for demanding applications, the AAI543-S00/A4S00 module offers superior performance in industries such as chemical processing, oil and gas, power generation, and automated manufacturing. Its advanced features, coupled with rugged durability, make it the preferred choice for high-stakes industrial environments.
Technical Specifications
|
Specification |
Details |
|
Model Number |
AAI543-S00/A4S00 |
|
Type |
Analog Output Module |
|
Dimensions (L × W × H) |
107.5 × 32.8 × 130 mm |
|
Weight |
0.4 kg |
|
Output Channels |
8 (with 16-bit resolution) |
|
Output Type |
Voltage, Current |
|
Output Range |
±10 V, 4-20 mA |
|
Power Supply |
24 V DC |
|
Accuracy |
±0.1% of full scale |
|
Isolation |
1500 V AC (Output to Input) |
|
Mounting Type |
DIN Rail |
Applications
The Yokogawa AAI543-S00/A4S00 Analog Output Module is suited for a variety of high-performance applications, including:
-
Process Control: Commonly used in chemical plants, pharmaceuticals, and refineries to control critical parameters like temperature, pressure, and flow, ensuring that complex processes are executed with high precision.
-
Power Generation: It plays a key role in power generation facilities, controlling essential equipment such as turbines and generators, contributing to the stability and efficiency of energy production.
-
Manufacturing Automation: In automated manufacturing, it helps manage equipment like robotic arms, conveyors, and sorting systems, improving productivity and operational efficiency.
-
Oil & Gas: Deployed in oil refineries, offshore rigs, and pipeline systems, the AAI543-S00/A4S00 module is used for regulating flow rates, pressure, and other essential operational parameters to ensure safety and reliability.
-
HVAC: It is also utilized in HVAC systems to monitor and control temperature and humidity, maintaining optimal environmental conditions for comfort and energy savings.
Advantages
The Yokogawa AAI543-S00/A4S00 Analog Output Module provides several key advantages that make it ideal for industrial applications:
-
High Accuracy: Offering ±0.1% accuracy, the module ensures precise control over field devices, making it a vital tool for critical industrial processes that demand precision.
-
Multiple Output Types: It supports both voltage (±10 V) and current (4-20 mA) outputs, allowing it to interface with a wide variety of control devices, enhancing its flexibility.
-
High Isolation: The module provides 1500 V AC isolation between output and input, safeguarding the connected equipment from electrical surges and ensuring long-term reliability.
-
Space-Efficient Design: The AAI543-S00/A4S00 module's compact dimensions make it suitable for installations in environments with limited space, without compromising performance or functionality.
-
Easy Installation: The module can be quickly mounted on a DIN Rail, streamlining installation and minimizing setup time.
