Product Overview

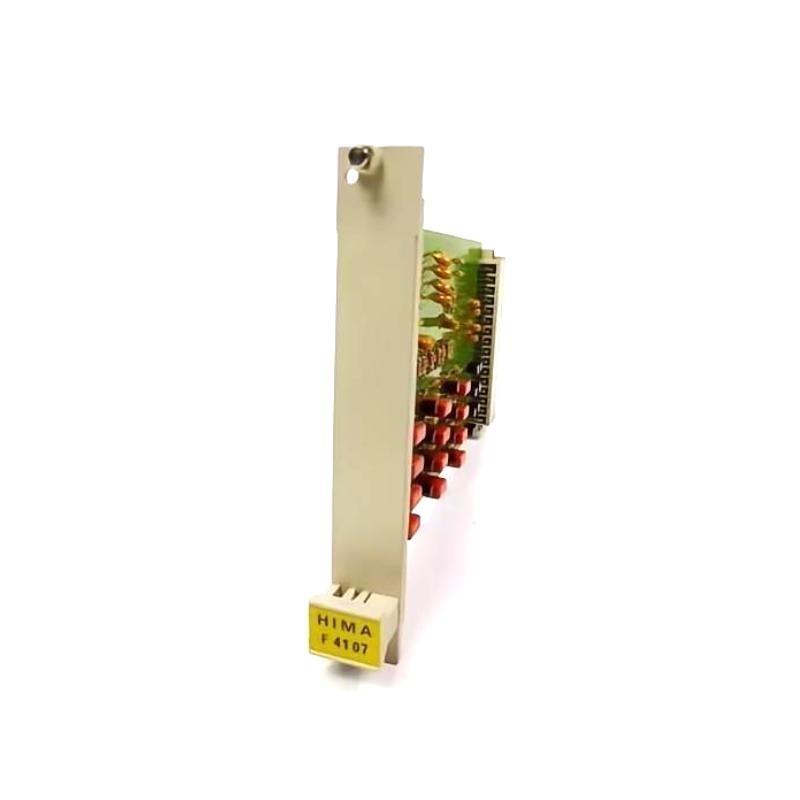

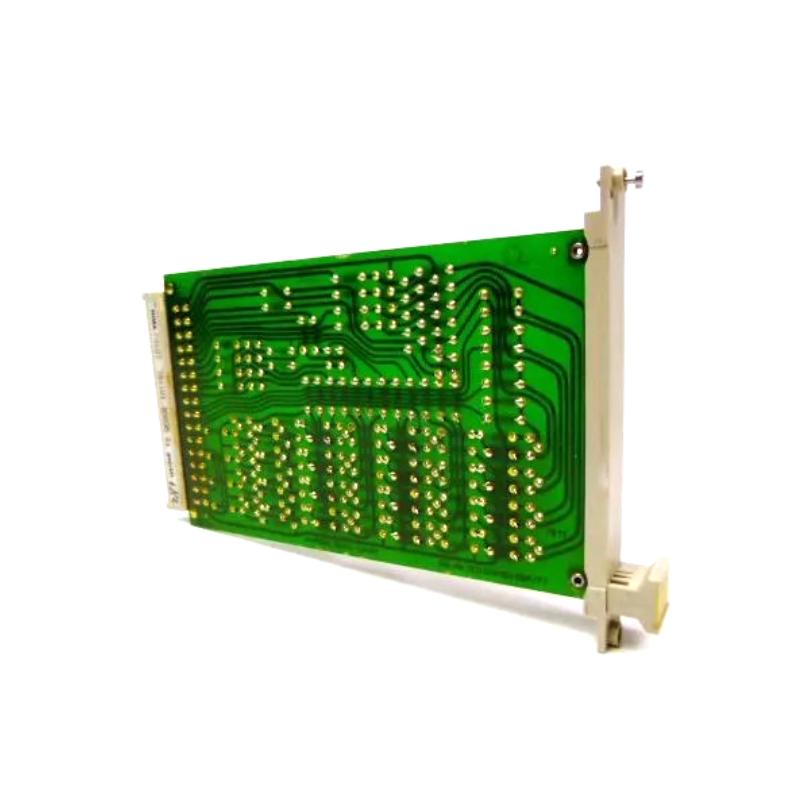

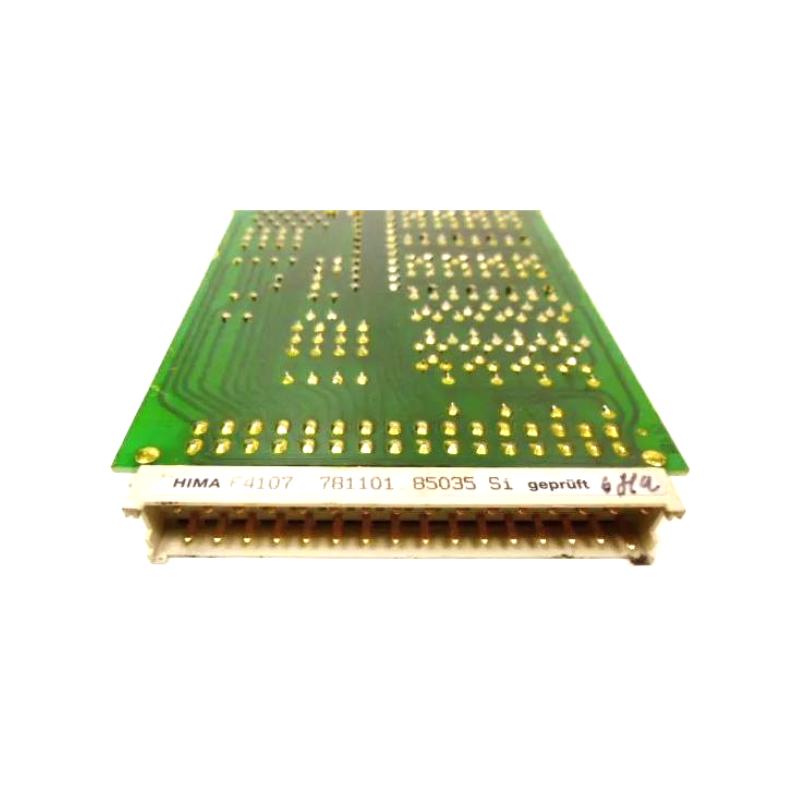

The HIMA F4107 Safety Related and Door Module is a versatile safety I/O solution engineered to meet rigorous industrial safety requirements. Designed for seamless integration with HIMA safety PLC systems, this module combines safety‑rated inputs/outputs with specialized door monitoring functionality — delivering uncompromising performance where personnel protection and access control matter most.
Built for demanding environments, the F4107 enhances safety logic execution and simplifies high‑integrity access control with real‑time diagnostics and dual‑channel monitoring. Its flexible configuration supports a wide range of safety sensor types and output devices, making it an ideal fit for complex safety systems in process and discrete industries.
Technical Specifications
| Parameter | Specification |
|---|
| Model | F4107 |
| Module Type | Safety I/O & Door Monitoring Module |
| Safety Integrity | SIL 3 capable |
| Inputs | Dual‑channel safety inputs |
| Outputs | Safety‑rated relay outputs |
| Door Channels | Up to 4 monitored doors |
| Input Voltage | 24 VDC |
| Power Consumption | Approx. 6 W |
| Protective Features | Fault detection, cross‑monitoring |
| Communication | Integrated backplane connection |
| Operating Temperature | -20°C to +60°C |
| Environmental Rating | Industrial‑grade |
Ideal Applications
The F4107 excels in safety systems where access control and machine safeguarding are critical:
-
Safety interlock and gate monitoring
-
Emergency exit and access point control
-
Process plant safety systems
-
Hazardous area door supervision
-
Robotics perimeter monitoring
-
Integration with HIMA HIMax and HIMax PRO series
With its combined safety and access capabilities, this module minimizes additional hardware while maximizing system integrity.
Key Advantages
✔ Integrated safety and door control in one module
✔ Four door channels with dual‑channel monitoring
✔ Safety‑rated relay outputs for trusted control
✔ SIL 3 compliance for high safety integrity
✔ Rapid diagnostics for fault analysis
✔ Reduces wiring and installation complexity
✔ Designed for robust industrial conditions
✔ Compatible with HIMA safety PLC platforms
Technical FAQs
1. What type of module is the HIMA F4107?
It’s a safety‑rated I/O and door monitoring module.
2. How many door channels does it support?
It supports monitoring of up to four doors.
3. What safety integrity level does it meet?
It is SIL 3 capable for high‑risk safety applications.
4. What outputs are provided?
Safety‑rated relay outputs for reliable actuation.
5. Does it include fault diagnostics?
Yes — integrated fault detection and reporting.
6. What input voltage does the module require?
The F4107 operates at 24 VDC.
7. What industries commonly use this module?
Process plants, discrete manufacturing, robotics, and critical infrastructure.
8. Is it compatible with HIMA safety PLC systems?
Yes, designed for use with HIMax and HIMax PRO controllers.
9. What environmental conditions can it handle?
Operating temperature range is –20°C to +60°C in industrial environments.
10. What is its main advantage?
Combines safety I/O with door monitoring in one rugged, reliable module.
