Product Overview

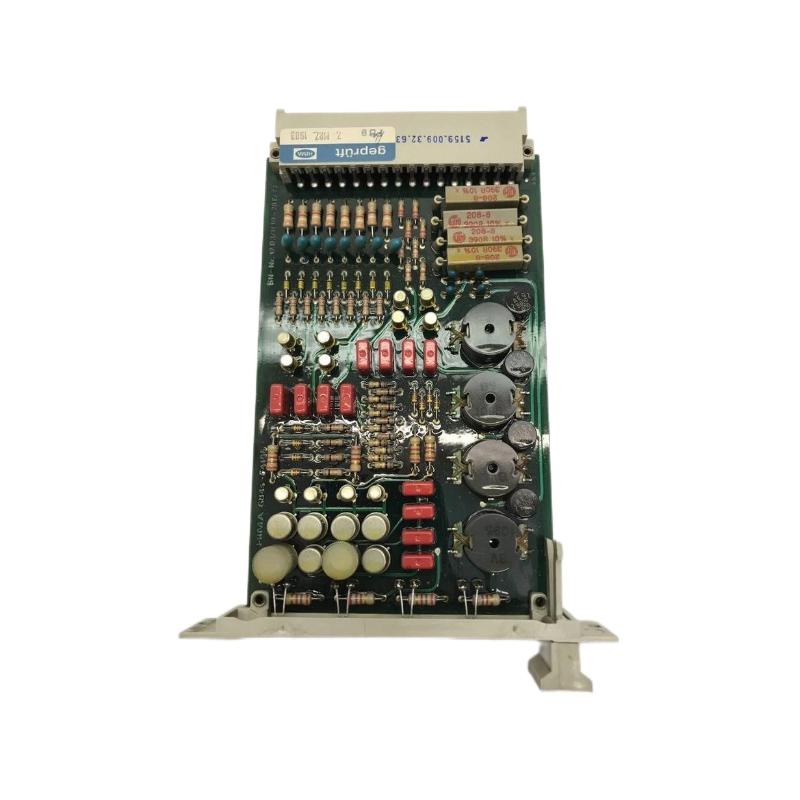

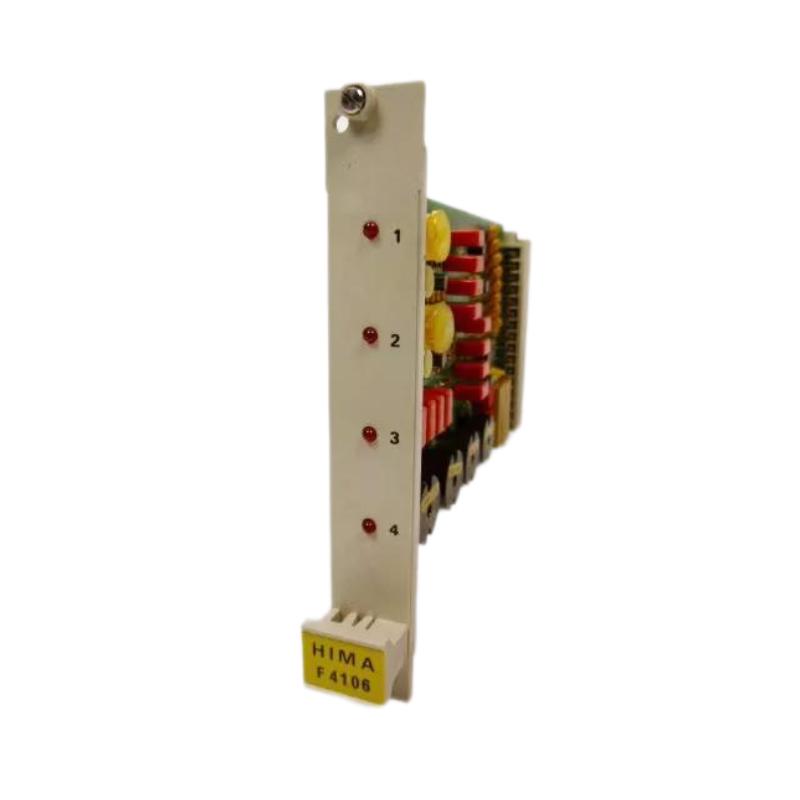

The HIMA F4106 4-Channel Door Card is a high-performance safety I/O module designed for integration into HIMA’s safety PLC systems, offering reliable and secure control of access points in industrial environments. Built with safety and redundancy in mind, this module ensures fast, accurate monitoring and control of up to four separate door channels simultaneously.
Engineered for mission-critical applications, the F4106 provides robust diagnostics, fault tolerance, and simplified wiring, reducing both installation time and maintenance complexity. Its modular design allows for seamless integration into HIMA safety systems, making it an ideal choice for industries requiring uncompromised access control and personnel protection.
Technical Specifications
| Parameter | Specification |
|---|
| Model | F4106 |
| Module Type | 4-Channel Door Card / Safety I/O Module |
| Channels | 4 independent door channels |
| Input Type | Digital / Safety-compliant sensors |
| Output Type | Relay outputs (safety-rated) |
| Redundancy | Dual-channel monitoring for fault detection |
| Safety Integrity Level | SIL 3 capable |
| Diagnostic Features | Automatic fault detection and reporting |
| Operating Voltage | 24 VDC |
| Power Consumption | Approx. 5 W |
| Communication | Integrated backplane connection |
| Environmental Rating | Industrial-grade, -20°C to 60°C operating temperature |
Applications
The HIMA F4106 excels in environments where safety and controlled access are critical:
-
Industrial plant door access control
-
Emergency exit monitoring systems
-
Hazardous area access points
-
Safety interlocks for machinery
-
Critical infrastructure facilities
-
Integration with HIMA HIMax or HIMax PRO safety controllers
This module is particularly effective in complex safety systems requiring multiple independent door channels with rapid response times
Advantages
✔ Safety-rated relay outputs for guaranteed control
✔ Four independent channels for versatile access management
✔ SIL 3 compliant, meeting high safety standards
✔ Redundant input monitoring to detect faults automatically
✔ Simplifies wiring and reduces installation complexity
✔ Compatible with HIMA safety PLC systems
✔ Robust industrial design suitable for harsh environments
✔ Integrated diagnostics for maintenance efficiency
Technical FAQs
1. How many door channels does the F4106 support?
It supports four independent channels.
2. Is it safety-rated?
Yes, it is SIL 3 capable for critical safety applications.
3. What type of outputs does it provide?
Safety-rated relay outputs.
4. Can it detect input faults automatically?
Yes, it features automatic fault detection and reporting.
5. What operating voltage is required?
The module operates at 24 VDC.
6. Which PLC systems is it compatible with?
It integrates with HIMA HIMax and HIMax PRO safety controllers.
7. What environmental conditions can it operate under?
It operates in temperatures from -20°C to 60°C.
8. Does it support redundant monitoring?
Yes, each channel includes dual-channel fault monitoring.
9. What industries typically use this module?
Industrial automation, process control, and critical infrastructure.
10. What is its main advantage?
Reliable, multi-channel safety control with fast diagnostics and SIL 3 compliance.
