Introduction

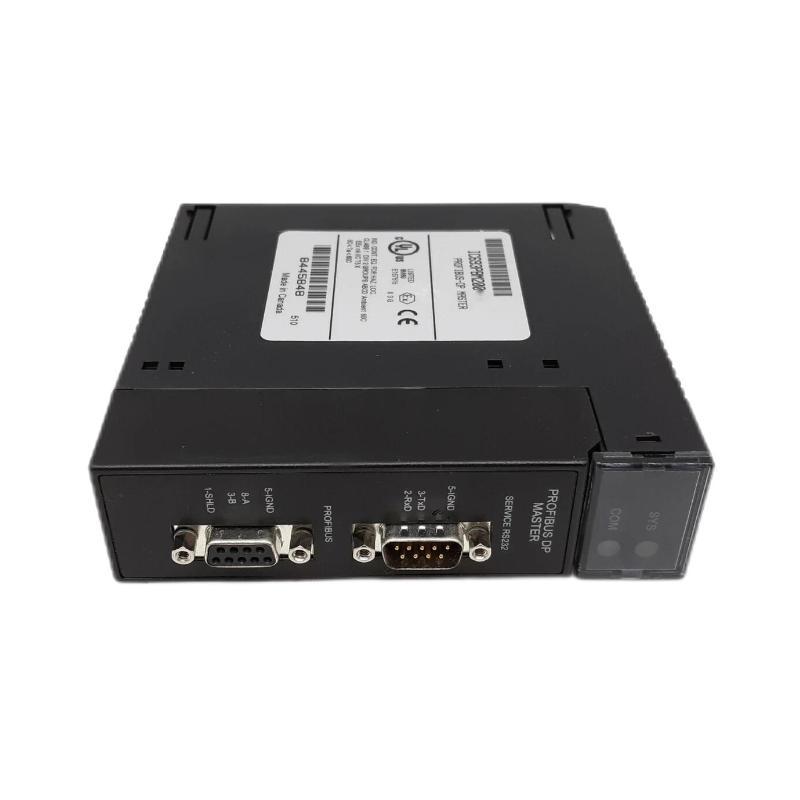

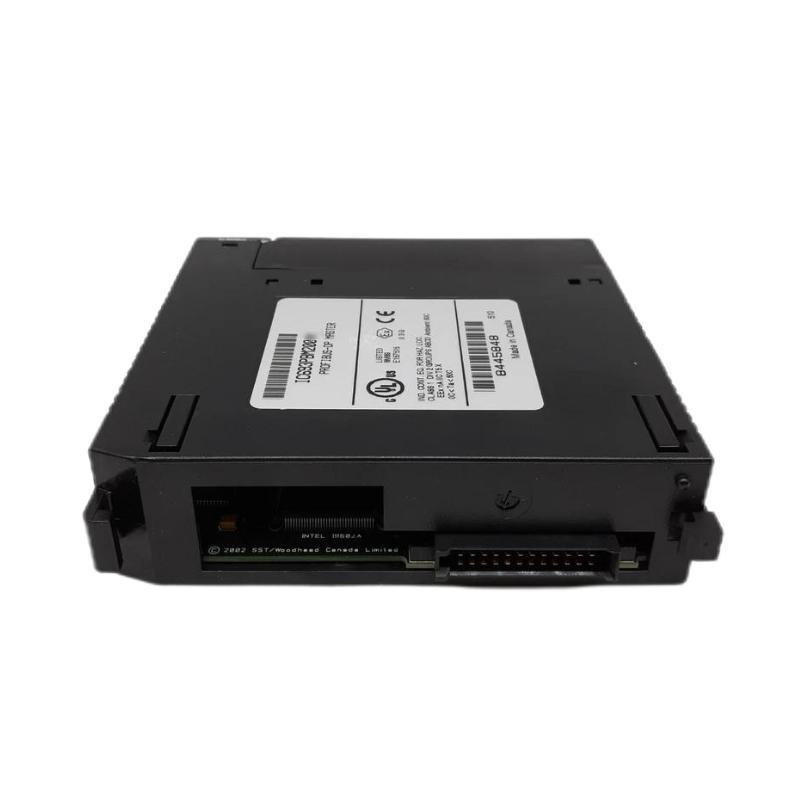

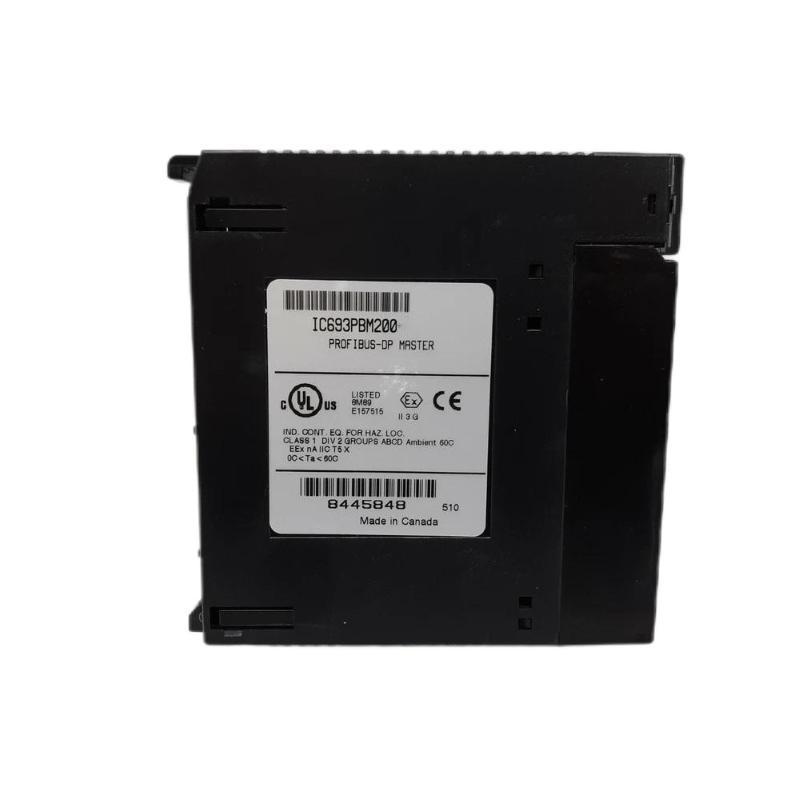

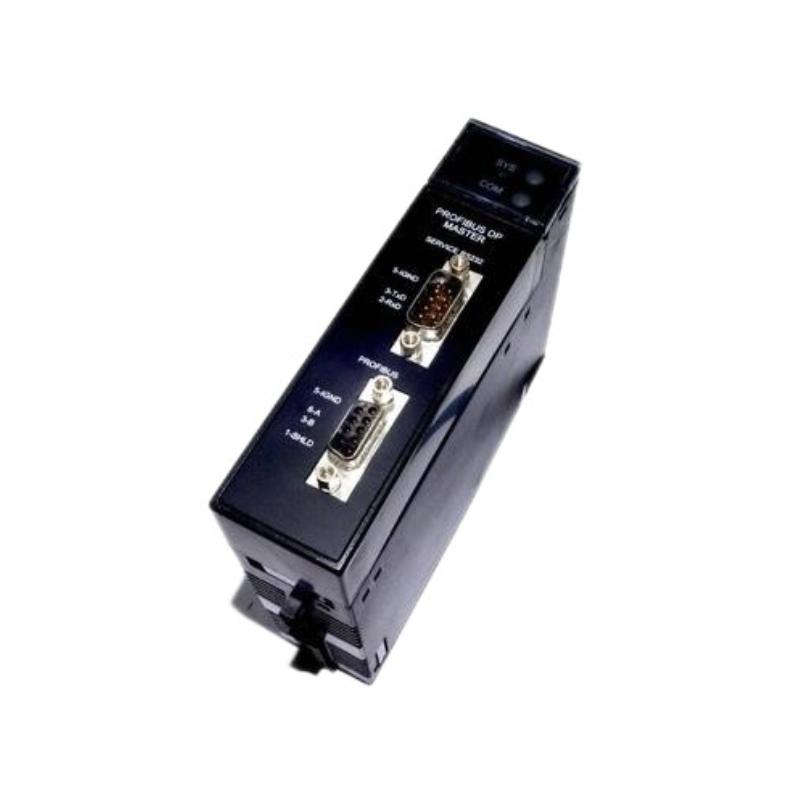

The GE Fanuc IC693PBM200 Profibus DP Master Module is a high‑performance network interface designed to integrate GE Series 90‑30 PLCs with PROFIBUS DP industrial communication networks. As a PROFIBUS DP Master, this module enables real‑time data exchange between the PLC and a wide range of distributed field devices — including I/O hubs, variable frequency drives, motor controllers, remote I/O, and smart sensors.
By providing deterministic, high‑speed communication across PROFIBUS networks, the IC693PBM200 expands automation capability, simplifies remote integration, and enhances system scalability. It is particularly well‑suited for large‑scale process, manufacturing, and motion control systems where reliable distributed communication is critical.
Technical Specifications
| Specification | Details |
|---|
| Model | IC693PBM200 |
| Module Type | PROFIBUS DP Master Communication Module |
| PLC Family | GE Fanuc Series 90‑30 |
| Protocol | PROFIBUS DP V0/V1 Master |
| Data Rates | Up to 12 Mbps |
| Diagnostics | Detailed network and device diagnostics |
| Addressing | Supports distributed PROFIBUS slave devices |
| Communication | Backplane interface to Series 90‑30 PLC |
| Master Functions | Cyclic I/O exchange, acyclic diagnostics |
| Operating Temperature | -25 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | Up to 95% non‑condensing |
Applications
The IC693PBM200 Profibus DP Master Module enables integration of field‑level distributed systems into a GE Series 90‑30 PLC architecture. Typical use cases include:
-
Industrial automation networks in manufacturing and processing plants
-
Remote I/O communication across factory floors
-
VFD (Variable Frequency Drive) control and monitoring
-
Integration of PROFIBUS‑enabled smart sensors and actuators
-
Communication with PROFIBUS DP slave I/O hubs
-
Distributed control system expansion for large facilities
By centralizing master communication within the Series 90‑30 platform, the module enables hierarchical system designs and flexible topology configurations
Applications
The IC693PBM200 Profibus DP Master Module enables integration of field‑level distributed systems into a GE Series 90‑30 PLC architecture. Typical use cases include:
-
Industrial automation networks in manufacturing and processing plants
-
Remote I/O communication across factory floors
-
VFD (Variable Frequency Drive) control and monitoring
-
Integration of PROFIBUS‑enabled smart sensors and actuators
-
Communication with PROFIBUS DP slave I/O hubs
-
Distributed control system expansion for large facilities
By centralizing master communication within the Series 90‑30 platform, the module enables hierarchical system designs and flexible topology configurations
Technical FAQs
1. What is the primary function of the IC693PBM200?
It acts as a PROFIBUS DP Master, enabling the Series 90‑30 PLC to communicate with PROFIBUS‑DP slave devices.
2. What communication speeds does it support?
Data rates up to 12 Mbps, depending on network configuration.
3. Which PLC family is it compatible with?
It is designed for the GE Fanuc Series 90‑30 PLC platform.
4. What types of devices can it connect to?
Remote I/O hubs, drives, sensors, motor controllers, and other PROFIBUS‑DP slave devices.
5. Can it provide network diagnostics?
Yes, it supports detailed diagnostics including device status and communication health.
6. What is PROFIBUS DP?
An industrial fieldbus standard optimized for high‑speed distributed I/O communication.
7. Does it support redundant networks?
Network redundancy is application‑dependent, supported with appropriate network planning.
8. What industries benefit most from this module?
Manufacturing, process automation, utilities, and large‑scale distributed control systems.
9. Does it require special configuration tools?
Yes, PROFIBUS configuration tools and master setup utilities are typically used.
10. How does it improve automation systems?
By enabling distributed device control and real‑time communication over standard industrial networks.
