Introduction

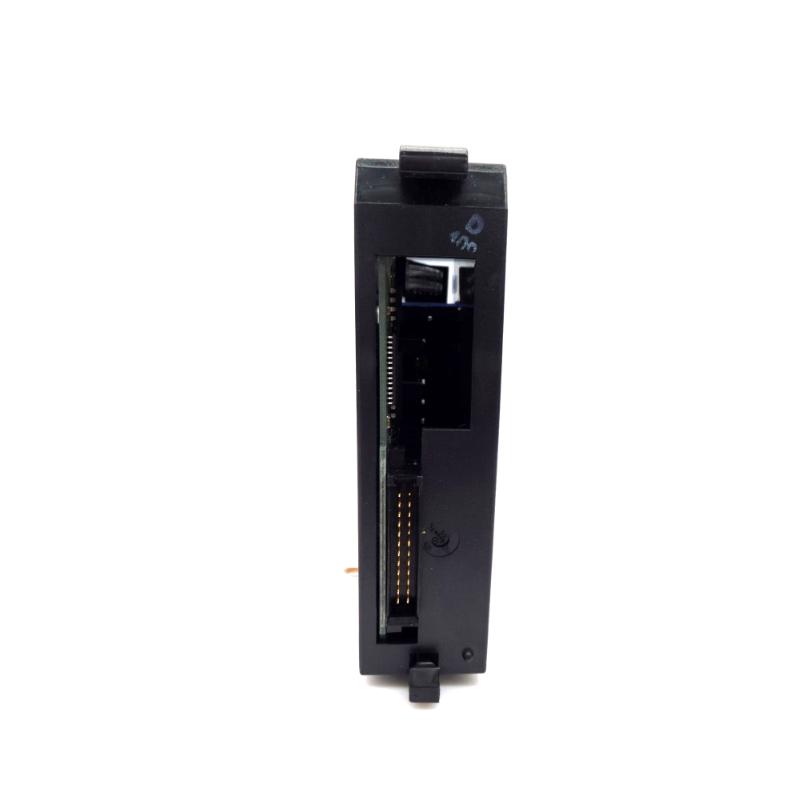

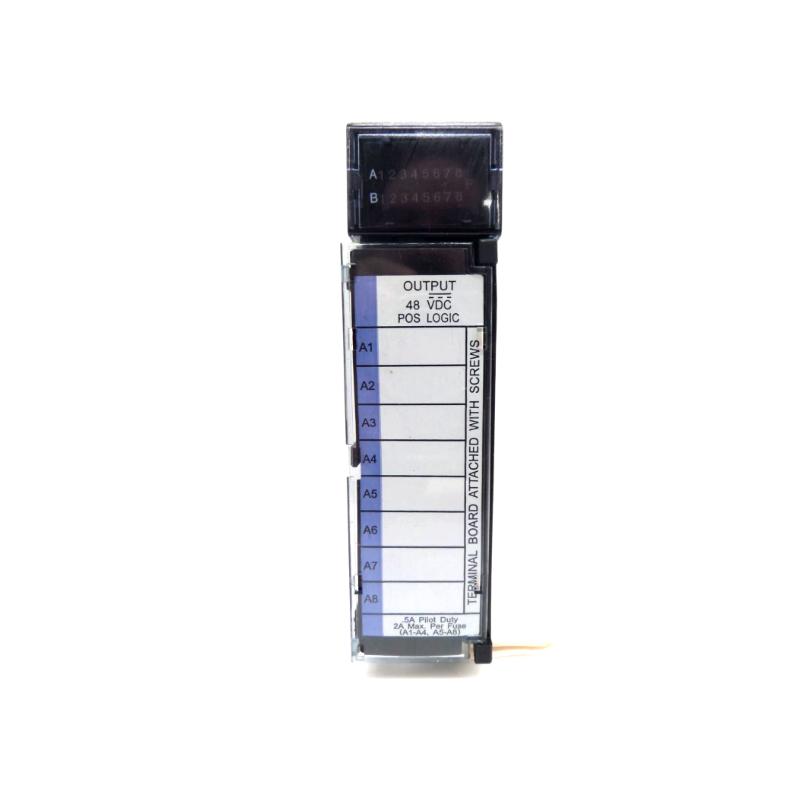

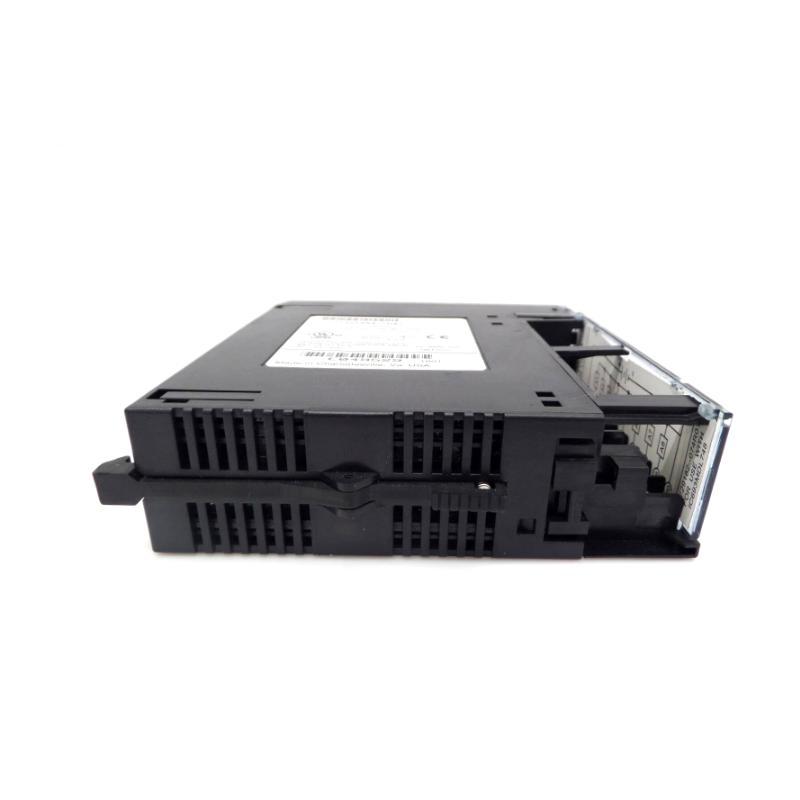

The GE Fanuc IC693MDL748 Positive/Negative Logic Output Module is a rugged and versatile digital output interface designed for the Series 90‑30 programmable logic controller (PLC) platform. It enables the PLC to control external field devices by delivering discrete output signals that represent either positive or negative logic states.
This output module supports flexible control configurations, making it ideal for applications where both sourcing (positive logic) and sinking (negative logic) output behavior is required. Its industrial‑strength design ensures reliable switching performance in electrically noisy environments, helping deliver consistent automation control for manufacturing and process systems.
Technical Specifications
| Specification | Details |
|---|
| Model | IC693MDL748 |
| Module Type | Positive/Negative Logic Output Module |
| PLC Family | GE Fanuc Series 90‑30 |
| Output Channels | 16 discrete outputs |
| Logic Type | Positive and Negative output logic supported |
| Output Voltage | 24 VDC nominal |
| Output Current | 0.5 A per channel (typical) |
| Isolation | Channel isolation to backplane logic |
| Communication | Series 90‑30 backplane interface |
| Load Type | Sourcing and sinking compatible |
| Response Time | Fast output switching |
| Operating Temperature | -25 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | Up to 95 % non‑condensing |
Applications
The IC693MDL748 is suitable for a wide range of industrial automation control tasks:
-
Driving relay coils, pilot lights, and indicators
-
Controlling solenoids and small actuators
-
Switching external industrial loads
-
Sourcing or sinking control for PLC outputs
-
Machine sequencing and discrete process outputs
-
Interfacing logic outputs to diverse field equipment
This module’s dual logic support enhances flexibility when integrating with different device types across automation installations.
Advantages
-
Dual Logic Support: Handles both positive and negative logic output modes.
-
Reliable Discrete Switching: Accurate output actions for control logic execution.
-
Industrial‑Grade Protection: Isolation protects the controller from electrical noise.
-
Fast Response Times: Supports dynamic output requirements.
-
Broad Compatibility: Works seamlessly with GE Fanuc Series 90‑30 PLC systems.
-
Compact and Modular: Space‑efficient design for dense I/O configurations.
-
Enhanced Flexibility: Supports sourcing and sinking connections to field devices.
The combination of logic flexibility and isolation makes the MDL748 module well‑suited for varied industrial control applications.
Technical FAQs
1. What types of output logic does the IC693MDL748 support?
It supports both positive (sourcing) and negative (sinking) logic outputs.
2. How many outputs are available?
It provides 16 discrete digital output channels.
3. What voltage level is used for outputs?
24 VDC nominal output voltage.
4. Can it switch common industrial loads?
Yes, it can drive relays, pilot lights, solenoids, and small actuators.
5. Is electrical isolation provided?
Yes, isolation helps protect the PLC logic from field electrical noise.
6. What PLC family is this module designed for?
It is compatible with the GE Fanuc Series 90‑30 PLC system.
7. What is the operating temperature range?
From ‑25 °C to +70 °C.
8. Does it require external power for outputs?
Field loads require proper supply voltage; the module draws logic power from the backplane.
9. How does dual logic support help?
It allows both sourcing and sinking interfacing to field devices without additional hardware.
10. Is it suitable for high‑noise environments?
Yes, isolation improves performance in electrically challenging installations.
