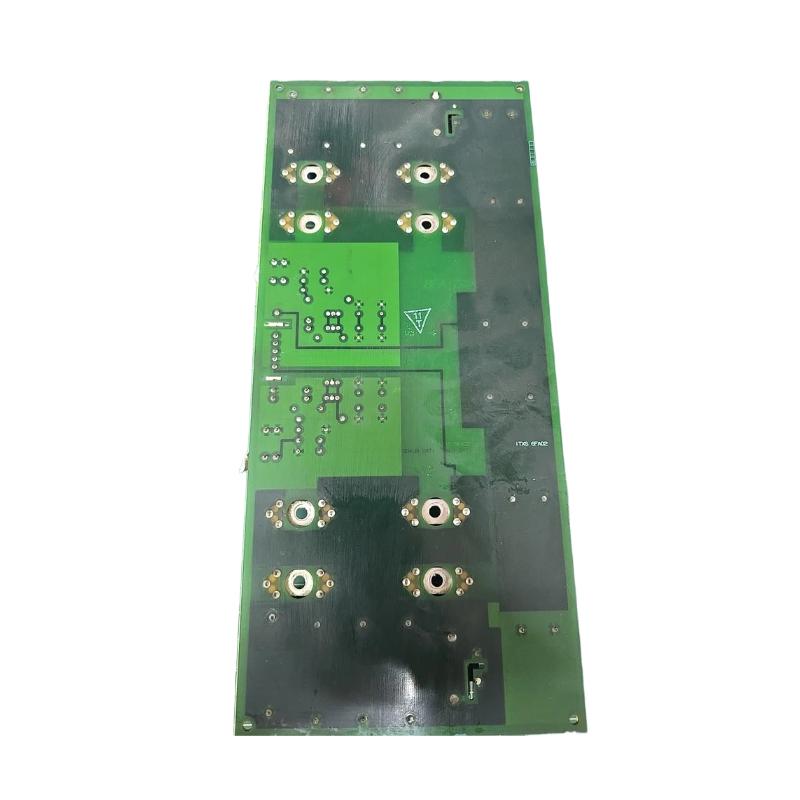

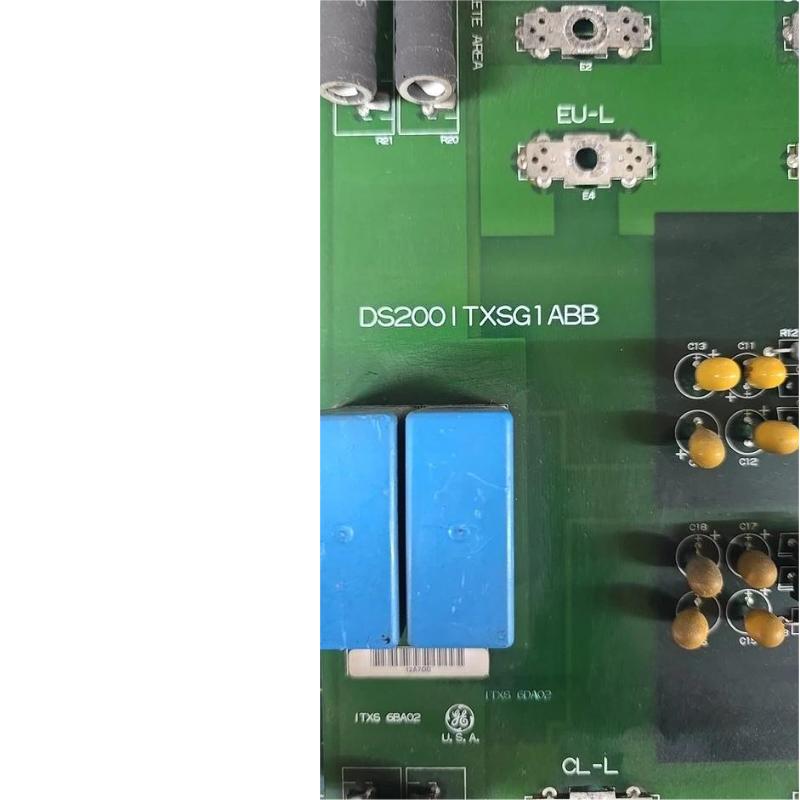

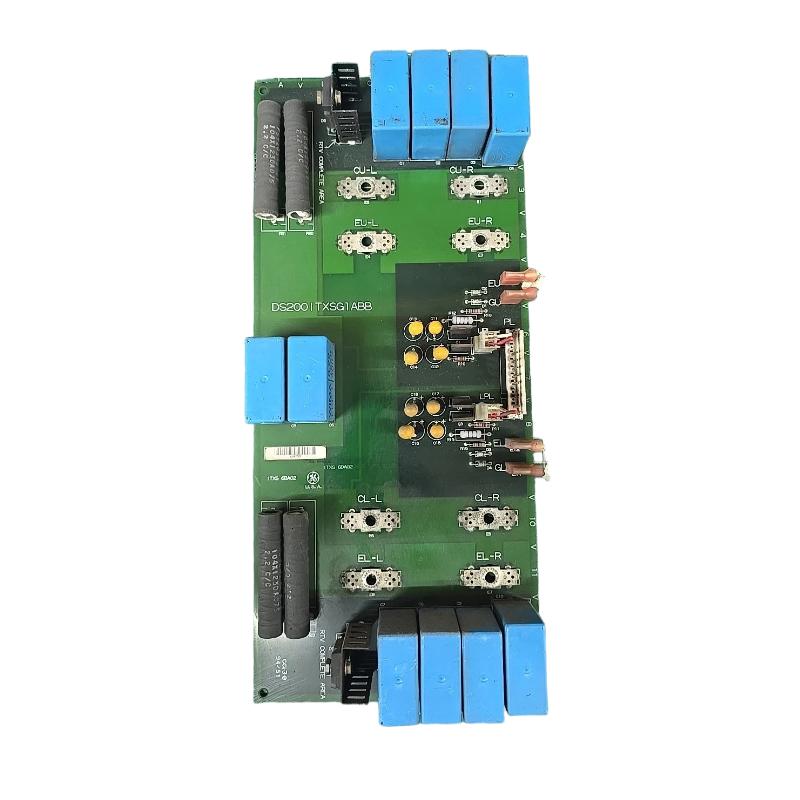

GE DS200ITXSG1ABB Inverter Snubber Board

Brand:GE Fanuc PLC
Item No.:DS200ITXSG1ABB
Product Origin:USA
Product Dimensions:220 × 150 × 35 mm
Product Weight:1.2 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The GE DS200ITXSG1ABB is an inverter-snubber interface board designed for use within GE drive/inverter systems. Its role is to provide protective snubber circuitry — managing switching transients, suppressing voltage spikes, and smoothing waveforms when the inverter power stage switches. This helps protect both the power electronics (SCRs, IGBTs, diodes) and control logic from harmful transients, thereby improving reliability and extending equipment lifespan. This document outlines the board’s expected characteristics from an engineering/system-integration perspective.

Technical Specifications

(Below specifications include estimated physical parameters, based on analogous inverter snubber and interface boards.)

Parameter Specification / Estimated Value
Module Type Inverter Snubber / Protective Interface Board
Model / Part Number DS200ITXSG1ABB
Function Snubber/Transient suppression, waveform damping, protective interface between inverter power stage and control electronics
Application Domain Inverter / drive cabinets, motor drives, industrial power electronics systems
Circuit Features Snubber networks (e.g. RC or RC-snubber circuits), surge suppression, filtering of switching transients
Isolation & Safety PCB design with proper creepage/clearance, reinforced insulation to handle inverter voltages and transient spikes
Connector / Interface Screw or terminal-block connectors for high-voltage/power connections; control-side headers for logic interface
Mounting Method Chassis or rack-mount inside inverter cabinet, secured with appropriate hardware to handle electrical and mechanical stress
Environmental Rating Industrial-grade: designed to withstand vibration, thermal cycling, electrical noise, and transient stress typical in power electronics enclosures
Estimated Dimensions (H × W × D) 220 × 150 × 35 mm
Estimated Weight ≈ 1.2 kg
Construction Materials High-temperature PCB laminate, heavy trace copper or busbars, protective coating and insulation materials

Applications

The DS200ITXSG1ABB board is suited for:

  • Inverter and motor-drive systems where switching transients and voltage spikes are common (e.g. heavy motors, conveyors, industrial drives)

  • Protecting inverter power stage components and downstream control logic from transient stress

  • Retrofit or maintenance of existing GE inverter cabinets requiring snubber protection or board replacement

  • Installations in harsh industrial environments where long-term reliability of power electronics is crucial

  • Systems requiring stable waveform behavior under frequent switching, heavy loads, or fluctuating supply conditions


Advantages

  • Provides effective transient suppression and waveform conditioning, improving inverter reliability

  • Protects sensitive power electronics and control electronics from spikes, surges, and switching noise

  • Modular board design allows focused maintenance or replacement without full inverter overhaul

  • Reinforced PCB layout and insulation ensure safe operation under high-voltage and high-stress conditions

  • Enhances longevity of inverter components and reduces risk of catastrophic failure due to transient stress

  • Supports retrofit and upgrade efforts — easier to integrate into existing cabinets than wholesale replacement

  • Improves electromagnetic compatibility (EMC) performance by suppressing high-frequency noise

  • Offers consistent performance even under heavy load or frequent switching cycles

  • Reduces downtime by isolating transient protection to a discrete module that can be independently serviced

  • Facilitates compliance with industrial safety and electrical standards via proper isolation and protective design

Technical FAQs

  1. What is the main function of DS200ITXSG1ABB?
    It serves as a snubber and transient-suppression board to damp voltage spikes and switching transients in inverter power electronics.

  2. Is this board necessary for all inverter installations?
    It is especially beneficial in installations with high switching frequency, large motors, or significant load changes; in simpler systems, snubber protection might be optional.

  3. Can the board be replaced independently?
    Yes — as a modular board, it can be replaced without replacing the entire inverter assembly, assuming wiring and mount are preserved.

  4. Does it require special enclosure or insulation?
    It should be mounted in an inverter cabinet designed for high-voltage boards, with appropriate insulation and grounding.

  5. Is it sensitive to environmental stress (temperature, vibration)?
    It is designed for industrial environments, with components and construction capable of handling vibration, thermal cycling, and electrical noise.

  6. Does the board include surge protection as well as snubber circuits?
    Yes — typical snubber boards include both RC (or RC + diode) snubber networks and surge suppression elements to mitigate spikes.

  7. Can it help reduce electromagnetic interference (EMI)?
    Yes — by damping switching transients and smoothing voltage/current edges, it reduces high-frequency noise emissions.

  8. Does the board add significant heat generation?
    Snubber components dissipate energy during switching; adequate enclosure ventilation or cooling should be ensured, especially under heavy load.

  9. Is wiring complexity increased compared to a drive without a snubber board?
    Slightly — additional connections for snubber networks or surge suppression may be needed, but the board helps centralize these, reducing overall wiring chaos.

  10. Can this board be used in retrofit projects for older inverter systems?
    Yes — often used as upgrade components to improve reliability and extend lifespan of legacy inverters.
