Introduction

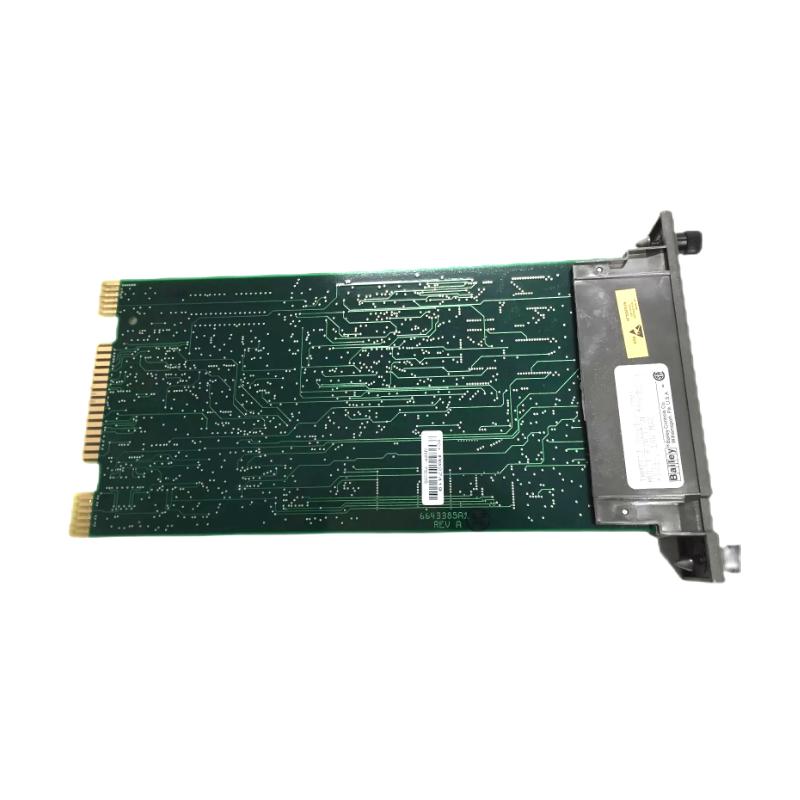

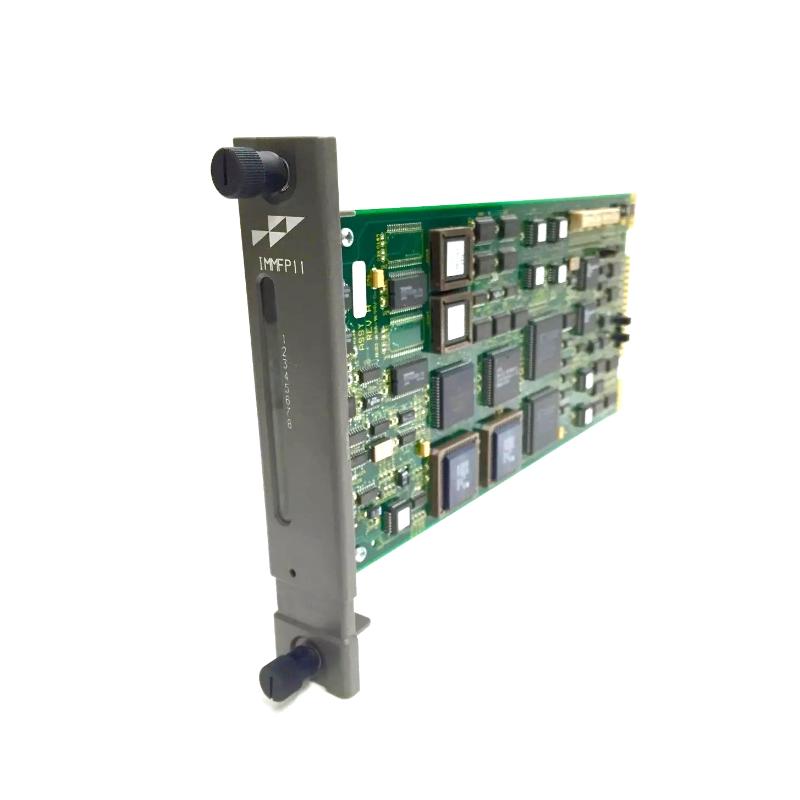

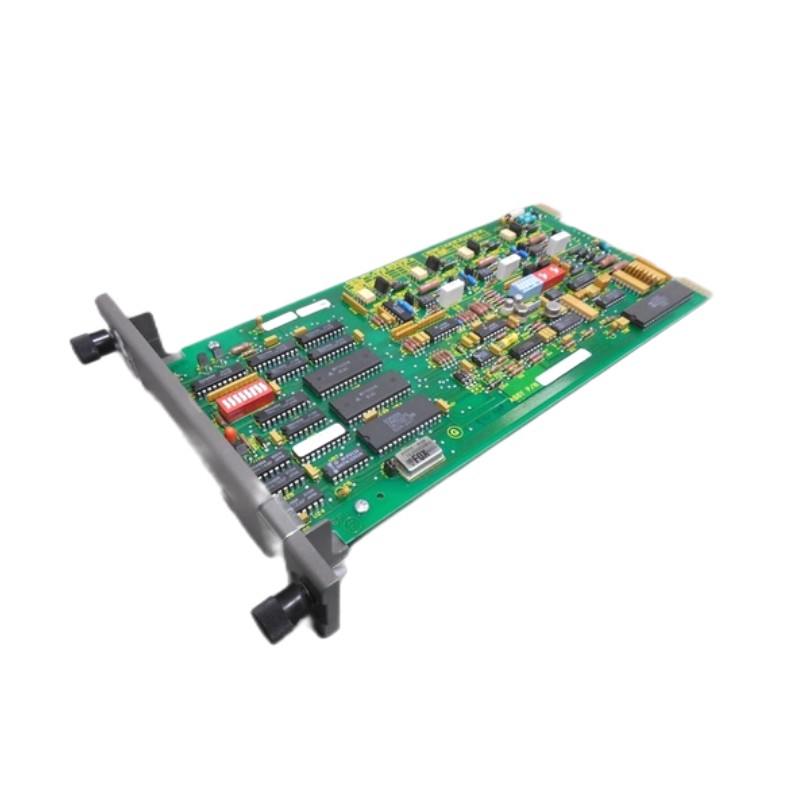

The ABB Bailey IMMFP11 Multi‑Function Controller is a powerful automation core designed to execute a wide range of control, logic, sequencing, and supervisory tasks within advanced Distributed Control Systems (DCS). As a central processing element in ABB Bailey installations, this module integrates real‑time decision‑making with diverse I/O coordination, enabling complex process control with exceptional responsiveness and reliability.
Ideal for scale‑up automation architectures, the IMMFP11 streamlines control strategies across digital, analog, and networked field devices, making it a preferred platform for industries like power generation, petrochemical, refining, and heavy manufacturing.
Technical Specifications
| Specification | Details |
|---|
| Model | IMMFP11 |
| Module Type | Multi‑Function Controller |
| Control Functions | Logic processing, sequencing, interlocks |
| I/O Integration | Supports analog and digital field data |
| Processing Architecture | Real‑time control processing engine |
| Communication | Backplane interface and system network support |
| Memory | Configurable program and system data storage |
| Logic Support | Advanced function blocks and custom control schemes |
| Operating Temperature | -20 °C to +70 °C |
| Power Requirements | Standard Bailey DCS rack power profile |
Applications
The IMMFP11 Multi‑Function Controller is engineered for environments requiring integrated control and networked I/O coordination:
-
Process logic and interlock management in petroleum refining
-
Supervisory control in power generation systems
-
Complex sequencing and alarm processing
-
Coordinated temperature, pressure, and flow control loops
-
Redundant control architectures for critical infrastructure
-
Integration of fieldbus and legacy I/O systems
This module centralizes control insight and accelerates decision execution across diverse automation layers.
Advantages
-
Integrated Control Logic: Executes multiple control tasks within a single module.
-
Real‑Time Decisions: Fast processing supports dynamic operational demands.
-
Flexible I/O Integration: Works seamlessly with digital, analog, and fieldbus interfaces.
-
Scalable and Robust: Suitable for both small and enterprise‑scale automation.
-
Industrial‑Grade Reliability: Designed for continuous operation in demanding environments.
-
Enhanced Diagnostics: Contributes to system health and performance visibility.
The IMMFP11 improves overall automation performance while reducing hardware complexity and system integration time.
Technical FAQs
1. What is the primary purpose of the IMMFP11?
It functions as a central controller for logic, sequencing, and data coordination.
2. Can it handle both analog and digital I/O?
Yes, it integrates and processes diverse signal types.
3. Is it suitable for real‑time control?
Yes, it provides timely execution of control actions.
4. What industries typically use this controller?
Power generation, petrochemical, refining, and industrial manufacturing.
5. How does it connect to the system?
Via the backplane interface and supported network links.
6. What temperature range is it rated for?
It operates from ‑20 °C to +70 °C.
7. Does it support complex control logic?
Yes, it supports advanced logic blocks and sequencing.
8. Can it work in redundant systems?
Yes, it is suited for high‑availability and fault‑tolerant architectures.
9. Does it provide diagnostics?
Yes, it supports performance and health monitoring insights.
10. How does it enhance system flexibility?
By centralizing multiple control tasks in one configurable module.
