Introduction

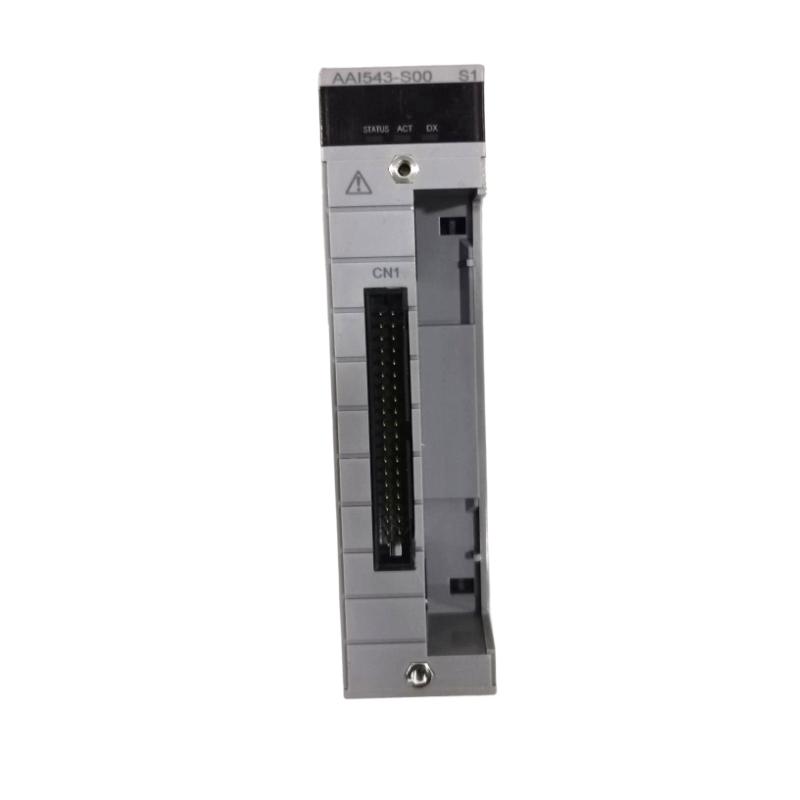

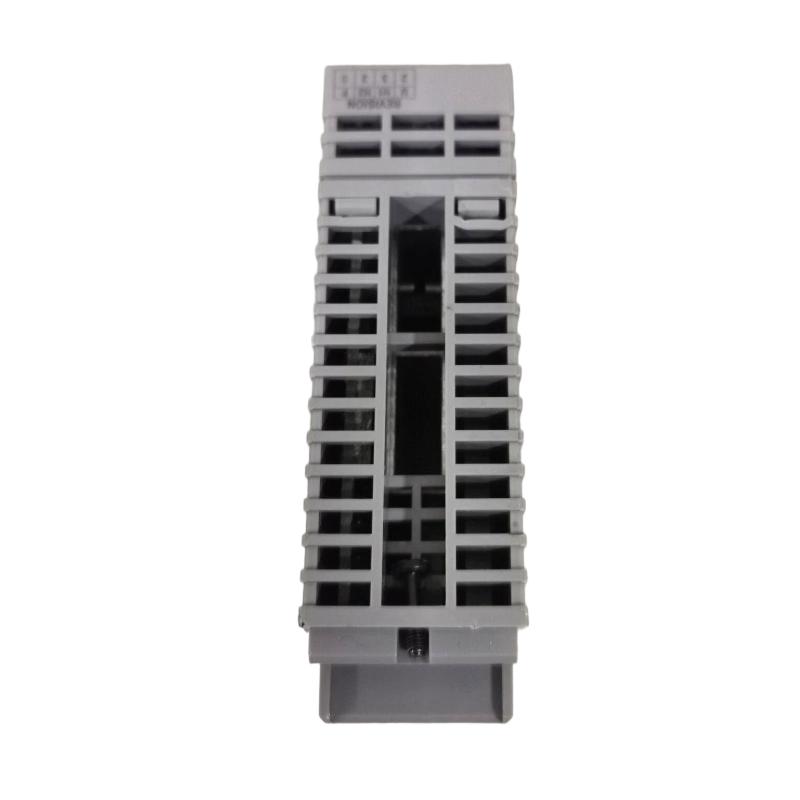

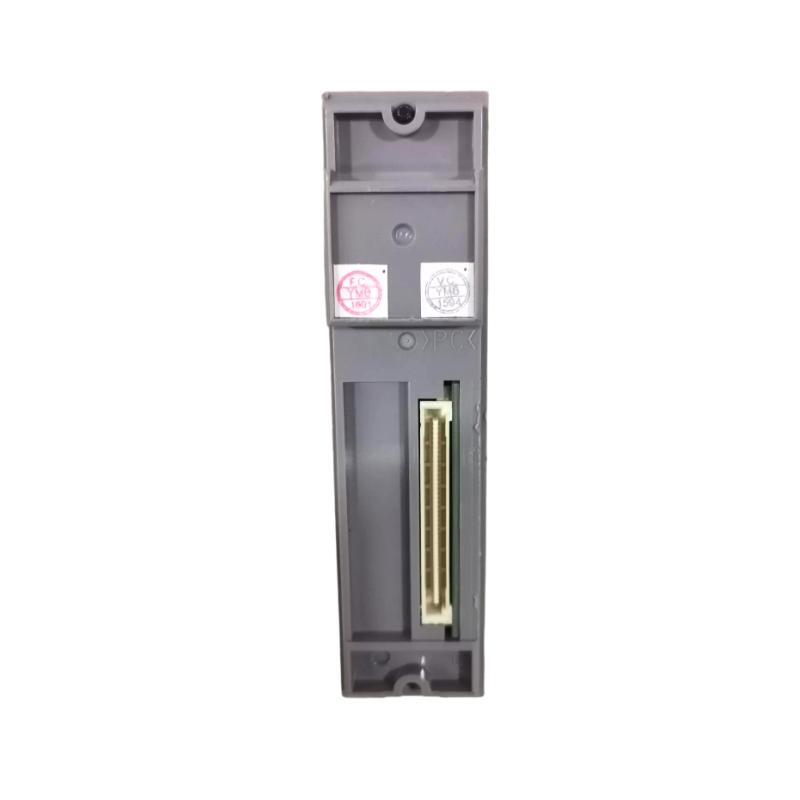

The Yokogawa AAI543-S00 Analog Output Module is designed to offer precise analog control in industrial automation systems. Part of the Yokogawa AAI series, this module converts digital control signals into accurate analog outputs for controlling various field devices such as actuators, valves, and motors. Its high-performance capabilities make it suitable for a wide range of applications, including process control, automation, and energy management.
Used across industries like oil and gas, chemical processing, power generation, and manufacturing, the AAI543-S00 ensures that process variables such as temperature, pressure, and flow are controlled with high precision. This is essential for maintaining operational efficiency and ensuring the reliability of industrial processes.
Technical Specifications
|
Specification |
Details |
|
Model Number |
AAI543-S00 |
|
Type |
Analog Output Module |
|
Dimensions (L × W × H) |
107.5 × 32.8 × 130 mm |
|
Weight |
0.4 kg |
|
Output Channels |
8 (with 16-bit resolution) |
|
Output Type |
Voltage, Current |
|
Output Range |
±10 V, 4-20 mA |
|
Power Supply |
24 V DC |
|
Accuracy |
±0.1% of full scale |
|
Isolation |
1500 V AC (Output to Input) |
|
Mounting Type |
DIN Rail |
Applications
The Yokogawa AAI543-S00 Analog Output Module finds use in various critical applications, including:
-
Process Control: It is used to control actuators and valves in chemical plants, pharmaceuticals, and refineries, ensuring that essential processes are maintained with high accuracy.
-
Energy Generation: The module plays a key role in power generation systems, controlling devices like turbines and generators, helping to maintain efficiency and safety across operations.
-
Manufacturing Automation: In automated manufacturing, it is used to control production equipment such as conveyors, robotic arms, and sorting systems, ensuring smooth operations and high productivity.
-
Oil & Gas: Deployed in oil fields, refineries, and pipeline systems, the module is essential for monitoring and controlling flow rates, pressure, and other key parameters to ensure operational safety.
-
HVAC Control: In HVAC systems, the AAI543-S00 is used to regulate temperature and humidity, ensuring optimal comfort in commercial and industrial environments while improving energy efficiency.
Advantages
The Yokogawa AAI543-S00 Analog Output Module offers several advantages that make it an ideal choice for industrial applications:
-
High Accuracy: With an accuracy of ±0.1%, the module provides precise output, essential for controlling sensitive industrial processes where accuracy is critical.
-
Versatile Output Types: The module supports both voltage (±10 V) and current (4-20 mA) outputs, making it compatible with a wide range of control devices.
-
Robust Isolation: Featuring 1500 V AC isolation between output and input, this module provides protection against electrical surges, improving the safety and longevity of connected equipment.
-
Compact Design: The AAI543-S00 is designed with a compact footprint, making it an ideal solution for installations in limited spaces, without compromising on performance.
-
Easy Integration: The DIN Rail mounting system simplifies installation and integration into existing control systems, reducing downtime during setup.
