Introduction

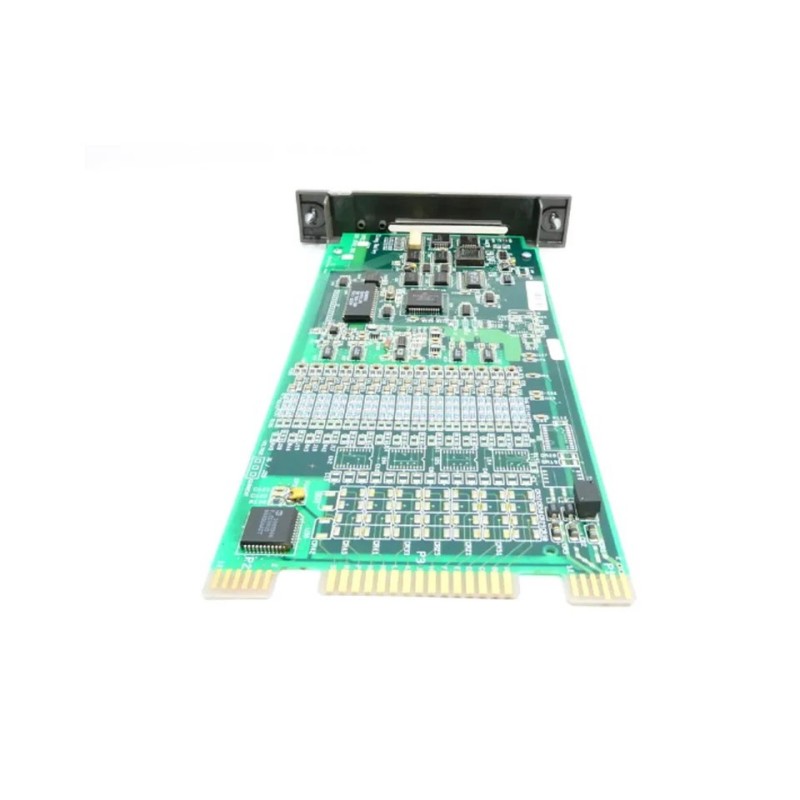

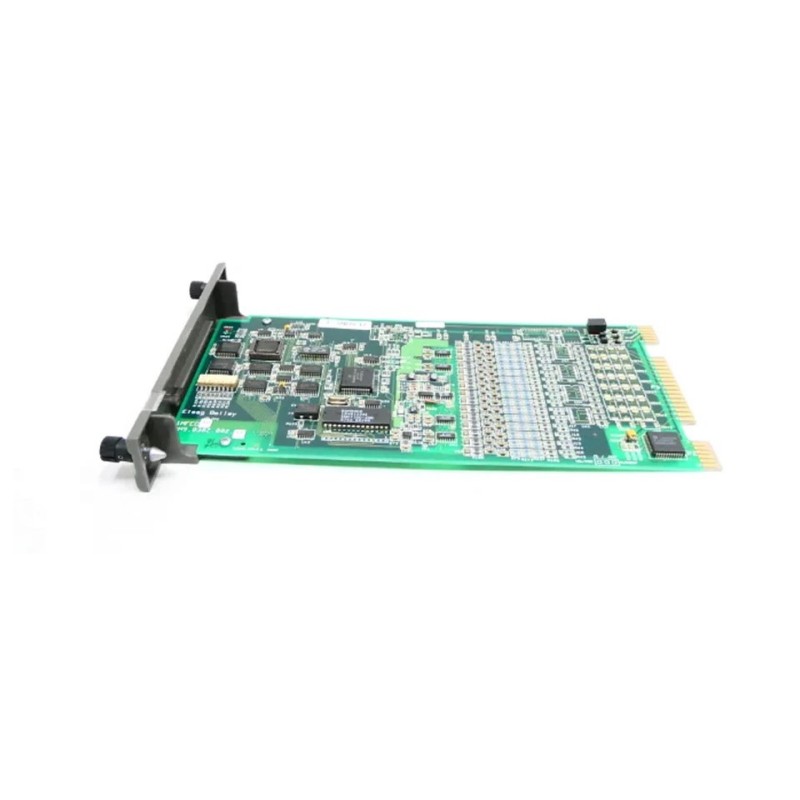

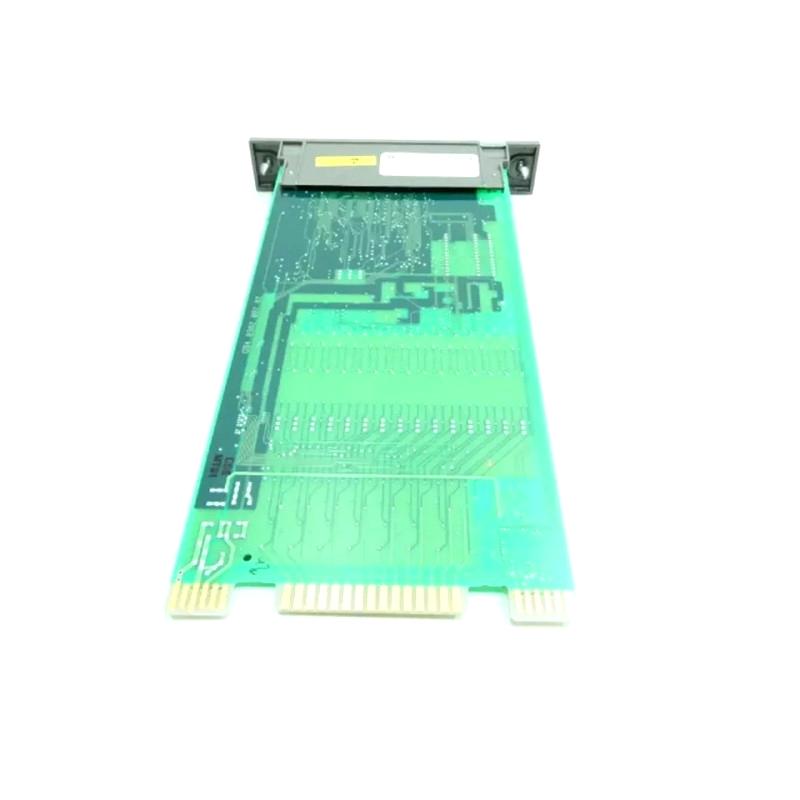

The ABB Bailey IMFEC12 Analog Input Module is a high‑integrity interface unit designed to capture and condition analog signals from field instrumentation within distributed control systems (DCS). Engineered for demanding industrial environments, this module converts real‑world signals such as current (mA) and voltage (V) into precise digital data for process controllers.
By ensuring accurate and reliable analog data acquisition, the IMFEC12 enhances system awareness and supports optimized control responses. Its modular design makes it well‑suited for scalable installations, from power plants and petrochemical facilities to water/wastewater and manufacturing environments.
Technical Specifications
| Specification | Details |
|---|
| Model | IMFEC12 |
| Module Type | Analog Input Module |
| Input Channels | Multiple isolated analog input channels |
| Supported Signals | Voltage (±10V), Current (4–20 mA, 0–20 mA) |
| Resolution | High‑resolution ADC for accurate measurement |
| Input Impedance | High impedance to minimize signal load |
| Isolation | Galvanic isolation per input group |
| Communication Interface | Backplane connection to Bailey DCS rack |
| Response Time | Fast sampling for real‑time data capture |
| Operating Temperature | -20°C to +70°C |
| Power Consumption | Low‑power industrial design |
Applications
The IMFEC12 Analog Input Module is ideal for accurate analog signal acquisition in industrial automation and process control systems:
-
Reading process variables from pressure, temperature, and flow transmitters
-
Monitoring level, pH, conductivity, or other process analog signals
-
Feedback from industrial sensors for control loops
-
Input to safety logic, alarms, and interlocks
-
Distributed analog I/O expansion in DCS architectures
-
Integration in power, petrochemical, pharmaceutical, and waste treatment plants
Its ability to deliver stable and dependable analog measurements supports precise control strategies across complex systems.
Advantages
-
High‑Accuracy Measurement: Converts field analog signals into stable digital data for controllers.
-
Multiple Isolated Channels: Galvanic isolation enhances signal integrity and reduces electrical interference.
-
Flexible Signal Support: Handles both current and voltage inputs from standard industrial sensors.
-
Seamless DCS Integration: Designed for direct backplane connectivity into ABB Bailey racks.
-
Fast Response Sampling: Enables real‑time process feedback for dynamic control.
-
Compact Industrial Design: Space‑efficient module suited for rack installations.
-
Robust Operation: Reliable performance across a wide industrial temperature range.
The IMFEC12 makes analog data acquisition predictable and dependable, elevating overall automation performance.
Technical FAQs
1. What signals does the IMFEC12 support?
It supports common industrial analog signals including 4–20 mA and ±10V voltage levels.
2. How many analog inputs does it have?
It offers multiple isolated input channels; exact count depends on module configuration.
3. Is electrical isolation provided?
Yes — galvanic isolation is included per input group to protect signal integrity.
4. What industries use this module?
Power generation, petrochemical, water treatment, process manufacturing, and automation.
5. What is the operating temperature range?
It operates reliably from -20°C to +70°C.
6. Is it suitable for high‑speed measurements?
Yes — fast sampling enables real‑time process monitoring.
7. Does it integrate with Bailey DCS racks?
Yes — it connects directly via the Bailey backplane interface.
8. Can it be used for safety logic input?
Yes — analog measurements can feed into interlocks and alarm systems.
9. What is the benefit of galvanic isolation?
It reduces noise and protects the control system from electrical interference.
10. How does it improve control accuracy?
By delivering high‑resolution, stable analog measurements for precise control decisions.
