Introduction

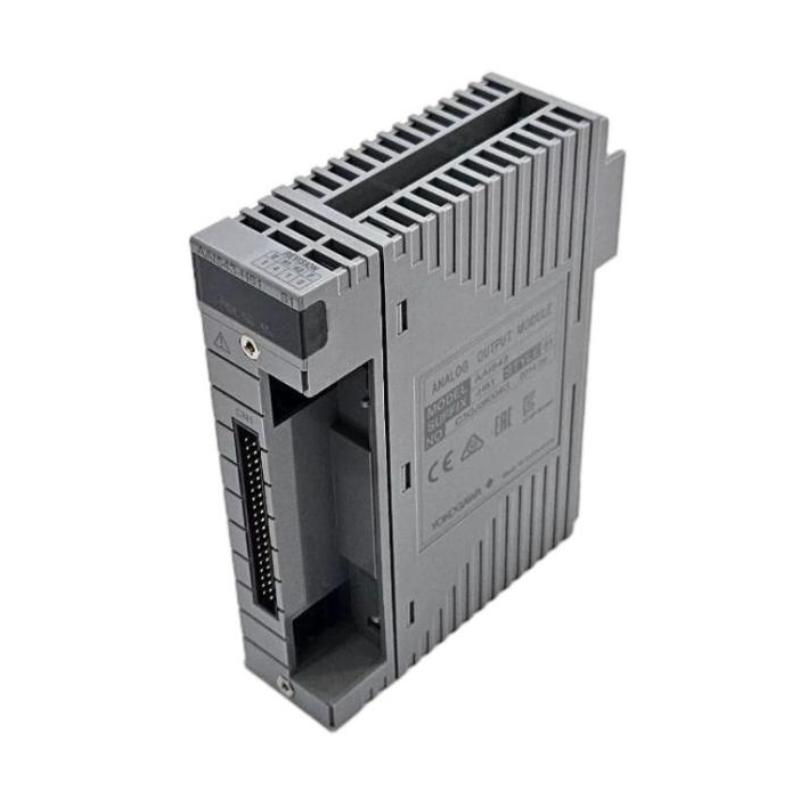

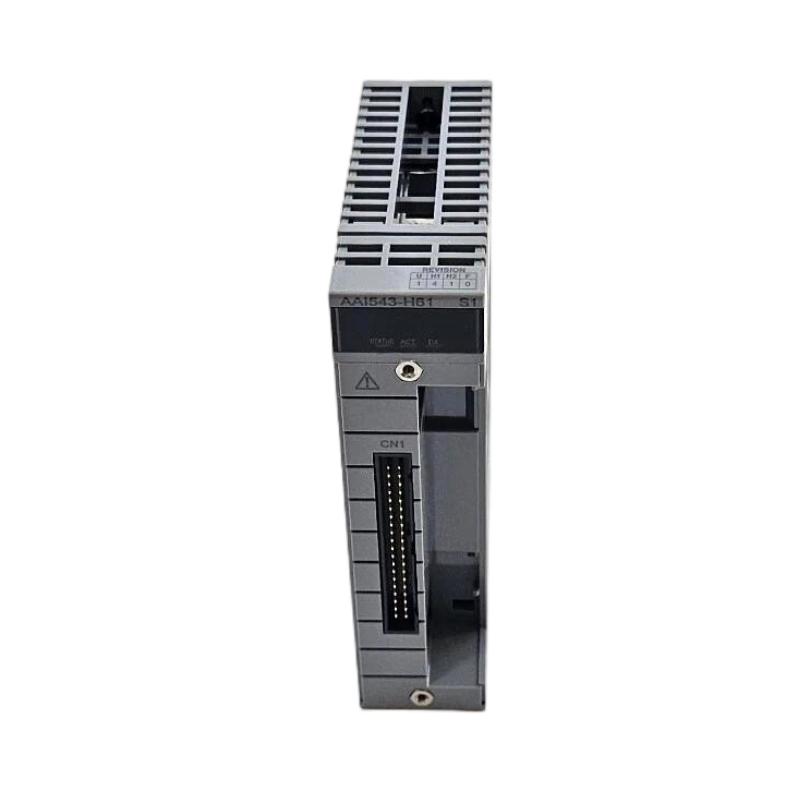

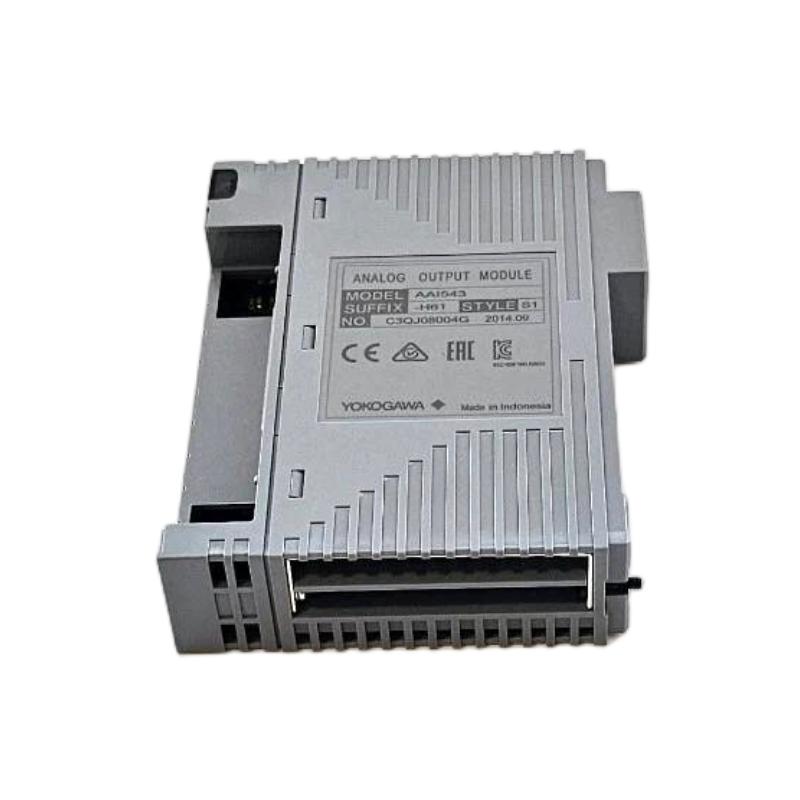

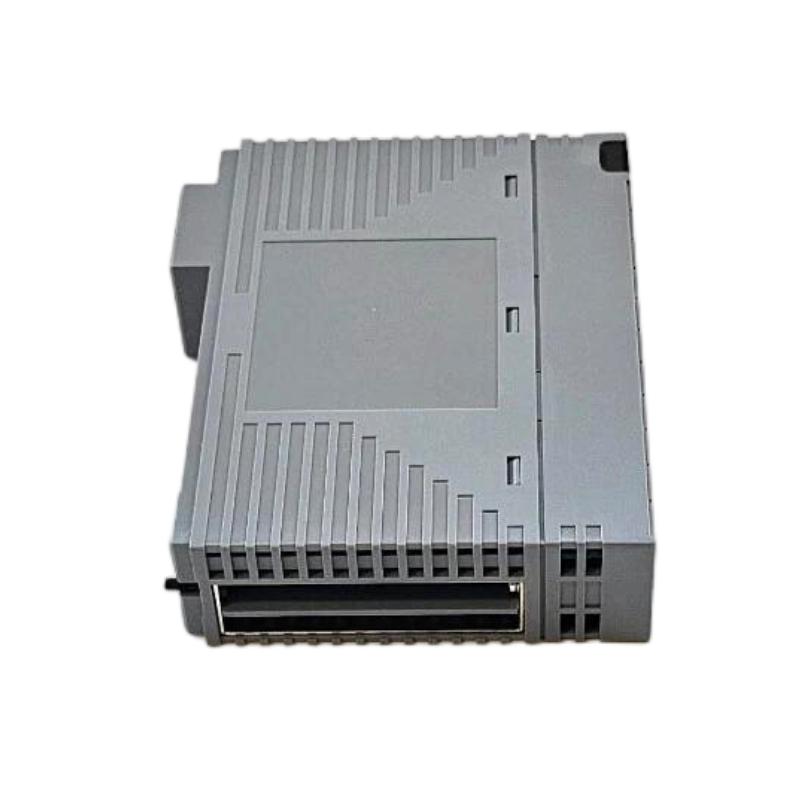

The Yokogawa AAI543-H60 Analog Output Module is designed to provide high-performance signal conversion in industrial automation systems. With precise analog output control, it plays a critical role in the regulation of various processes, making it suitable for applications that require both high reliability and accuracy. This module is part of the Yokogawa AAI series, known for its robust design and compatibility with a wide range of industrial systems.
In industries like oil and gas, chemical processing, power generation, and manufacturing, accurate and reliable analog signal transmission is essential. The AAI543-H60 module ensures seamless communication between the control system and field devices, helping operators to maintain optimal control over process variables.
Technical Specifications
|
Specification |
Details |
|
Model Number |
AAI543-H60 |
|
Type |
Analog Output Module |
|
Dimensions (L × W × H) |
107.5 × 32.8 × 130 mm |
|
Weight |
0.4 kg |
|
Output Channels |
8 (with 16-bit resolution) |
|
Output Type |
Voltage, Current |
|
Output Range |
±10 V, 4-20 mA |
|
Power Supply |
24 V DC |
|
Accuracy |
±0.1% of full scale |
|
Isolation |
1500 V AC (Output to Input) |
|
Mounting Type |
DIN Rail |
Applications
The Yokogawa AAI543-H60 Analog Output Module is highly suitable for a variety of industrial applications:
-
Process Control: It is used to control actuators and valves in chemical processing, petrochemical, and pharmaceutical industries, ensuring consistent and accurate process control.
-
Power Generation: The module ensures reliable output control for turbines, generators, and other power plant equipment, maintaining operational efficiency and stability.
-
Manufacturing: In automated manufacturing systems, the module helps in controlling production line equipment like robotic arms, conveyors, and other automated machinery, ensuring smooth and efficient operations.
-
Oil & Gas: The AAI543-H60 module is deployed in oil rigs, refineries, and pipeline systems to manage critical operations like flow rate control and pressure monitoring, ensuring safe and optimized performance.
-
HVAC: In HVAC systems, the module provides precise control for environmental conditions, such as temperature and humidity, in buildings, factories, and warehouses, optimizing comfort and energy consumption.
Advantages
The Yokogawa AAI543-H60 Analog Output Module offers several advantages that make it a preferred choice for industrial control systems:
-
High Accuracy: The module delivers ±0.1% accuracy, ensuring precise and consistent analog output, which is essential for reliable control in sensitive industrial applications.
-
Versatile Output Options: The module can output both voltage (±10 V) and current (4-20 mA), providing flexibility to interface with a wide variety of devices.
-
Robust Isolation: With 1500 V AC isolation between the output and input, the module offers enhanced protection against electrical surges, improving the durability of the connected devices.
-
Compact Size: The AAI543-H60 features a space-saving design, making it ideal for installation in tight control panels or environments where space is limited.
-
Ease of Installation: The DIN Rail mounting option simplifies the integration of the module into existing control systems, reducing setup time and ensuring secure installation.
