Introduction

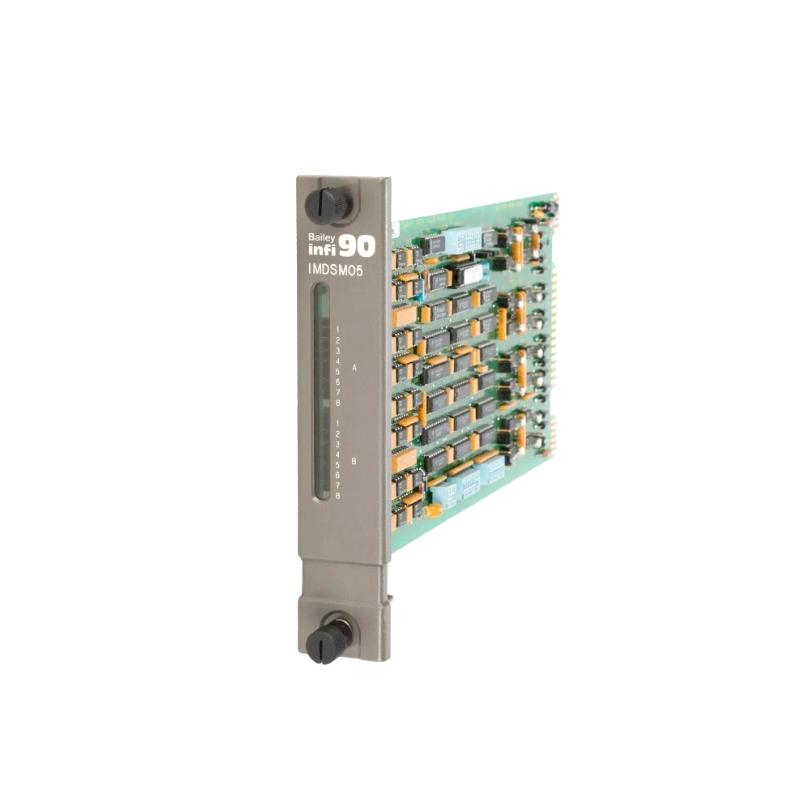

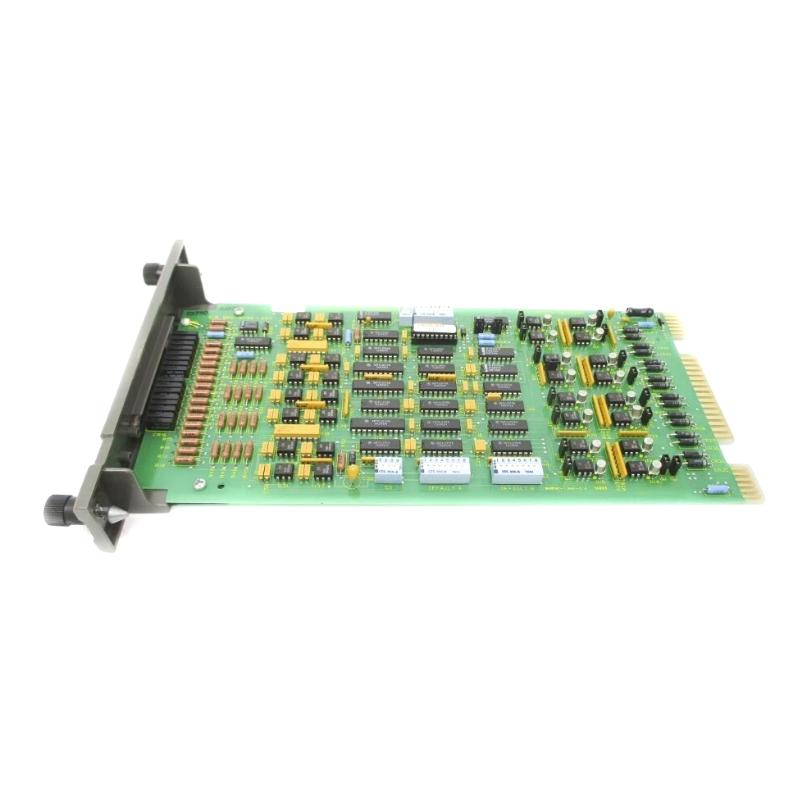

The ABB Bailey IMDSM05 Pulse Input Slave Module is a specialized interface module designed for accurate acquisition of pulse‑based signals from field devices in distributed control systems (DCS). It captures high‑speed digital pulse inputs—such as frequency, count, or rate signals—and converts them into conditioned data suitable for process logic and control applications.
Engineered for reliability in harsh industrial environments, the IMDSM05 supports critical monitoring tasks such as flow totalization, speed measurement, and event counting. Its robust design ensures stable, interference‑free performance, making it an essential component in power generation, chemical plants, water/wastewater systems, manufacturing automation, and other mission‑critical installations.
Technical Specifications
| Specification | Details |
|---|
| Model | IMDSM05 |
| Module Type | Pulse Input Slave Module |
| Input Channels | Multiple isolated pulse inputs |
| Pulse Type | Frequency, count, and rate detection |
| Input Signal Range | Standard industrial digital pulse levels |
| Maximum Pulse Frequency | High‑speed acquisition capability |
| Isolation | Channel‑to‑system galvanic isolation |
| Communication Interface | Backplane interface to Bailey DCS rack |
| Operating Temperature | -20°C to +70°C |
| Power Consumption | Low power design |
Applications
The IMDSM05 module excels in applications that require reliable pulse signal measurement and conversion to actionable data:
-
Flowmeter pulse counting (positive displacement, turbine, vortex, etc.)
-
Speed or RPM measurement from encoder or tachometer signals
-
Frequency monitoring in rotating machinery
-
Event counting for batch and process sequencing systems
-
Monitoring digital pulse outputs from field instrumentation
-
Integration with safety or alarm logic in industrial control systems
It helps ensure precise pulse acquisition for both real‑time control actions and historical logging.
Advantages
-
High‑Speed Pulse Capture: Detects and conditions fast pulse signals with precision.
-
Multiple Isolated Channels: Supports several independent pulse inputs with galvanic isolation.
-
Rugged Industrial Design: Reliable performance under harsh environmental conditions.
-
Seamless System Compatibility: Designed for ABB Bailey DCS backplane integration.
-
Supports Diverse Pulse Sources: Handles frequency, count, and rate signals.
-
Low Power Operation: Efficient module design for rack systems.
-
Enhanced Monitoring Accuracy: Improves data quality for control and reporting.
This module elevates system capability by providing accurate, high‑speed pulse input acquisition for automation and control applications.
Technical FAQs
1. What types of signals does the IMDSM05 capture?
It captures digital pulse signals such as count, frequency, and rate.
2. How many pulse inputs does it support?
Multiple isolated pulse channels (exact count depends on configuration).
3. Does it provide electrical isolation?
Yes, galvanic isolation is included to protect signal integrity.
4. What industries typically use this module?
Power generation, petrochemical, water treatment, and manufacturing automation.
5. Can it measure high‑speed pulses?
Yes, it is designed for high‑speed pulse acquisition.
6. What communication interface does it use?
It connects to the control system via the Bailey DCS backplane interface.
7. What applications is it suited for?
Flow totalization, frequency measurement, event counting, and speed monitoring.
8. What is the operating temperature range?
From -20°C to +70°C.
9. Does it require external signal conditioning?
No, the module includes conditioning for standard industrial pulse signals.
10. How does it improve system performance?
By providing accurate and fast pulse signal acquisition for real‑time control and monitoring.
