Introduction

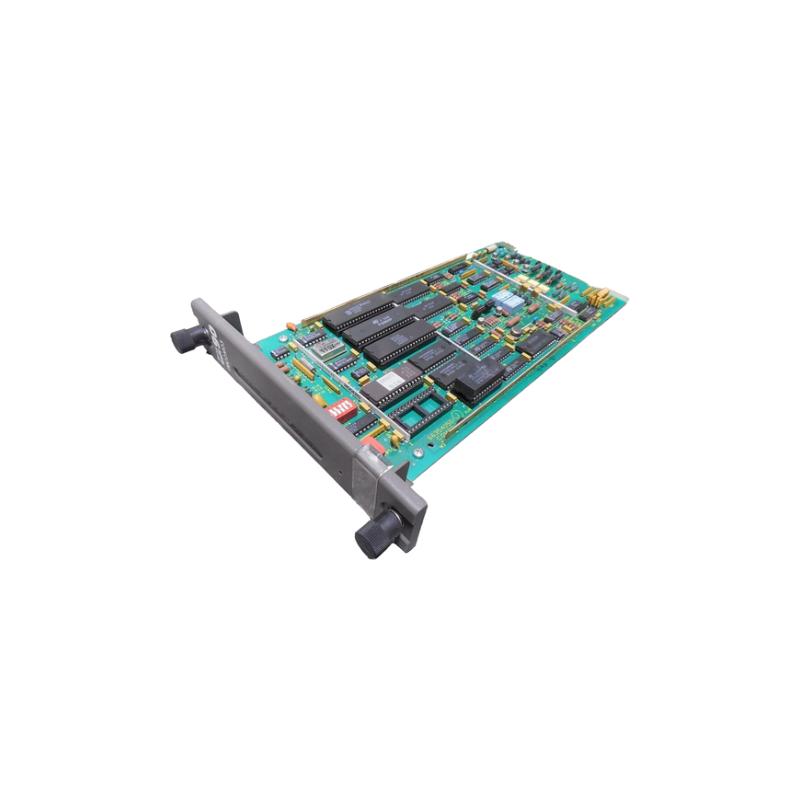

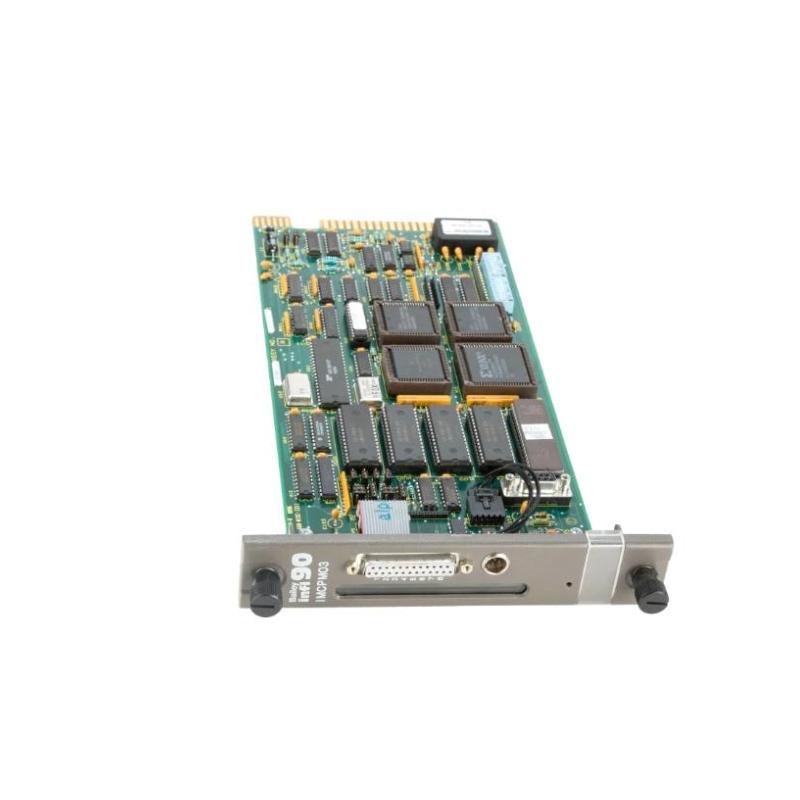

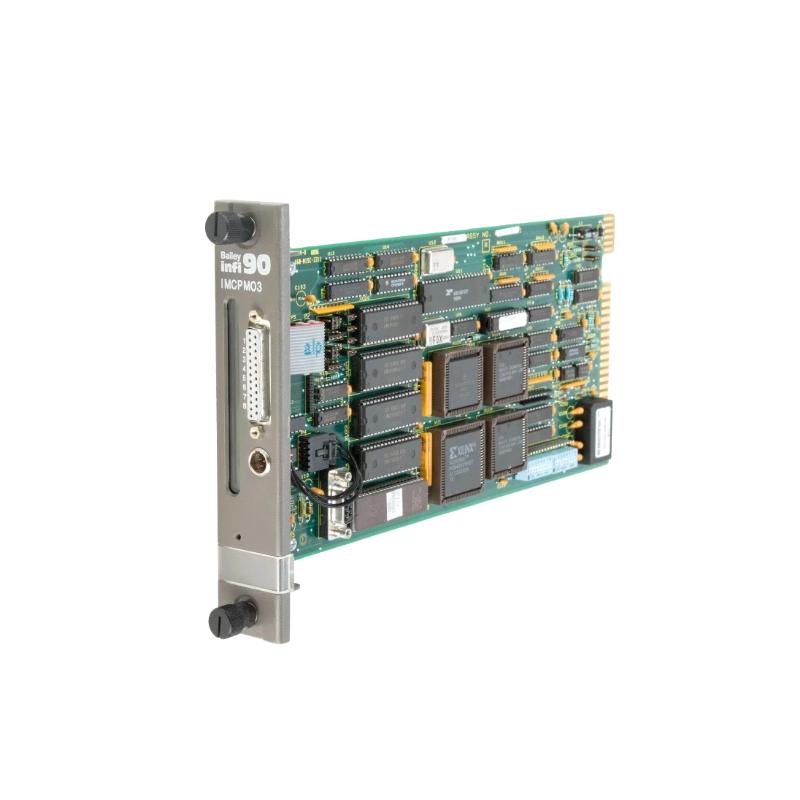

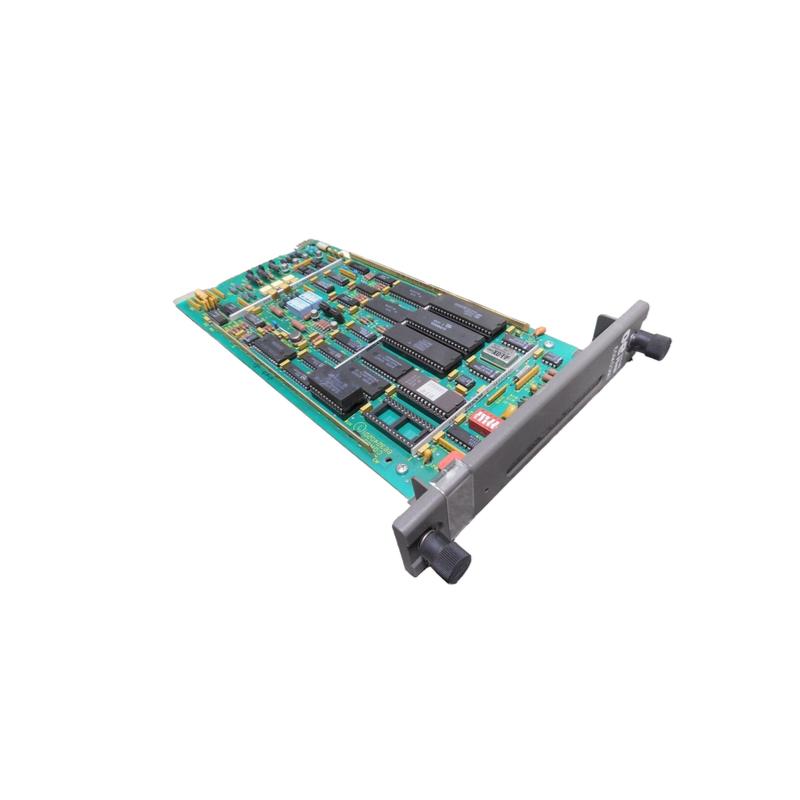

The ABB Bailey IMCPM03 Configuration Port Module is a high-performance interface module designed for managing communication and configuration of ports in Bailey Distributed Control Systems (DCS). It provides engineers with a reliable means to configure, monitor, and manage data flow between field devices, input/output modules, and central controllers.
Designed for industrial-grade environments, the IMCPM03 ensures robust signal integrity, reduces configuration errors, and supports seamless integration of new devices. Its functionality enhances overall system reliability and allows for real-time port adjustments, making it ideal for power plants, chemical processing facilities, and manufacturing automation systems.
Technical Specifications
| Parameter | Details |
|---|
| Model | IMCPM03 |
| Module Type | Configuration Port Module |
| Function | Port configuration, monitoring, and interface management |
| Supported Ports | Digital, Analog, and Control Bus Interfaces |
| Communication Interface | Serial, backplane bus, and network connectivity |
| Operating Temperature | -20°C to +70°C |
| Supply Voltage | Standard Bailey backplane voltage |
| Isolation | Galvanic isolation for port protection |
| Rack Compatibility | ABB Bailey DCS racks |
Applications
The IMCPM03 is used in industrial systems where accurate configuration and management of communication ports are critical:
-
Configuring analog and digital ports in Bailey DCS racks
-
Centralized management of I/O signal routing
-
Process control in power generation and petrochemical plants
-
Real-time system diagnostics and port adjustments
-
Integration of new devices without disrupting existing systems
-
Redundant control system setups for critical operations
It ensures accurate port assignments and reliable communication across the control network.
Advantages
-
Centralized Port Configuration: Simplifies setup and reduces errors.
-
Supports Multiple Interfaces: Handles analog, digital, and control bus signals.
-
Robust Industrial Design: Reliable in harsh environmental conditions.
-
Seamless Integration: Fits into existing Bailey DCS racks without modification.
-
Galvanic Isolation: Protects communication channels from interference.
-
Real-Time Adjustments: Enables dynamic reconfiguration without downtime.
-
Supports Redundancy: Compatible with failover configurations in critical systems.
The IMCPM03 gives engineers control over port management, improving operational flexibility and system stability.
Technical FAQs
1. What is the purpose of the IMCPM03?
It configures, monitors, and manages communication ports in Bailey DCS systems.
2. Which port types are supported?
Digital, analog, and control bus interfaces.
3. Is it compatible with legacy Bailey DCS racks?
Yes, it integrates seamlessly with existing ABB Bailey racks.
4. Does it provide isolation between ports?
Yes, galvanic isolation ensures communication integrity.
5. Can it support redundant system configurations?
Yes, it is designed to work in failover setups.
6. What is the operating temperature range?
-20°C to +70°C.
7. How does it simplify system configuration?
By centralizing port management and reducing manual wiring or setup errors.
8. Can ports be reconfigured in real time?
Yes, adjustments can be made without system downtime.
9. Which industries typically use this module?
Power generation, petrochemical, heavy industry, and process automation.
10. How does it improve system reliability?
By ensuring accurate port assignments and protecting communication pathways.
