Introduction

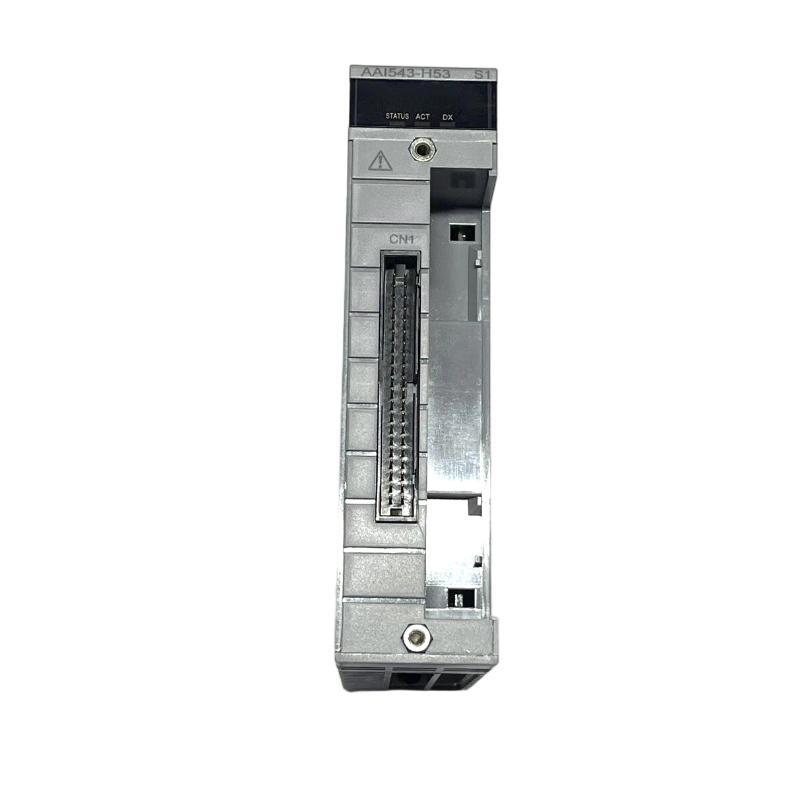

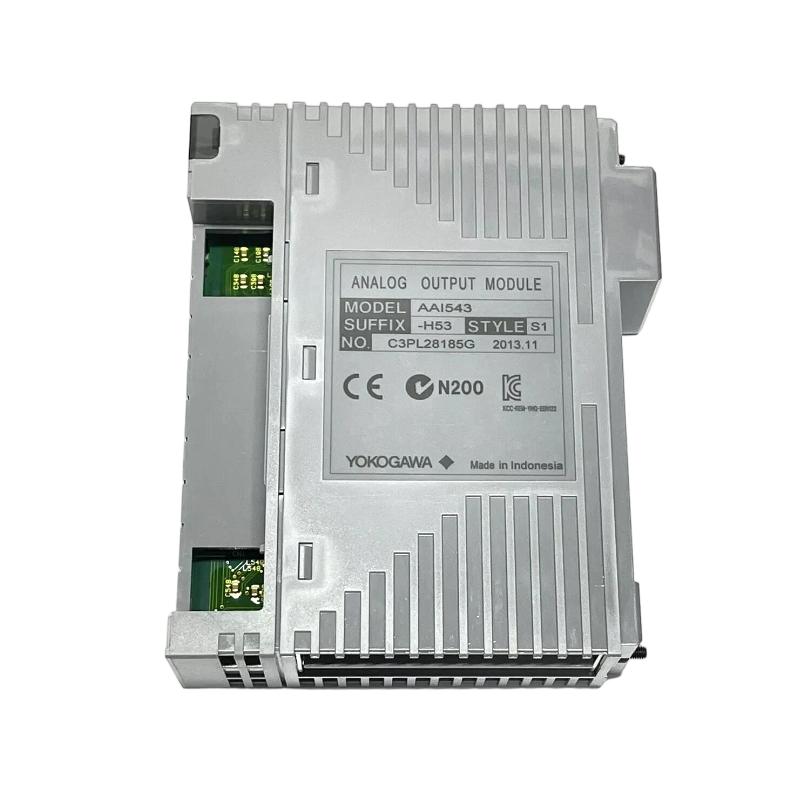

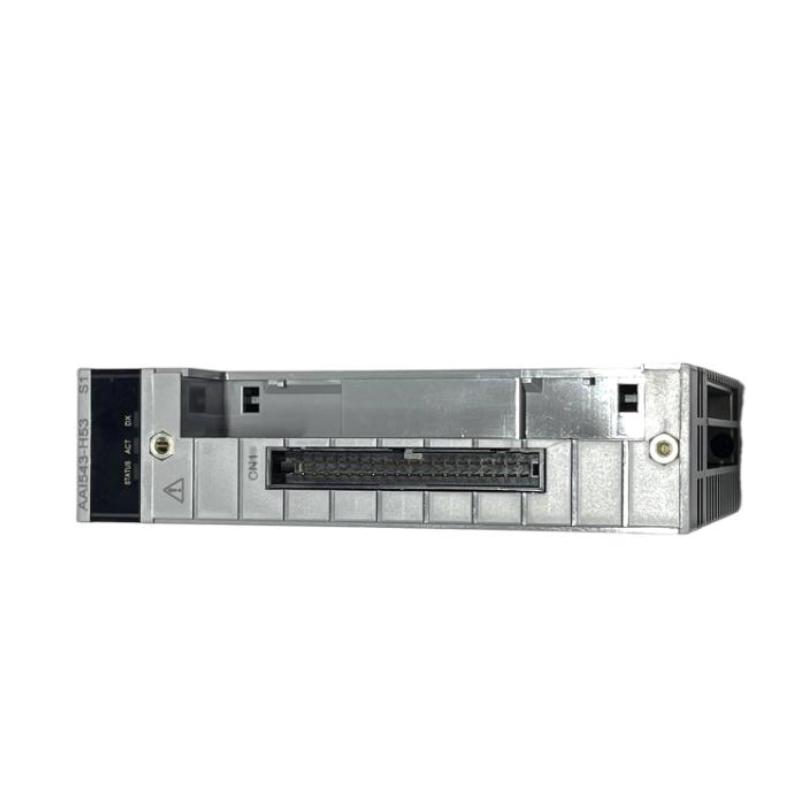

The Yokogawa AAI543-H53 Analog Output Module is an essential component for controlling analog devices in industrial automation systems. Designed to seamlessly interface with various control systems, this module accurately converts digital signals into reliable analog outputs. Whether used for controlling valves, actuators, or motors, the AAI543-H53 ensures that process variables like temperature, pressure, and flow are regulated with precision.
Part of the Yokogawa AAI series, this module is specifically engineered for industries that require dependable performance under demanding conditions. Its versatile output options make it ideal for integration in chemical plants, oil and gas refineries, energy generation, and manufacturing systems.
Technical Specifications
|
Specification |
Details |
|
Model Number |
AAI543-H53 |
|
Type |
Analog Output Module |
|
Dimensions (L × W × H) |
107.5 × 32.8 × 130 mm |
|
Weight |
0.4 kg |
|
Output Channels |
8 (with 16-bit resolution) |
|
Output Type |
Voltage, Current |
|
Output Range |
±10 V, 4-20 mA |
|
Power Supply |
24 V DC |
|
Accuracy |
±0.1% of full scale |
|
Isolation |
1500 V AC (Output to Input) |
|
Mounting Type |
DIN Rail |
Applications
The Yokogawa AAI543-H53 Analog Output Module is widely used across industries where precise control over analog output is required:
-
Process Automation: It plays a crucial role in controlling actuators and other devices that regulate physical processes, such as temperature and pressure control in chemical plants and refineries.
-
Energy and Power: In power generation plants, this module provides highly accurate signals to control turbines, generators, and other equipment, ensuring smooth operation and energy efficiency.
-
Manufacturing Automation: It is used in automated manufacturing systems to control robotic arms, conveyor belts, and other production line devices, ensuring that processes run with high precision and minimal downtime.
-
Oil & Gas: The module is deployed in oil rigs and pipelines, controlling critical processes and monitoring parameters such as flow and pressure in real-time, ensuring safety and efficiency.
-
HVAC Systems: In HVAC applications, the AAI543-H53 controls environmental conditions, including temperature and humidity, in commercial and industrial settings, ensuring optimal comfort and efficiency.
Advantages
The Yokogawa AAI543-H53 Analog Output Module offers several benefits that make it a top choice for industrial automation:
-
High Precision: With ±0.1% accuracy, the module ensures that the analog output signals are precise, providing highly reliable control for industrial processes.
-
Versatile Output Options: The module supports both voltage (±10 V) and current (4-20 mA) outputs, which makes it adaptable to various applications and control systems.
-
Enhanced Isolation: Featuring 1500 V AC isolation between the output and input, this module safeguards connected devices from electrical surges and reduces the risk of equipment damage.
-
Compact and Durable Design: The AAI543-H53 is designed with a compact footprint, ideal for environments where space is limited. It is also built to withstand harsh industrial conditions, ensuring long-term reliability.
-
Easy Installation: The DIN Rail mounting feature allows for straightforward installation in control panels, simplifying the integration process into existing control systems.
