Overview

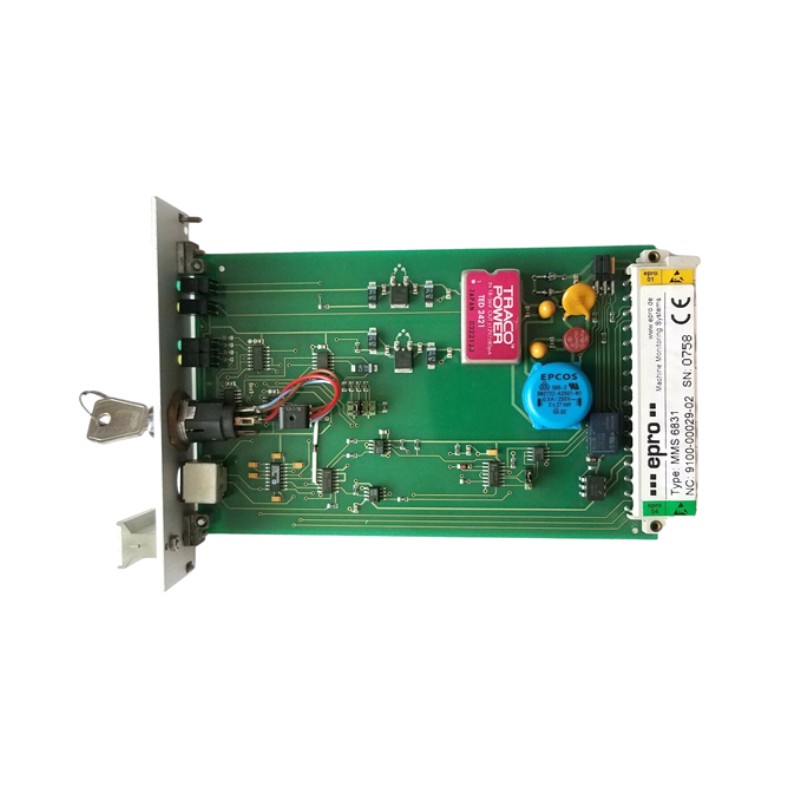

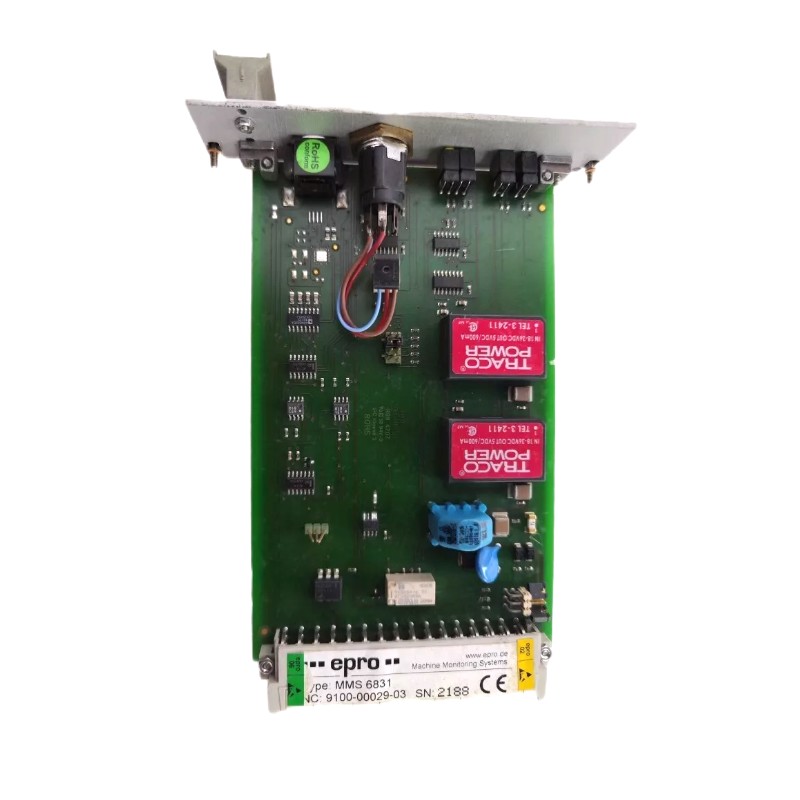

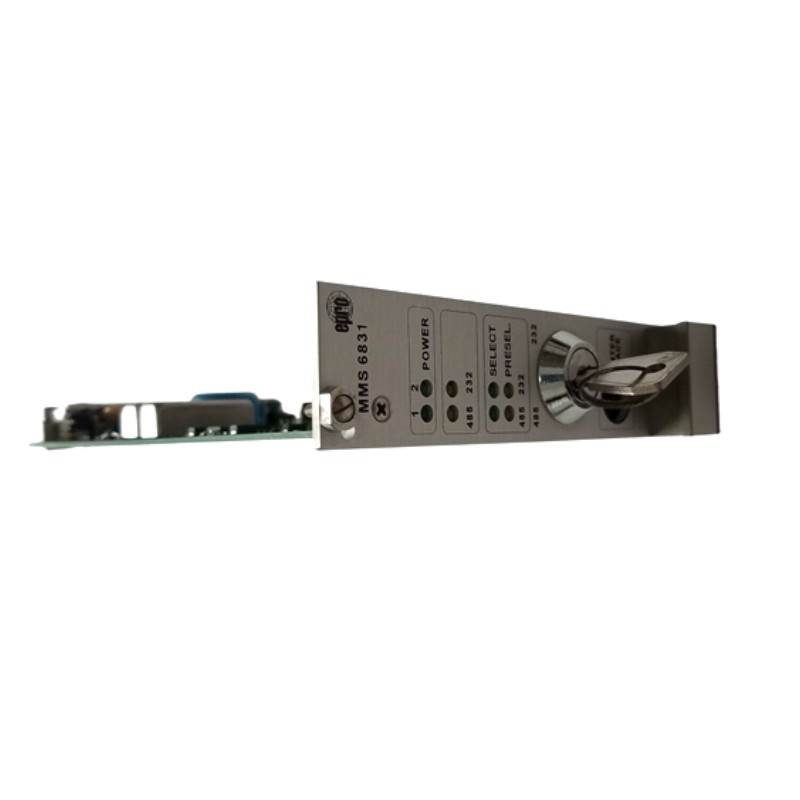

The MMS6831 9100-00029-03 Interface Card is a versatile communication module designed to bridge critical monitoring devices within industrial protection systems. Engineered for high-reliability applications, it provides seamless data transfer between displacement monitors, vibration sensors, and centralized machinery protection systems.
This interface card enables secure, real-time communication while maintaining signal integrity, ensuring that operators have accurate and timely information for decision-making. Compact yet robust, the MMS6831 is ideal for turbine protection racks, compressors, and other high-speed industrial equipment where reliable data exchange is essential.
Technical Specifications
| Parameter | Details |
|---|
| Model | MMS6831 9100-00029-03 |
| Function | Interface Card for Machinery Protection Systems |
| Communication Ports | RS485 / RS232 / Ethernet |
| Protocol Support | Modbus RTU, ASCII, TCP/IP |
| Compatible Modules | Displacement and Vibration Monitors |
| Operating Temperature | -20°C to +60°C |
| Supply Voltage | 18–31.2 VDC |
| Rack Compatibility | MMS6000 / IMR6000 Systems |
Applications
The MMS6831 interface card is widely used in industrial systems for reliable communication and integration:
-
Connecting displacement and vibration monitors to control racks
-
Data aggregation from multiple protection modules
-
Real-time machinery monitoring in power plants
-
Integration of turbine protection systems
-
Supervisory control of compressors and rotating machinery
-
Heavy industrial process monitoring
It ensures accurate and timely transmission of critical operational data to enhance system reliability.
Advantages
-
Reliable high-speed data communication
-
Supports multiple industrial protocols
-
Seamless integration with MMS6000 and IMR6000 racks
-
Compact and rack-mountable design
-
Maintains signal integrity under demanding conditions
-
Enables real-time monitoring and control
-
Enhances system-wide equipment protection
-
Supports predictive maintenance strategies
This interface card converts raw module signals into actionable information, forming a critical link in industrial protection systems.
Technical FAQs
1. What is the main function of the MMS6831?
It serves as an interface for communication between monitoring modules and control systems.
2. Which communication protocols does it support?
RS485, RS232, Ethernet with Modbus RTU, ASCII, and TCP/IP.
3. Is it compatible with displacement and vibration monitors?
Yes, it integrates seamlessly with multiple monitoring modules.
4. Can it be installed in standard MMS6000 racks?
Yes, it is fully compatible with MMS6000 and IMR6000 systems.
5. What industries typically use this card?
Power generation, petrochemical, heavy industry, and turbine monitoring.
6. What voltage range does it require?
18–31.2 VDC.
7. Does it support real-time monitoring?
Yes, it enables live data transfer for timely operational decisions.
8. How does it improve system reliability?
By maintaining signal integrity and ensuring accurate module communication.
9. Can it help with predictive maintenance?
Yes, it enables early detection of anomalies by providing accurate module data.
10. What is its operating temperature range?
-20°C to +60°C.
