Introduction

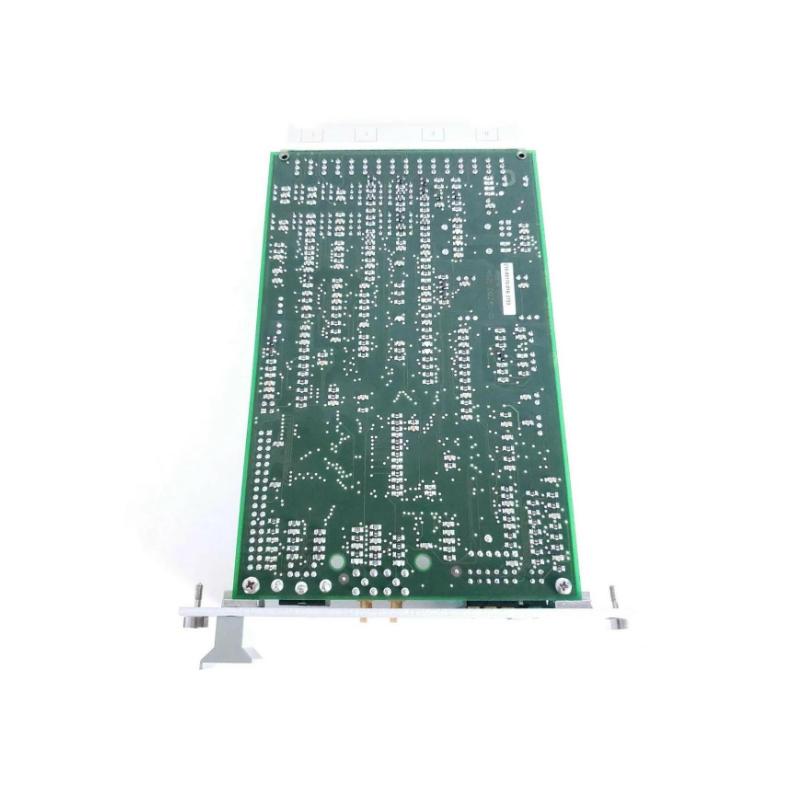

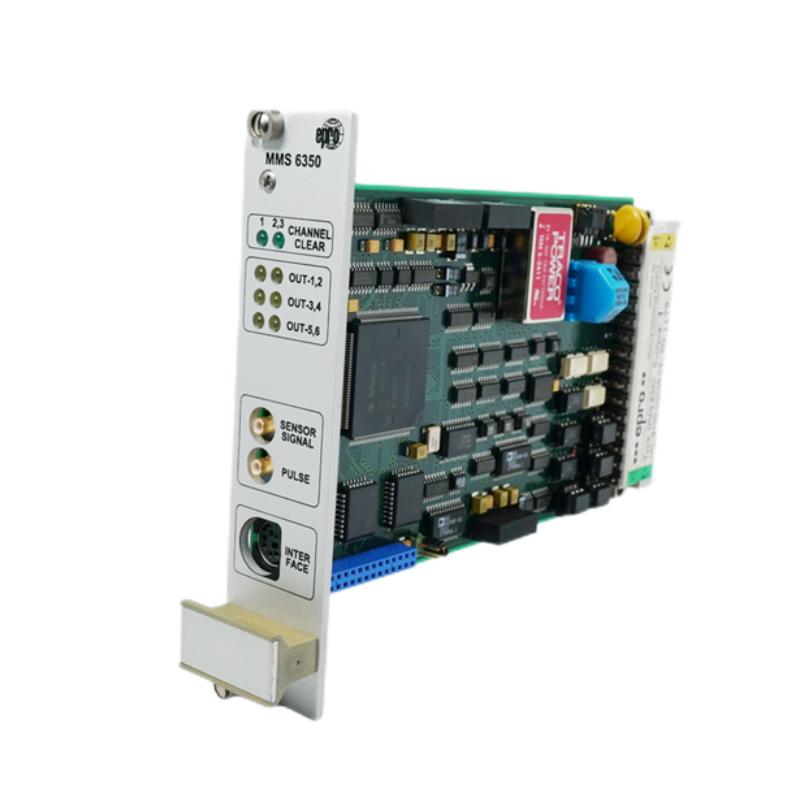

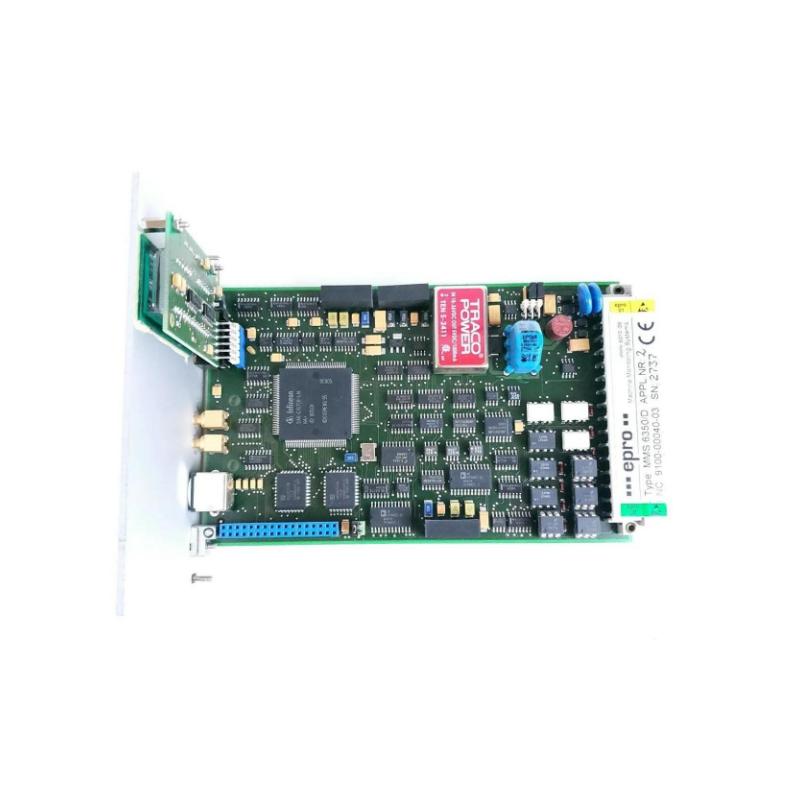

The Epro MMS6350/DP Control Module Board is a rugged, industrial‑grade control and processing board designed to serve as the heart of advanced monitoring and automation systems. Tailored for applications that demand precise logic processing, high‑speed pulse handling, and comprehensive system control, this control module integrates seamlessly into distributed and PLC‑based architectures. Its robust design, dependable performance, and flexible interfacing options make it a key building block in motion control, machine diagnostics, and safety monitoring environments.
Technical Specifications
| Specification | Details |
|---|
| Product Type | Control Module Board |
| Model Number | MMS6350/DP |
| Core Function | Digital and analog signal processing |
| Processor Type | Industrial‑grade microcontroller or DSP |
| Supported Interfaces | Digital I/O, Pulse inputs, Communication buses |
| Pulse Processing Capability | High‑speed logic capture |
| Diagnostics Support | Built‑in fault and status reporting |
| Isolation | System and I/O channel isolation as required |
| Operating Temperature | −20 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity | 5 % – 95 % (non‑condensing) |
| Mounting | Panel or DIN mount integration within cabinets |
| Power Supply | Typically 24 V DC (system dependent) |
| Protocol Support | Digital protocols or fieldbus adaptation |
Applications
The MMS6350/DP Control Module Board is well suited for a variety of demanding industrial applications:
-
Central logic processing for motion control systems
-
Dual or multi‑channel pulse and speed monitoring logic
-
Machine automation and sequence control coordination
-
Distributed I/O signal aggregation and preprocessing
-
Safety system interfaces and interlock logic processing
-
Feedback conditioning in robotics and CNC systems
-
Diagnostic and trending logic for machine health monitoring
Its flexible architecture enables integration into both stand‑alone control systems and complex distributed control networks.
Advantages
-
Flexible Processing Core — Handles mixed signal logic and timing algorithms
-
High‑Speed Capture & Control — Responsive to rapid pulse and event transitions
-
Designed for Harsh Environments — Withstands temperature fluctuations and humidity
-
Compact Form Factor — Conserves space in control cabinet designs
-
Simple Integration — Easily interfaces with PLCs and I/O networks
-
Diagnostic Output — Fault and status signals support maintenance awareness
-
Robust Construction — Durable build for extended service life
-
Scalable Logic Architecture — Enables expansion into larger systems
These strengths make the MMS6350/DP a reliable foundation for centralized machine logic and high‑performance control tasks.
Technical FAQs
1. What is the primary purpose of this module board?
It serves as a core control board for processing logic, pulse events, and signal coordination.
2. How many channels can it process simultaneously?
It handles multiple digital channels depending on configuration and system design.
3. What types of signals does it accept?
Digital I/O, pulse inputs, and conditioned analog or digital feedback.
4. Is electrical isolation provided?
Yes — system and I/O channel isolation help protect signal integrity.
5. What is the operating temperature range?
It operates from ‑20 °C to +70 °C.
6. How is it mounted?
Designed for panel or DIN mount integration within control cabinets.
7. Does it support diagnostic output?
Yes — built‑in status reporting and fault signaling aid monitoring.
8. Is it suitable for motion control systems?
Yes — ideal for high‑speed pulse capture and control logic.
9. Does it integrate with PLC systems?
Yes — interfaces easily with PLC and distributed controller networks.
10. What environments is it designed for?
Industrial environments with typical automation temperature and humidity profiles.
