Introduction

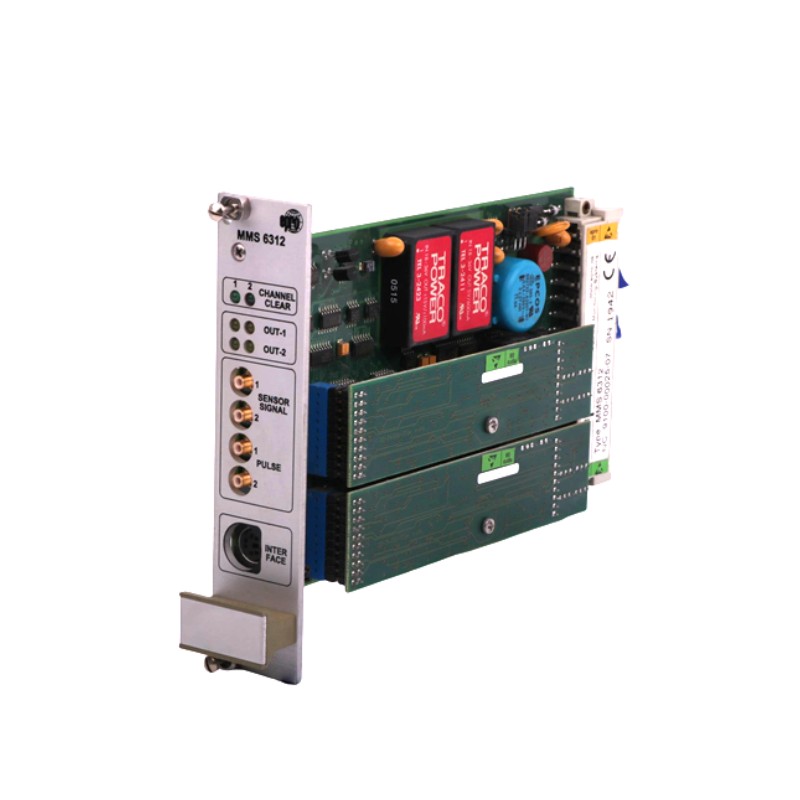

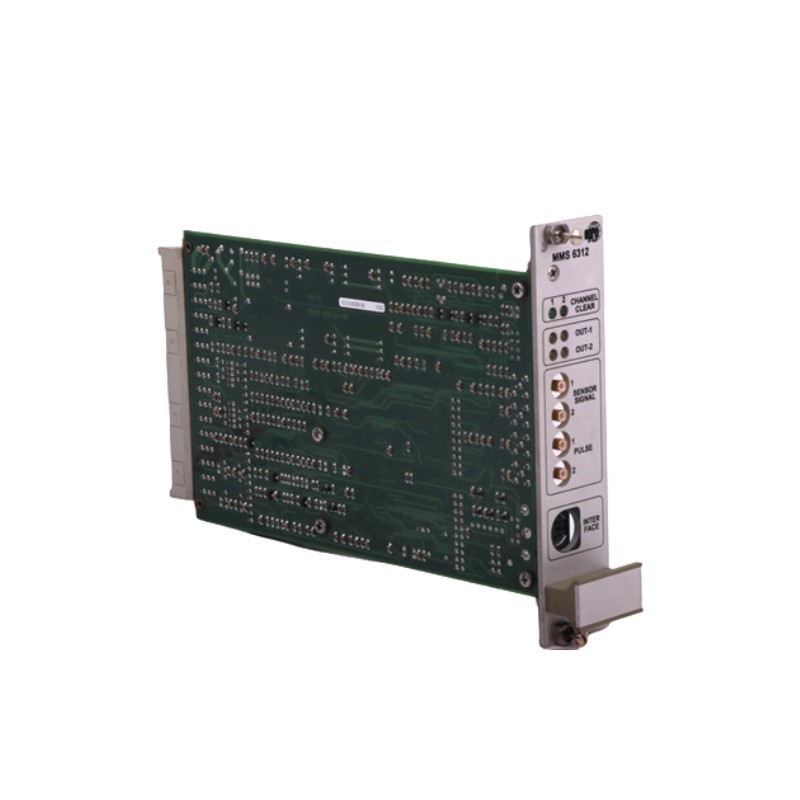

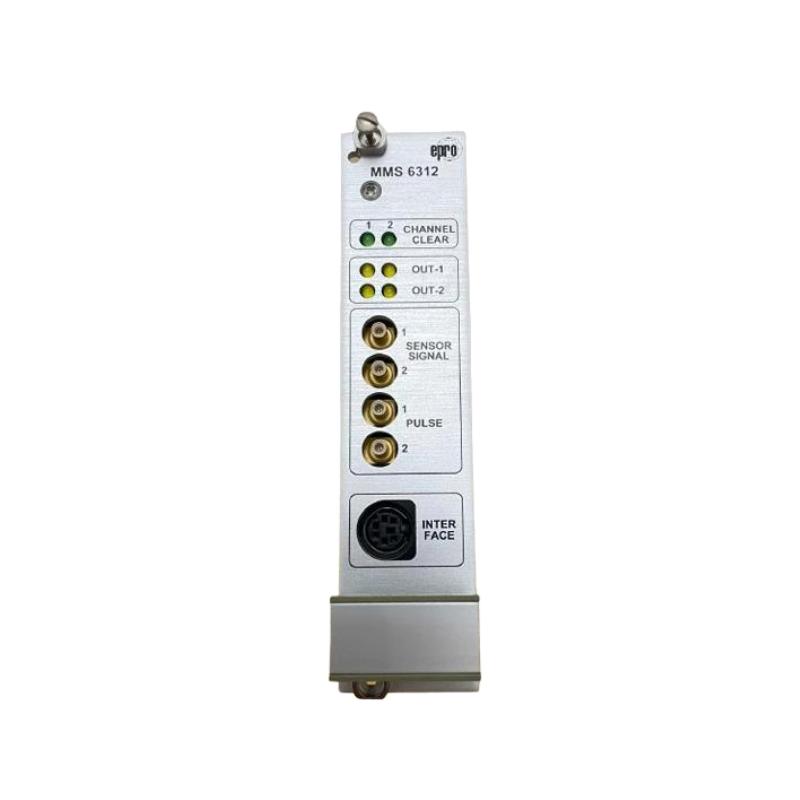

The Epro MMS6312 Dual Channel Rotational Speed Monitor is an industrial‑grade signal monitoring module designed to capture, process, and condition rotational speed feedback from machinery. Featuring two independent channels, this monitor provides dependable pulse analysis and conditioned outputs tailored for speed verification, tachometry, direction detection, and control logic interfacing. Built for rugged automation environments, the MMS6312 ensures consistent performance and high‑speed responsiveness — a key requirement in modern motion control, vibration monitoring, and diagnostic systems.
Technical Specifications
| Specification | Details |
|---|
| Product Type | Dual Channel Rotational Speed Monitor |
| Model Number | MMS6312 |
| Channels | 2 Independent Monitoring Channels |
| Input Signal Type | Digital pulse / TTL / encoder feedback |
| Compatible Sensors | Proximity, key encoder, Hall, optical encoders |
| Input Voltage Range | Standard industrial logic levels (e.g., 5 – 24 V DC) |
| Output | Conditioned digital logic outputs |
| Isolation | Channel‑to‑system galvanic isolation |
| Frequency Response | High frequency capable (kHz range) |
| Speed Range | Suitable for low to high rpm monitoring |
| Operating Temperature | ‑20 °C to +70 °C |
| Storage Temperature | ‑40 °C to +85 °C |
| Humidity | 5 % – 95 % (non‑condensing) |
| Mounting | DIN rail or panel mount |
| Protection Rating | Designed for industrial environments |
Applications
The MMS6312 Rotational Speed Monitor is ideal for systems that require precise and continuous speed feedback:
-
Rotational speed monitoring in motors, gearboxes, and turbines
-
Encoder feedback for motion control systems
-
Direction detection in servo and stepper applications
-
Conveyor and material handling speed verification
-
Tachometric input for PLC/DCS logic and safety systems
-
Vibration and condition monitoring loops
-
Feedback loops for automated robotics and packaging machinery
By capturing two independent speed signals, this module supports both differential speed analysis and redundant monitoring schemes for enhanced reliability.
Advantages
-
Dual Independent Inputs — Simultaneous monitoring of two speed sources
-
High Frequency Response — Capable of detecting rapid speed changes
-
Electrical Isolation — Galvanic isolation protects control systems from noise and ground loops
-
Industrial Durability — Designed to withstand vibration, temperature changes, and contaminants
-
Fast Timing Accuracy — Supports precise rotational speed measurement
-
Conditioned Outputs — Clean digital signals ready for logic interpretation
-
Flexible Mounting — DIN rail or panel options for versatile installation
-
Compact Industrial Form — Space‑efficient for dense control racks
These features make the MMS6312 a reliable component for motion control systems and speed diagnostics in automated environments.
Technical FAQs
1. How many rotational inputs does the MMS6312 support?
It supports two independent channels.
2. What kind of signals can it monitor?
It accepts digital pulses, TTL, and encoder feedback signals.
3. Is electrical isolation provided?
Yes — channel‑to‑system galvanic isolation enhances signal integrity.
4. What is the operating temperature range?
It operates from ‑20 °C to +70 °C.
5. Can it detect high‑speed pulses?
Yes — designed for high frequency and fast pulse detection.
6. Where is this module mounted?
It can be mounted on DIN rail or panel.
7. Is this suitable for monitoring motor speed?
Absolutely — ideal for rotational speed feedback in motors and drives.
8. Does it interface with PLCs or DCS logic?
Yes — outputs conditioned digital signals compatible with logic systems.
9. Does it handle multiple sensor types?
Yes — proximity, Hall, optical, and keyed encoders are supported.
10. Is it rugged enough for industrial use?
Yes — built for vibration, noise, and temperature variations typical of industrial environments.
