Empowering Accurate Low‑Level Analog Measurement

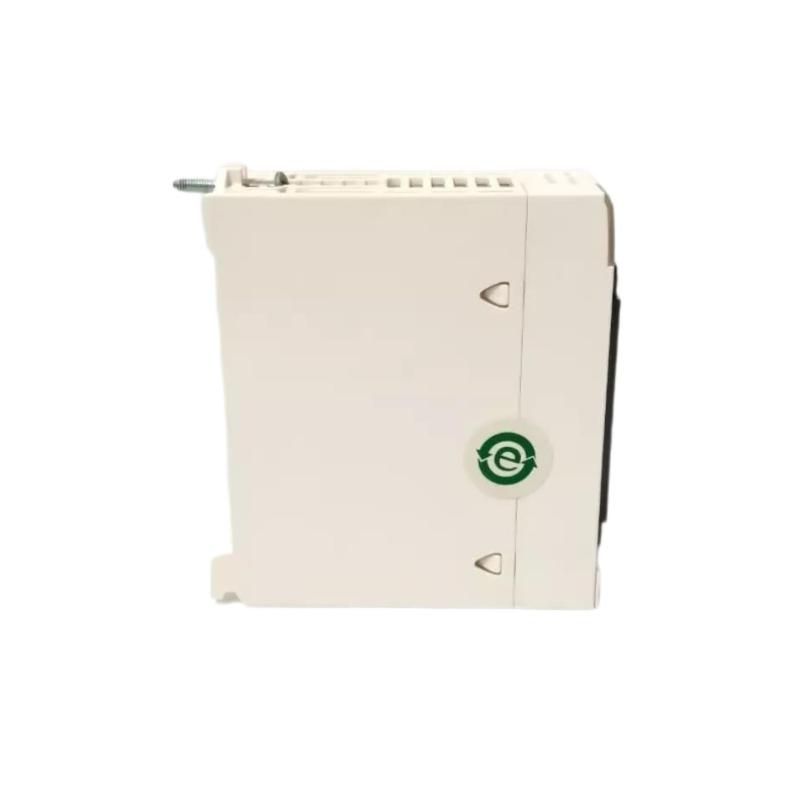

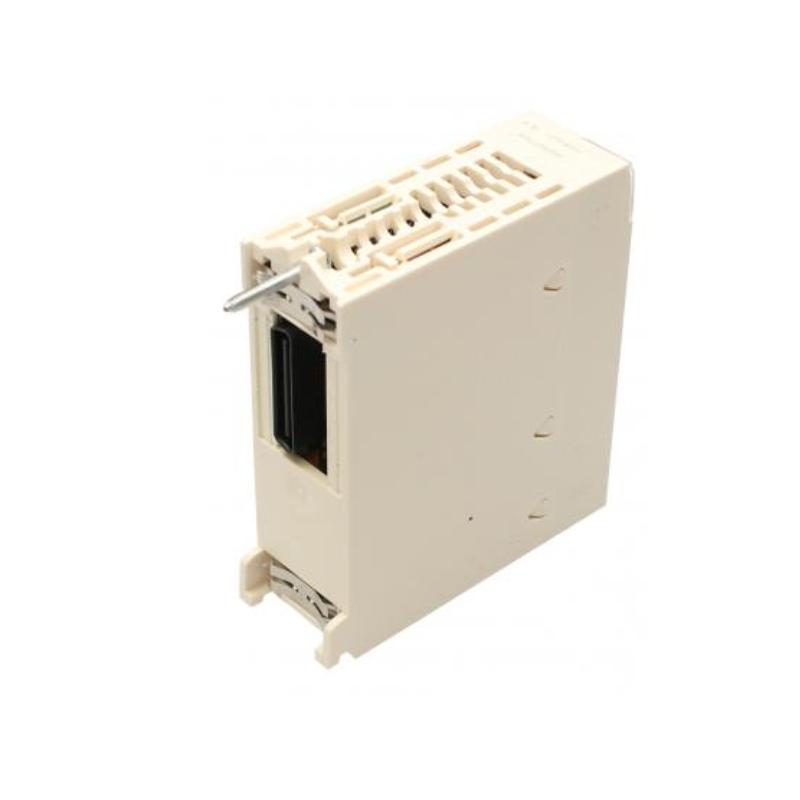

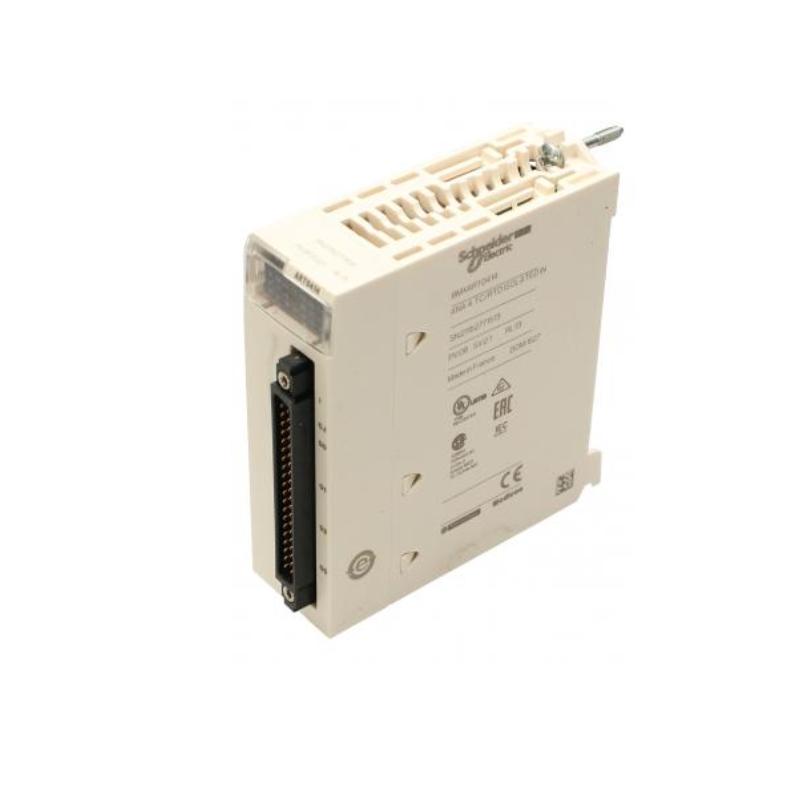

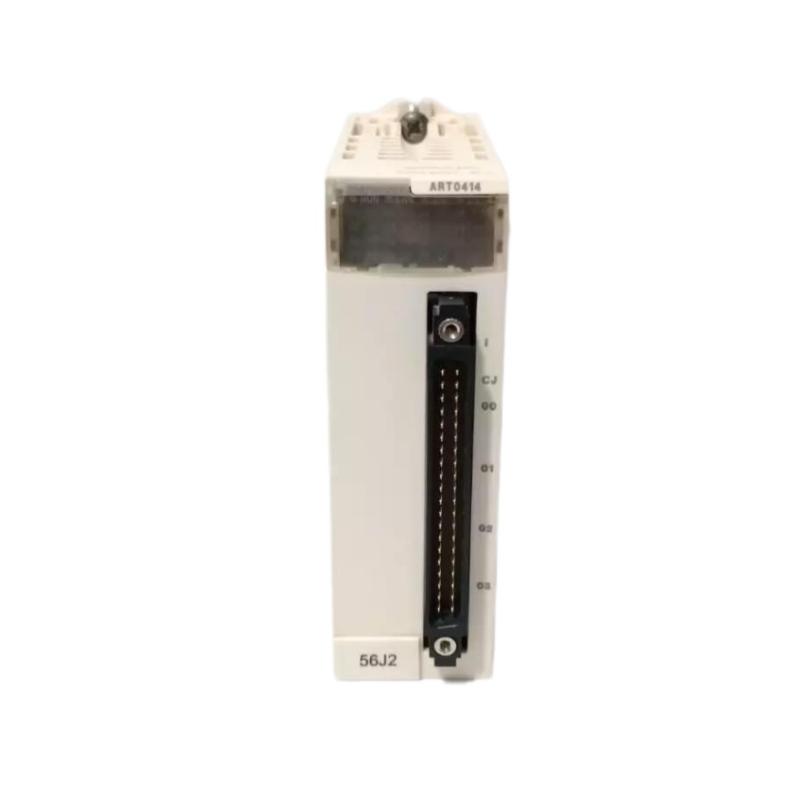

The Schneider BMXART0414 Analog Isolated Low Level Input Module is crafted for industrial systems that require precise analog signal acquisition with electrical isolation for noise‑free performance. As part of the Modicon BMX I/O series, this module is optimized for reading low‑level voltage and current signals — including those from sensitive transducers and field transmitters — while maintaining high signal integrity in electrically noisy environments. Its combination of isolation and resolution makes it ideal for advanced control and monitoring applications.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Analog Isolated Low Level Input Module |
| Model Number | BMXART0414 |
| Module Family | Modicon BMX Series |
| Input Channels | 4 isolated low‑level analog inputs |
| Supported Input Types | 0–10 V, 0–20 mA, 4–20 mA |
| Isolation | Channel‑to‑system galvanic isolation |
| Resolution | High‑resolution ADC (14‑bit or better) |
| Accuracy | ±0.15 % typical |
| Response Time | Standard for real‑time analog acquisition |
| Load Impedance | Compatible with standard industrial loads |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | ‑40 °C to 85 °C |
| Humidity | 5 % – 95 % (non‑condensing) |
| Mounting | DIN rail or panel via carrier rack |
| Communication | Backplane connection to Modicon controller |
