Product Introduction

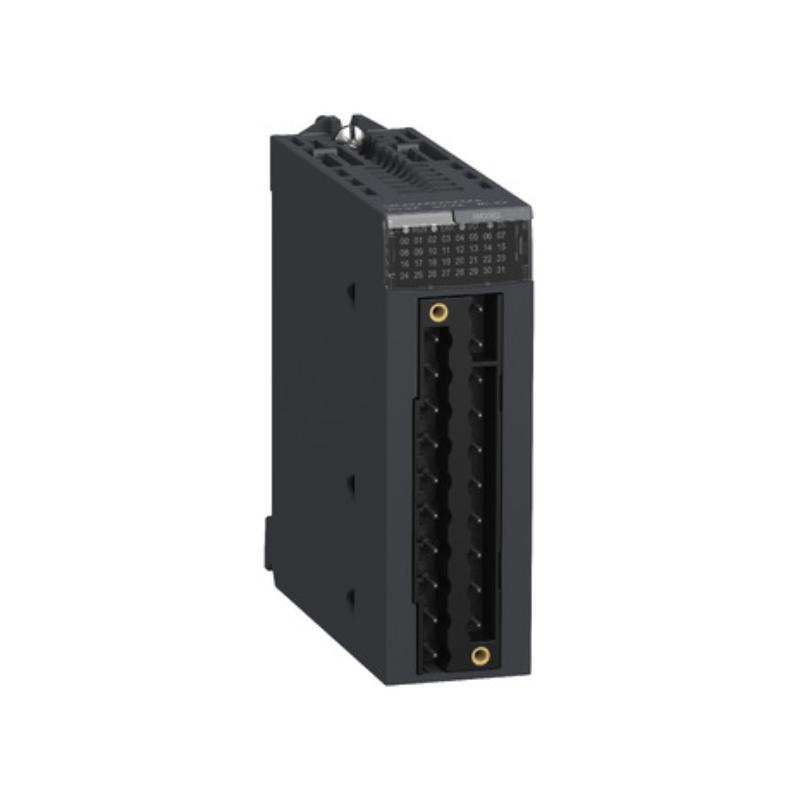

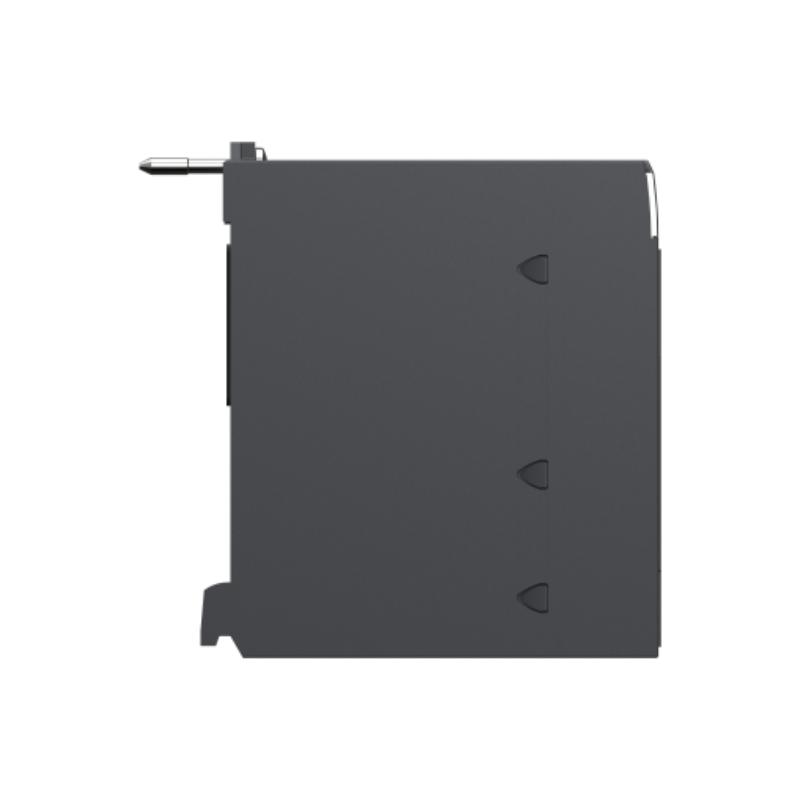

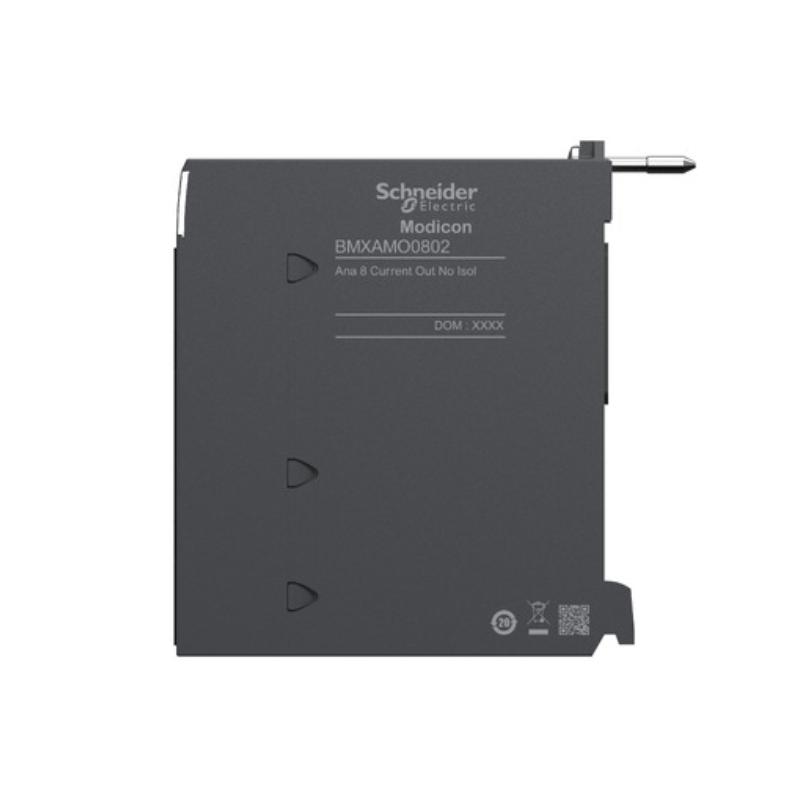

The Schneider BMXAMO0802 Analog Non‑Isolated High Level Output Module is designed to deliver accurate, high‑level analog output signals in industrial automation systems where galvanic isolation is not required. As part of the Modicon BMX I/O family, this module provides a reliable solution for converting control logic into real‑world analog voltage and current outputs. Its efficient performance and compact form factor make it ideal for machine and process control environments where cost‑effective, non‑isolated analog control is needed.
This module is engineered to perform in systems that support shared reference grounds and where signal isolation is handled elsewhere in the control architecture, offering a streamlined and economical approach to analog output integration.
Technical Specifications
| Specification | Details |
|---|
| Product Type | Analog Output Module (Non‑Isolated) |
| Model Number | BMXAMO0802 |
| Module Family | Modicon BMX I/O |
| Output Channels | 8 analog outputs |
| Supported Outputs | Voltage (0–10 V), Current (0–20 mA / 4–20 mA) |
| Isolation | Non‑isolated (common reference) |
| Resolution | High‑resolution DAC per channel |
| Accuracy | ±0.2 % typical |
| Response Time | Standard for analog control loops |
| Load Impedance | Compatible with standard industrial loads |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to 85 °C |
| Relative Humidity | 5 % – 95 % (non‑condensing) |
| Mounting | DIN rail or panel via carrier rack |
| Communication | Backplane connection to controller |
Applications
The BMXAMO0802 module supports a wide range of industrial analog control tasks, including:
-
Proportional valve actuation signals
-
Motor speed reference outputs
-
Temperature or pressure setpoint outputs
-
Process loop control in batch and continuous systems
-
Building automation analog drivers
-
Distribution of analog control signals in machine control
-
Hybrid discrete and analog system integration
This module is particularly well‑suited for systems that manage analog outputs without requiring galvanic separation, keeping hardware costs and wiring complexity low.
Advantages
-
Eight Analog Output Channels – Supports multiple control points in one module
-
High Level Signal Support – Handles both voltage and current outputs
-
Compact Form Factor – Great for space‑constrained panels
-
Efficient Performance – Delivers repeatable, high‑level analog outputs
-
Cost‑Effective Design – Non‑isolated architecture lowers system cost
-
Seamless System Integration – Works with Modicon controllers and backplane systems
-
Simplified Installation – Backplane communication and common reference simplifies wiring
-
Reliable Industrial Build – Designed for standard industrial environments
These strengths make the module a solid choice when non‑isolated analog output is sufficient and cost or simplicity is prioritized.
Technical FAQs
1. How many analog outputs does the BMXAMO0802 support?
It provides 8 analog output channels.
2. What output types are supported?
Both voltage (0–10 V) and current (0–20 mA / 4–20 mA) outputs.
3. Is this module isolated?
No — it uses a shared common reference (non‑isolated).
4. What is the typical accuracy?
Approximately ±0.2 %.
5. Can it be mounted on DIN rail?
Yes — with appropriate carrier or rack system.
6. What temperature range does it operate in?
Operating range is 0 °C to 60 °C.
7. Does it support high‑density control racks?
Yes — its compact design supports efficient rack layouts.
8. Is it suitable for industrial process control?
Yes — ideal when non‑isolated outputs are acceptable.
9. Does it require galvanic isolation externally?
Isolation should be managed elsewhere if required by system design.
10. Is this compatible with Modicon controllers?
Yes — designed for Modicon BMX I/O backplane systems.
