Intelligent Analog Control for Modern Automation

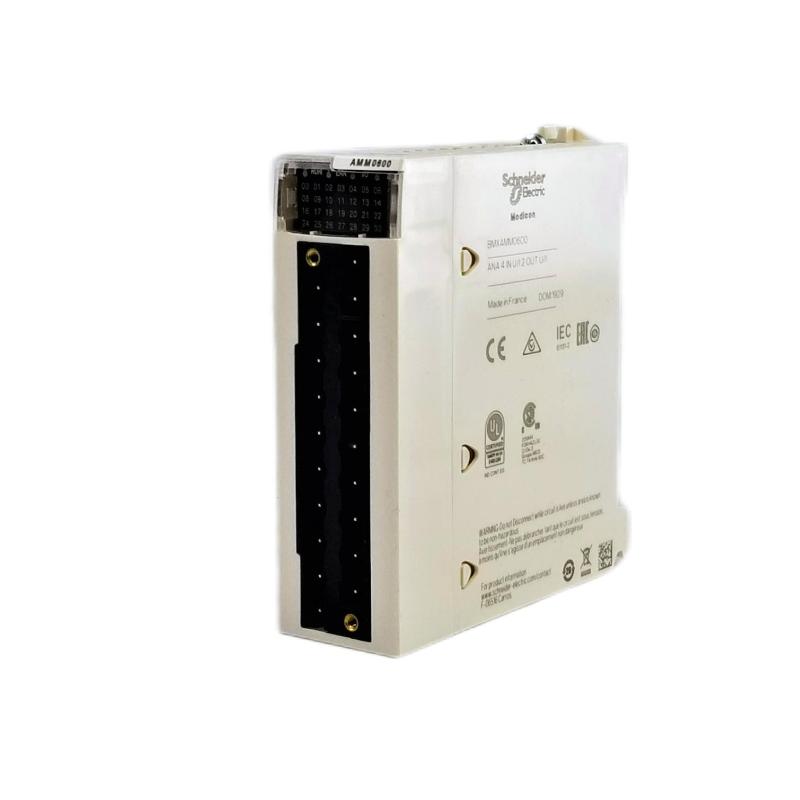

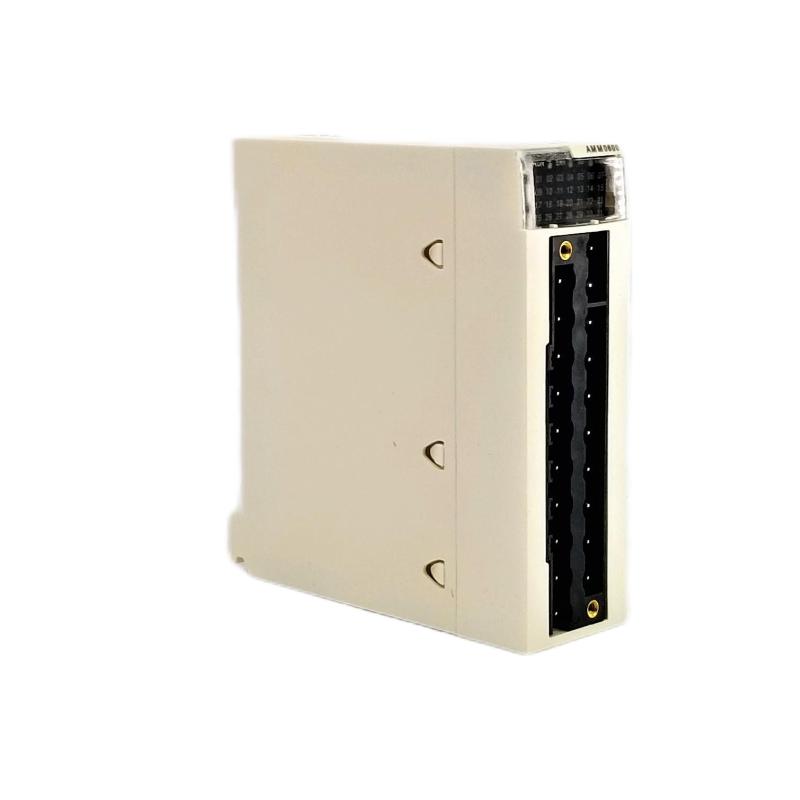

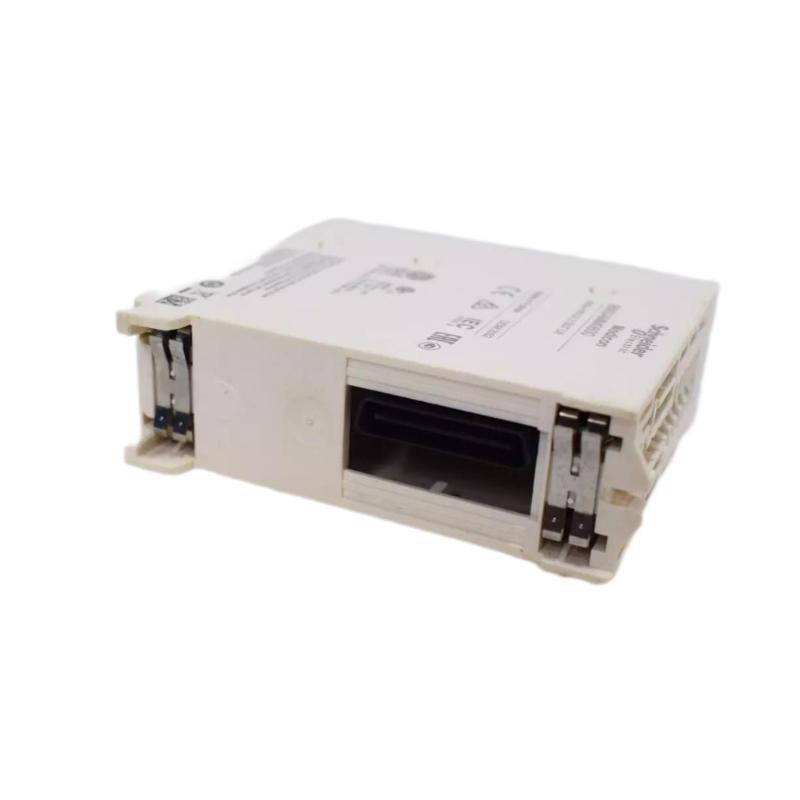

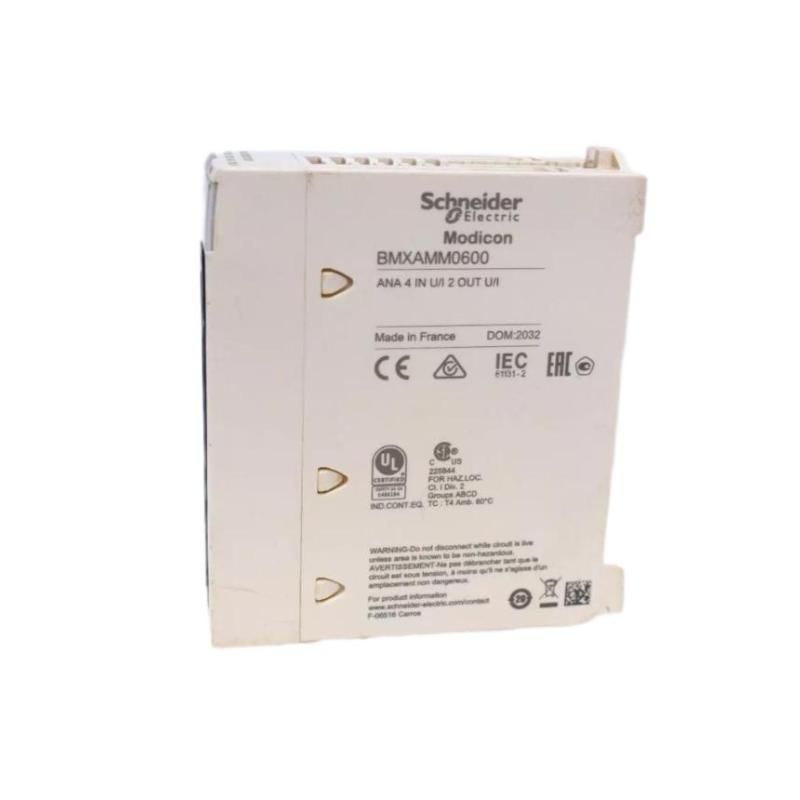

The Schneider BMXAMM0600 Mixed Analog I/O Module is a versatile and high‑performance interface designed for advanced machine and process automation. Engineered to deliver both analog input and output capabilities within a single compact unit, this module efficiently bridges real‑world analog signals and digital control logic. Its reliable measurement performance and flexible configuration make it ideal for applications where precise analog data acquisition and control are essential.
This module is part of Schneider’s modular I/O ecosystem, offering seamless integration with Modicon controllers and a scalable solution for systems that demand both signal diversity and operational accuracy.
Technical Specifications
| Specification | Details |
|---|
| Product Type | Mixed Analog I/O Module |
| Model Number | BMXAMM0600 |
| Module Family | Modicon BMX Series |
| Analog Inputs | 4 differential channels |
| Analog Outputs | 2 voltage/current outputs |
| Input Signal Range | ±10 V, 0–20 mA, 4–20 mA |
| Output Signal Range | 0–10 V, 0–20 mA, 4–20 mA |
| Resolution | 12‑bit or higher (system dependent) |
| Update Rate | Fast analog sampling for real‑time control |
| Isolation | Channel‑to‑system isolation |
| Accuracy | ±0.1% typical |
| Response Time | Industry standard for mixed I/O modules |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | ‑40°C to 85°C |
| Humidity | 5% – 95% (non‑condensing) |
| Mounting | DIN rail or panel via carrier rack |
| Communication | Bus connection to main controller backplane |
Applications
The BMXAMM0600 module is engineered for systems requiring both analog sensing and control:
-
Machine process control and monitoring
-
PID loops for temperature, pressure, or flow systems
-
Hybrid discrete and analog signal environments
-
Pump and motor speed regulation through analog setpoints
-
Industrial recipe and batch control systems
-
Building and infrastructure automation
-
Data acquisition for supervisory control systems
By combining both inputs and outputs in one module, design complexity and panel space requirements are reduced.
Applications
The BMXAMM0600 module is engineered for systems requiring both analog sensing and control:
-
Machine process control and monitoring
-
PID loops for temperature, pressure, or flow systems
-
Hybrid discrete and analog signal environments
-
Pump and motor speed regulation through analog setpoints
-
Industrial recipe and batch control systems
-
Building and infrastructure automation
-
Data acquisition for supervisory control systems
By combining both inputs and outputs in one module, design complexity and panel space requirements are reduced.
Technical FAQs
1. What types of analog signals does this module handle?
It handles both voltage and current signals, typically ±10 V and 0–20 mA / 4–20 mA.
2. How many analog inputs are available?
There are 4 differential analog input channels.
3. How many analog outputs does it support?
It supports 2 analog outputs.
4. Can it measure both current and voltage?
Yes, the module supports both current and voltage ranges.
5. What is the typical accuracy?
±0.1 % or better, depending on system configuration.
6. Is electrical isolation provided?
Yes, there is channel‑to‑system isolation for signal integrity.
7. What temperature range can it operate in?
0°C to 60°C.
8. Can it be mounted on a DIN rail?
Yes, with the appropriate carrier or rack.
9. Is this module suitable for real‑time control loops?
Yes, its sampling rate supports real‑time control applications.
10. Is it compatible with Schneider PLC systems?
Yes, designed to integrate with Modicon controllers and I/O networks.
