Emerson KL3022X1-BA1 CHARM Terminal Block

Brand:Emerson Module
Item No.:KL3022X1-BA1
Product Origin:USA
Product Dimensions:100 mm × 80 mm × 20 mm
Product Weight:0.18 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

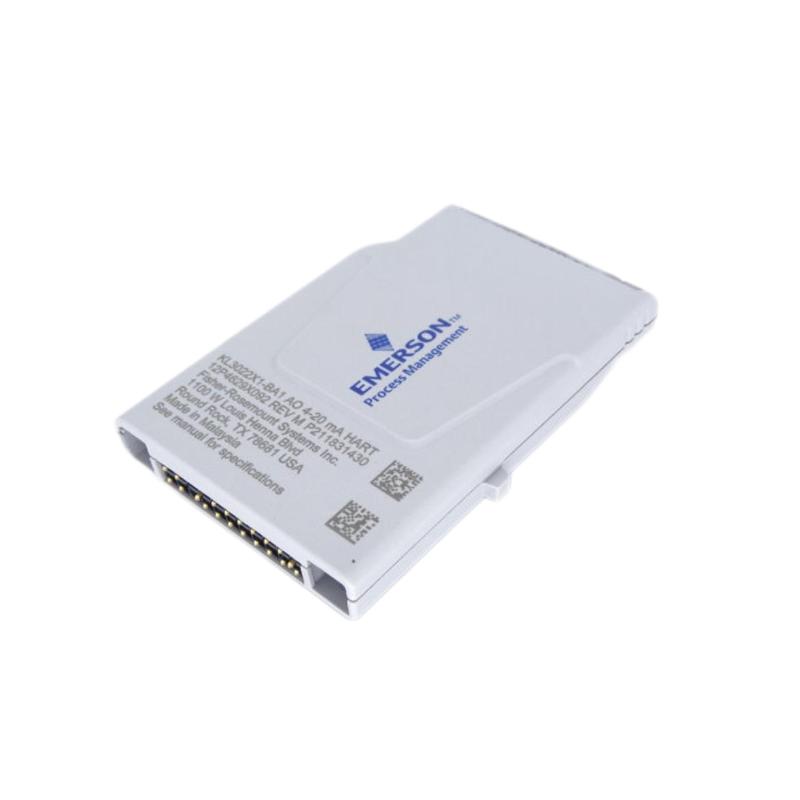

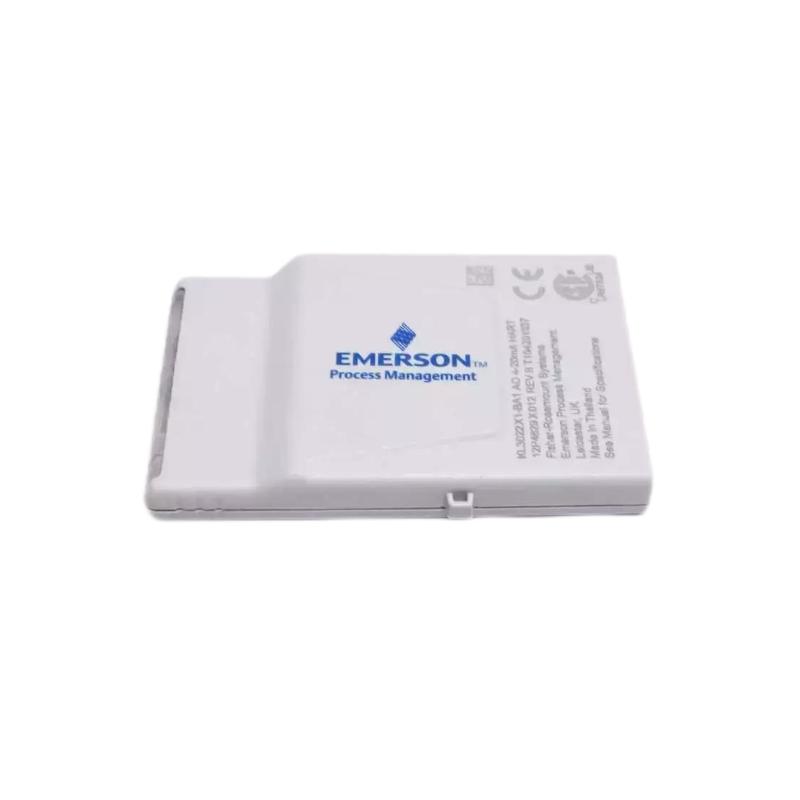

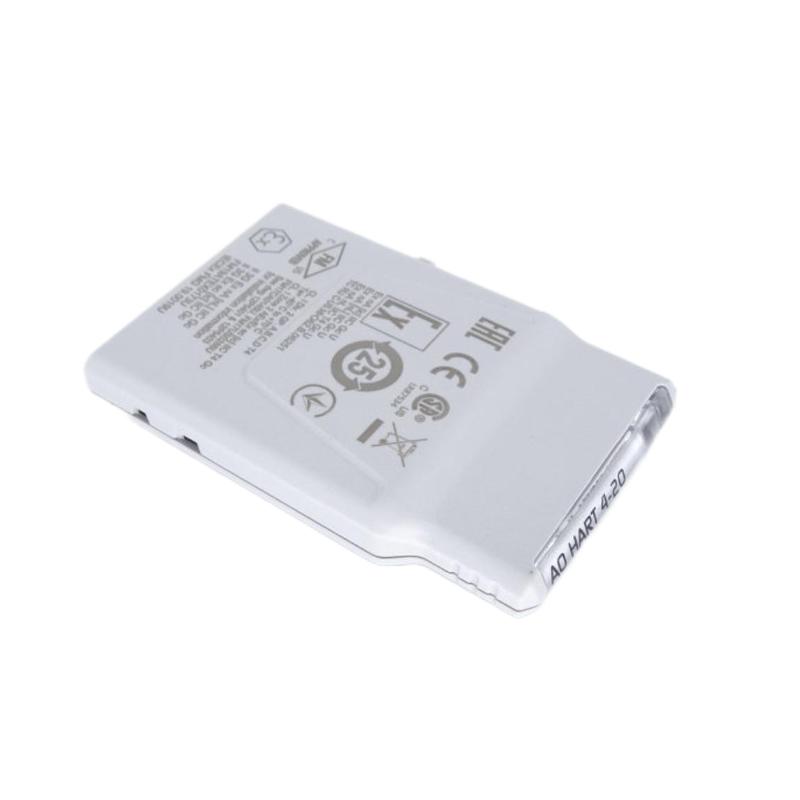

Emerson KL3022X1-BA1-1Emerson KL3022X1-BA1-4Emerson KL3022X1-BA1-2Emerson KL3022X1-BA1-3

Introduction

The Emerson KL3022X1‑BA1 CHARM Terminal Block is a compact, high‑density interface module designed to provide organized and reliable electrical connections between field wiring and CHARM I/O modules in distributed control systems. Built for industrial applications, this terminal block streamlines signal routing and simplifies installation, reducing wiring complexity and improving long‑term serviceability. Its rugged, structured design ensures dependable performance even in challenging operational environments.

Technical Specifications

SpecificationDetails
Product TypeCHARM Terminal Block
Model NumberKL3022X1‑BA1
Module FamilyEmerson CHARM I/O
Channel Count16 Termination Points
Voltage Rating30 VDC (max)
Current Rating1 A per channel
Connection TypeScrew‑clamp Terminals
MountingCHARM rack DIN rail or panel mount
Insulation ResistanceHigh industrial grade
Operating Temperature‑40°C to +70°C
Storage Temperature‑40°C to +85°C
Shock Resistance10g, 11 ms half‑sine
Vibration Resistance0.7g (13.2–150 Hz); 1 mm (2–13.2 Hz)
Humidity5% – 95% (non‑condensing)
Contaminant ResistanceISA‑S71.04 Class G3


Applications

The KL3022X1‑BA1 terminal block is commonly used in:

  • Distributed control system (DCS) cabinets

  • Process automation panels in chemical and refinery environments

  • PLC and control logic cabling interfaces

  • Industrial machine control systems

  • Field signal wiring consolidation

  • Power and utility control racks

  • Manufacturing and packaging automation systems

It serves as the interface point where instrument cables and discrete field signals are securely connected to I/O modules.


Advantages

  • High‑Density Wiring Interface – Supports a large number of terminations in a compact form

  • Reliable Electrical Connections – Screw‑clamp terminals ensure secure signal integrity

  • Industrial‑Grade Design – Withstands vibration, shock, humidity, and contaminants

  • Easy Installation – Fits standard CHARM rack and DIN rail mounting methods

  • Simplified Maintenance – Clearly labeled terminations facilitate service tasks

  • Enhanced System Organization – Reduces wiring clutter and improves traceability

  • Longevity in Harsh Environments – Built with durable materials for extended life

  • Improved Panel Accessibility – Streamlines access to field connections


Technical FAQs

1. How many channels does the terminal block support?
It supports 16 termination points for discrete connections.

2. What is the rated voltage?
Rated up to 30 VDC.

3. What is the maximum current per channel?
Each channel can handle up to 1 A.

4. What type of terminal connections are used?
Screw‑clamp terminals provide secure field wiring.

5. Can it be mounted on DIN rail?
Yes — via CHARM rack or direct rail mounting.

6. Is it suitable for harsh environments?
Yes — designed for vibration, shock, and industrial contaminants.

7. What temperature range can it operate in?
‑40°C to +70°C.

8. Is it compatible with Emerson CHARM I/O modules?
Yes — designed to interface seamlessly with CHARM I/O families.

9. Does it support moisture and humidity exposure?
Yes — up to 95% non‑condensing humidity.

10. Does it simplify wiring layout?
Yes — organized termination points reduce panel wiring complexity.
