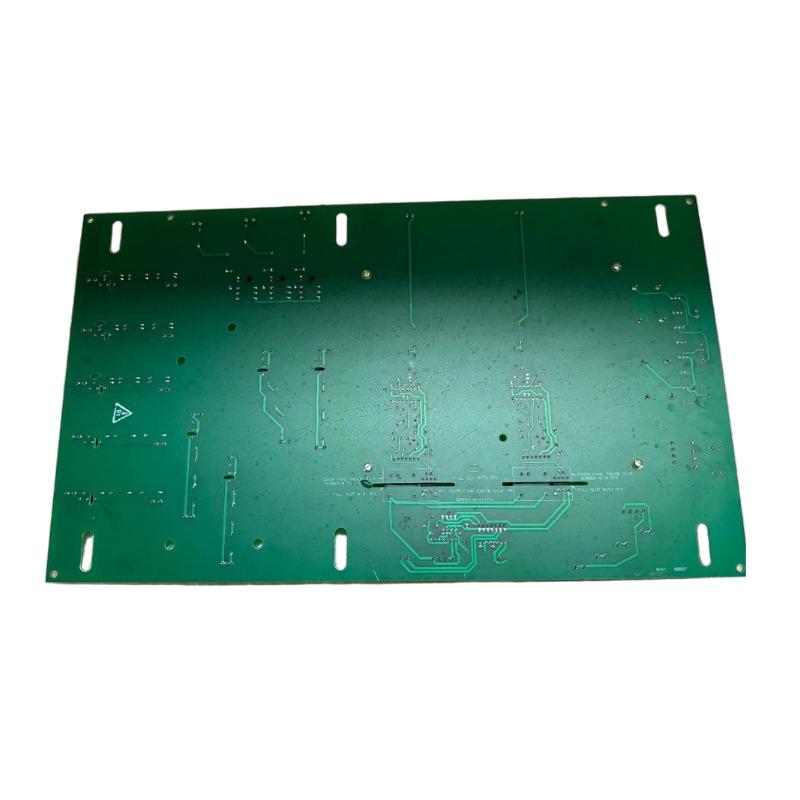

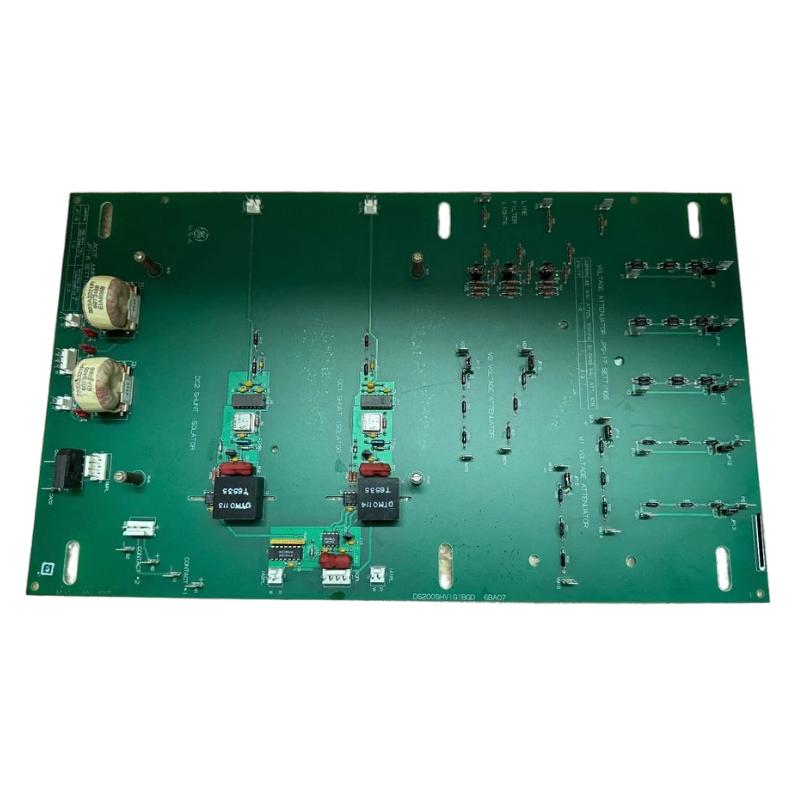

GE DS200SHVIG1BGD High Voltage Interface Card

Brand:GE Fanuc PLC
Item No.:DS200SHVIG1BGD
Product Origin:USA
Product Dimensions:245 × 185 × 40 mm
Product Weight:1.9 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The GE DS200SHVIG1BGD is a high-voltage interface card intended for use inside industrial drive or inverter systems. It serves as the bridging component between high-voltage power electronics (such as SCRs, IGBTs, or rectifier sections) and the control logic or lower-voltage modules. In heavy-duty industrial applications where stable power switching and reliable interface behavior are critical — such as large motors, plant drives, or heavy machinery — this board provides the necessary isolation, connection architecture, and structural robustness. This document describes its characteristics from an engineering integration and maintenance perspective.

Technical Specifications

Parameter Estimated Specification / Description
Module Type High Voltage Interface Card / Power Interface Board
Model / Part Number DS200SHVIG1BGD
Function Interface between high-voltage power stage and control logic; manages gating, high-voltage routing, and signal isolation
Application Domain Industrial inverter/drive cabinets, heavy-duty motor control, large-scale power drives
Electrical Role High-voltage power routing, gating-signal interfacing, isolation barrier maintenance
Isolation & Safety Design PCB layout with adequate creepage/clearance, reinforced connectors and insulation for high-voltage safety
Connector / Interface Types High-current terminals or busbars for power outputs; control connectors for logic/gating inputs and outputs
Mounting / Integration Chassis or rack-mount inside drive cabinet; mechanical supports designed for heavy load and vibration resistance
Environmental Suitability Industrial grade — designed to tolerate temperature, vibration, electrical noise typical of power equipment enclosures
Dimensions (H × W × D) 245 × 185 × 40 mm
Weight ≈ 1.9 kg
Material Construction Reinforced FR-4 (or similar) PCB, heavy copper traces or busbars, insulating barriers, metal support frame or mounting brackets

Applications

The DS200SHVIG1BGD board is typically used in:

  • High-power industrial motor drives with SCR or IGBT stages

  • Heavy machinery drives in manufacturing, mining, or utility sectors

  • Inverter cabinets requiring a robust interface between power electronics and control modules

  • Retrofit or repair of existing GE drive systems needing replacement of high-voltage interface components

  • Enclosures where reliable signal isolation and mechanical stability under vibration and load are required

  • Systems that demand safe segregation between high-voltage power paths and low-voltage control circuits

Advantages

  • Specifically designed for high-voltage switching applications — supports heavy current/power loads

  • Robust isolation and construction improve safety and mitigate risk of high-voltage faults

  • Modular design allows independent replacement or maintenance without full drive disassembly

  • Supports consistent gating and control signal integrity even under electrical noise conditions typical in power electronics

  • Mechanical build handles structural stress — suitable for rugged industrial environments

  • Reinforced connectors and busbars minimize power loss and heating under heavy load

  • Simplifies drive system maintenance by consolidating high-voltage interface into a replaceable board

  • Facilitates upgrades of legacy drive systems by providing standardized interface module

  • Improves overall system reliability by localizing high-voltage handling to a dedicated, well-defined module

  • Eases compliance with safety and insulation standards by isolating high-voltage paths from control logic


Technical FAQs

  1. What is the primary purpose of DS200SHVIG1BGD?
    To interface the high-voltage power stage of a drive (e.g. SCR/IGBT bridge) with the control logic, while maintaining isolation and safe routing of power and control signals.

  2. Is this board suitable for heavy-duty, high-current drives?
    Yes — its design supports high-voltage and high-current switching common in industrial motor drives and large power equipment.

  3. Does the module provide electrical isolation between power and control circuits?
    Yes — it is designed with proper insulation, clearance, and layout to maintain isolation between high-voltage and low-voltage domains.

  4. Can this board be replaced independently if it fails?
    Yes — because of its modular design, it can be swapped out without replacing the entire drive or power electronics assembly, assuming correct wiring and safety procedures.

  5. Is special mechanical support required for installation?
    The card should be mounted on a sturdy chassis or bracketed inside the drive cabinet to support its weight and handle vibration or thermal stress.

  6. Does it handle gate-signal routing as well as power output?
    Yes — it is designed to manage both high-voltage power paths and lower-voltage gating/control signals within the same interface.

  7. Is the board suitable for environments with electrical noise or interference?
    Yes — layout, isolation, and reinforced connectors are intended to ensure signal integrity under noisy industrial power conditions.

  8. Does it require cooling or special ventilation?
    It should be installed in a drive cabinet with adequate ventilation; depending on load and heat generation, forced cooling of the overall cabinet may be advisable.

  9. Can it be used for retrofit of older GE drives?
    Yes — often used in maintenance or refurbishment projects to replace aging interface boards while preserving existing system architecture.

  10. Does it support modular expansion or system upgrades?
    Yes — the modular interface design allows integration in upgraded or expanded drive systems without redesigning the entire power stage.
