Precision Analog Input for Reliable Process Control

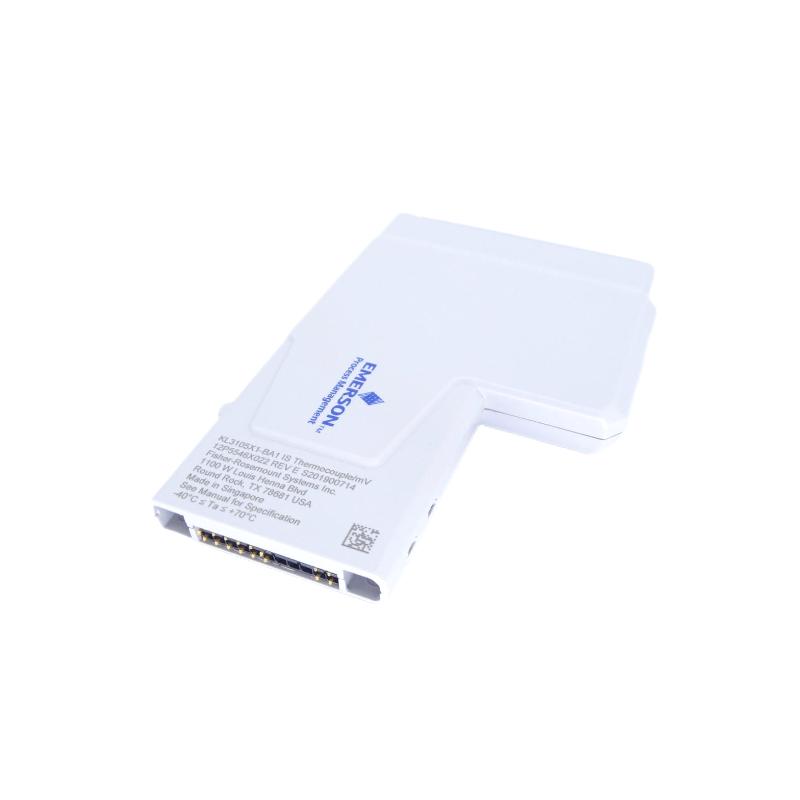

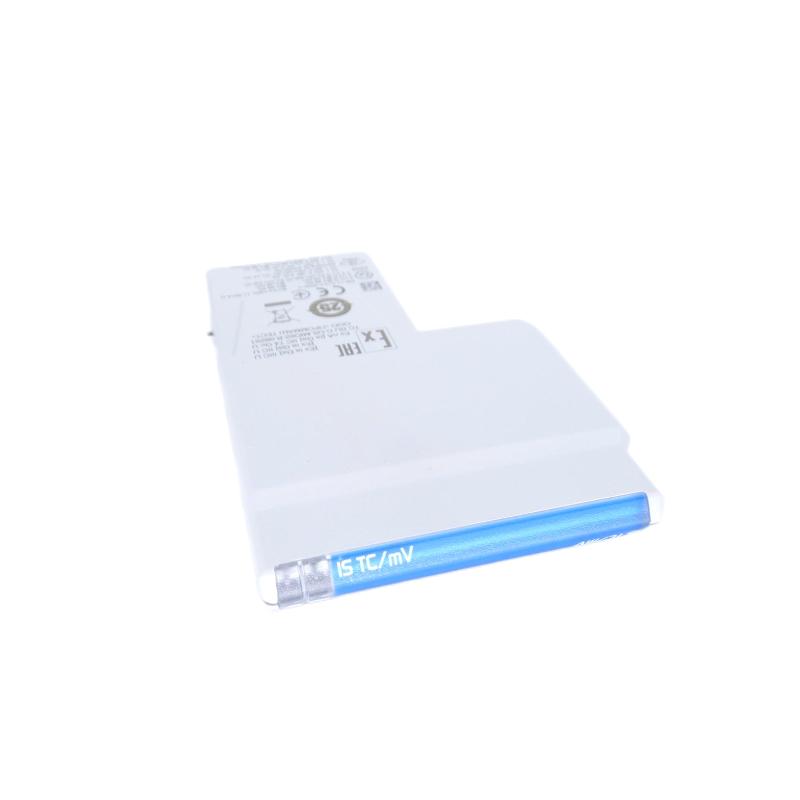

The Emerson KL3105X1-BA1 Thermocouple/mV CHARM Module is a high-performance analog input module designed for accurate temperature and low-level voltage measurements in industrial automation systems. Part of Emerson’s CHARM I/O family, this module delivers precise signal conversion from thermocouples or millivolt sensors to digital control logic, enabling reliable process monitoring and control in harsh environments. Its compact, modular design allows easy integration into existing control racks, offering both space efficiency and scalability.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Thermocouple/mV Input Module |
| Model Number | KL3105X1-BA1 |
| Module Family | CHARM I/O |
| Input Channels | 8 Thermocouple or mV inputs |
| Supported Signal Types | Thermocouple (J, K, T, E, etc.) and millivolt signals |
| Resolution | High-resolution ADC |
| Sampling Rate | Configurable for process control applications |
| Isolation | Channel-to-system isolation |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% – 95% (non-condensing) |
| Mounting | DIN rail or panel mount via CHARM rack |
| Material | Industrial-grade polymer and metal contacts |
