Reliable Signal Termination for Demanding Systems

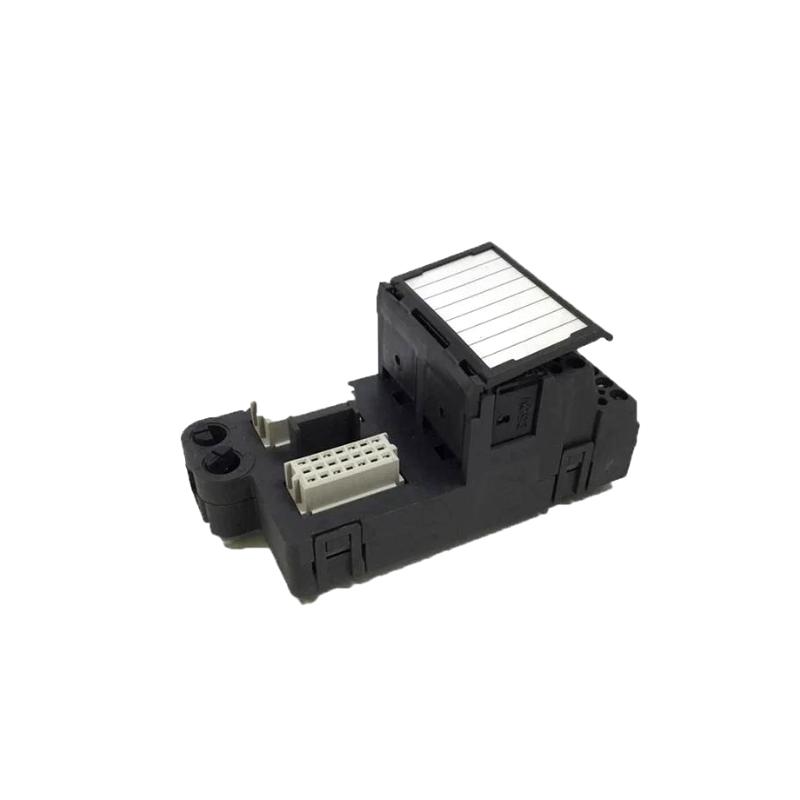

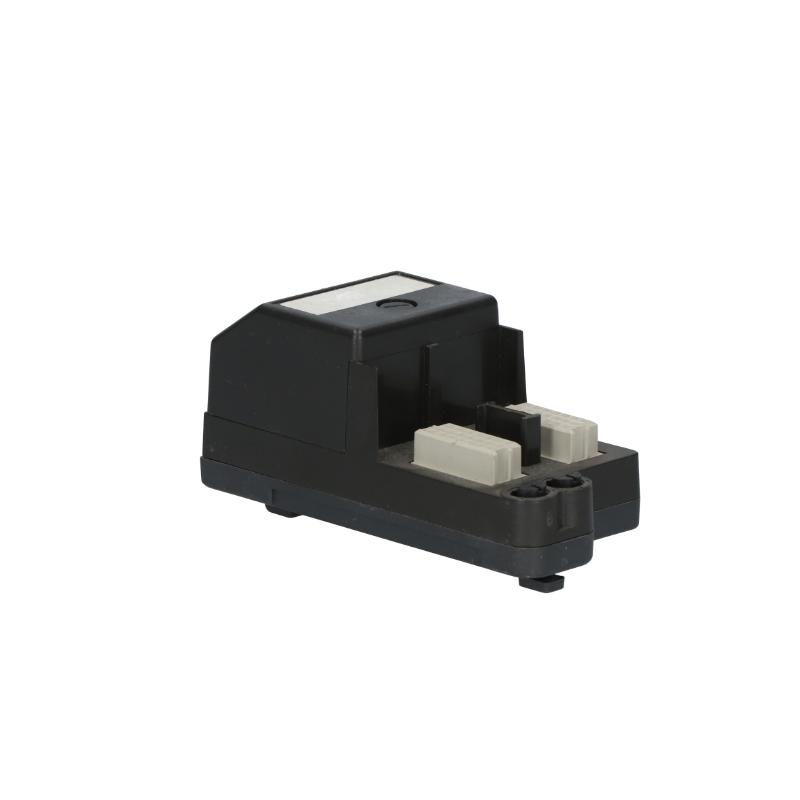

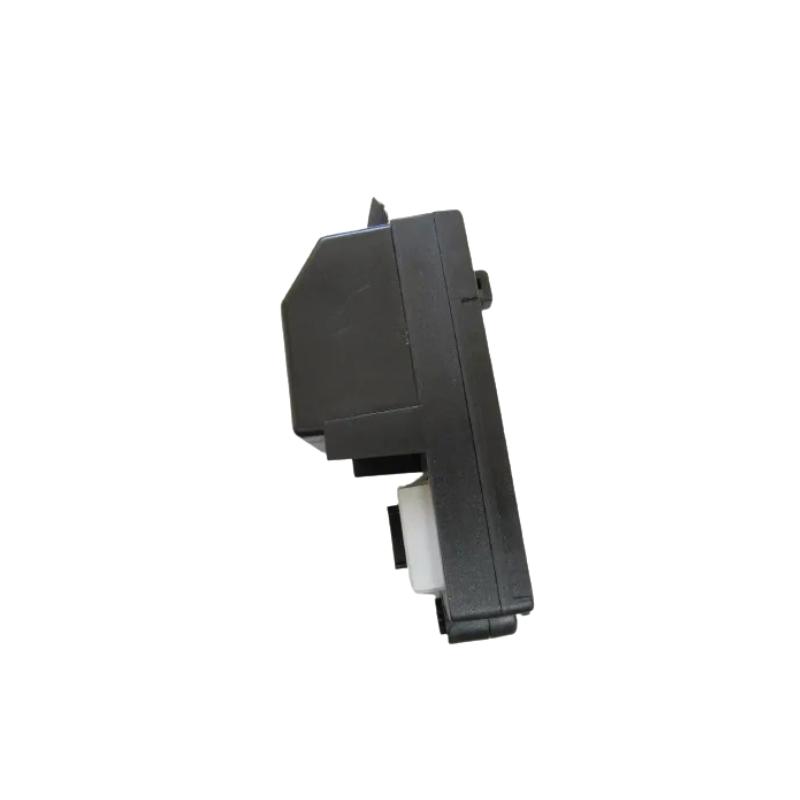

The Emerson KJ4001X1-CF1 Large-Capacity Terminal Block is engineered to support high-density wiring requirements in modern distributed control environments. Designed for seamless integration within advanced process automation systems, this terminal block ensures stable electrical connections between field devices and control hardware.
Its rugged construction and structured pin layout provide dependable signal routing, making it an essential component for maintaining operational continuity in mission-critical applications.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Mass Terminal Block |
| Pin Configuration | 24-Pin |
| Rated Voltage | 30 VDC |
| Current Rating | 1 A per cable |
| Operating Temperature | -40°C to +70°C |
| Shock Resistance | 10g (11 ms half-sine) |
| Vibration Resistance | 1 mm (2–13.2 Hz), 0.7g (13.2–150 Hz) |
| Humidity Range | 5% – 95% (Non-condensing) |
| Contaminant Resistance | ISA-S71.04 Class G3 |
| System Compatibility | Industrial DCS Platforms |
Typical Applications
The KJ4001X1-CF1 is widely deployed across process-driven industries where signal integrity and system reliability are critical:
-
Distributed Control Systems
-
Oil & Gas facilities
-
Power generation plants
-
Chemical processing lines
-
Industrial automation panels
It functions as a stable interface between I/O modules and field wiring, helping maintain consistent system performance.
Technical FAQs
1. What is the primary purpose of this terminal block?
It connects field wiring to control system I/O modules securely.
2. How many pins are available?
It features a 24-pin configuration.
3. What voltage rating does it support?
Up to 30 VDC.
4. Can it operate in extreme temperatures?
Yes, from -40°C to +70°C.
5. Is it resistant to vibration?
Yes, it meets industrial vibration standards.
6. Can it handle humid environments?
Yes, up to 95% non-condensing humidity.
7. Is it suitable for contaminated industrial air?
Yes, it meets ISA Class G3 standards.
8. Does it support high-density wiring?
Yes, it is designed for mass termination.
9. Can it be used in power plants?
Yes, it is commonly used in energy facilities.
10. What ensures long-term reliability?
Its rugged build and stable electrical performance.
