Product Introduction

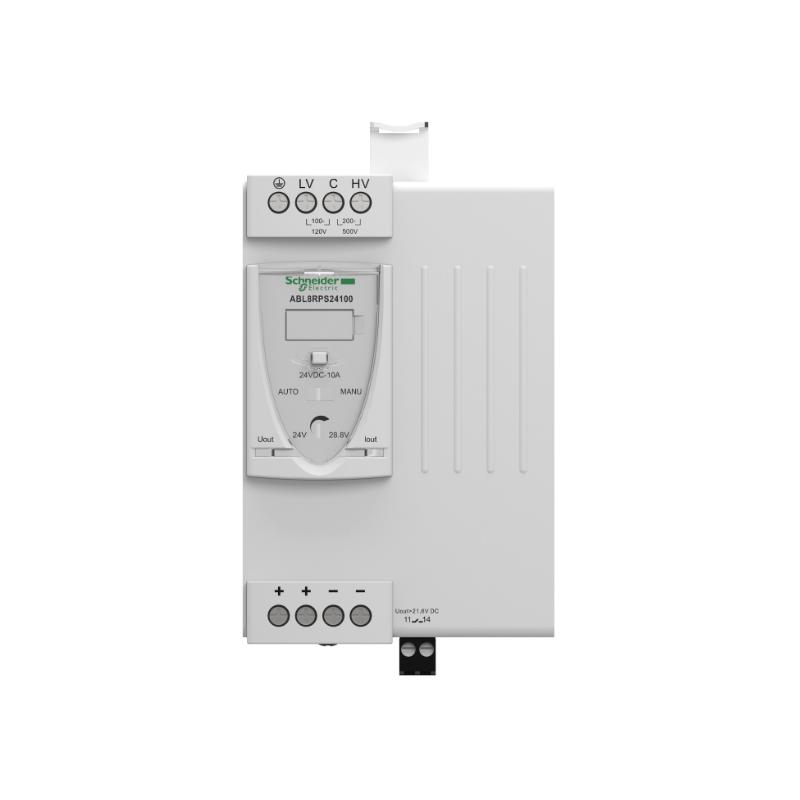

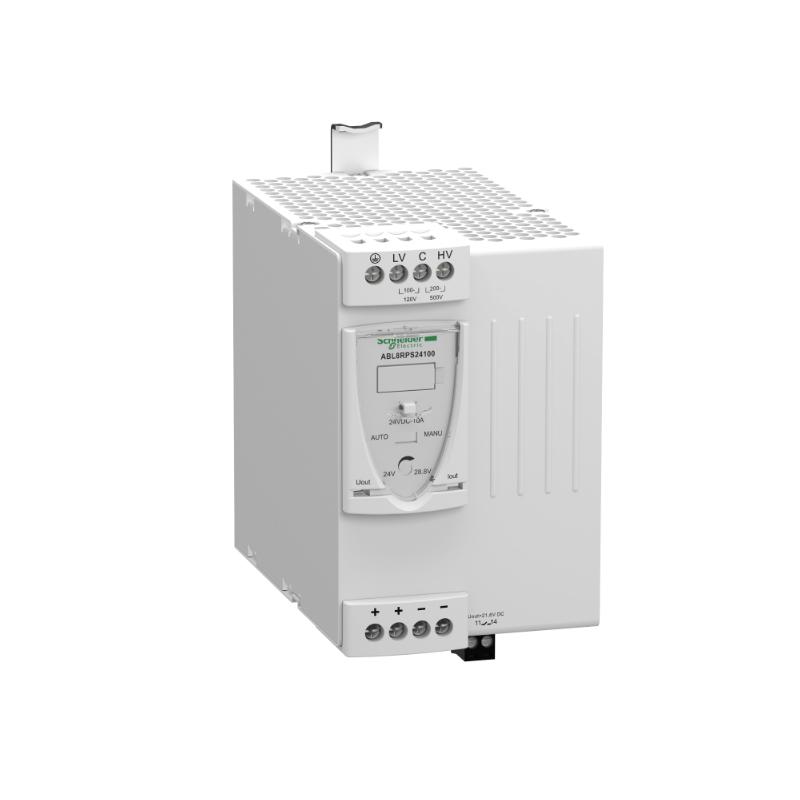

The Schneider Electric ABL8RPS24100 Regulated Switch Power Supply is a versatile and high‑performance power solution designed to deliver stable, regulated DC power in industrial automation environments. As part of Schneider’s advanced ABL8RPS series, this model provides a 24 V DC output at 10 A, offering a reliable and efficient power source for PLCs, field devices, sensors, actuators, and control modules.
Engineered for demanding applications requiring consistent voltage under variable loads, the ABL8RPS24100 features strong protection mechanisms, diagnostic indicators, and a space‑efficient design — making it ideal for modern control panels and distributed automation systems.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Regulated Switch Power Supply |
| Model Number | ABL8RPS24100 |
| Input Voltage | 100 – 240 VAC, 50/60 Hz |
| Output Voltage | 24 V DC |
| Output Current | 10 A |
| Output Power | 240 W |
| Regulation Type | Regulated Switching Power Supply |
| Protection Features | Overload, Short‑Circuit, Over‑Temperature |
| Diagnostics | Output & Fault LEDs |

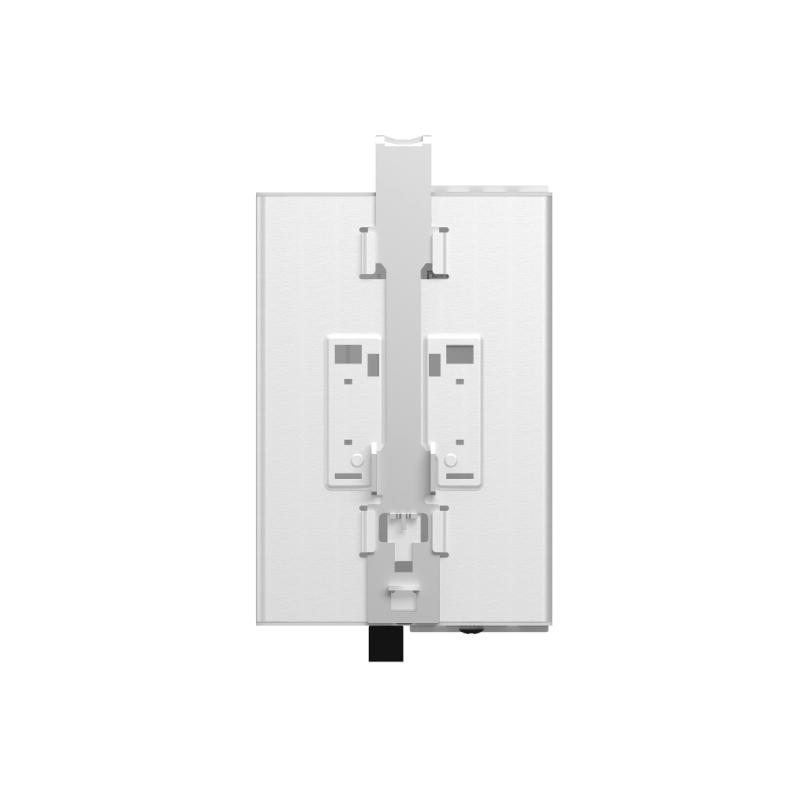

| Mounting | DIN Rail (35 mm) |
| Insulation | Industrial‑grade insulation |
| Operating Temperature | Industrial range |
| Storage Temperature | Industrial range |
Applications
The ABL8RPS24100 is ideal for industrial systems and automation infrastructures that require robust, regulated power delivery:
-
PLC power distribution and automation panels
-
Industrial sensors, actuators, and I/O modules
-
Motor control systems
-
Conveyor and material handling equipment
-
Machine logic and automation controllers
-
Packaging, processing, and batch control systems
Its regulated 24 V output supports sensitive electronics and minimizes voltage fluctuations under changing loads.
Advantages
-
High Output Capacity – 10 A at 24 V supports larger loads and system expansion
-
Stable Regulated Output – Maintains consistent voltage even during load variations
-
Efficient Switching Design – Low heat generation and high efficiency
-
Robust Protection Features – Built‑in safeguards for overload, short‑circuit, and over‑temperature conditions
-
Diagnostic LEDs – Immediate visual feedback for output and fault conditions
-
Space‑Saving Form Factor – Compact design for control cabinets
-
Industrial Reliability – Designed for rugged, harsh operating environments
This combination of power, protection, and diagnostics makes the ABL8RPS24100 a strong choice for demanding automation applications.
Technical FAQs
1. What output voltage does the ABL8RPS24100 supply?
It delivers a regulated 24 V DC output.
2. What maximum current can it provide?
Up to 10 A continuous.
3. What AC input range does it support?
100 – 240 VAC, 50/60 Hz.
4. What protections are included?
Overload, short‑circuit, and over‑temperature protections.
5. Does it feature diagnostic indicators?
Yes — output and fault status LEDs provide visual feedback.
6. What is the output power rating?
240 W (24 V × 10 A).
7. Can it be DIN rail mounted?
Yes, it supports standard 35 mm DIN rail installation.
8. Is it suitable for sensitive electronics?
Yes, regulated output helps protect sensitive devices.
9. How is heat handled?
Efficient design reduces heat; no additional cooling required in typical setups.
10. Is it suitable for industrial automation?
Yes, engineered for rugged industrial performance.
