Product Introduction

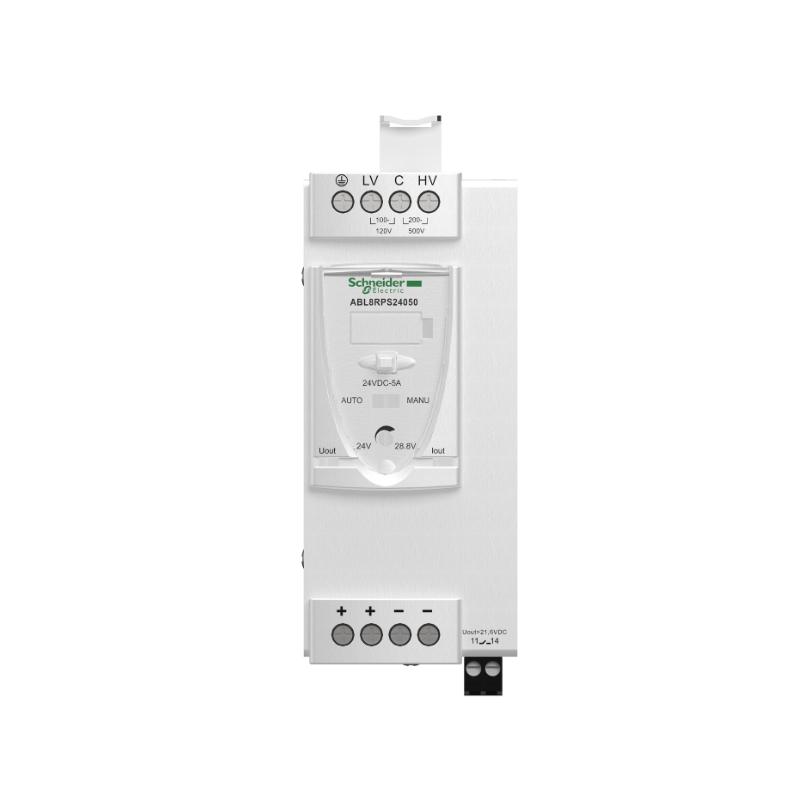

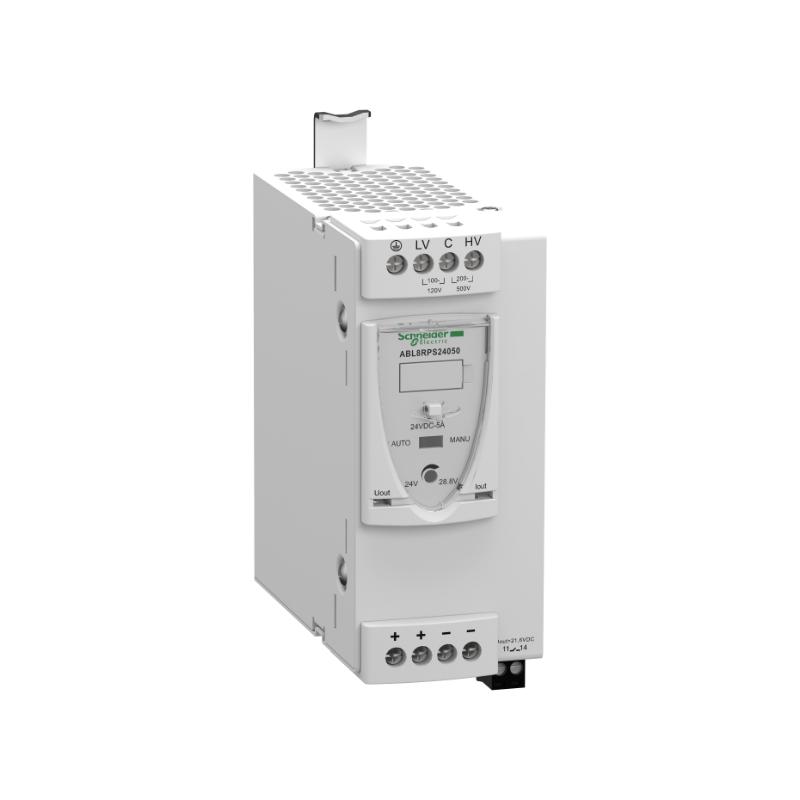

The Schneider Electric ABL8RPS24050 Regulated Switch Power Supply is a high‑performance industrial power module engineered to deliver stable and reliable DC power for demanding automation systems. Designed as part of Schneider’s premium ABL8RPS series, this supply provides 24 V DC output at 5.0 A, combining robust regulation with efficient energy conversion for PLCs, sensors, actuators, and field devices.
Crafted for industrial environments where power stability, space efficiency, and long‑term reliability are critical, the ABL8RPS24050 delivers clean, regulated output with built‑in protections and diagnostics — a strong foundation for control panels and distributed automation networks.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Regulated Switch Power Supply |
| Model Number | ABL8RPS24050 |
| Input Voltage | 100 – 240 VAC, 50/60 Hz |
| Output Voltage | 24 V DC |
| Output Current | 5.0 A |
| Output Power | 120 W |
| Regulation Type | Switching Regulated Power Supply |
| Protection Features | Overload, Short‑Circuit, Over‑Temperature |
| Status Indicators | Output and Fault LEDs |
| Mounting | DIN Rail (35 mm) |
| Insulation | Industrial‑grade insulation |
| Operating Temperature | Industrial range |
| Storage Temperature | Industrial range |
Applications
The ABL8RPS24050 is suited for a broad range of industrial and automation power requirements:
-
PLC power distribution
-
Industrial I/O modules and sensors
-
Relays, timers, and actuators
-
Conveyor controls and machine logic systems
-
Material handling and processing equipment
-
Building automation and facility systems
Its regulated output ensures system components receive consistent power, even during load changes or line fluctuations.
Advantages
-
Robust Regulation – Delivers stable 24 V DC output for sensitive control equipment
-
High Output Capacity – 5.0 A supports larger loads and system expansion
-
Efficient Switching Architecture – Maintains high efficiency with low heat dissipation
-
Comprehensive Protection – Built‑in safeguards for overload, short circuit, and overheating
-
Diagnostic Status LEDs – Indicates output and fault conditions for quick troubleshooting
-
Space‑Saving Design – Compact form factor ideal for cabinet installation
-
Industrial Reliability – Engineered for durability in harsh environments
These features make the ABL8RPS24050 an excellent choice for engineers seeking dependable, regulated power in complex automation systems.
Technical FAQs
1. What output voltage does the ABL8RPS24050 provide?
It delivers a regulated 24 V DC output.
2. What maximum current can it supply?
Up to 5.0 A continuous.
3. What AC input range is supported?
100 – 240 VAC at 50/60 Hz.
4. What protections are built into the supply?
Overload, short‑circuit, and over‑temperature protections.
5. Does it have diagnostic indicators?
Yes — output and fault status LEDs provide system feedback.
6. What is the approximate power rating?
120 W (24 V × 5 A).

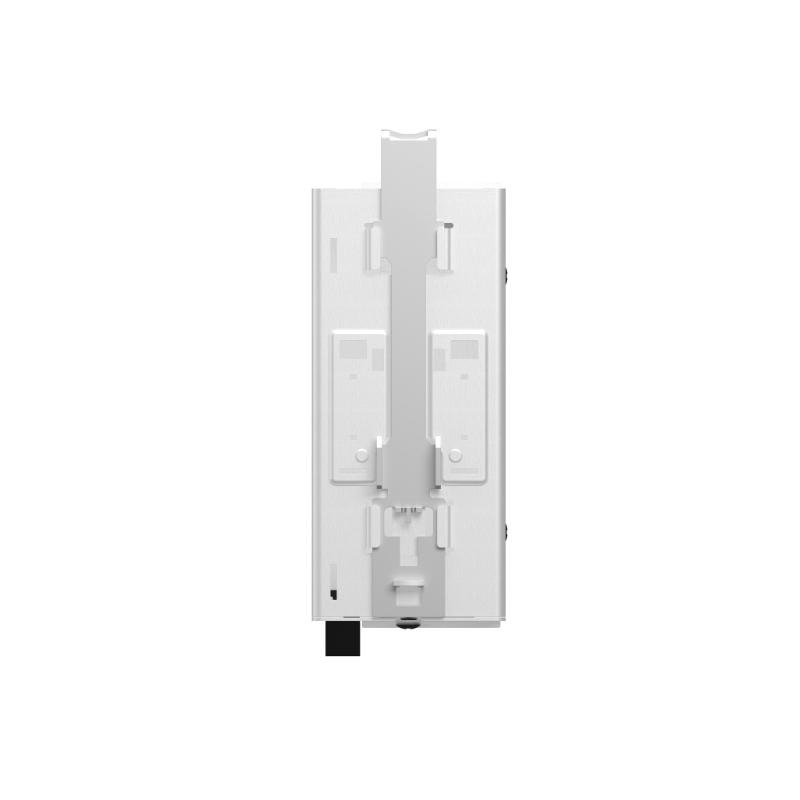

7. Can it be mounted on a DIN rail?
Yes, it supports standard 35 mm DIN rail installation.
8. Is this power supply suitable for industrial automation?
Yes, it is designed for rugged industrial environments.
9. How does it differ from basic supplies?
It offers regulated output and enhanced diagnostics compared to simpler units.
10. Does it require forced cooling?
No, the design supports natural convection cooling in typical installations.
