Product Introduction

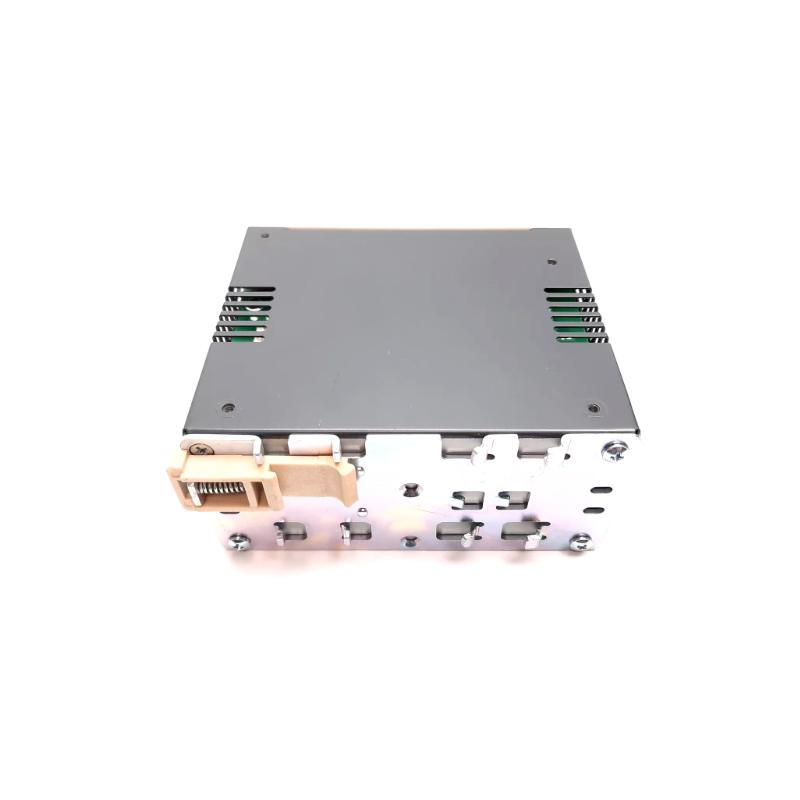

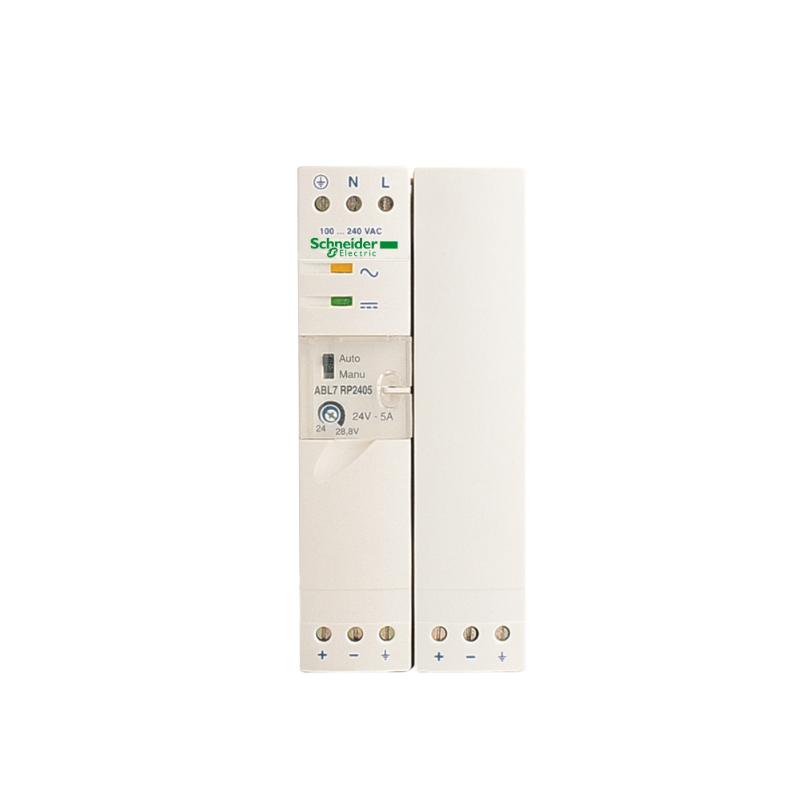

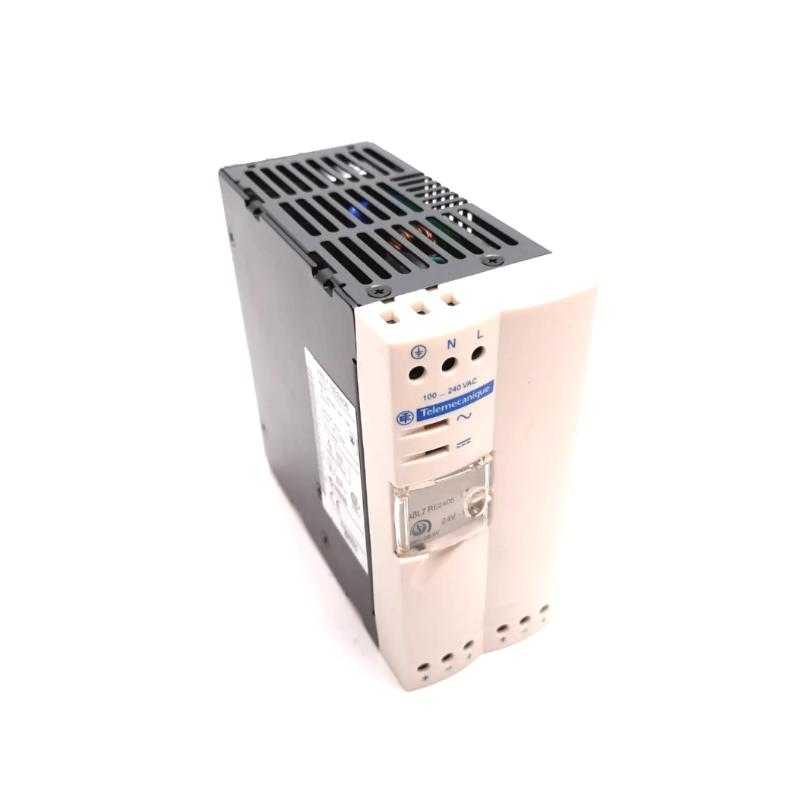

The Schneider Electric ABL7RP2405 Switching Power Supply is a reliable industrial power solution engineered to support automation and control systems that require clean, regulated DC power. Part of Schneider’s PHASEO™ ABL7RP series, this unit delivers 24 V DC at 5 A output, providing stable energy for PLCs, sensors, actuators, relays, and other automation devices. Its wide input range and compact form factor make it suitable for diverse industrial environments.
Designed for efficiency and durability, the ABL7RP2405 ensures dependable performance with robust protection features. It is an ideal choice for control panels where consistent 24 V power and space efficiency are key requirements.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Switching Power Supply |
| Model | ABL7RP2405 |
| Input Voltage | 100 – 240 VAC, 50/60 Hz |
| Output Voltage | 24 V DC |
| Output Current | 5 A |
| Output Power | 120 W |
| Regulation Type | Switch Mode Power Supply (SMPS) |
| Protection | Overload, Short‑Circuit, Thermal Protection |
| Indicator | Output Status LED |
| Mounting | DIN Rail (35 mm) or Panel |
| Insulation Class | Industrial Grade |
| Operating Temperature | Industrial Range |
| Storage Temperature | Industrial Range |
Applications
The ABL7RP2405 is commonly used in industrial automation where stable power delivery is critical:
-
PLC and control cabinet power distribution
-
Industrial sensors, transducers, and field devices
-
Actuator and relay power supply
-
Conveyor system and material handling equipment
-
Machine logic and automation controllers
-
Packaging and processing systems
Its regulated output helps maintain consistent performance of sensitive electronic components.
Advantages
-
Universal Input Compatibility – Works with 100–240 VAC power grids worldwide
-
Stable DC Output – Provides regulated 24 V supply with minimal voltage ripple
-
High Output Capacity – 5 A at 24 V supports larger loads
-
Efficient Switching Design – SMPS architecture improves energy efficiency
-
Built‑In Protection – Supports overload, short‑circuit, and over‑temperature safety
-
Diagnostic Indicator – LED output indicator for quick status checks
-
Flexible Mounting – DIN rail or panel mounting options
This combination of reliability, power, and protection makes the ABL7RP2405 a solid choice for demanding industrial systems.
Technical FAQs
1. What is the output voltage of the ABL7RP2405?
It provides a regulated 24 V DC output.
2. How much current can it deliver?
Up to 5 A continuous.
3. What is the input voltage range?
100–240 VAC at 50/60 Hz.
4. What protections are included?
Overload, short‑circuit, and thermal protections.
5. Is there a status indicator?
Yes, an LED indicates output status.
6. What is the approximate output power?
120 W (24 V × 5 A).
7. Can it be mounted on a DIN rail?
Yes, DIN rail or panel mounting is supported.
8. Is this suitable for industrial automation systems?
Yes, designed for rugged industrial environments.
9. Will it support PLC and sensor loads?
Yes, ideal for PLCs, sensors, and control devices.
10. Does it require special cooling?
No, natural convection cooling is sufficient in typical installations.
