Product Overview

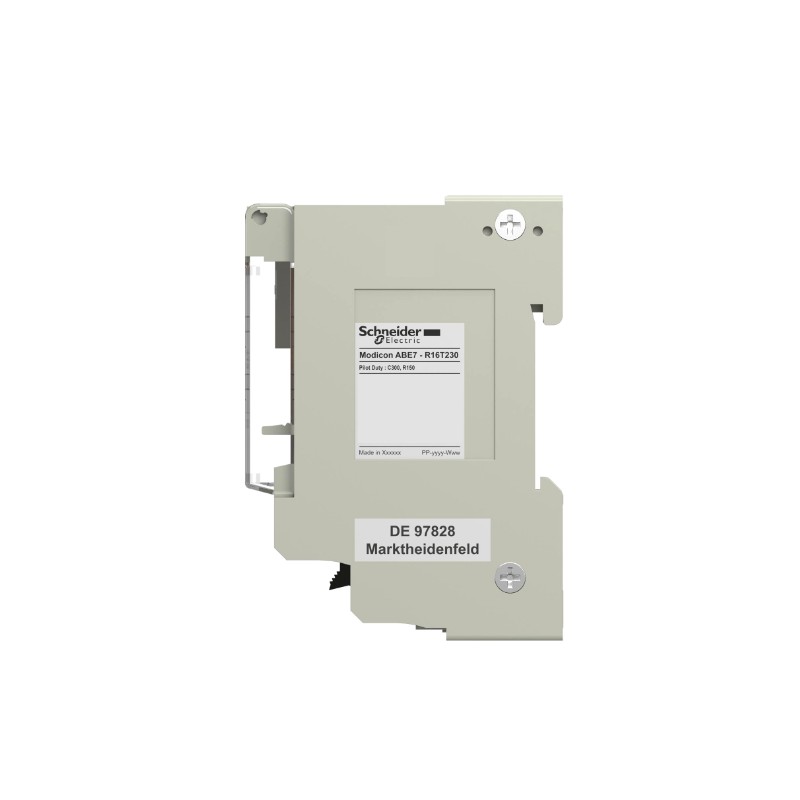

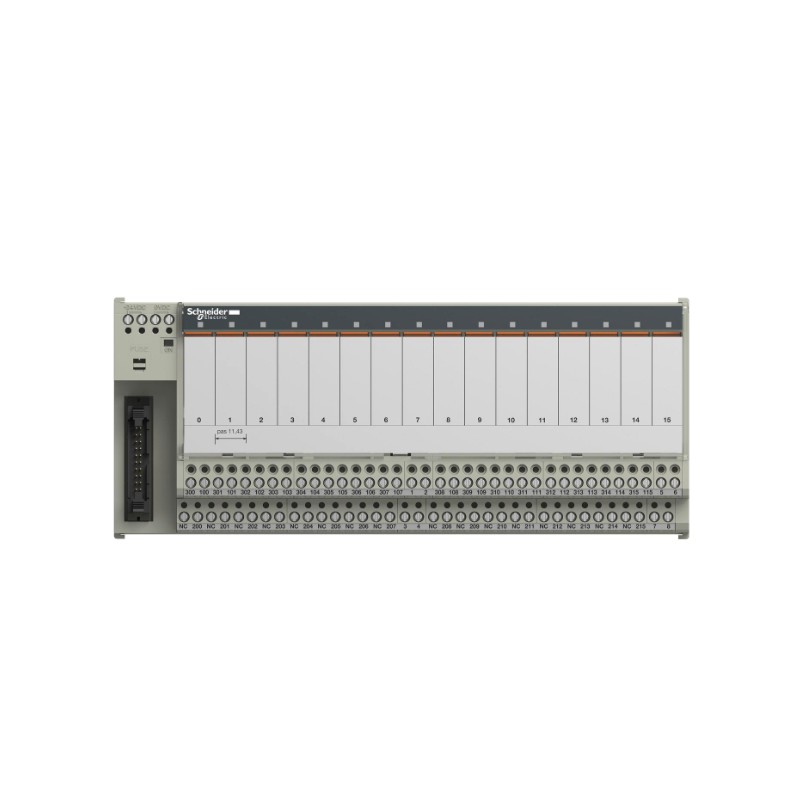

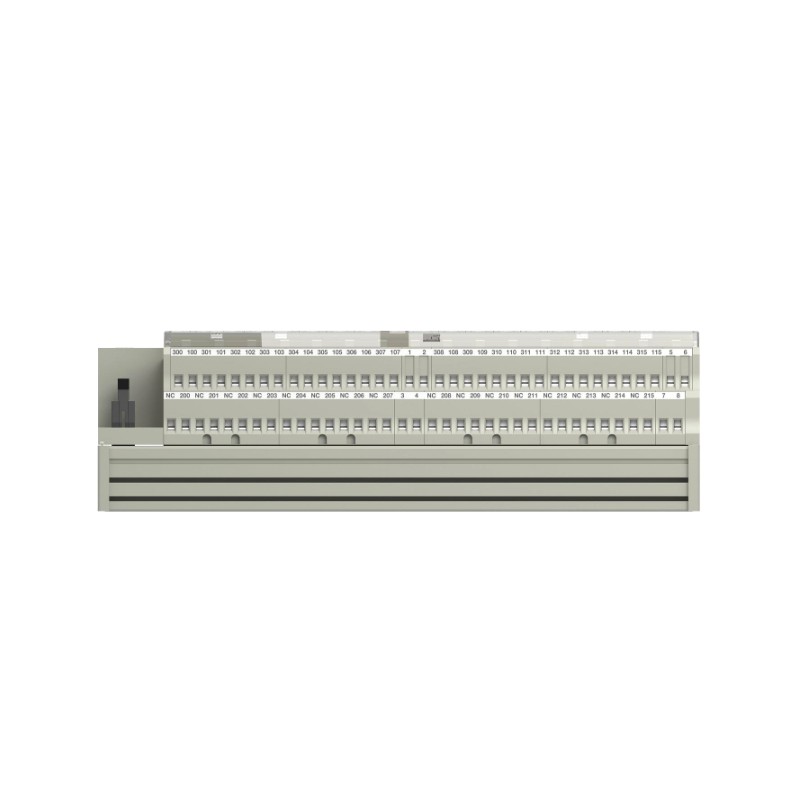

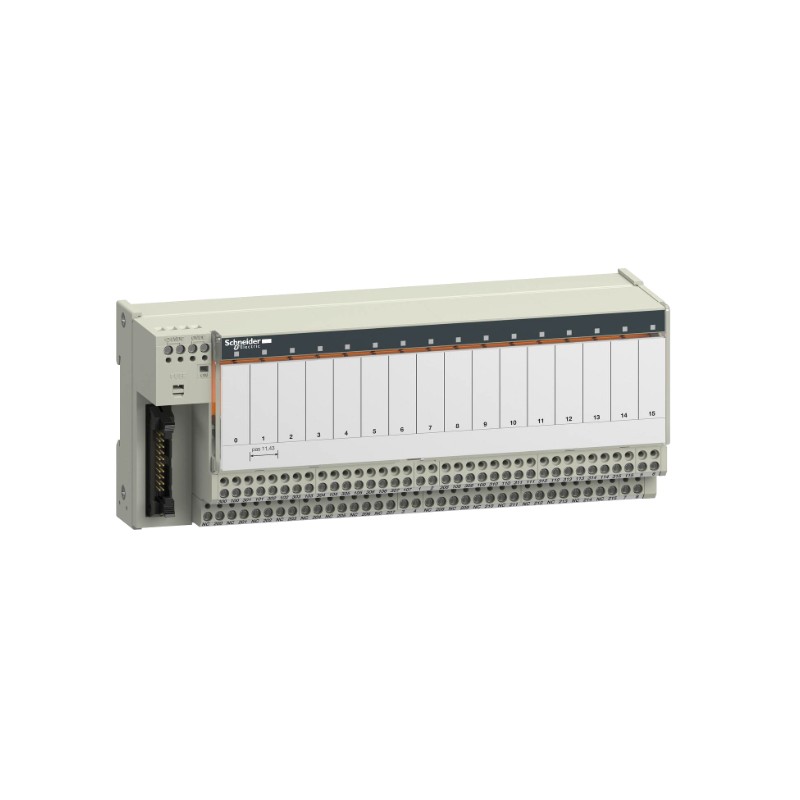

The Schneider Electric ABE7R16T230 Sub‑Base With Plug‑In Electromechanical Relay is engineered to deliver flexible, reliable relay switching in demanding industrial automation systems. As part of the Telefast ABE7 family, this module pairs a robust passive sub‑base with plug‑in electromechanical relays rated for higher load capacities, making it ideal for applications where both performance and serviceability are essential.
With 16 relay channels and plug‑in design, the ABE7R16T230 enables fast installation and effortless maintenance without the need for soldering. Its integrated LED indicators provide clear visual status feedback, helping technicians quickly identify relay operations during commissioning or troubleshooting.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Sub‑Base With Plug‑In Electromechanical Relay |
| Channels | 16 Relay Outputs |
| Contact Type | SPST (Form A) |
| Relay Coil Voltage | 24 V DC |
| Rated Load Voltage | Up to 230 V AC |
| Maximum Switching Current | 10 A per Channel |
| Terminal Type | Plug‑In Relay Sockets |
| Insulation Voltage | 2000 V |
| Protection Rating | IP20 |
| Operating Temperature | -5°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Mounting | DIN Rail (35 mm) / Panel Mount |
| LED Indicators | Included for Relay Status |
| Installation Category | II |
Applications
The ABE7R16T230 is suited to a wide range of industrial environments where robust relay switching and service‑friendly design are priorities:
-
Motor control panels
-
Conveyor and machine automation
-
Process and batch control systems
-
Packaging and assembly lines
-
HVAC and facility management equipment
-
Industrial sequencing and logic operations
Its high load capacity and plug‑in flexibility support both heavy duty operations and streamlined maintenance workflows.
Advantages
-
Plug‑In Ease of Service – Replace relays quickly without soldering
-
High Load Capability – 10 A switching current per channel for demanding applications
-
Clear Status Feedback – Integrated LEDs show relay operation at a glance
-
Efficient Space Use – Compact design fits high‑density cabinets
-
Flexible Installation – Compatible with DIN rail or panel mounting
-
Industrial Reliability – 2000 V insulation and rugged build
-
Reduced Downtime – Modular design simplifies maintenance and replacement
This combination of performance and practicality makes the ABE7R16T230 ideal for modern industrial automation environments.
Technical FAQs
1. What does the ABE7R16T230 module do?
It provides a sub‑base with plug‑in electromechanical relays for reliable control switching.
2. How many channels are supported?
16 relay outputs.
3. What is the maximum load voltage supported?
Up to 230 V AC.
4. What switching current can each channel handle?
10 A per channel.
5. Are relays user‑replaceable?
Yes, plug‑in design enables easy relay replacement without soldering.
6. Are status LEDs included?
Yes, integrated LEDs provide clear visual feedback.
7. What is the insulation voltage?
2000 V.
8. What temperature range can it operate in?
-5°C to 60°C.
9. Can it be DIN rail mounted?
Yes, supports standard 35 mm DIN rail or panel mounting.
10. Is this suitable for industrial automation applications?
Yes, ideal for demanding relay switching environments.
