Product Overview

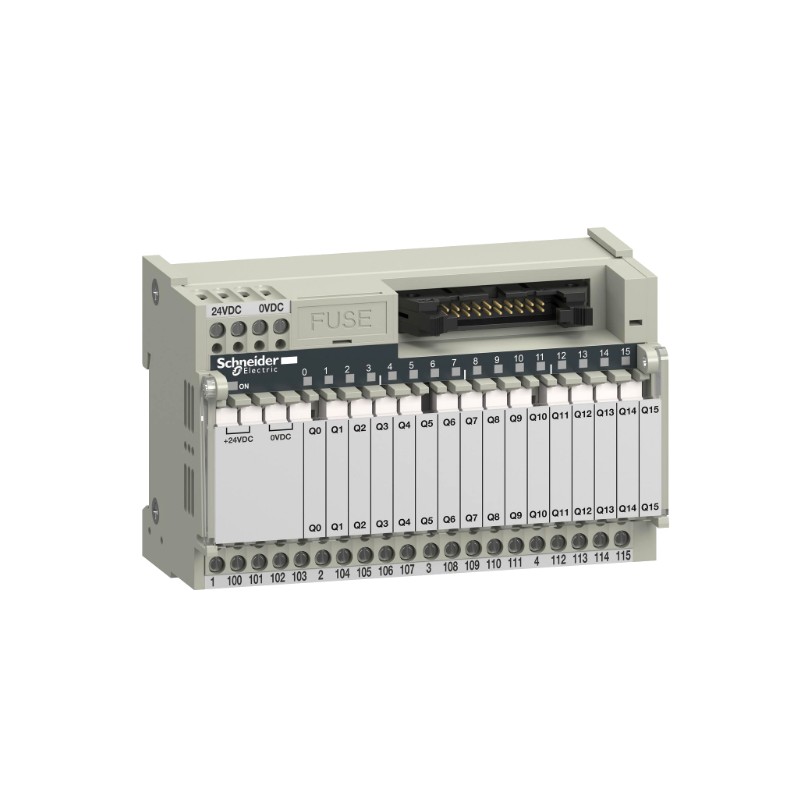

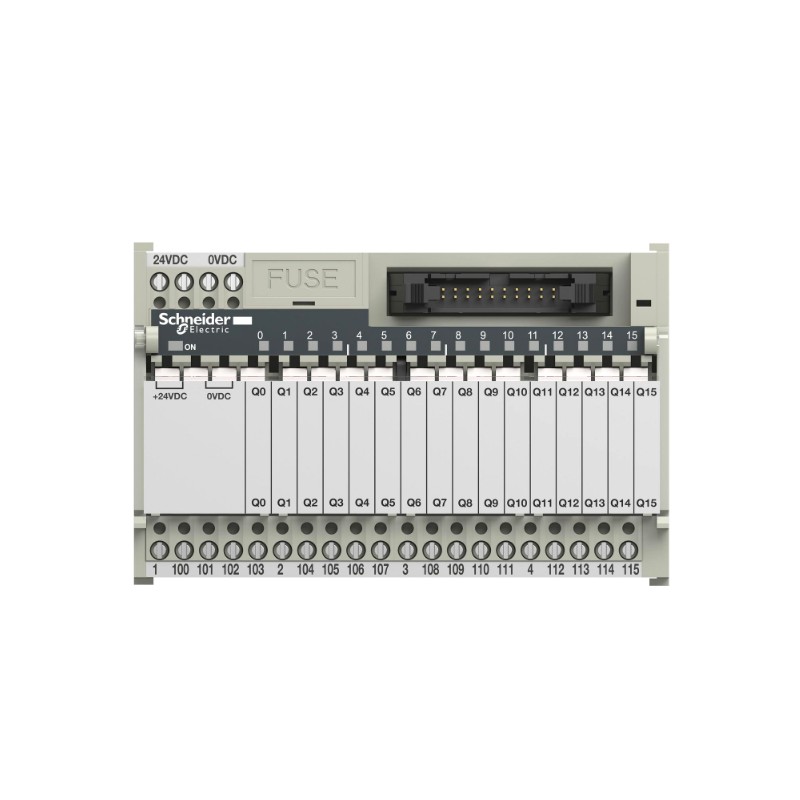

The Schneider Electric ABE7R16T111 Sub‑Base With Plug‑In Electromechanical Relay combines rugged relay performance with convenient plug‑in design for industrial automation. As part of the Telefast ABE7 series, this unit integrates a passive sub‑base with a pre‑mounted electromechanical relay, delivering reliable switching, simplified installation, and rapid maintenance without the need for soldering.
With 16 relay channels and easily replaceable plug‑in modules, the ABE7R16T111 is engineered to reduce downtime and support flexible control panel configurations. Its compact footprint and robust construction make it an ideal choice for mid‑ to high‑density relay applications in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Sub‑Base With Plug‑In Electromechanical Relay |
| Channels | 16 Relay Outputs |
| Contact Type | SPST (Form A) |
| Relay Coil Voltage | 24 V DC |
| Rated Voltage | 24…250 V AC/DC |
| Maximum Switching Current | 6 A per Channel |
| Terminal Type | Plug‑In Relay Socket |
| Insulation Voltage | 2000 V |
| Protection Rating | IP20 |
| Operating Temperature | -5°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Mounting | DIN Rail (35 mm) / Panel Mount |
| LED Indicators | Included for Relay Status |
| Installation Category | II |
Applications
The ABE7R16T111 excels in settings where both reliability and ease of service are required:
-
Machine automation and control systems
-
Process control panels
-
Motor and actuator switching
-
Packaging and assembly lines
-
HVAC and building management
-
Industrial sequencing and logic systems
Its plug‑in architecture simplifies relay replacement and reduces overall system downtime.
Advantages
-
Plug‑In Relay Convenience – Quick replacement reduces maintenance time
-
High Channel Capacity – Supports 16 relays in one compact module
-
Wide Voltage Support – Operates across 24–250 V AC/DC loads
-
Integrated LED Indicators – Immediate visual feedback on relay status
-
Flexible Mounting – Supports DIN rail or panel installation
-
Durable Design – Industrial‑grade construction for long‑term reliability
-
High Electrical Safety – 2000 V insulation rating ensures secure operation
This combination of modular design and rugged reliability makes the ABE7R16T111 a cost‑effective choice for modern automation systems.
Technical FAQs
1. What is the main function of the ABE7R16T111?
It provides a sub‑base with plug‑in electromechanical relays for industrial control applications.
2. How many relay channels does it support?
16 channels.
3. What voltage ranges are supported?
24–250 V AC/DC.
4. Are LED indicators included?
Yes, LEDs indicate relay status.
5. Can relays be replaced without soldering?
Yes, the plug‑in design allows easy relay replacement.
6. What is the maximum switching current per channel?
6 A.
7. What insulation rating does it have?
2000 V.
8. What is the operating temperature range?
-5°C to 60°C.
9. Can it be mounted on DIN rail?
Yes, supports standard 35 mm DIN rail or panel mounting.
10. Is this suitable for industrial automation environments?
Yes, it is designed for rugged industrial use.
