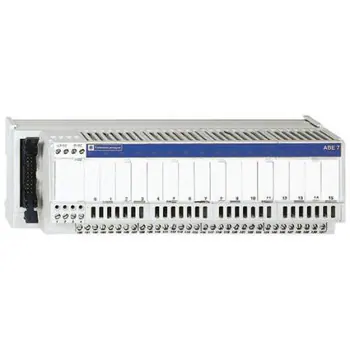

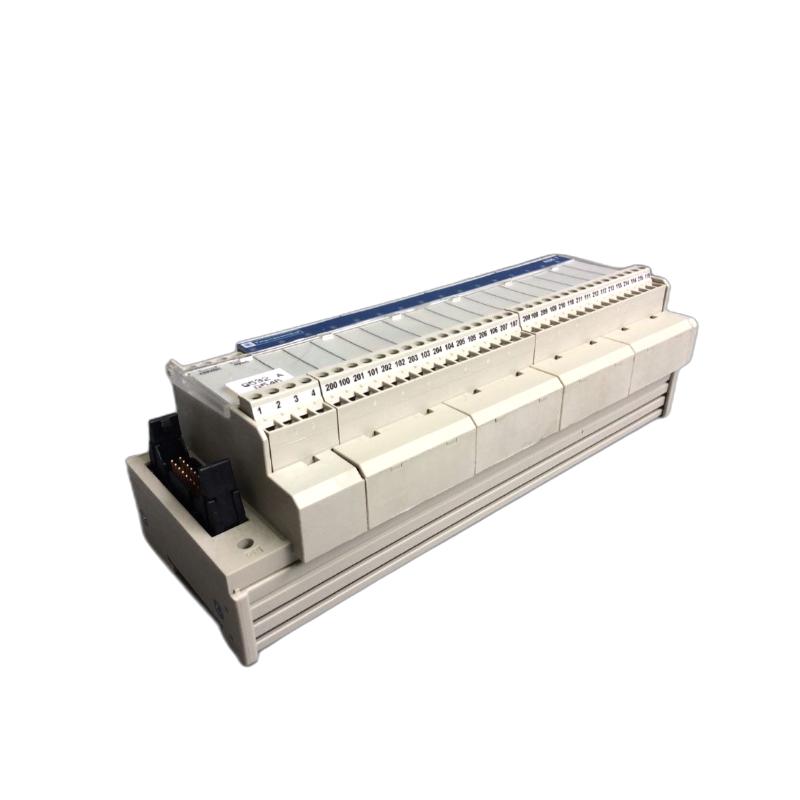

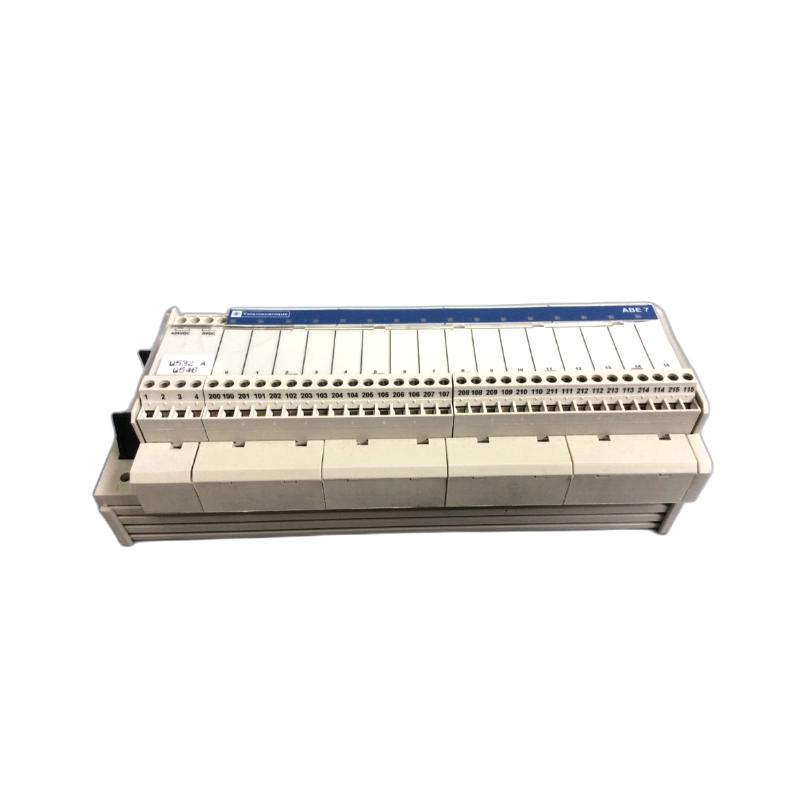

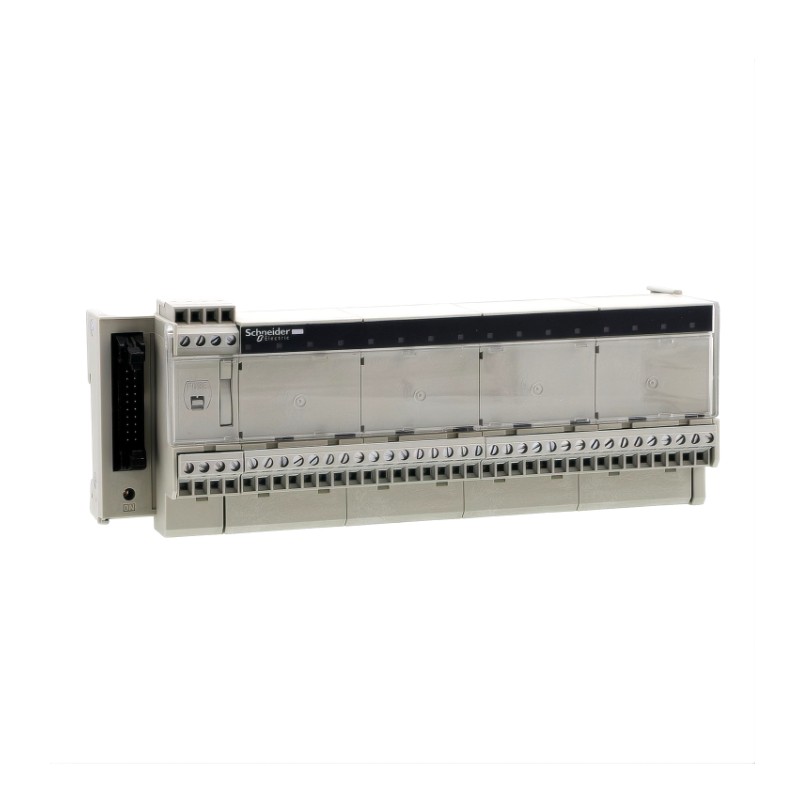

Schneider ABE7R16S212 Soldered Electromechanical Relay Sub Base

Brand:Schneider PLC
Item No.:ABE7R16S212
Product Origin:France
Product Dimensions:220 × 90 × 70 mm
Product Weight:0.56kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

ABE7R16S212-1ABE7-R16S212ABE7R16S212-4ABE7R16S212-2ABE7R16S212-3

Product Overview

The Schneider Electric ABE7R16S212 Soldered Electromechanical Relay Sub-Base is a premium-quality interface designed for industrial relay applications where durability and reliability are paramount. As part of the Telefast ABE7 series, this sub-base provides a solid and long-lasting platform for mounting and connecting electromechanical relays in automation systems.

Featuring 16 relay channels with soldered connection points, the ABE7R16S212 ensures consistent electrical performance and reduced maintenance requirements. Its compact, engineered structure makes it a reliable choice for control cabinets with space constraints, while delivering stable switching performance across diverse industrial environments.

Technical Specifications

ParameterSpecification
Product TypeSoldered Electromechanical Relay Sub-Base
Channels16 Relay Outputs
TerminalsSoldered
Rated Voltage24…250 V AC/DC
Maximum Switching Current6 A per Channel
Contact ConfigurationSPST / Form A
Insulation Voltage2000 V
Protection RatingIP20
Operating Temperature-5°C to 60°C
Storage Temperature-40°C to 80°C
MountingDIN Rail (35 mm) / Panel Mount
LED IndicatorsOptional per channel
Installation CategoryII


Applications

The ABE7R16S212 is tailored for applications where dependable relay operation and secure installations are essential:

  • Automated machine control systems

  • Industrial process panels

  • Motor and actuator switching

  • Packaging and assembly line automation

  • HVAC and facility automation systems

  • Industrial logic and sequencing controls

Its thoughtful design simplifies wiring and offers clear organization for multi‑relay setups.


Advantages

  • Solid Soldered Connections – Ensures low‑resistance, long‑lasting contacts

  • High Channel Density – Organizes 16 relays in a compact footprint

  • Wide Voltage Compatibility – Supports 24–250 V AC/DC loads

  • Space‑Efficient Design – Optimizes cabinet real estate

  • Flexible Mounting Options – DIN rail or panel installation

  • Industrial‑Grade Protection – 2000 V insulation rating

  • Maintenance‑Free Operation – Soldered connections minimize service needs

This combination of features delivers dependable performance for demanding automation environments.


Technical FAQs

1. What does the ABE7R16S212 do?
It serves as a soldered sub‑base for mounting and connecting 16 electromechanical relays in control systems.

2. How many relay channels are included?
16 channels.

3. Are the connection terminals removable?
No, the terminals are soldered for permanent, low‑resistance connections.

4. What voltage range can it handle?
It supports 24–250 V AC/DC operation.

5. What is the maximum switching current per channel?
Up to 6 A per channel.

6. Can it be mounted on a DIN rail?
Yes, it supports standard 35 mm DIN rail and panel mounting.

7. What is the insulation voltage rating?
2000 V.

8. What operating temperature range is supported?
From ‑5°C to 60°C.

9. Are status LEDs provided?
LEDs are optional depending on the relay configuration used.

10. Is it suitable for industrial use?
Yes, it’s designed for robust relay installations in industrial environments.
