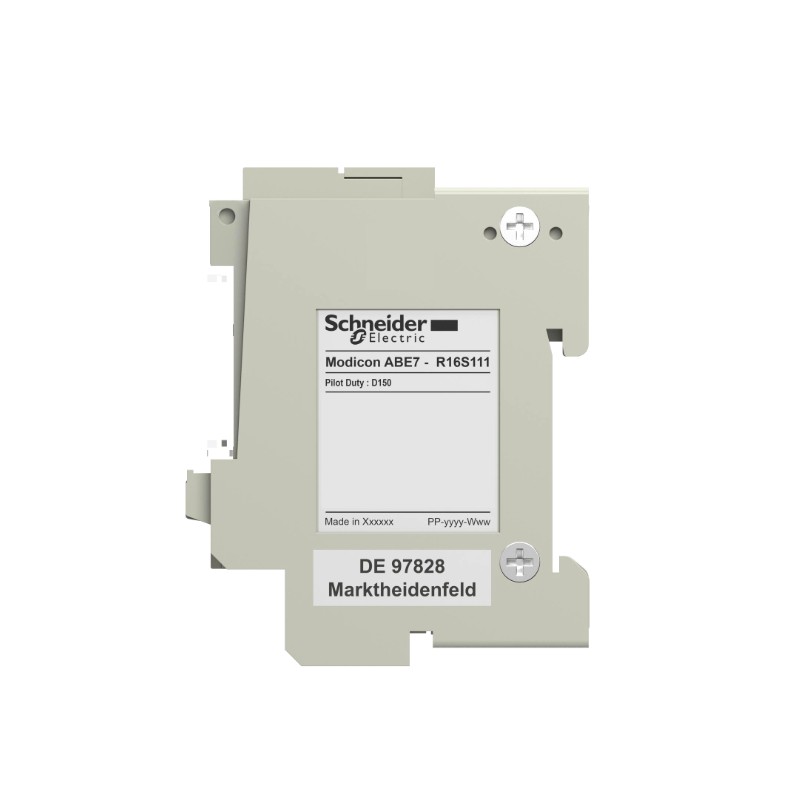

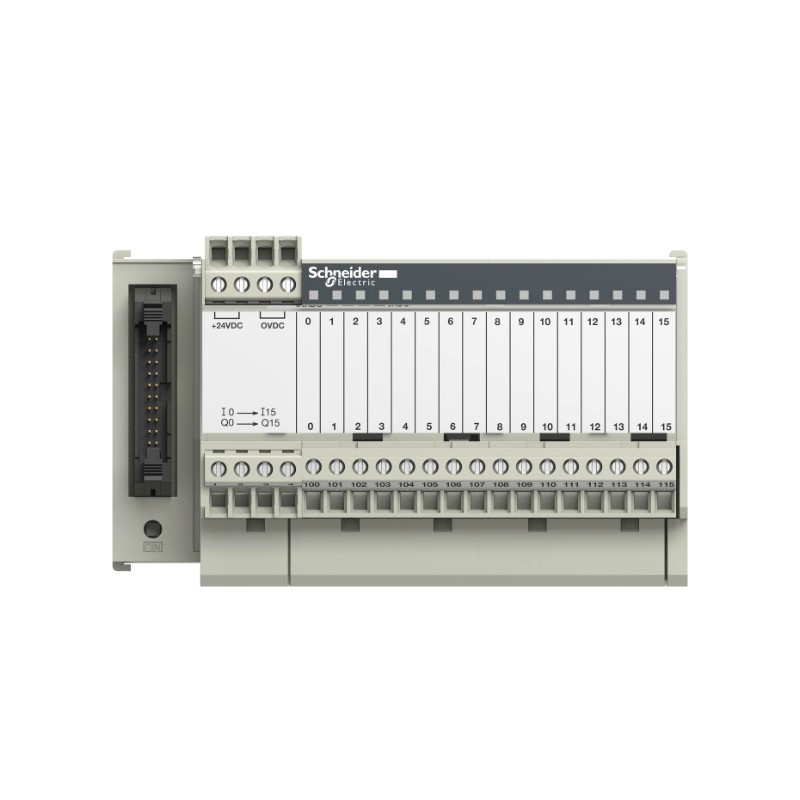

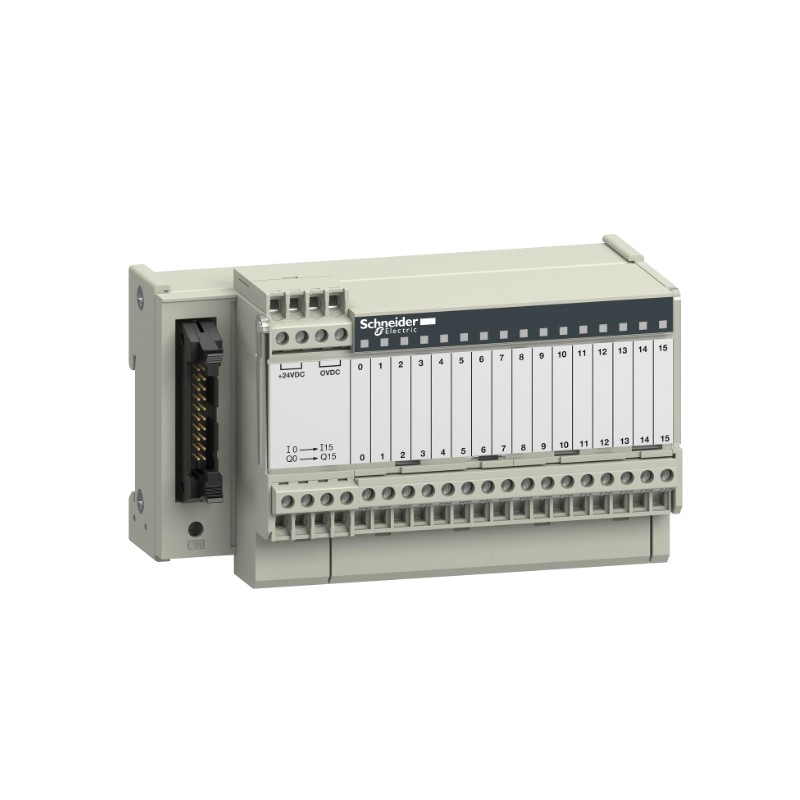

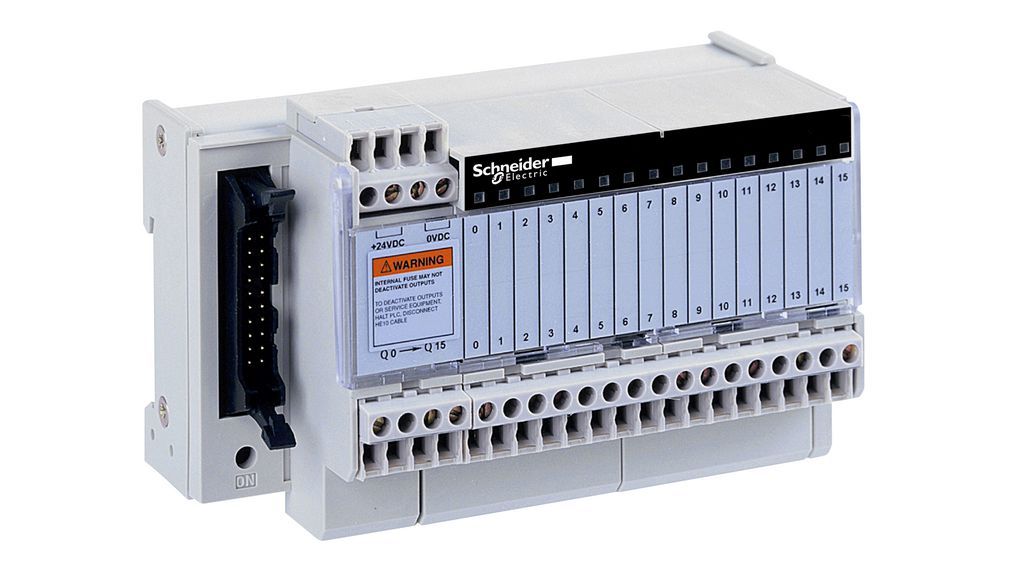

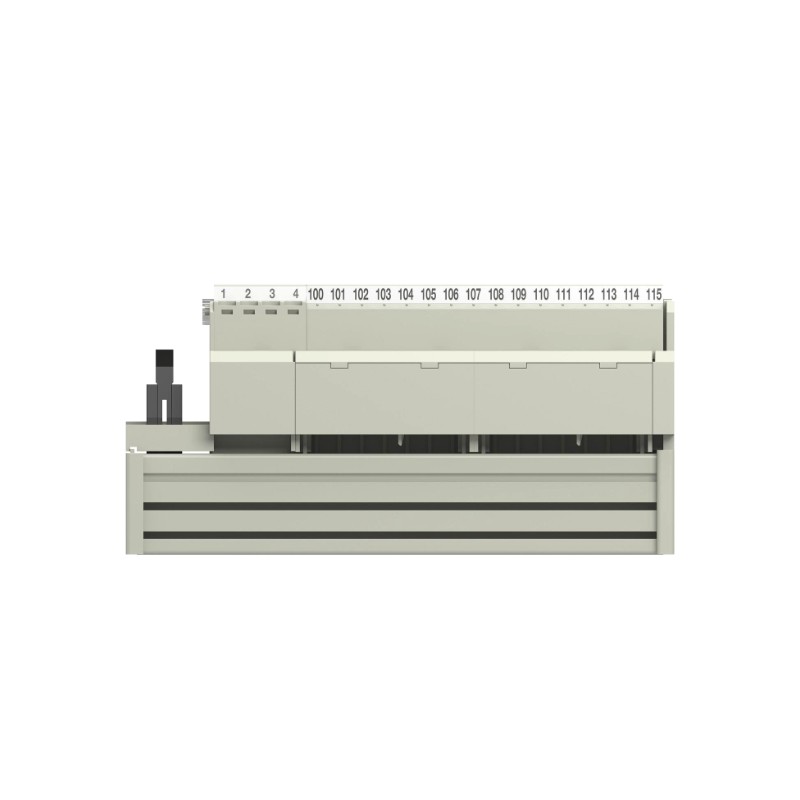

Schneider ABE7R16S111 Soldered Electromechanical Relay Sub Base

Brand:Schneider PLC
Item No.:ABE7R16S111
Product Origin:France
Product Dimensions:220 × 90 × 70 mm
Product Weight:0.55 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

ABE7R16S111-4ABE7R16S111-2ABE7R16S111-3ABE7R16S111-1ABE7-R16S111

Product Overview

The Schneider Electric ABE7R16S111 Soldered Electromechanical Relay Sub-Base is a high-quality interface designed for industrial automation applications that require reliable relay control. Part of the Telefast ABE7 series, this sub-base serves as a secure mounting and connection platform for electromechanical relays, ensuring consistent electrical performance and operational safety.

With 16 relay channels and soldered connections, the ABE7R16S111 provides a durable and maintenance-free solution for PLC or control panel integration. Its compact design optimizes cabinet space while simplifying the installation of multiple relays in high-density control systems.

Technical Specifications

ParameterSpecification
Product TypeSoldered Electromechanical Relay Sub-Base
Channels16 Relay Outputs
Terminals per ChannelSoldered
Rated Voltage24…250 V AC/DC
Maximum Switching Current6 A per Channel
Contact TypeSPST / Form A
Coil Voltage24 V DC typical
Insulation Voltage2000 V
Protection RatingIP20
Operating Temperature-5°C to 60°C
Storage Temperature-40°C to 80°C
MountingDIN Rail (35 mm) / Panel Mount
LED IndicatorsOptional per relay
Installation CategoryII


Applications

The ABE7R16S111 is suitable for a variety of industrial and automation applications:

  • Machine control systems

  • Process automation panels

  • Motor and actuator control

  • Packaging and assembly lines

  • HVAC and energy systems

  • Industrial relay logic applications

Its robust soldered construction ensures minimal signal loss and long-term operational stability.


Advantages

  • Reliable Electromechanical Connections – Soldered terminals ensure durability and low-resistance contact

  • High Channel Density – Supports 16 relays in a compact footprint

  • Flexible Voltage Compatibility – AC/DC operation from 24 to 250 V

  • Compact & Space-Saving – Optimized for high-density control panels

  • DIN Rail & Panel Mounting – Offers flexible installation options

  • Industrial-Grade Insulation – Rated at 2000 V for safety

  • Maintenance-Free Design – Soldered connections reduce maintenance needs

This makes the ABE7R16S111 an excellent choice for reliable relay operation in demanding industrial applications.


Technical FAQs

1. What is the main function of the ABE7R16S111?
It provides a secure sub-base for mounting and connecting 16 electromechanical relays.

2. How many relay channels does it support?
16 channels.

3. What type of relay connections does it use?
Soldered terminals for long-term reliability.

4. What voltage can it handle?
24–250 V AC/DC.

5. What is the maximum switching current per channel?
6 A.

6. Can it be mounted on a DIN rail?
Yes, it supports 35 mm DIN rail or panel mounting.

7. What is the insulation voltage rating?
2000 V.

8. What temperature range can it operate in?
-5°C to 60°C.

9. Are LED indicators included?
LEDs are optional depending on relay configuration.

10. Is it suitable for industrial automation?
Yes, designed for reliable high-density relay control in industrial environments.
