Product Overview

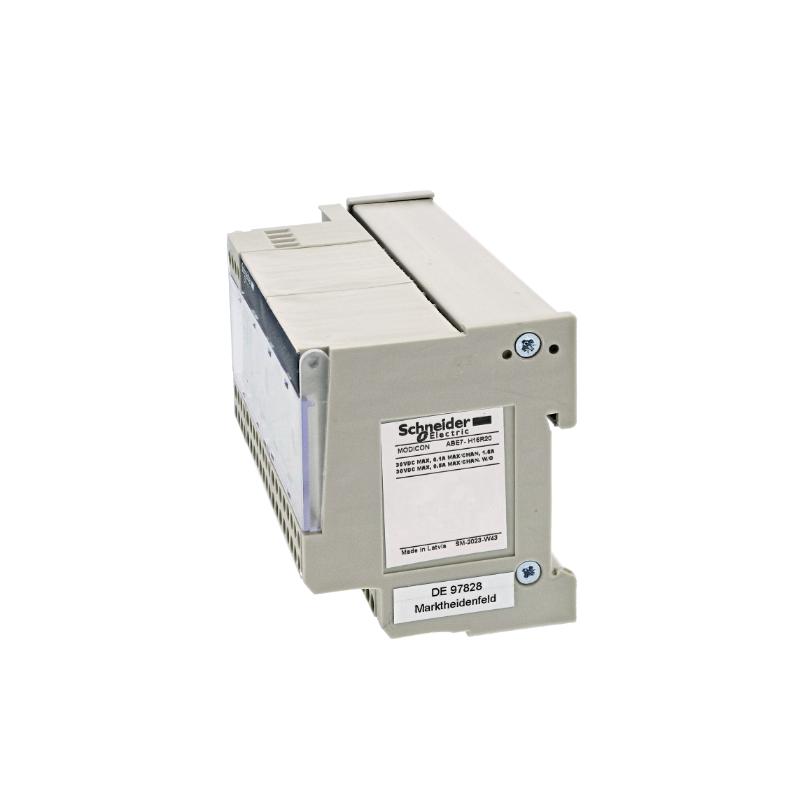

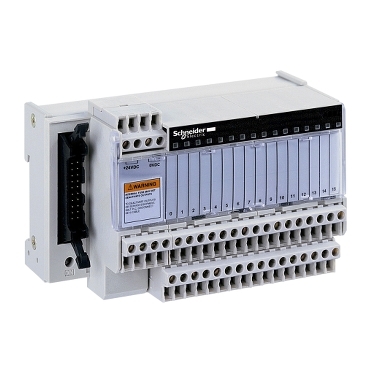

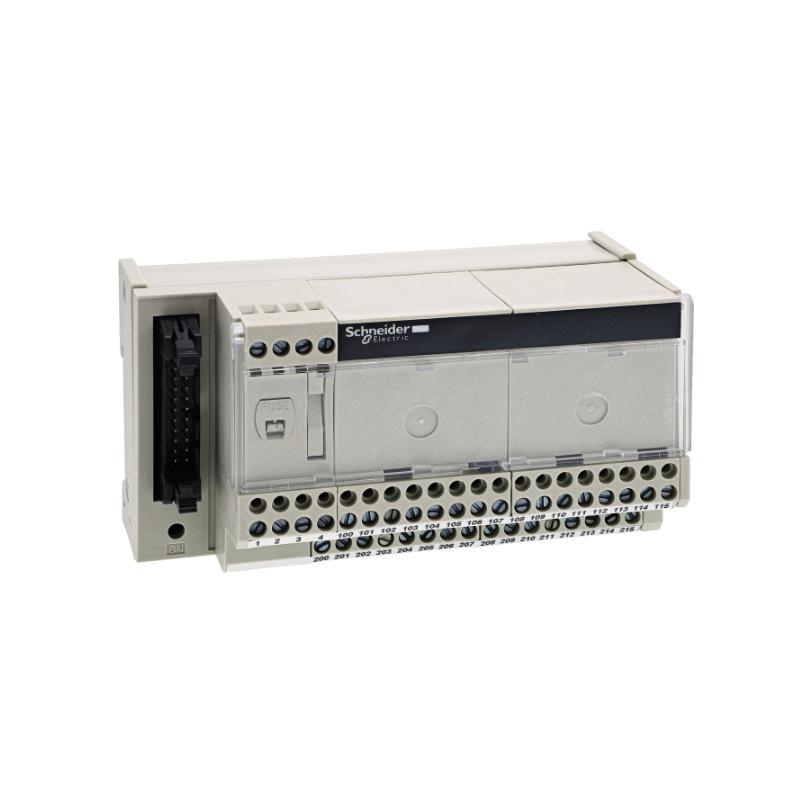

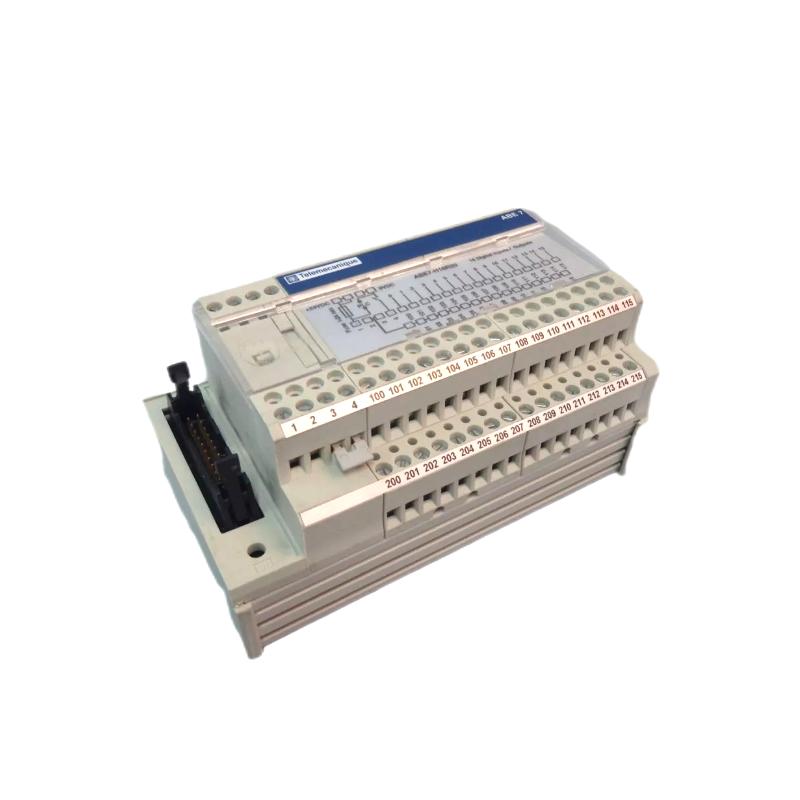

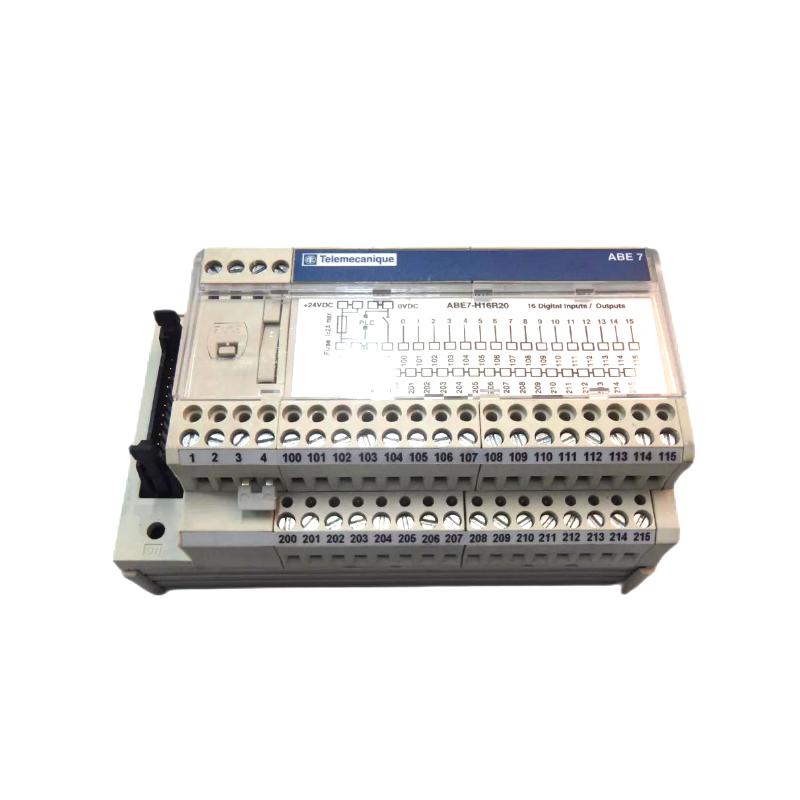

The Schneider Electric ABE7H16R20 Passive Connection Sub-Base is a robust and efficient solution for discrete I/O signal management in industrial automation. Part of the Telefast ABE7 series, this module provides a reliable interface between PLC I/O modules and field devices, helping streamline wiring and enhance system clarity.
With 16 input/output channels, integrated LED indicators, and built-in protection, the ABE7H16R20 ensures safe, organized, and high-performance signal distribution. Its compact footprint allows engineers to maximize cabinet space while maintaining easy access for maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Passive Discrete I/O Sub-Base |
| Channels | 16 Inputs / Outputs |
| Terminals per Channel | 3 |
| Rated Supply Voltage | 19…30 V DC |
| Maximum Supply Current | 1.8 A |
| Current per Channel | 0.5 A |
| Short-Circuit Protection | 2 A Internal Fuse |
| Polarity Distribution | 0 V or 24 V |
| Insulation Voltage | 2000 V |
| Protection Rating | IP2X |
| Operating Temperature | -5°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Mounting | DIN Rail (35 mm) / Panel Mount |
| Terminal Type | Screw Terminals |
| LED Indicators | Power and Channel Status |
| Installation Category | II |
