Product Overview

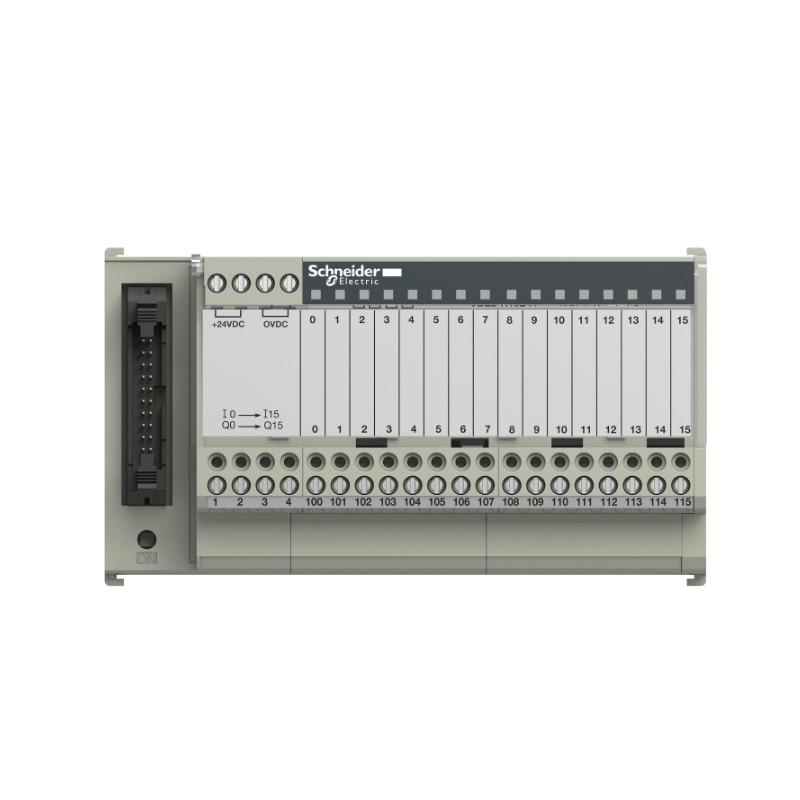

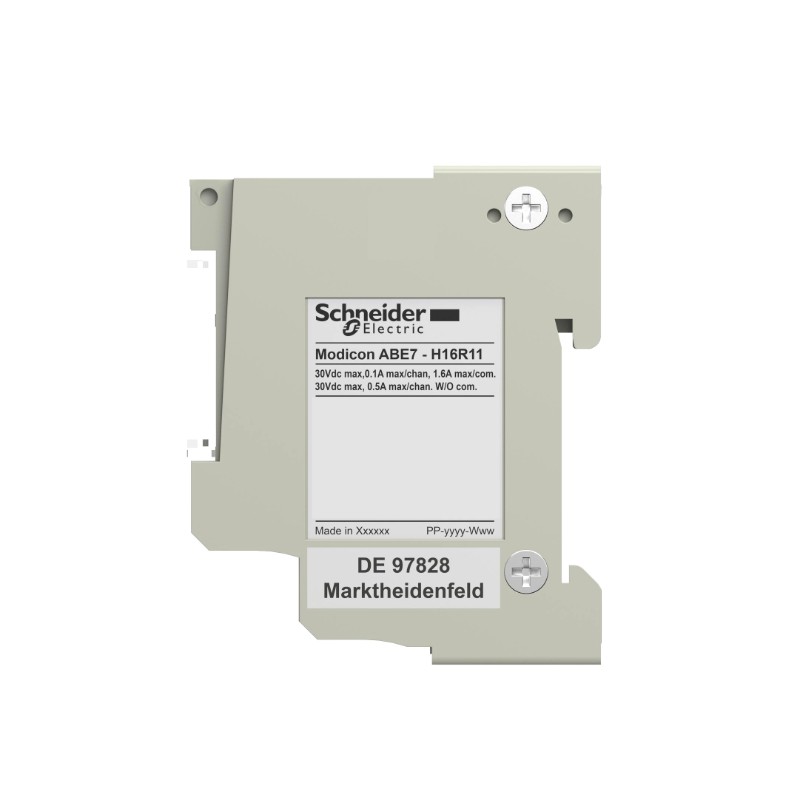

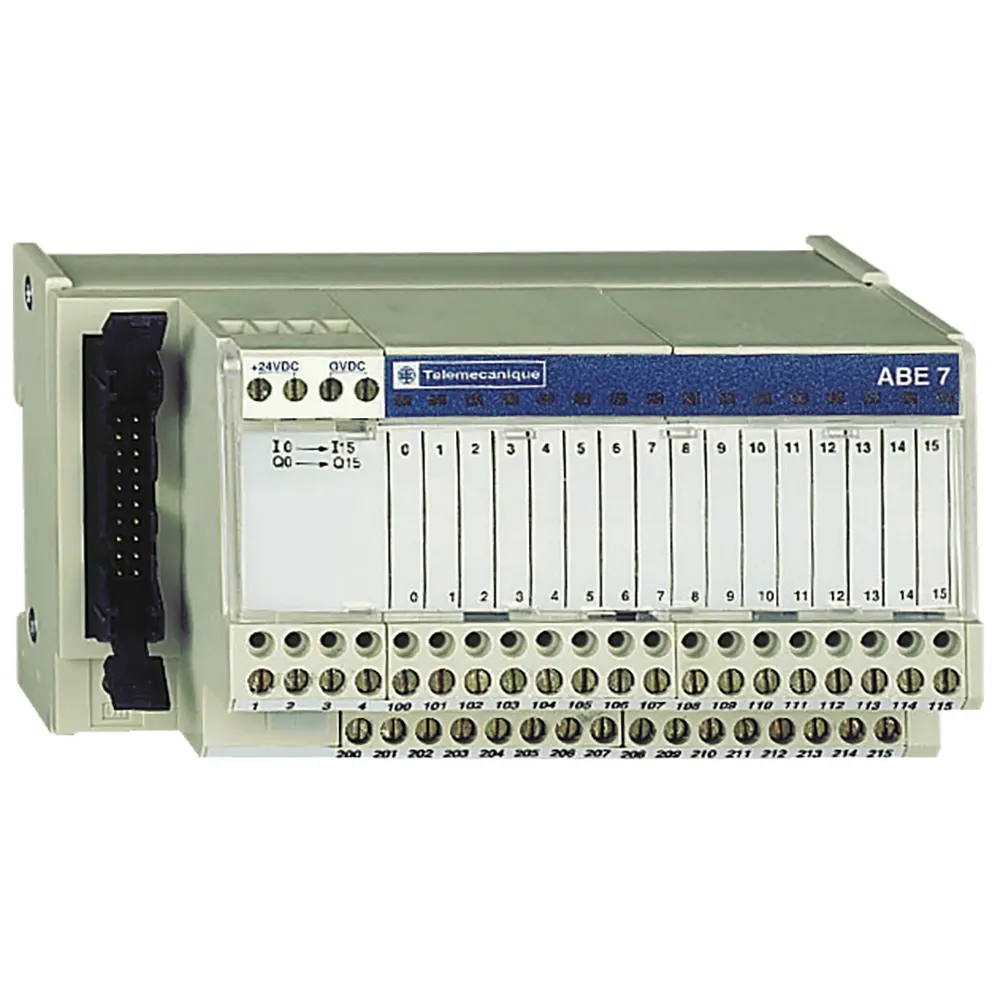

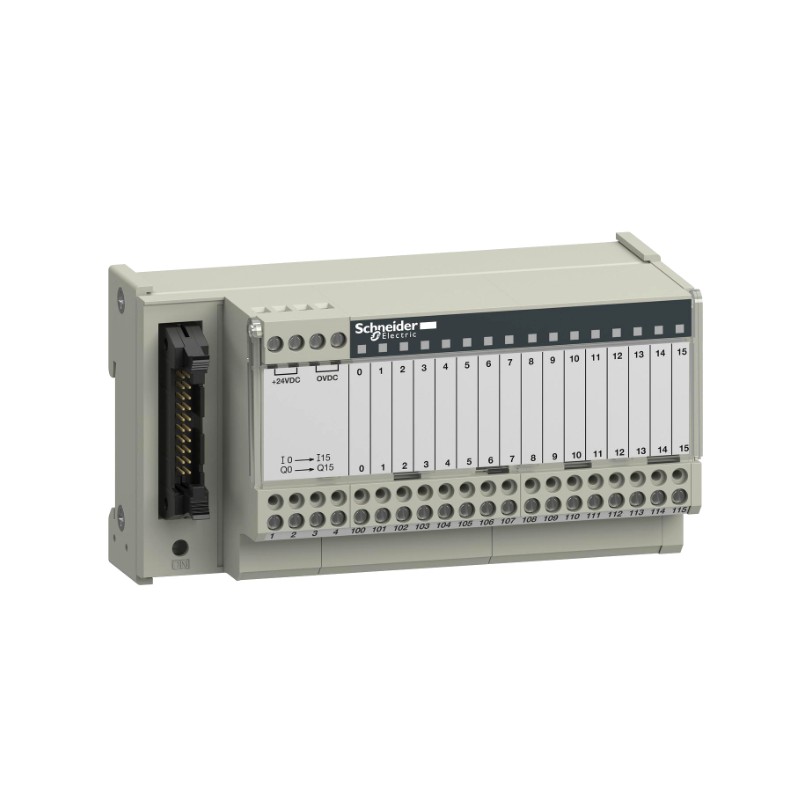

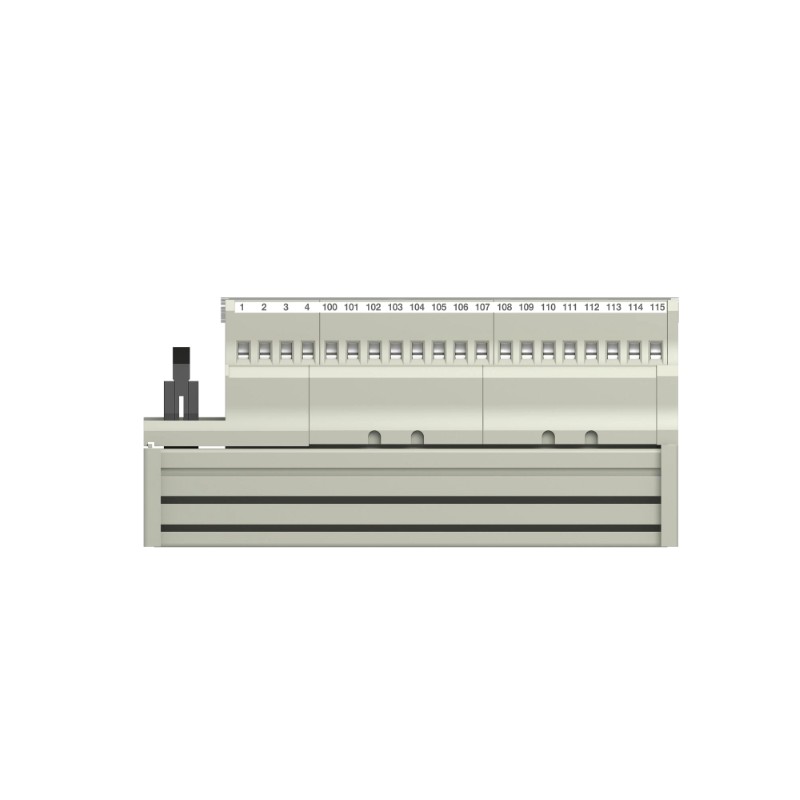

The Schneider Electric ABE7H16R11 Passive Connection Sub-Base is a versatile wiring interface designed for discrete I/O signal management in industrial automation panels. Belonging to the Telefast ABE7 family, this module provides a clean, structured connection between PLC I/O modules and field devices, helping engineers streamline installations and reduce wiring complexity.
Featuring 16 input/output channels, built-in LED status indicators, and internal protection, the ABE7H16R11 ensures reliable signal distribution while maintaining system transparency and operational safety. Its compact footprint allows for optimal use of control cabinet space without compromising performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Passive Discrete I/O Sub-Base |
| Channels | 16 Inputs / Outputs |
| Terminals per Channel | 3 |
| Rated Supply Voltage | 19…30 V DC |
| Maximum Supply Current | 1.8 A |
| Current per Channel | 0.5 A |
| Short-Circuit Protection | 2 A Internal Fuse |
| Polarity Distribution | 0 V or 24 V |
| Insulation Voltage | 2000 V |
| Protection Rating | IP2X |
| Operating Temperature | -5°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Mounting | DIN Rail (35 mm) / Panel Mount |
| Terminal Type | Screw Terminals |
| LED Indicators | Power and Channel Status |
| Installation Category | II |
