Product Insight

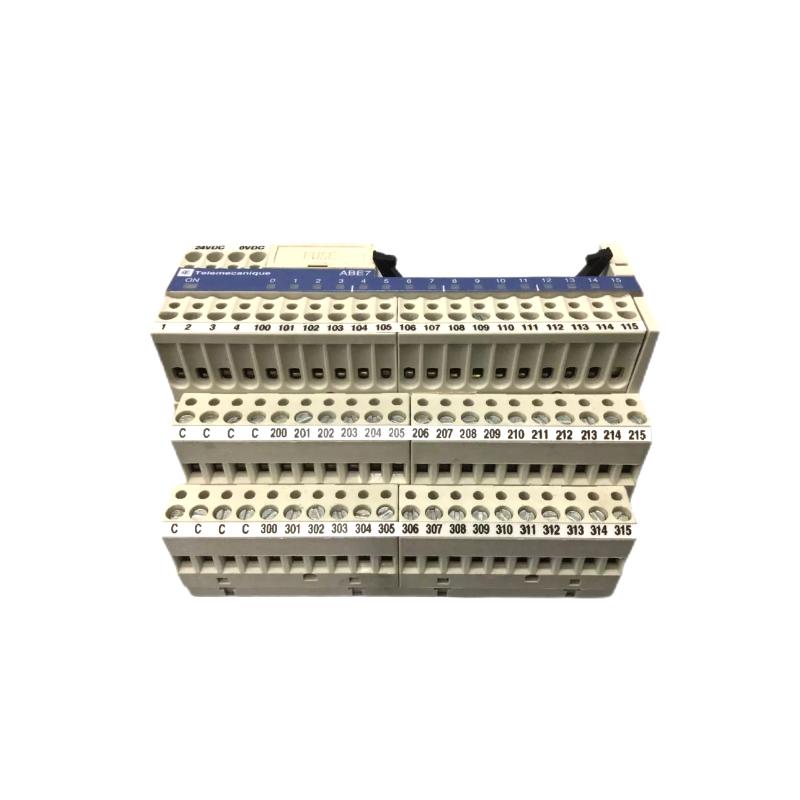

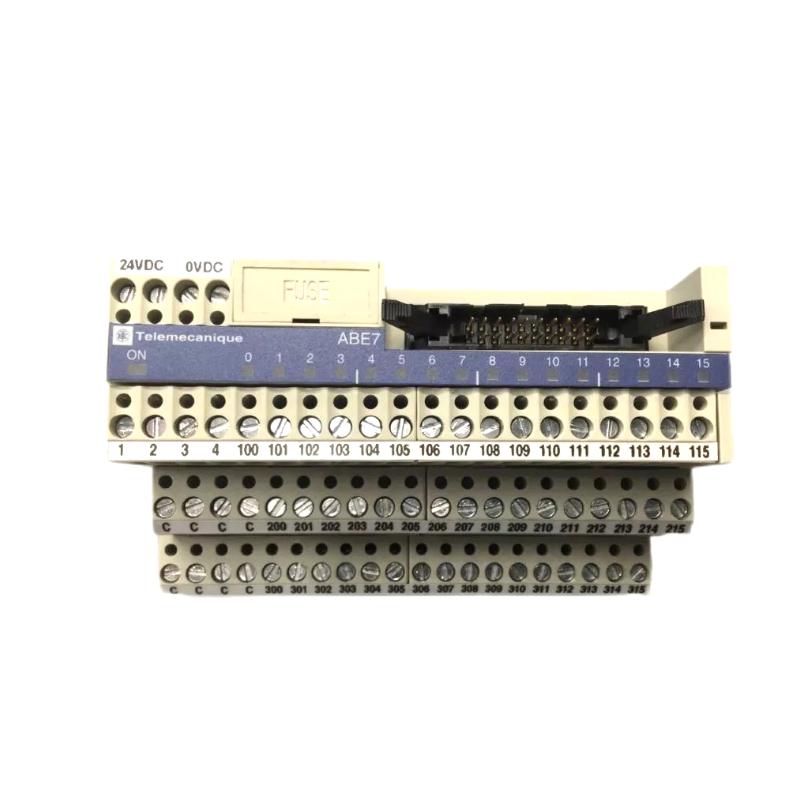

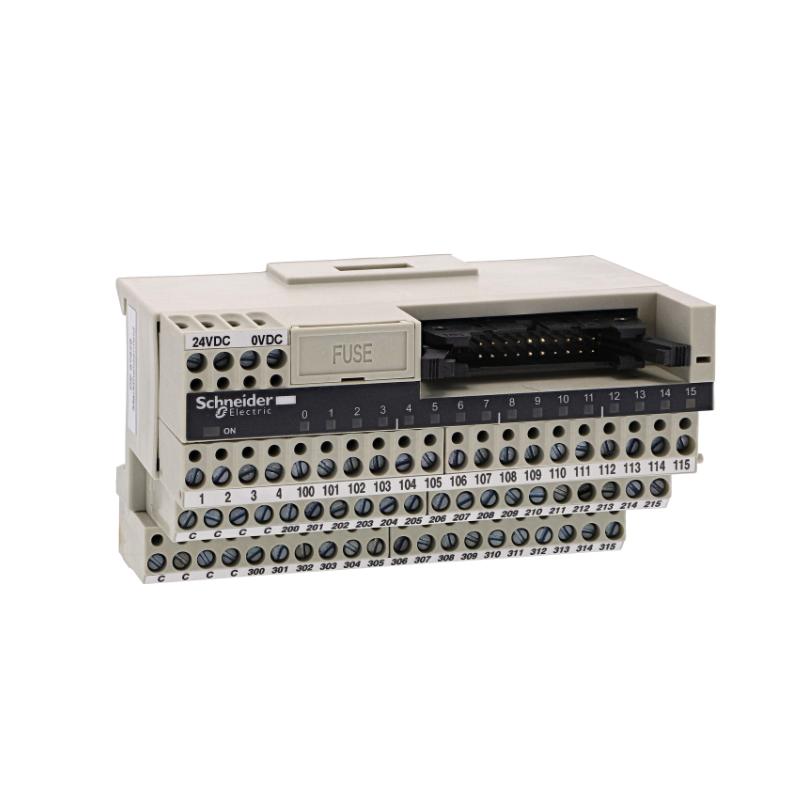

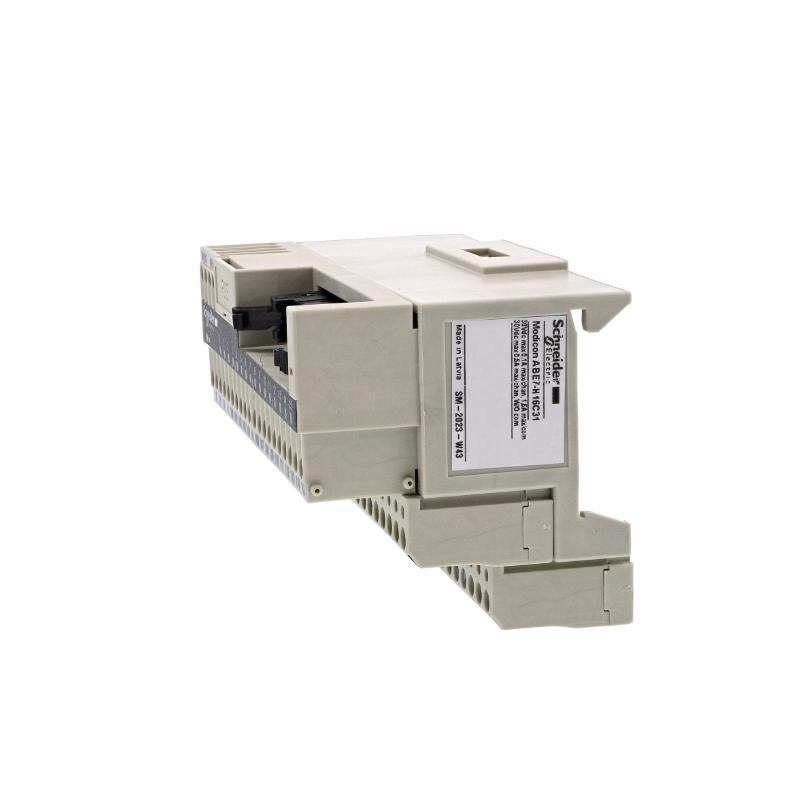

The Schneider Electric ABE7H16C31 Passive Connection Sub-Base is a compact yet powerful wiring interface designed to simplify discrete I/O connectivity in industrial automation systems. As part of the Telefast ABE7 pre-wired range, this module enables fast, structured signal transmission between PLC I/O cards and field devices.
With 16 input/output channels, integrated LED status indication, and internal protection features, the ABE7H16C31 offers a dependable and streamlined solution for modern control panels. Its miniature design allows engineers to optimize cabinet space while maintaining robust electrical performance and operational transparency.
Ideal for applications requiring reliable signal routing and simplified maintenance, this passive sub-base supports system clarity and installation efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Passive Discrete I/O Sub-Base |
| Channels | 16 Inputs / Outputs |
| Terminals per Channel | 3 |
| Rated Supply Voltage | 19…30 V DC |
| Maximum Supply Current | 1.8 A |
| Current per Channel | 0.5 A |
| Short-Circuit Protection | 2 A Internal Fuse |
| Polarity Distribution | 0 V or 24 V |
| Insulation Voltage | 2000 V |
| Protection Rating | IP2X |
| Operating Temperature | -5°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Mounting | DIN Rail (35 mm) / Screw Mount |
| Terminal Type | Screw Type |
| LED Indicators | Channel Status + Power ON |
| Installation Category | II |
