Product Snapshot

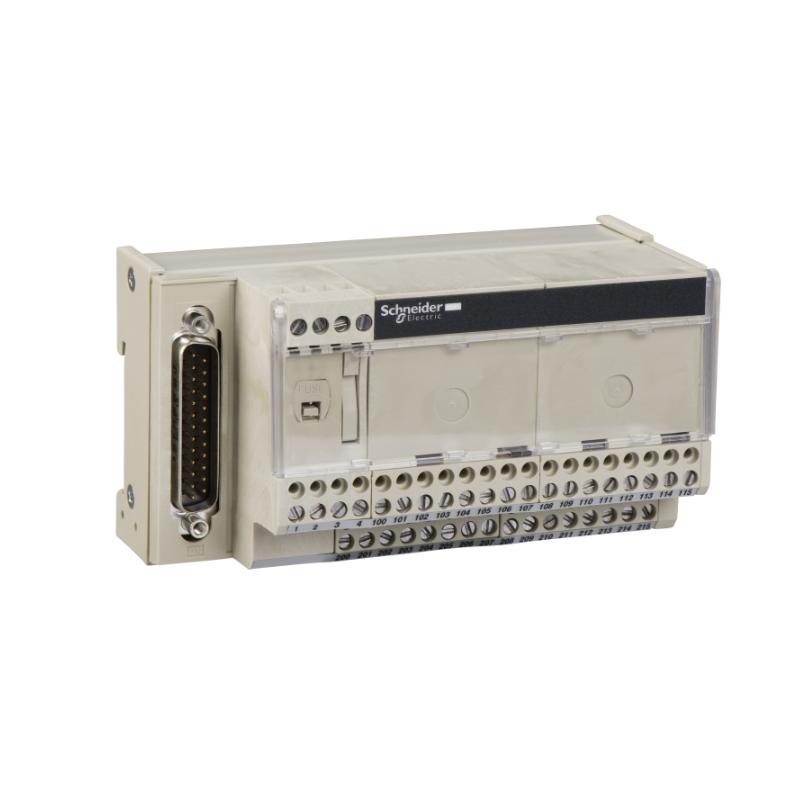

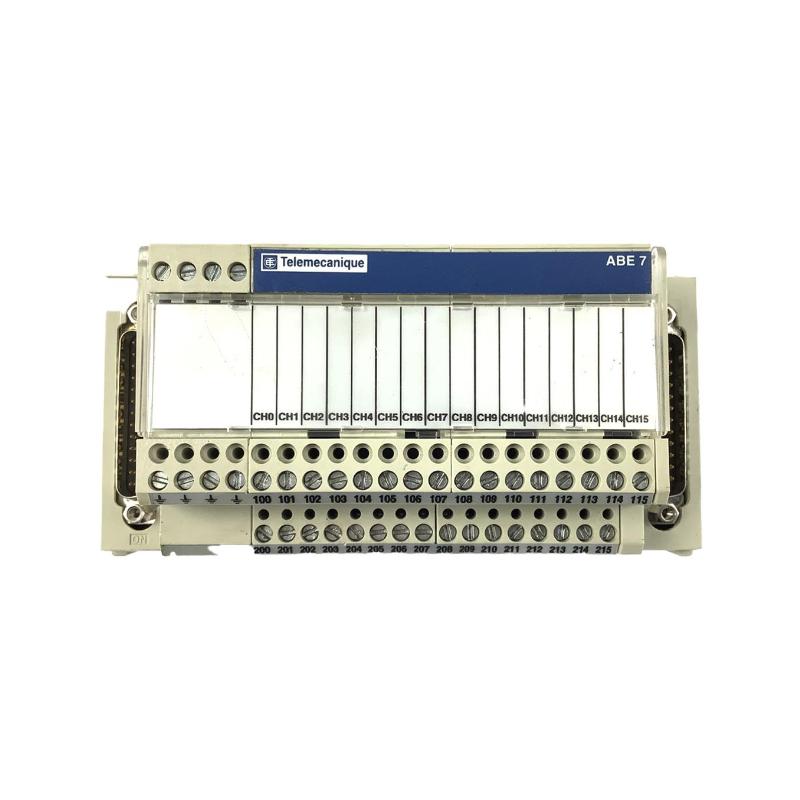

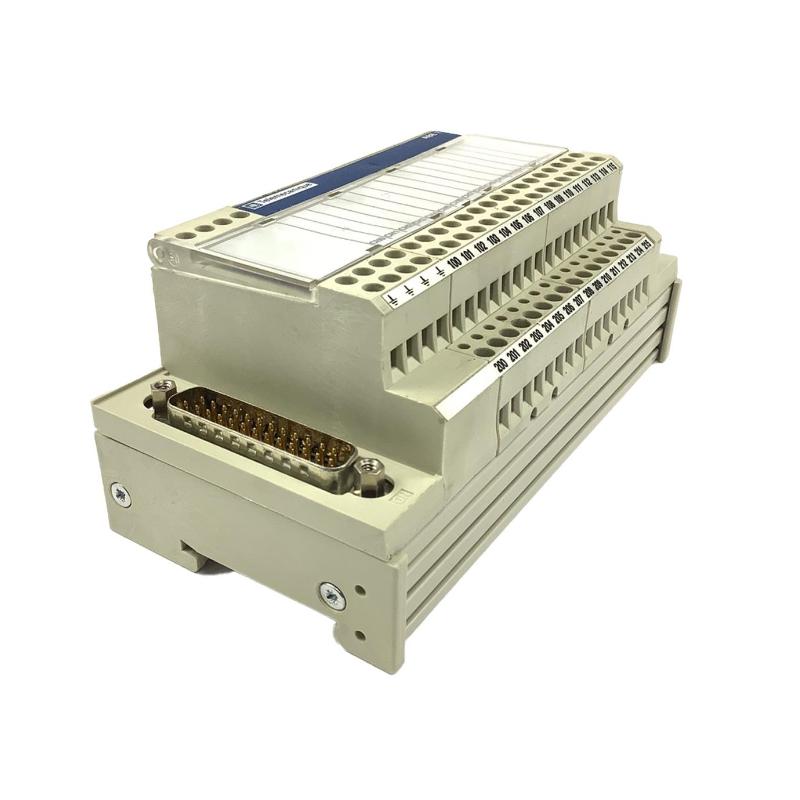

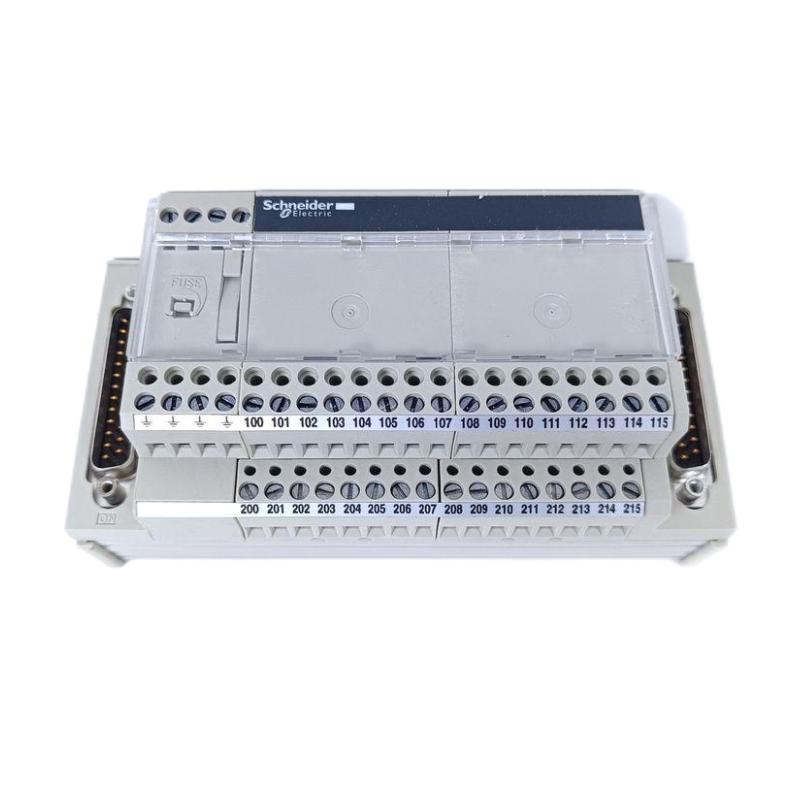

The Schneider Electric ABE7CPA12 Connection Sub-Base is a high-efficiency interface module designed to streamline thermocouple signal wiring in modern industrial automation systems. As part of the Telefast ABE7 family, this unit enables structured and reliable transmission of temperature signals from field sensors directly to PLC analog input modules.
Supporting up to 16 thermocouple channels, the ABE7CPA12 dramatically simplifies panel wiring while enhancing signal accuracy and system organization. It is engineered for seamless integration within Modicon automation environments, making it a trusted solution for temperature-critical control systems.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Thermocouple Connection Sub-Base |
| Channel Capacity | 16 Thermocouple Inputs |
| Interface Connection | 25-pin SUB-D |
| Mounting Options | DIN Rail (35 mm) / Panel Mount |
| Terminal Type | Screw Terminals |
| Wire Size Range | 0.09…2.5 mm² |
| Rated Insulation Voltage | 2000 V |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Shock Resistance | 15 gn |
| Vibration Resistance | 2 gn (10…150 Hz) |
Industrial Use Cases
The ABE7CPA12 is widely applied in sectors where stable and accurate temperature measurement is essential:
Its structured wiring approach improves maintenance efficiency and minimizes installation errors.
Core Advantages
-
High Channel Density – Connects up to 16 thermocouples in one compact module
-
Clean Panel Architecture – Reduces wiring clutter and improves troubleshooting
-
Reliable Signal Handling – Preserves temperature measurement accuracy
-
Flexible Mounting – Supports DIN rail and screw installation
-
Industrial-Grade Insulation – 2000 V protection enhances safety
-
Robust Design – Withstands vibration and mechanical stress
-
System Integration Ready – Designed for seamless PLC connectivity
This makes it a smart investment for improving both system performance and long-term operational efficiency.
Technical FAQs
1. What does the ABE7CPA12 do?
It distributes thermocouple signals to PLC analog modules.
2. How many thermocouples can be connected?
Up to 16 channels.
3. What type of interface is used?
25-pin SUB-D connector.
4. Is DIN rail mounting supported?
Yes, 35 mm DIN rail compatible.
5. What is the insulation rating?
2000 V.
6. What environments can it operate in?
Industrial environments between 0°C and 60°C.
7. Is the module vibration resistant?
Yes, up to 2 gn.
8. Can different wire sizes be used?
Yes, from 0.09 to 2.5 mm².
9. What protection level does it provide?
IP20.
10. Is it suitable for critical temperature monitoring systems?
Yes, it is designed for stable thermocouple signal transmission.
