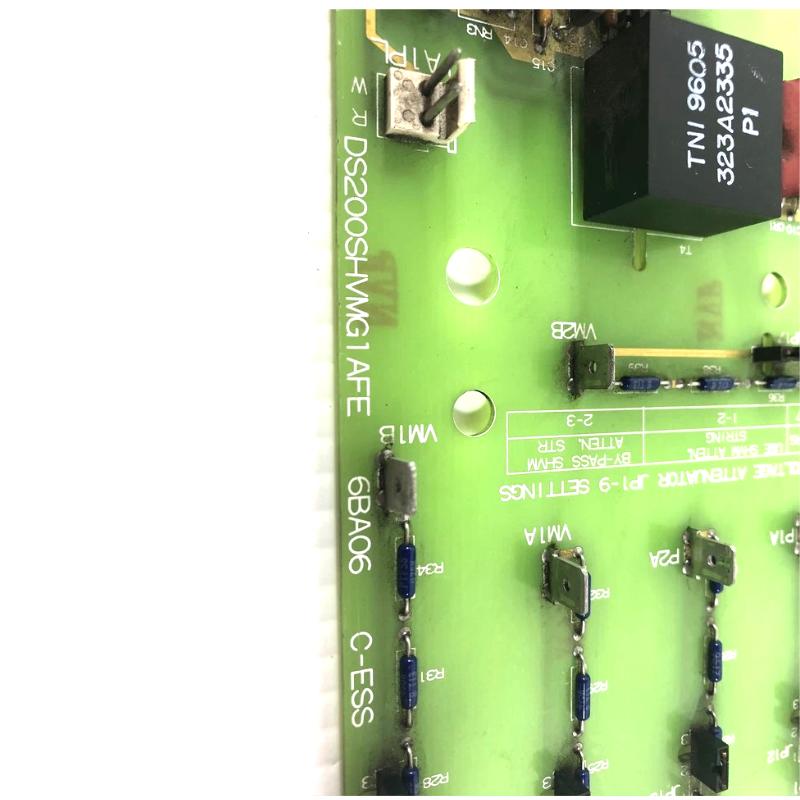

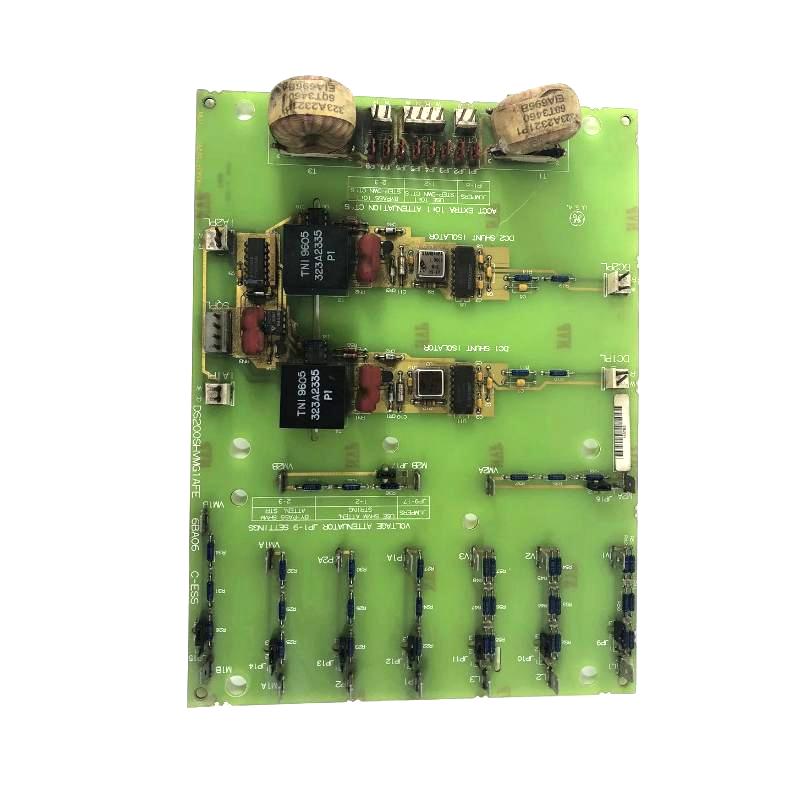

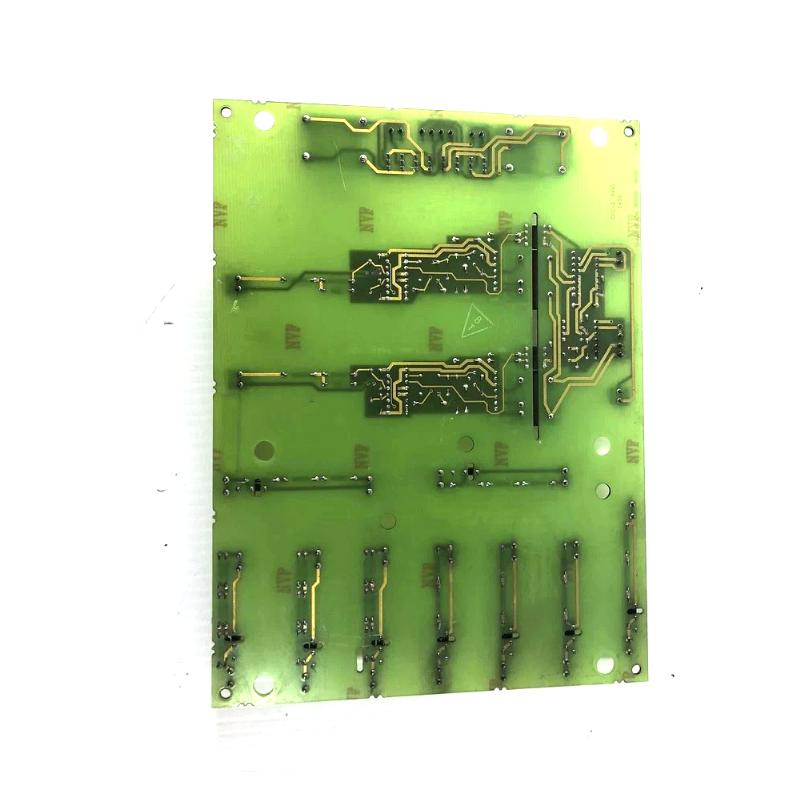

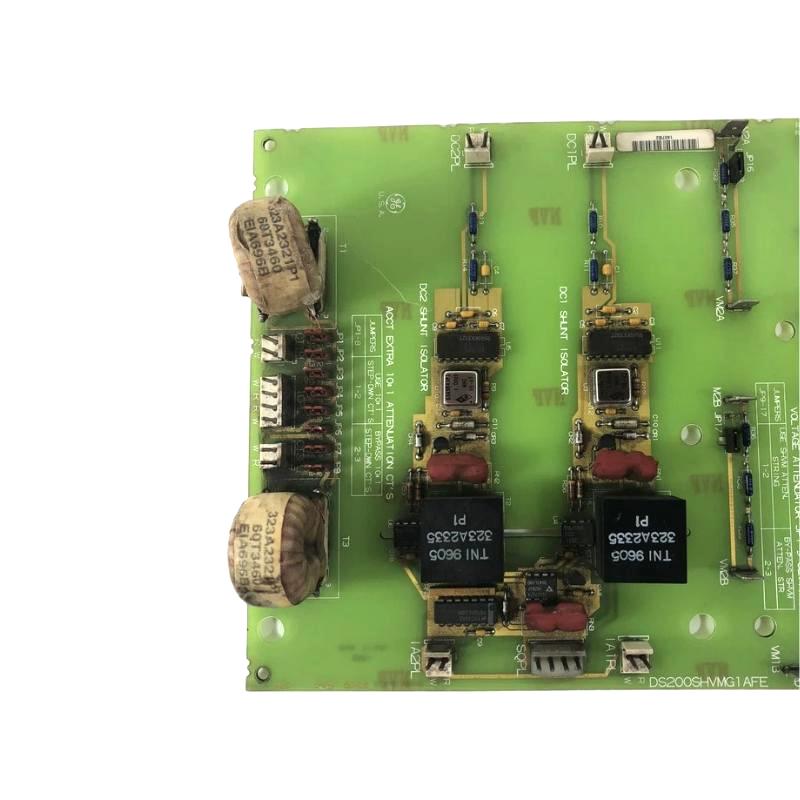

GE DS200SHVMG1AFE SCR High Voltage M-Frame Interface Board

Brand:GE Fanuc PLC
Item No.:DS200SHVMG1AFE
Product Origin:USA
Product Dimensions:260 × 180 × 45 mm
Product Weight:1.8 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The GE DS200SHVMG1AFE is a high-voltage SCR interface board designed for M-Frame inverter or drive systems. Its role is to interface the drive’s SCR (silicon controlled rectifier) power stage with the control and logic sections, handling high-voltage connections, gating signals, and ensuring safe isolation and robust power delivery. This board is intended for industrial applications where reliable high-voltage switching and stable interface behavior are critical — such as large motors, heavy machinery, or any load requiring SCR-based control in harsh environments.

Technical Specifications

Parameter Specification / Note
Module Type SCR High-Voltage Interface Board for M-Frame Drive Systems
Model / Part Number DS200SHVMG1AFE
Function Interfaces SCR power stage to control logic; handles high-voltage connections and gating signals
Application Domain High-power drives, heavy-duty motors, industrial inverter systems
Isolation & Safety Designed to provide isolation between high-voltage SCR circuits and low-voltage control electronics (internal layout with adequate creepage / clearance — industrial-grade)
Connector / Interface High-voltage terminals / busbars for power output; control connectors for gating and logic interfacing
Mounting / Integration Mounted within M-Frame drive cabinet / enclosure, fixed via mechanical supports suitable for high-voltage modules
Environmental Rating Industrial-grade: able to withstand drive enclosure conditions — elevated temperatures, vibration, electrical noise typical for power electronics
Dimensions (H × W × D) 260 × 180 × 45 mm
Weight ≈ 1.8 kg

Applications

The DS200SHVMG1AFE board is used in contexts such as:

  • High-power motor drives using SCR-based inverter or rectifier bridges

  • Heavy industrial machinery requiring high-voltage SCR switching — pumps, compressors, large conveyor drives, mill drives, etc.

  • Retrofit or replacement in M-Frame drive cabinets originally equipped with compatible high-voltage interface boards

  • Industrial environments with high electrical noise, requiring robust isolation between control logic and power stage

  • Situations demanding reliable, long-term performance under frequent start/stop, high-load, or transient conditions


Advantages

  • Purpose-built for high-voltage SCR switching, ensuring safe and reliable power stage interfacing

  • Robust build and reinforced structure to handle heavy currents and mechanical stress typical of large drives

  • Internal isolation design protects control electronics from SCR noise, spikes, and high-voltage transients

  • Modular board simplifies maintenance or replacement of power interface stage without replacing entire drive unit

  • Enables clear separation between high-voltage power circuits and control logic — improving safety and maintenance practices

  • Large footprint allows busbar routing and thermal spacing necessary for high-power switching

  • Compatible with M-Frame drive architecture for straightforward integration in existing systems

  • Supports stable gating and control logic signals even under harsh electromagnetic conditions

  • Improves reliability of drive systems by providing a dedicated, purpose-designed interface board

  • Facilitates upgrades or refurbishments of legacy SCR-based drives while preserving safety and performance


Technical FAQs

  1. What is the main purpose of this board?
    It connects the drive’s SCR power stage to the control logic, managing high-voltage routing and gating signals.

  2. Is the board designed for high-power applications?
    Yes — intended for heavy-duty drives and large motors requiring SCR-based high-voltage switching.

  3. Does it provide isolation between high-voltage and control logic?
    Yes — internal design includes adequate electrical isolation to protect low-voltage control circuits.

  4. Can it be installed in standard M-Frame drive cabinets?
    Yes — designed for mounting within M-Frame-style enclosures with proper mechanical support.

  5. Is the board serviceable or replaceable as a module?
    Yes — modular design allows replacement of just the interface board, without replacing the entire drive.

  6. Is it suitable for environments with electrical noise or interference?
    Yes — the isolation and layout help mitigate noise and transients common in power electronics.

  7. Will it support frequent start/stop cycles and high current loads?
    Yes — built for industrial high-load conditions with structural and electrical robustness.

  8. Does the board require special cooling?
    Typically cooling provisions come from the overall drive enclosure design; the board is built to withstand standard enclosure thermal conditions.

  9. Is it compatible with other SCR-based drive components from GE?
    Yes — it fits within the DS200/M-Frame ecosystem and interfaces with standard GE SCR modules and controllers.

  10. Can the board be used in retrofit projects?
    Yes — widely used to replace or upgrade existing high-voltage interface stages in old or aging drive cabinets.
