Introduction

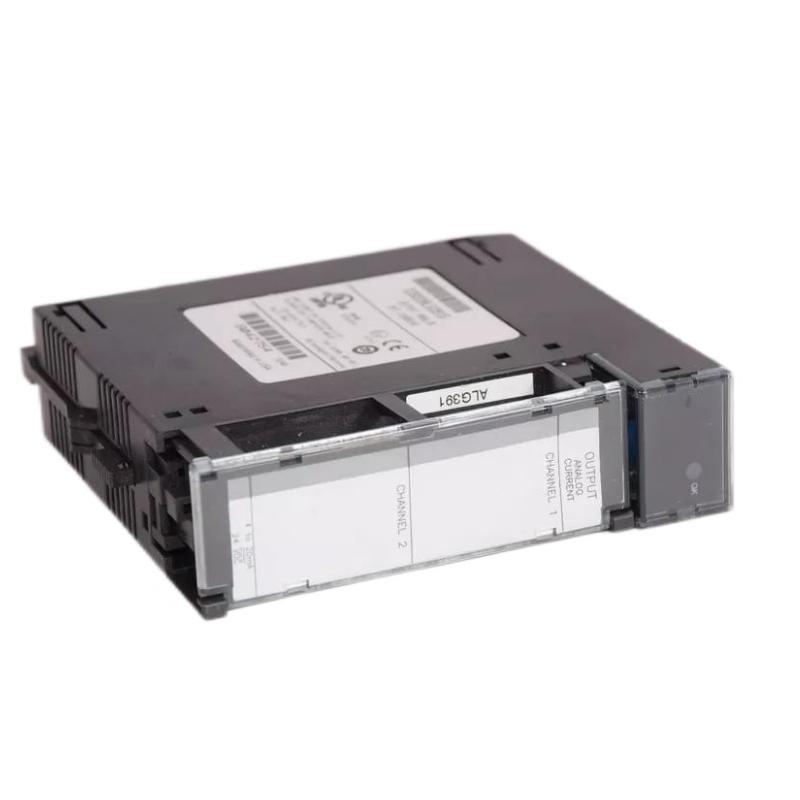

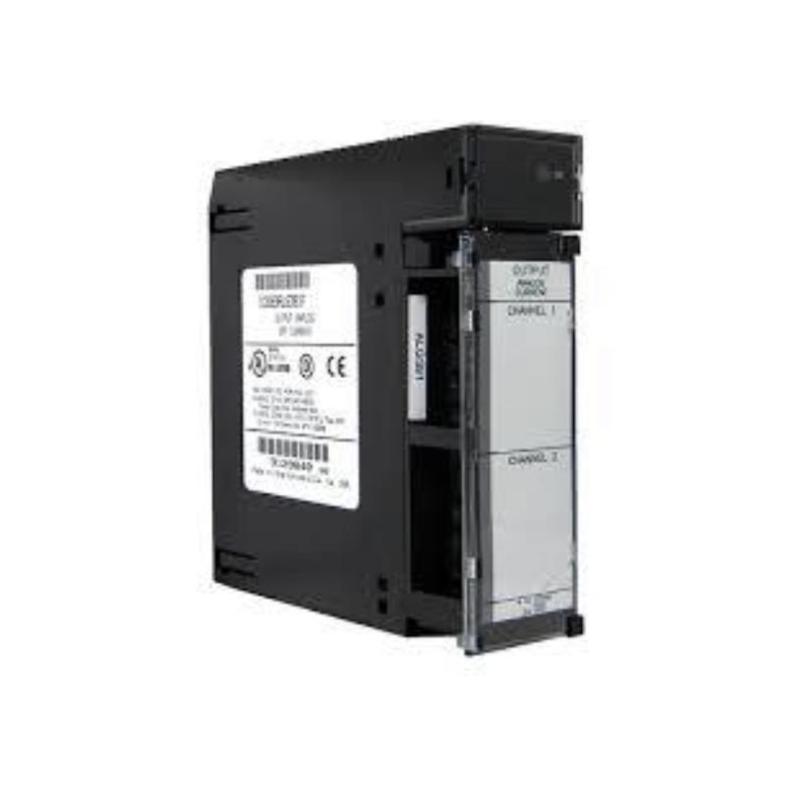

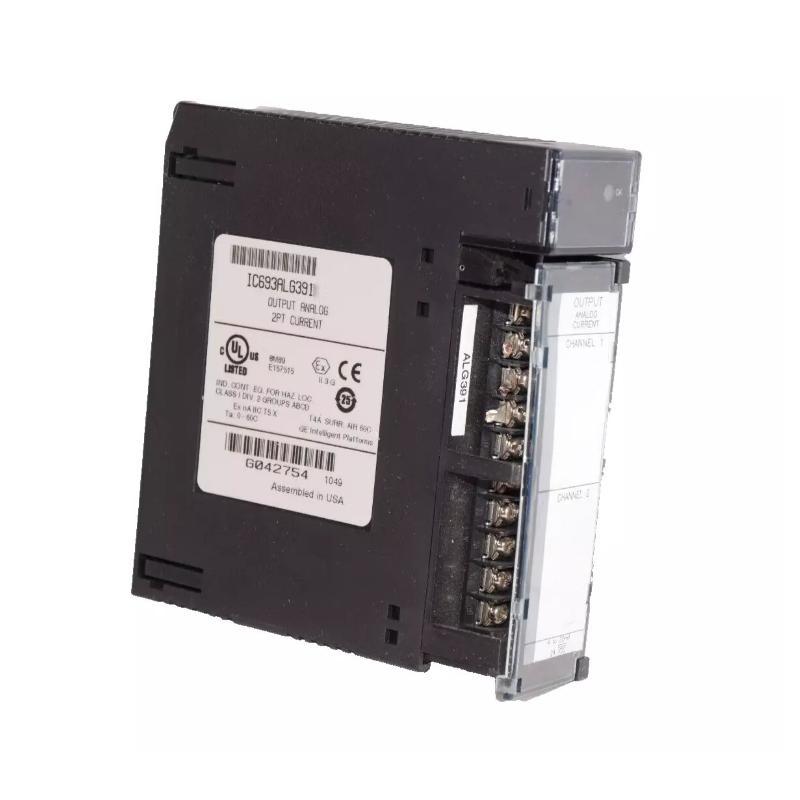

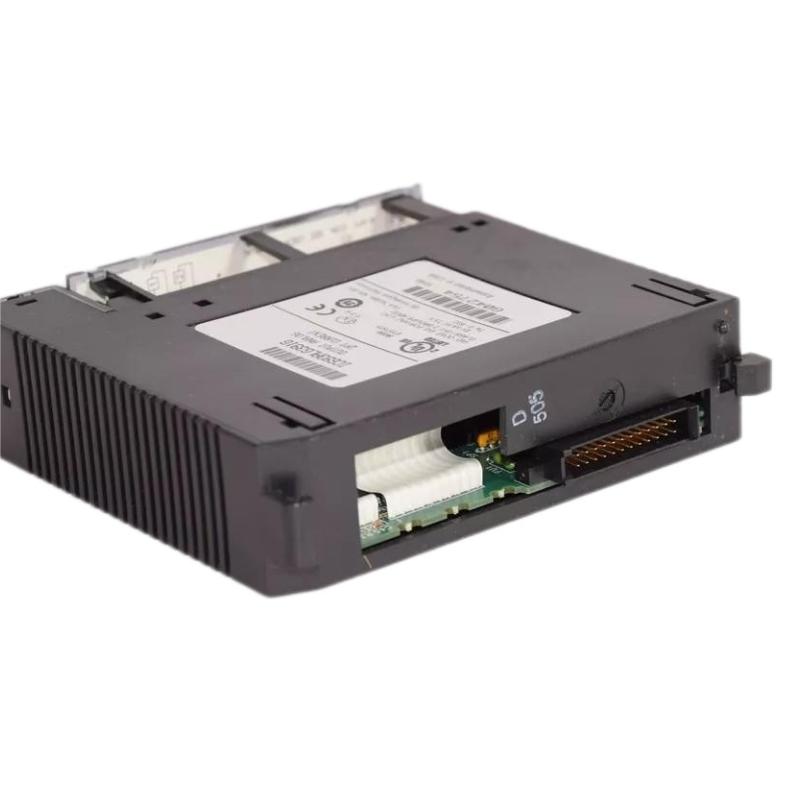

The GE Fanuc IC693ALG391 Analog Output Module is engineered for precise analog signal control in industrial automation systems. Designed to deliver stable and accurate voltage or current outputs, it allows operators to control actuators, valves, motors, and other field devices with high precision. With robust construction and reliable performance, the IC693ALG391 ensures consistent output under harsh industrial conditions, seamlessly integrating with GE Fanuc Series 90-30 PLCs for effective process control.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | IC693ALG391 |
| Module Type | Analog Output Module |
| Compatible Series | GE Fanuc Series 90-30 PLC |
| Output Channels | 16 channels (voltage or current) |
| Output Range | 0–10 V, ±10 V, 0–20 mA, 4–20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% full scale |
| Update Rate | 250 Hz per channel |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Power Supply | 5 V DC (from backplane) |
| Operating Temp | 0°C to 60°C |
| Storage Temp | -25°C to 85°C |
