Introduction

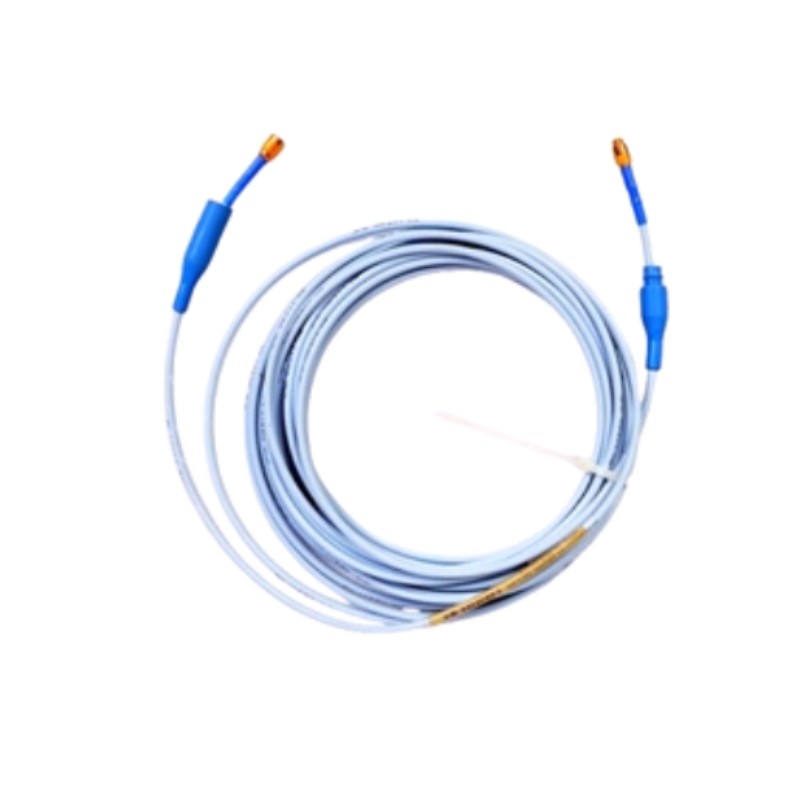

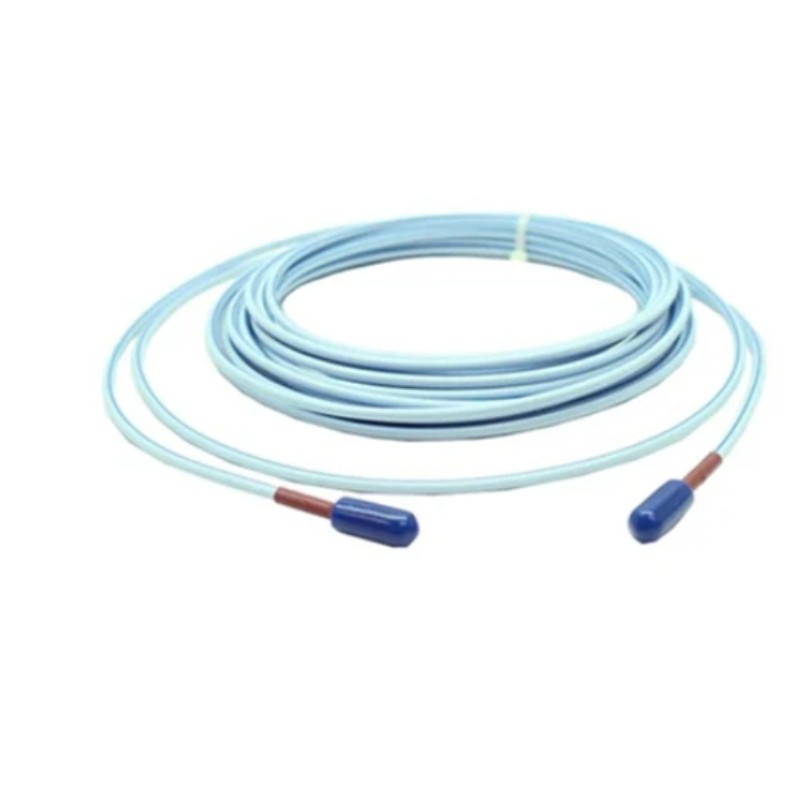

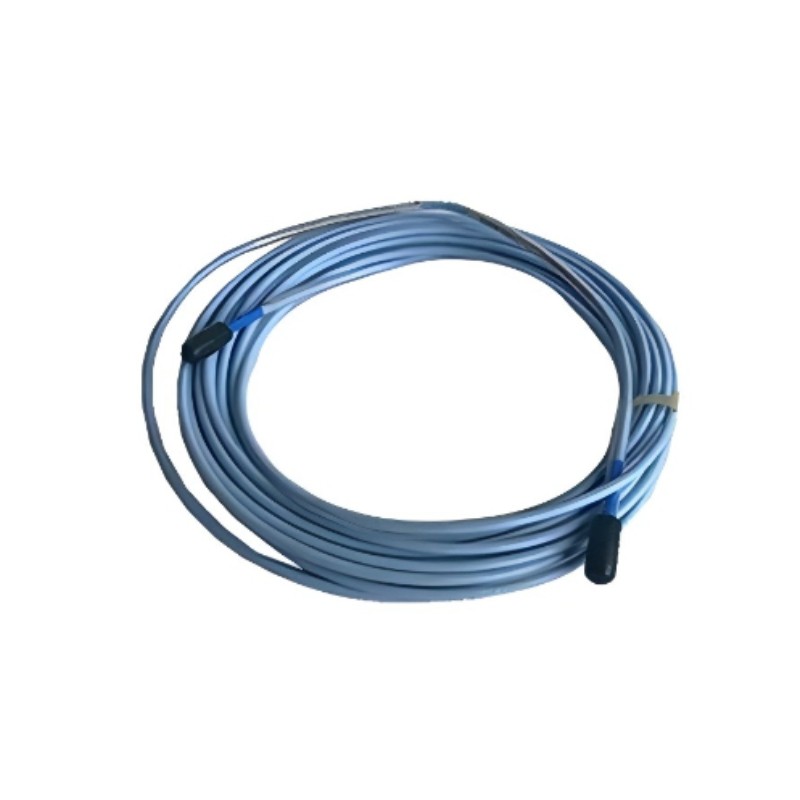

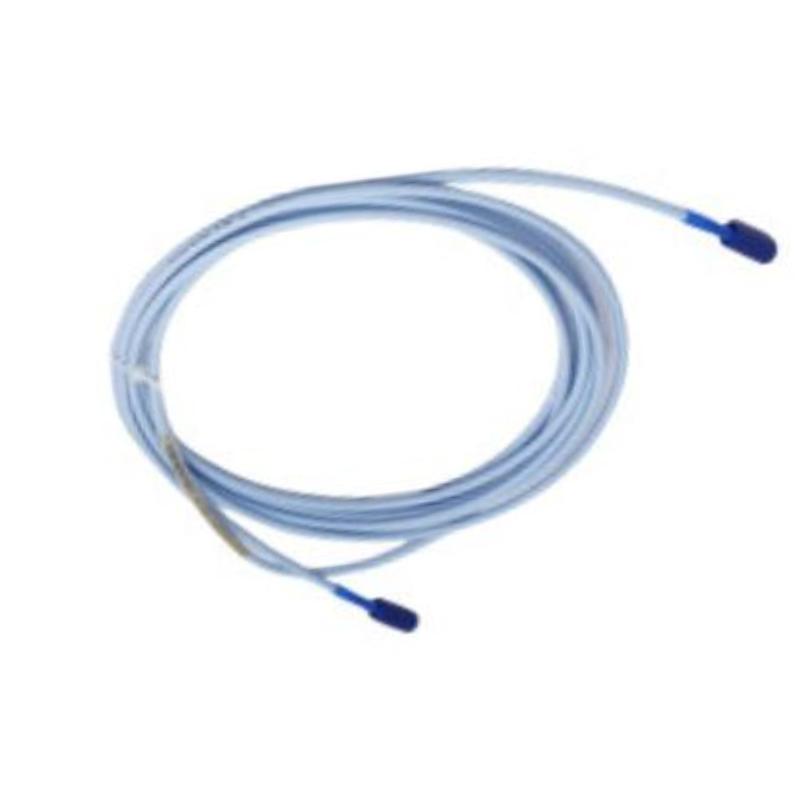

The Bently Nevada 330103-00-07-20-02-00 3300 XL 8 mm Proximity Probe is engineered for critical machinery monitoring in demanding industrial environments. It provides high-accuracy shaft position and vibration measurements, ensuring operators can detect anomalies early and prevent costly downtime. Built for durability, this probe delivers consistent performance under extreme temperature, vibration, and shock conditions, making it a trusted component in predictive maintenance programs.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330103-00-07-20-02-00 |
| Series | 3300 XL |
| Probe Type | Proximity Probe (8 mm) |
| Tip Material | PEEK-sheathed core |
| Cable Length | 2 m standard, customizable lengths available |
| Measurement Range | 0–1.5 mm typical |
| Linearity | ±1% of full scale |
| Operating Temp | -40°C to 120°C |
| Shock Resistance | 100 g, 11 ms |
| Vibration Rating | 20 g, 5–2000 Hz |
