Precision Sensing for Industrial Condition Monitoring

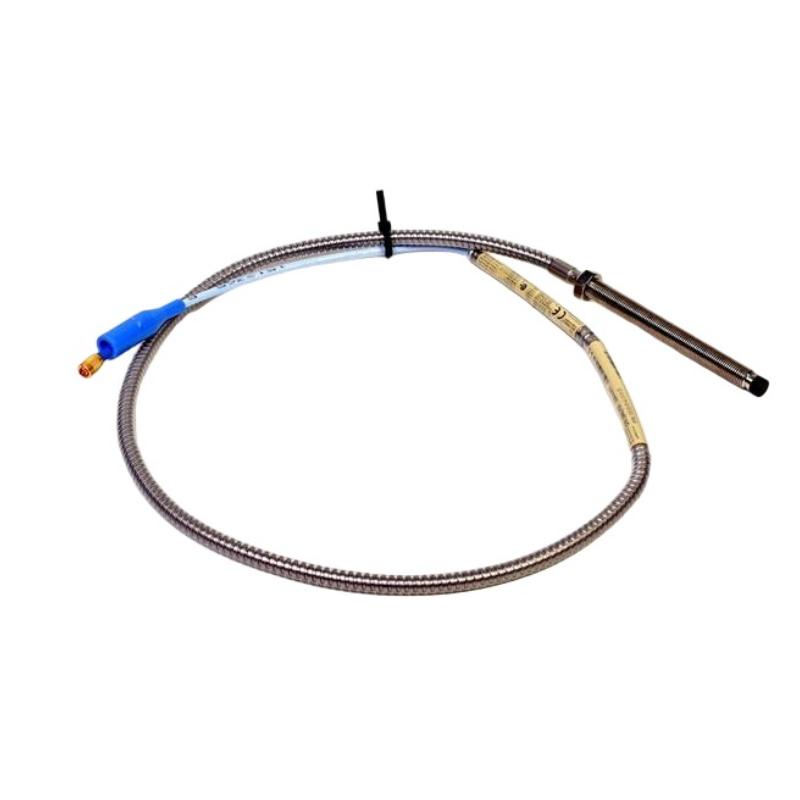

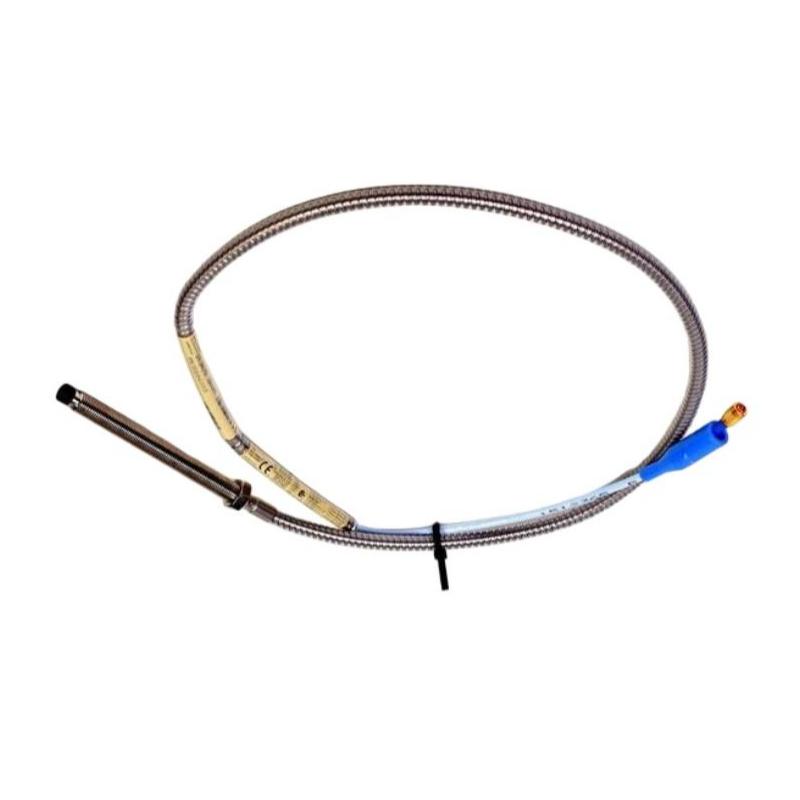

The Bently Nevada 330102‑00‑40‑10‑01‑00 Eddy‑Current Displacement Sensor is engineered to deliver accurate, reliable measurements of shaft position and vibration in critical rotating machinery. Designed with robust industrial performance in mind, this sensor provides dependable data that enables condition‑based monitoring and predictive maintenance across demanding applications.
Featuring proven eddy‑current sensing technology and durable construction, the 330102‑00‑40‑10‑01‑00 operates effectively in environments with high vibration, temperature extremes, and electrical noise. Its compact geometry and broad compatibility with standard monitoring systems make it an excellent choice for reliability engineers focused on asset protection and uptime optimization.
Technical Specifications
| Parameter | Specification |
|---|
| Sensor Type | Eddy‑Current Displacement Sensor |
| Probe Series | 3300 XL / Proximity Family |
| Probe Diameter | 8 mm |
| Thread Type | 3/8‑24 UNF |
| Case Length | 4.0 inches |
| Total Length | 1.0 meter |
| Connector Type | Miniature ClickLoc Coaxial |
| Cable Type | Standard |
| Output Signal | Voltage Proportional to Gap |
| Frequency Response | DC to 10 kHz |
| Sensitivity | ~7.87 V/mm |
| Operating Temp Range | ‑50°C to +180°C |
| Hazardous Area Approval | CSA / ATEX / IECEx |
Recommended Industrial Applications
This eddy‑current displacement sensor is well‑suited for continuous condition monitoring of rotating assets, including:
By enabling accurate non‑contact measurement, it supports early identification of imbalance, misalignment, and mechanical wear — helping reduce unplanned outages.
Core Advantages
-
Accurate Non‑Contact Monitoring of displacement and vibration
-
Wide Frequency Response captures both static and dynamic behavior
-
Rugged Industrial Construction for harsh conditions
-
Compact 8 mm Probe Design for flexible mounting
-
Hazardous‑Area Certified for safe usage in regulated zones
-
High Temperature Tolerance for extended operational range
This sensor enhances machinery visibility, enabling maintenance teams to react proactively rather than reactively.
Technical FAQs
1. What types of measurements does this sensor perform?
It measures shaft displacement and vibration using eddy‑current technology.
2. Does it require contact with the shaft?
No — it operates via non‑contact measurement.
3. What frequency range is supported?
DC up to 10 kHz, suitable for both low and high‑speed monitoring.
4. What cable length is included?
This model features a 1.0 meter integrated cable.
5. Can it operate at high temperatures?
Yes, it functions reliably from approximately ‑50°C to +180°C.
6. Is it suitable for hazardous industrial areas?
Yes, it holds CSA, ATEX, and IECEx approvals.
7. What industries typically use this sensor?
Power generation, oil & gas, petrochemical, and heavy manufacturing.
8. What is the connector type?
Miniature ClickLoc coaxial connector for robust signal integrity.
9. Can it be installed in tight machine spaces?
Yes, its compact size facilitates flexible installation.
10. How does it support maintenance strategies?
By providing stable vibration and position data that enables early detection of faults.
