Overview: Industrial‑Grade Control for Rotating Machinery

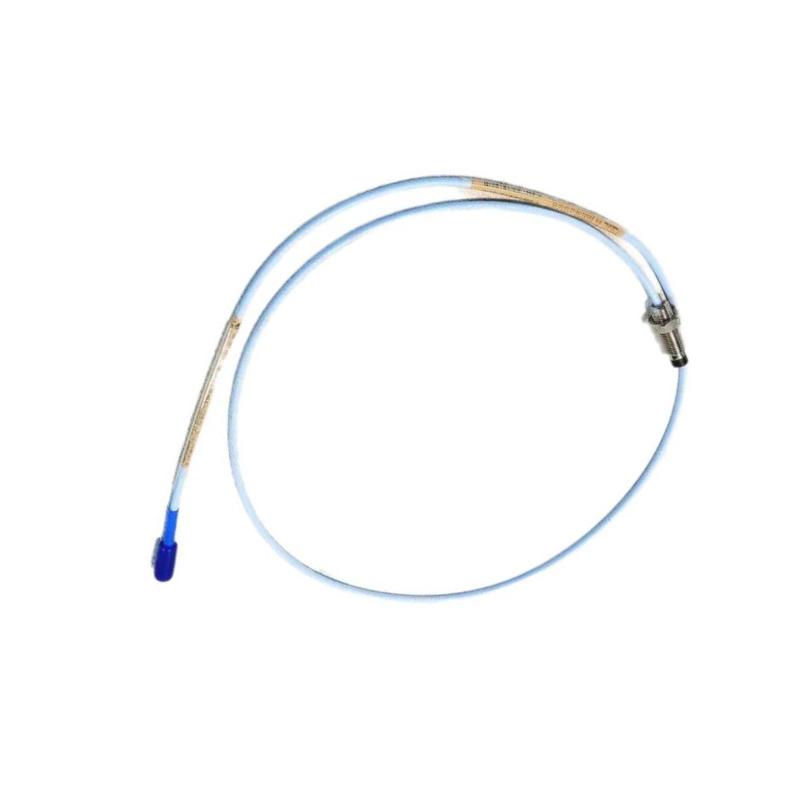

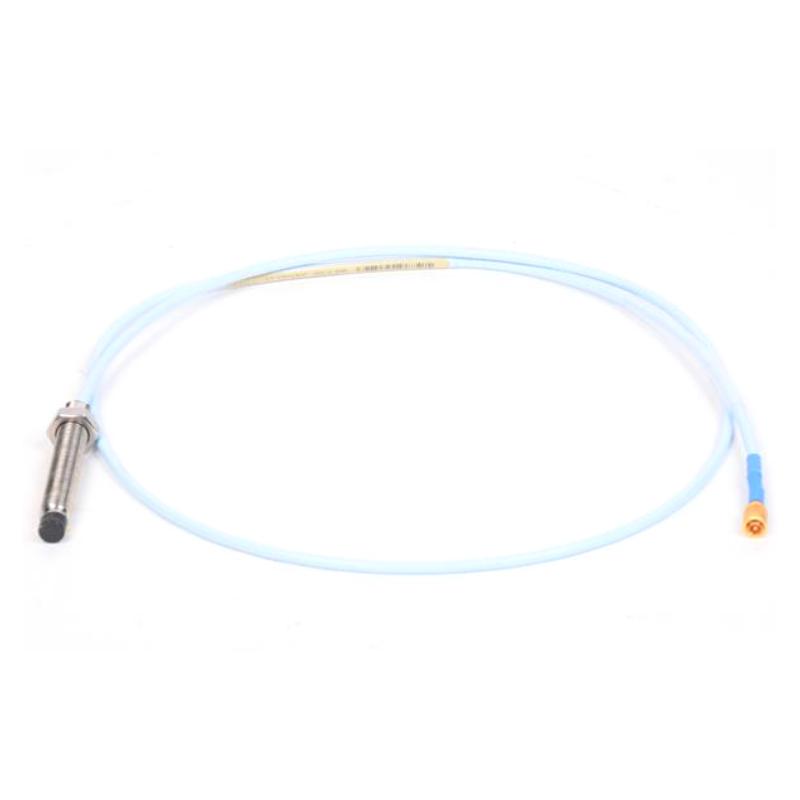

The Bently Nevada 330101‑30‑63‑10‑02‑00 Industrial Control Module is a high‑performance automation component engineered to provide dependable machine vibration and position control in demanding industrial environments. Designed as part of the 3300 XL series platform, it delivers robust signal conditioning and processing for proximity probes, speed sensors, and Keyphasor systems — enabling real‑time condition monitoring and advanced predictive maintenance strategies.
With enhanced signal integrity and rugged construction, this control module helps industrial operators maintain optimal machine performance, reduce unplanned downtime, and extend asset life in power generation, petrochemical, and heavy manufacturing facilities.
Technical Specifications
| Parameter | Specification |
|---|
| Module Type | Industrial Control Module |
| Series | Bently Nevada 3300 XL |
| Input Channels | Proximity/Velocity/Keyphasor |
| Signal Conditioning | Active Filtering & Scaling |
| Output | Proportional Voltage |
| Frequency Range | DC to 10 kHz |
| Power Requirement | 24 VDC |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +90°C |
| Relative Humidity | 5% – 95% (Non‑condensing) |
| Hazardous Area Approval | CSA / ATEX / IECEx |
Key Industrial Applications
This control module is engineered for essential monitoring and automation tasks across heavy industries:
-
Steam, gas, and hydro turbines
-
Large centrifugal compressors
-
Industrial pumps and motors
-
Gearboxes and bearing systems
-
Speed and Keyphasor timing loops
-
Integrated process control networks
Its rugged design ensures reliable performance in environments with high vibration, heat, and electrical noise.
Advantages
-
Advanced Signal Conditioning enhances measurement accuracy
-
Broad Frequency Support for static and dynamic data acquisition
-
Seamless System Integration with 3300 XL infrastructure
-
Industrial‑Grade Durability for harsh operational conditions
-
Reliable Power Handling with 24 VDC compatibility
-
Certified for Hazardous Areas to meet strict safety standards
This module strengthens machine health monitoring capabilities while supporting high‑availability operational strategies.
Technical FAQs
1. What is the primary function of this module?
It conditions and processes sensor signals for industrial vibration and position monitoring.
2. Which sensors does it support?
It supports proximity probes, velocity sensors, and Keyphasor devices.
3. Is it compatible with 3300 XL systems?
Yes, it is designed for seamless integration with 3300 XL monitoring families.
4. What frequency range does it cover?
It handles signals from DC up to 10 kHz.
5. What power input does the module require?
Standard 24 VDC industrial supply.
6. Can it operate in extreme temperatures?
Yes, from -40°C to +85°C.
7. Is it suitable for continuous industrial use?
Yes, it is built for 24/7 monitoring and control.
8. Does it provide hazardous‑area certification?
Yes, it meets CSA, ATEX, and IECEx standards.
9. How does it improve maintenance outcomes?
By delivering precise, conditioned signals that enable early fault detection and predictive maintenance.
10. How compact is the module?
Its footprint is 165 × 165 × 125 mm, weighing approximately 0.37 kg.
