Advanced Monitoring for Critical Machinery

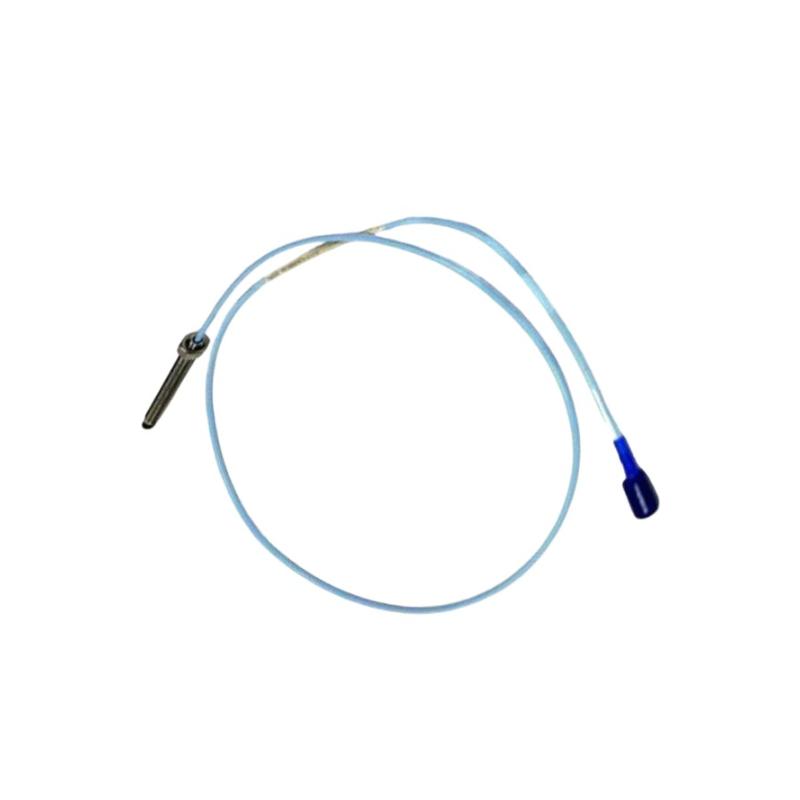

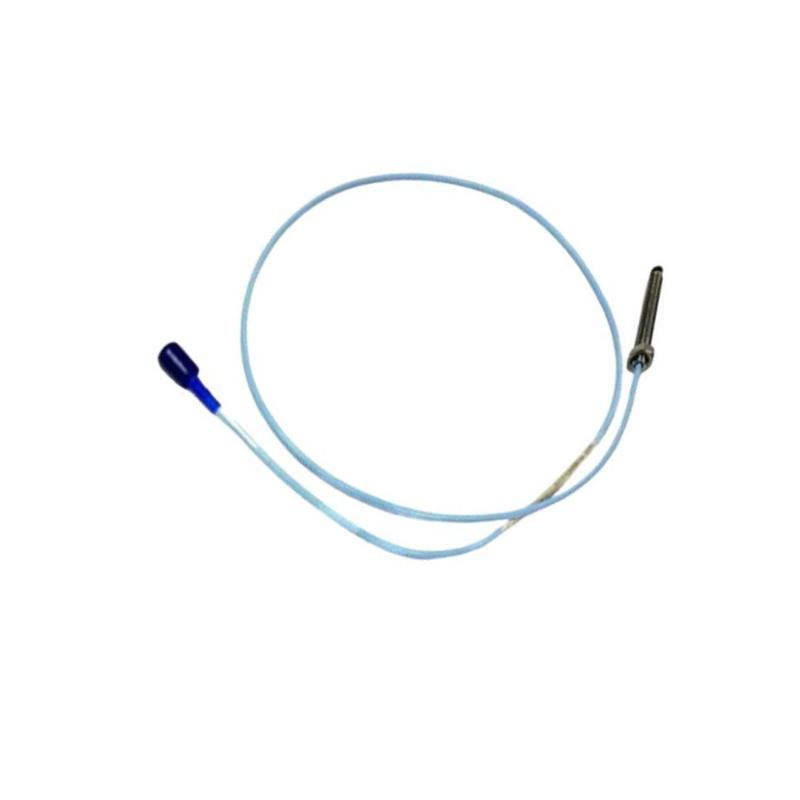

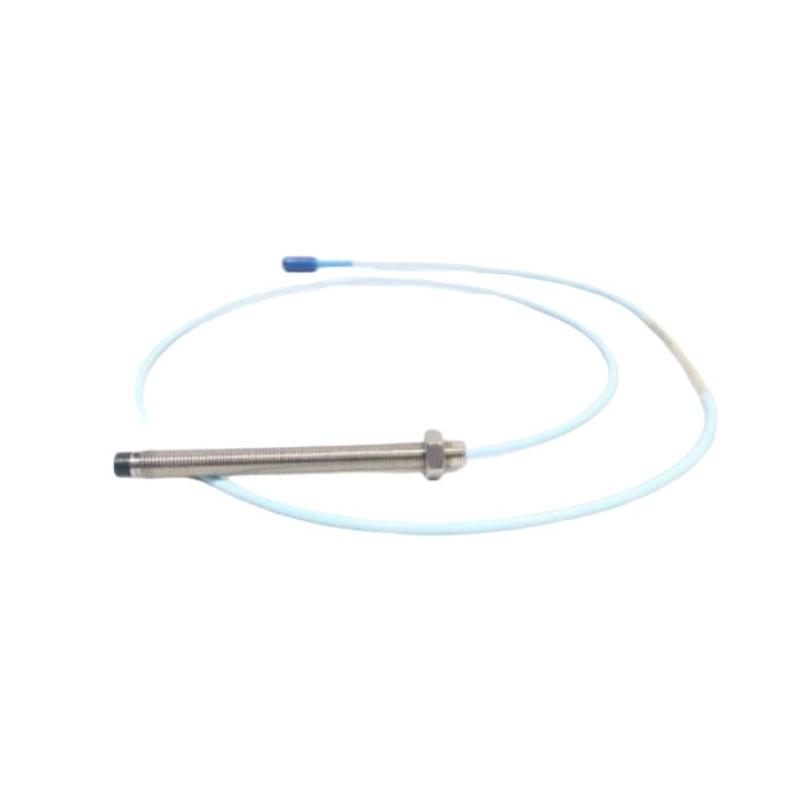

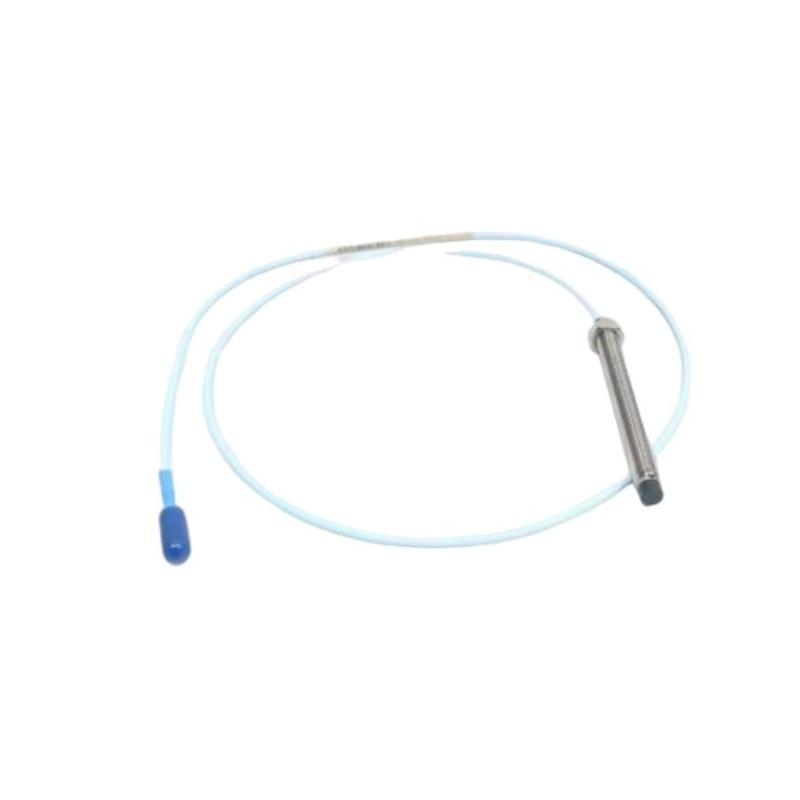

The Bently Nevada 330101-23-38-10-02-00 Industrial Automation Module is engineered to provide precise, reliable monitoring for rotating equipment in demanding industrial environments. This module delivers real-time vibration and position data, helping operators detect early signs of imbalance, misalignment, or mechanical wear before they lead to costly failures.
Designed for integration with 3300 XL monitoring systems, it ensures seamless communication and high system reliability, making it a vital component in predictive maintenance programs across power generation, oil & gas, and process industries.
Technical Specifications
| Parameter | Specification |
|---|
| Module Type | Industrial Automation Module |
| Compatible System | 3300 XL Series |
| Input Type | Proximity Probe / Keyphasor |
| Signal Output | Voltage Proportional to Gap |
| Frequency Response | DC to 10 kHz |
| Power Supply | 24 VDC |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +90°C |
| Relative Humidity | 5% – 95% (Non-condensing) |
| Hazardous Area Approval | CSA / ATEX / IECEx |
Applications
The 330101-23-38-10-02-00 module is ideal for critical industrial monitoring applications, including:
-
Steam and gas turbines
-
Centrifugal compressors
-
Pumps and electric motors
-
Gearboxes and fluid-film bearings
-
Keyphasor-based speed sensing
-
Predictive maintenance platforms
Its robust design allows reliable operation in high-vibration, high-temperature, and industrial hazard areas.
Advantages
-
High-Precision Monitoring for early fault detection
-
Wide Frequency Response for static and dynamic measurements
-
Seamless Integration with 3300 XL monitoring systems
-
Industrial-Grade Durability for harsh environments
-
Non-Contact Sensing Compatibility for extended sensor life
-
Hazardous Area Certification for safe operation
This module improves uptime and supports condition-based maintenance strategies that reduce unexpected downtime.
Technical FAQs
1. What is the main purpose of this module?
It provides precise vibration and position monitoring for rotating machinery.
2. Which systems is it compatible with?
It integrates with Bently Nevada 3300 XL series monitoring systems.
3. Can it handle high-frequency signals?
Yes, it supports frequencies up to 10 kHz.
4. Does it support hazardous areas?
Yes, it carries CSA, ATEX, and IECEx certifications.
5. What type of sensors can be connected?
Proximity probes and Keyphasor sensors are supported.
6. What is the operating temperature range?
-40°C to +85°C.
7. Is the module suitable for continuous operation?
Yes, it is designed for 24/7 industrial monitoring.
8. What is the power requirement?
24 VDC standard industrial supply.
9. Can it be used for predictive maintenance?
Yes, it is optimized for condition monitoring programs.
10. How compact is the module?
It measures 160 × 160 × 120 mm and weighs approximately 0.35 kg.
