Introduction

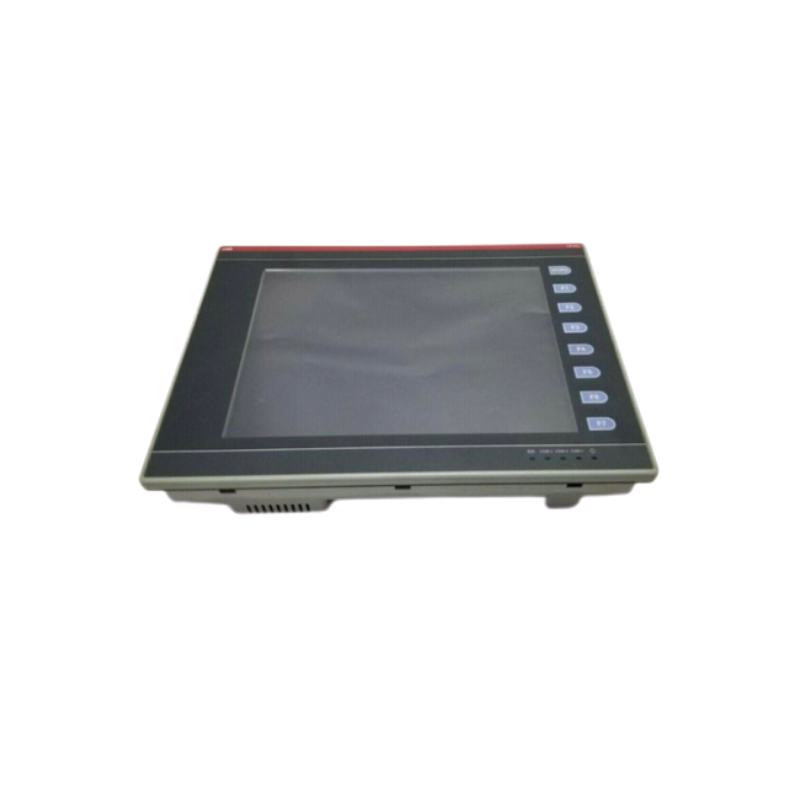

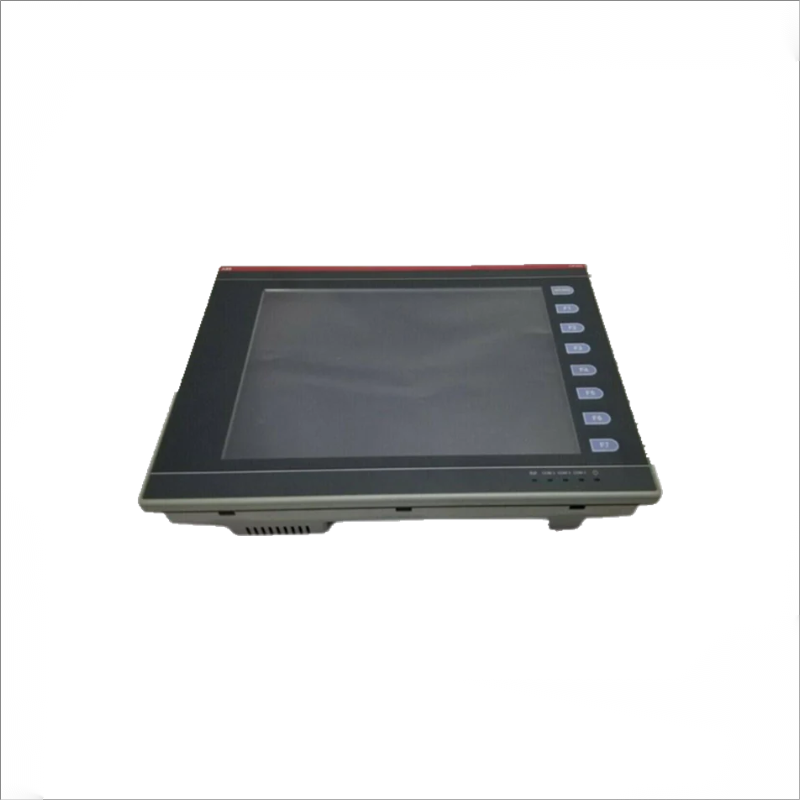

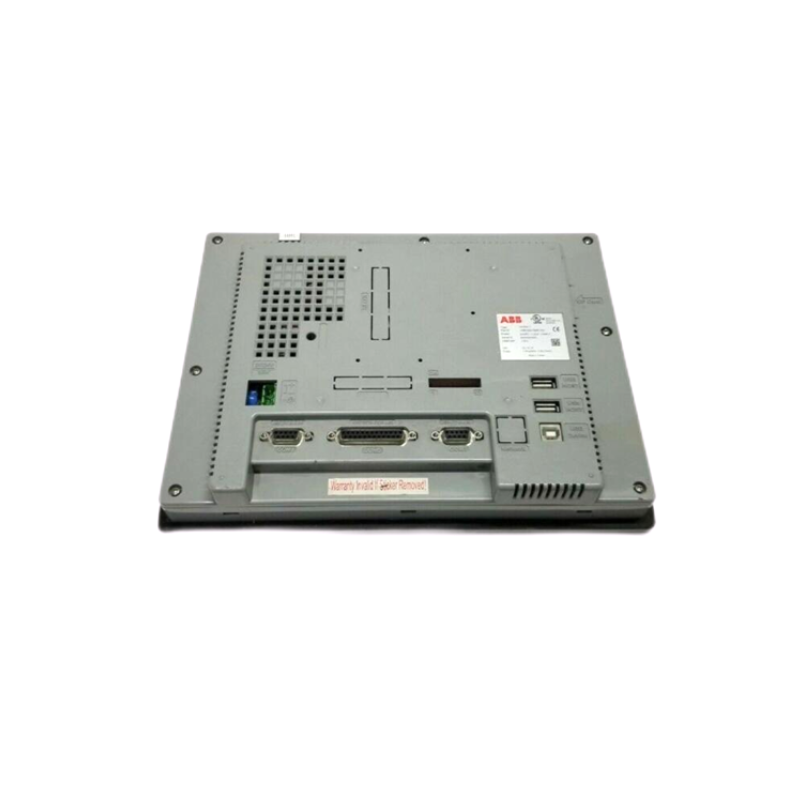

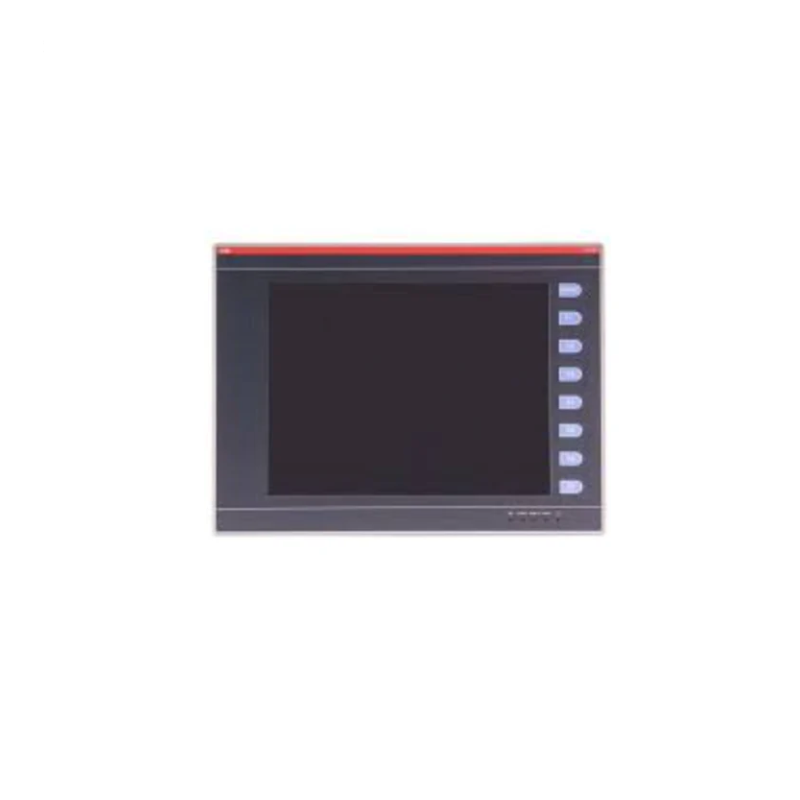

The ABB CP450T 1SBP260188R1001 Touch Screen is a high‑quality human‑machine interface (HMI) designed to bring intuitive control and seamless visualization to industrial automation systems. Part of ABB’s compact HMI family, the CP450T combines a responsive touchscreen, robust build quality, and flexible connectivity — making it ideal for machine‑level control and monitoring applications.
Featuring a crisp display and user‑friendly interface, this panel enhances operator efficiency, improves situational awareness, and simplifies interaction with PLCs and automation devices. Its compact format suits machine panels, standalone stations, or distributed operator points within larger control architectures.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | ABB |
| Model | CP450T |
| Part Number | 1SBP260188R1001 |
| Product Type | Touch Screen HMI |
| Display Type | TFT LCD with resistive touch input |
| Display Size | 4.5″ diagonal |
| Resolution | 480 × 272 pixels |
| Colors | 65,000+ colors |
| Memory | Internal application memory (model dependent) |
| Communication Interfaces | RS232 / RS485 / Modbus & optional Ethernet |
| USB | 1 × USB device port (for programming) |
| Power Supply | 24 V DC |
| Power Consumption | Low power industrial design |
| Operating Temperature | 0…50 °C |
| Storage Temperature | ‑20…60 °C |
| Front Protection | IP54 (panel mounted) |
| Mounting | Panel cut‑out mount |
Applications
The CP450T Touch Screen is well‑suited for a broad range of industrial scenarios including:
-
Machine‑level HMI for discrete automation
-
Operator panels in packaging, material handling, and robotics
-
Standalone monitoring stations for PLC systems
-
Distributed operator interfaces on production lines
-
Visualization points in batch or process applications
Its compact footprint and versatile communication support allow integration with many controller platforms, enhancing system transparency and control.
Advantages
-
Compact, Intuitive Interface – 4.5″ color touchscreen simplifies operator interaction.
-
Flexible Connectivity – Supports standard serial and network communications to connect with PLCs or controllers.
-
Industrial‑Grade Design – IP54 rated front for protection in machine environments.
-
Low Power Consumption – Designed for 24 V DC industrial systems.
-
Easy Engineering – Programmed using ABB’s HMI configuration tools, enabling rapid deployment.
The CP450T delivers a balance of performance and affordability, ideal for both new systems and retrofits.
Technical FAQs
1. What size is the CP450T display?
It features a 4.5″ diagonal TFT display with 480 × 272 resolution.
2. What touch technology does it use?
It uses a resistive touchscreen for reliable touch interaction.
3. What power supply does it require?
The unit operates on standard 24 V DC industrial power.
4. Does it support Ethernet communication?
Some variants support Ethernet via optional interfaces; serial communication is standard.
5. What front protection rating does it have?
Front panel protection is IP54 when correctly mounted in a panel.
6. What communication protocols are supported?
It supports RS232/RS485 and common industrial protocols like Modbus.
7. How is it mounted?
Panel mount via cut‑out installation.
8. What is the operating temperature range?
It operates between 0…50 °C.
9. Can it be programmed via USB?
Yes, it includes a USB device port for programming and configuration.
10. What industries commonly use this HMI?
Commonly used across manufacturing, packaging, food processing, and machine automation sectors.
