Introduction

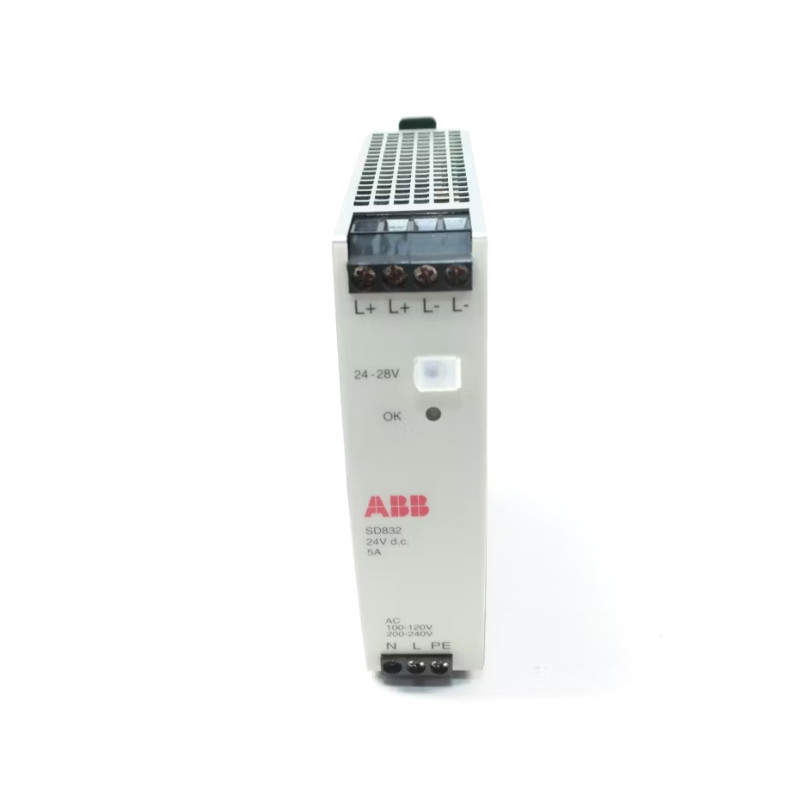

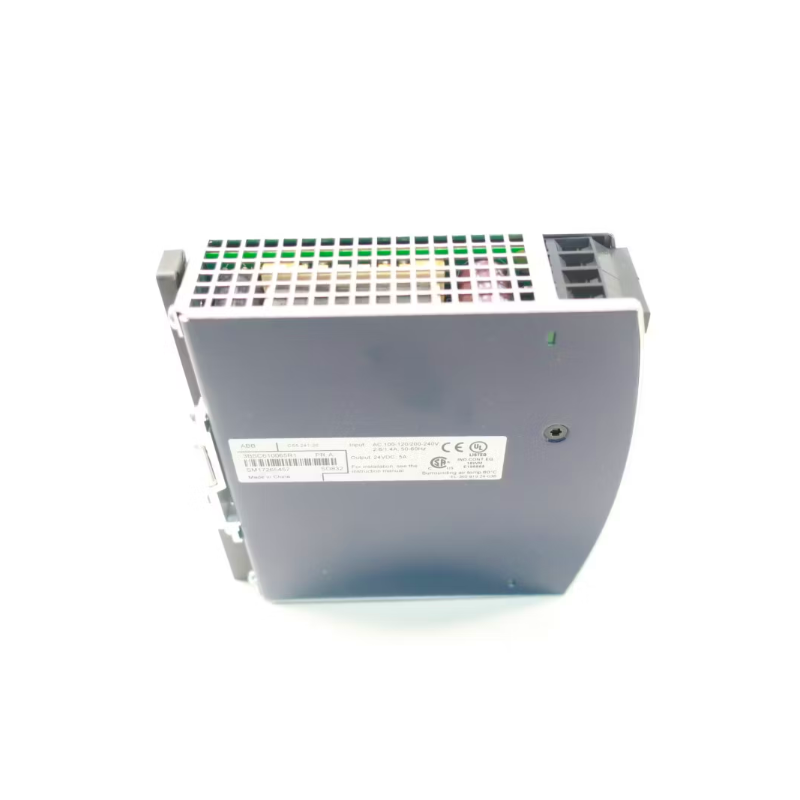

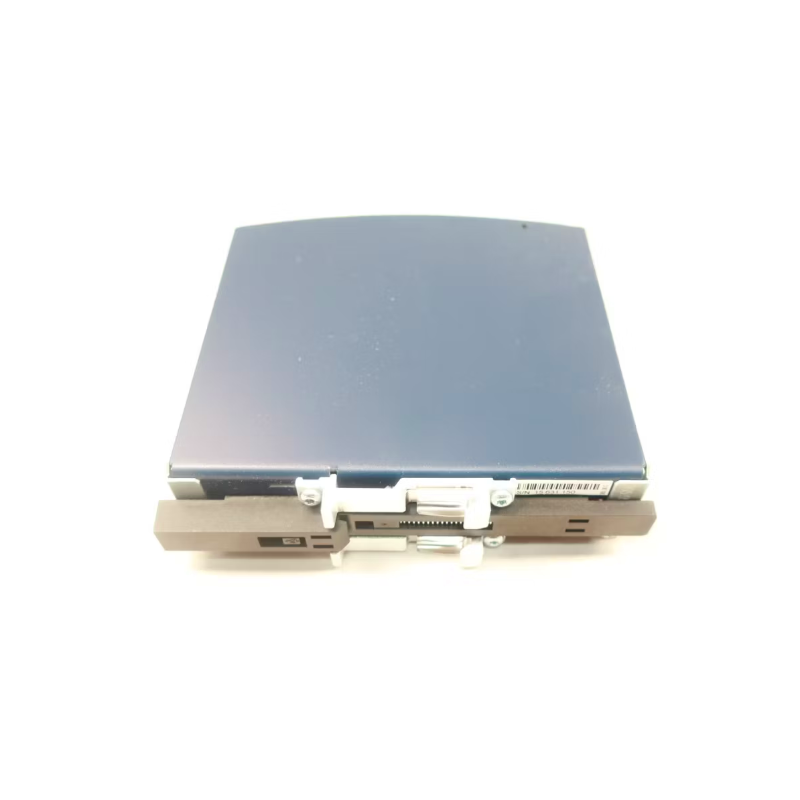

The ABB SD832 3BSC610065R1 Power Supply is a robust industrial power module designed to deliver clean, reliable DC power to automation systems and control panels. Engineered as part of ABB’s field-proven power supply family, the SD832 provides stable 24 V DC output with strong regulation, low noise, and built-in protections that safeguard downstream controllers, I/O modules, and other automation components.
Ideal for modern PLC, HMI, and communication systems, this power supply supports demanding manufacturing and process environments where continuous uptime and dependable operation are crucial. Its compact yet durable construction makes it suitable for industrial cabinets, machinery bases, and distributed automation racks.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | ABB |
| Model | SD832 |
| Part Number | 3BSC610065R1 |
| Product Type | Industrial Power Supply Module |
| Output Voltage | +24 V DC |
| Rated Output Current | 10 A (typical) |
| Power Output | ~240 W |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Input Current | 2.5 A (max) |
| Efficiency | High-efficiency industrial design |
| Ripple/Noise | Low (suitable for sensitive electronics) |
| Operating Temperature | 0…55 °C |
| Storage Temperature | -25…85 °C |
| Cooling | Convection (fan-less) |
| Protections | Overload, short-circuit, overvoltage |
| Mounting | DIN-rail or panel mount |
Applications
The SD832 power supply is widely used for:
-
Industrial PLC power provisioning and control panel systems
-
Supporting distributed I/O modules and communication gateways
-
Machine automation, robotics, and material handling systems
-
Process control environments including chemical, energy, and manufacturing plants
-
Powering HMIs, sensors, modules, and network devices
-
Applications requiring reliable 24 V DC with higher current capacity
Its design makes it especially suitable where multiple control components draw power from a centralized supply.
Advantages
-
Strong Power Delivery – Provides up to 10 A of regulated 24 V DC for larger automation loads.
-
Wide Input Range – Accepts universal AC input (100–240 V), supporting global deployments.
-
Industrial Durability – Convection-cooled and built for continuous operation in rugged environments.
-
Protection Features – Overload and short-circuit protections help maintain system integrity.
-
Low Noise Output – Excellent regulation and low ripple support sensitive electronics.
These features ensure reliable operation across a wide range of industrial automation scenarios.
Technical FAQs
1. What is the output voltage of this power supply?
It supplies a regulated +24 V DC output.
2. How much current can it deliver?
It provides up to approximately 10 A of DC output current.
3. What AC input range does it support?
It supports 100–240 V AC at 50/60 Hz.
4. Does the unit require active cooling?
No — it uses convection cooling, eliminating the need for a fan.
5. What protections are built in?
It includes overload, short-circuit, and overvoltage protection mechanisms.
6. What environments is this supply suitable for?
Designed for industrial automation cabinets, machinery control systems, and distributed racks.
7. Can it power PLCs and I/O modules simultaneously?
Yes — its higher current rating supports powering multiple control modules.
8. How is the unit mounted?
It is mounted via DIN-rail or within a control panel.
9. What is the operating temperature range?
It operates reliably between 0 °C and 55 °C.
10. Is this suitable for international installations?
Yes — its universal input range supports use in various global regions.
