Introduction

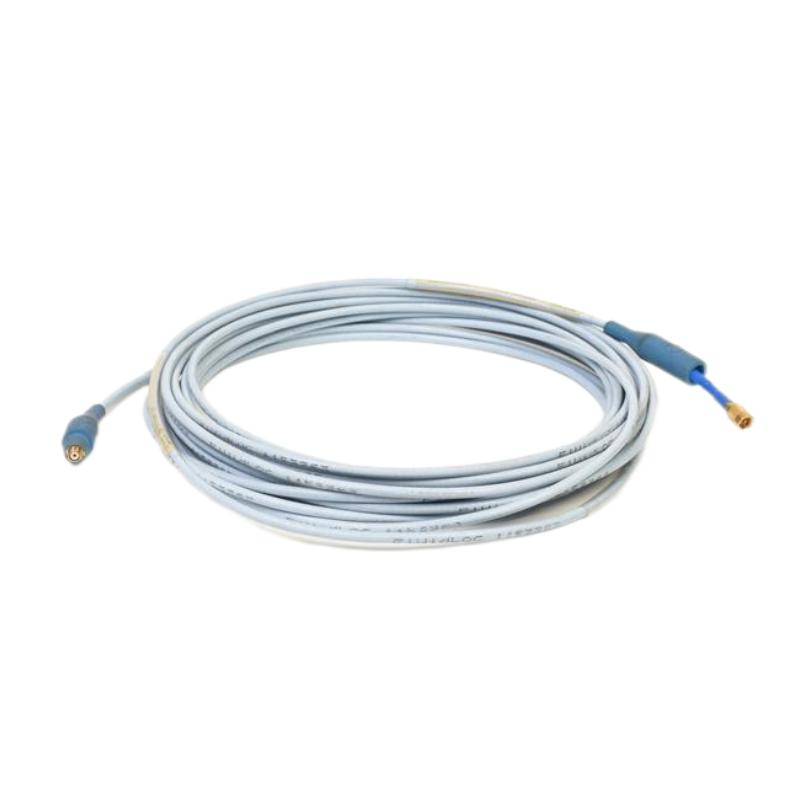

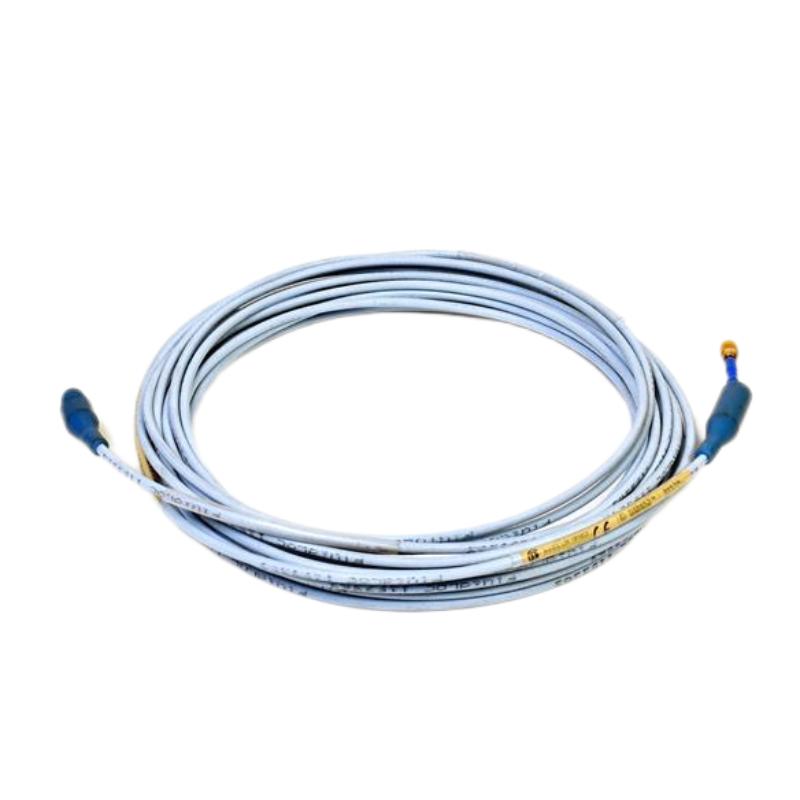

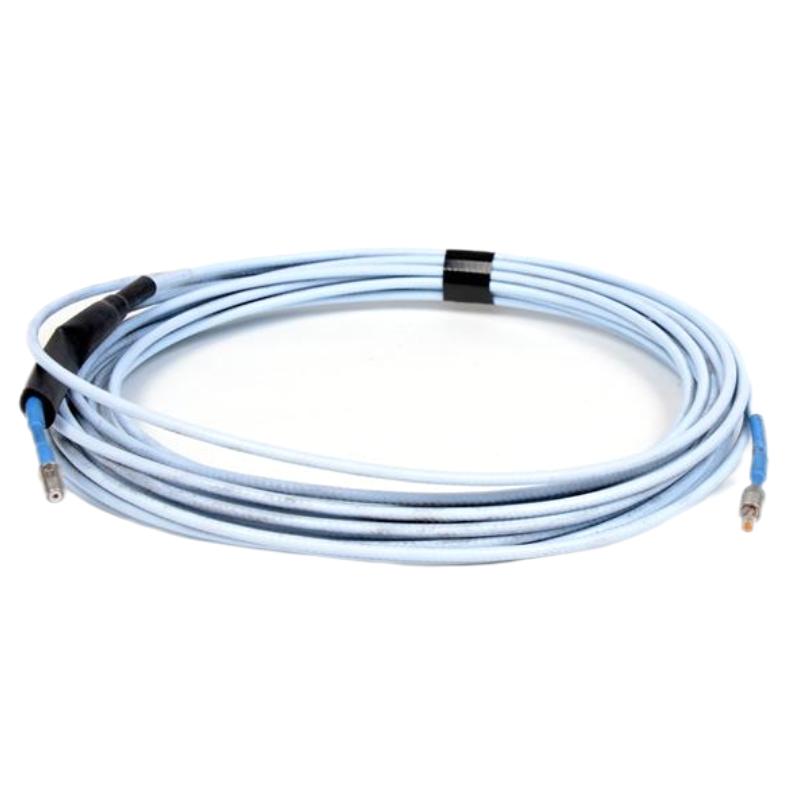

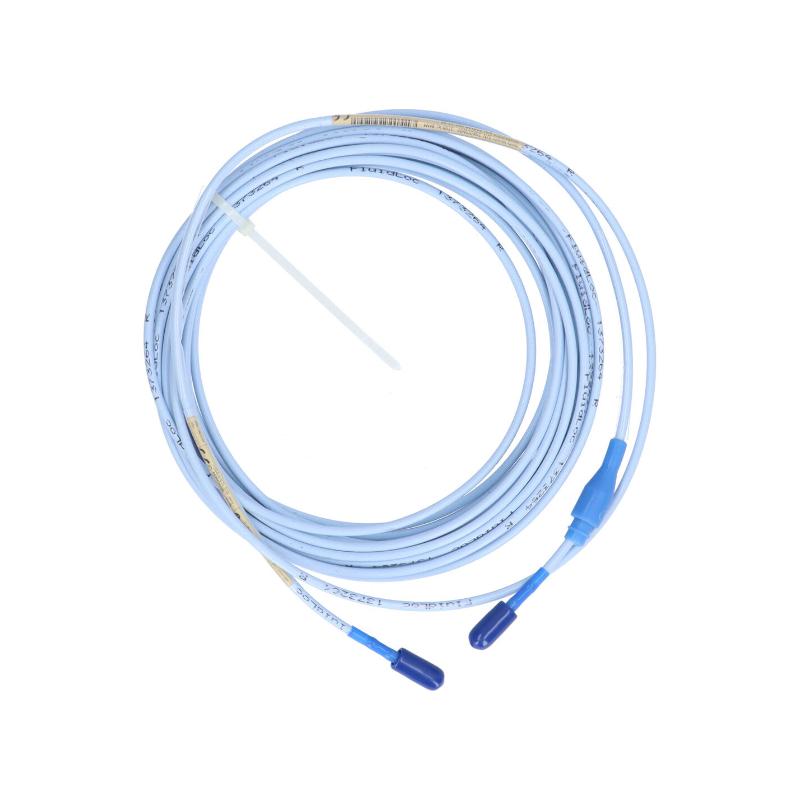

The Bently Nevada 330130‑080‑12‑05 3300 XL Standard Extension Cable is a purpose‑built accessory designed to extend the reach between industrial sensors and 3300 XL monitoring hardware. Engineered with robust construction and reliable electrical characteristics, this cable maintains high‑fidelity vibration and position signal transmission over longer distances — a critical requirement in complex machinery monitoring applications.
Ideal for heavy‑duty industrial environments such as power generation, petrochemical, and manufacturing plants, the 330130‑080‑12‑05 provides installation flexibility without compromising measurement accuracy. Its durable build and optimized performance make it a trusted choice for mission‑critical condition monitoring systems.
Technical Specifications
| Specification | Details |
|---|
| Model Number | 330130‑080‑12‑05 |
| Product Category | 3300 XL Standard Extension Cable |
| Cable Length | 12.0 meters (39.4 ft) |
| Cable Type | Shielded, industrial‑grade multi‑conductor cable |
| Connector Style | MIL‑style 12‑pin connectors (3300 XL compatible) |
| Operating Temperature | ‑20…80 °C (‑4…176 °F) |
| Storage Temperature | ‑40…85 °C (‑40…185 °F) |
| Environmental Suitability | Industrial ambient environments |
| Cable Diameter | Approx. 11.0 mm (0.43 in) |
| Weight | Approx. 1.05 kg (2.31 lb) |
Applications
The 330130‑080‑12‑05 extension cable is well‑suited for:
-
Extending proximity probes and accelerometer sensors to 3300 XL monitoring racks
-
Large rotating equipment monitoring (turbines, compressors, pumps)
-
Industrial vibration and position condition monitoring systems
-
Power plants, petrochemical, and process industries
-
Areas where standard cable lengths are insufficient for sensor layouts
Its extended 12‑meter reach reduces the need for intermediate connectors, supporting cleaner installations and fewer potential failure points.
Advantages
-
High‑Integrity Signal Transmission — Shielded cable design protects against electromagnetic interference, ensuring accurate measurement data.
-
Industrial‑Rated Durability — Built to withstand thermal cycles, mechanical stresses, and plant environmental conditions.
-
Direct Compatibility — Plug‑and‑play design integrates seamlessly with 3300 XL probe and chassis interfaces.
-
Extended Reach — 12 m length simplifies complex installations and supports flexible sensor placement.
-
Service‑Ready Connectors — Molded connectors include strain relief for long service life.
This extension cable enhances system adaptability, improves installation efficiency, and supports reliable long‑term condition monitoring performance.
Technical FAQs
1. What system is this cable designed for?
It is engineered for use with the Bently Nevada 3300 XL vibration and position monitoring platform.
2. What type of connectors does it use?
It features MIL‑style 12‑pin connectors that directly mate with 3300 XL compatible sensors and modules.
3. Is the cable shielded?
Yes, the cable is fully shielded to minimize signal interference and maintain measurement accuracy.
4. Can the cable be shortened in the field?
Field modification is not recommended as it may compromise shielding effectiveness and signal quality.
5. What is the operating temperature range?
The operating range is ‑20…80 °C (‑4…176 °F), suitable for industrial ambient environments.
6. Is it suitable for outdoor installations?
Yes — with appropriate protective conduit or environmental safeguards per site standards.
7. What environments can this cable withstand?
It is designed for industrial applications such as power plants, petrochemical facilities, and rotating equipment rooms.
8. Does the cable include strain relief features?
Yes, the molded connectors include integrated strain relief for durability and serviceability.
9. How does this cable maintain signal quality?
Shielding and precision cable construction reduce electrical noise, preserving signal fidelity for monitoring systems.
10. Is this suitable for critical machinery monitoring applications?
Absolutely — it is intended for use in condition monitoring installations on critical assets like turbines and compressors.
