Introduction

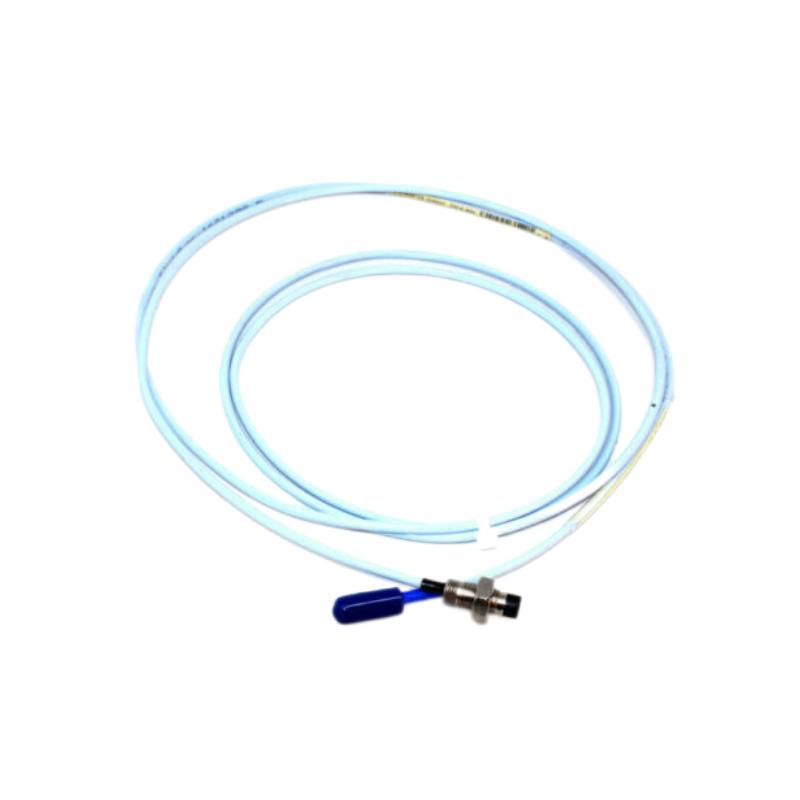

The Bently Nevada 330130‑080‑03‑CN 3300 XL Standard Extension Cable is a purpose‑engineered wiring solution that extends the connection between sensors and monitoring hardware in the 3300 XL condition monitoring platform. Designed for industrial environments where signal integrity and installation flexibility matter, this extension cable maintains high‑fidelity data transmission even over extended distances.
With robust shielding, ruggedized connectors, and precise electrical characteristics, the 330130‑080‑03‑CN helps ensure vibration and position measurements remain accurate — supporting reliable diagnostics and asset protection in critical plant operations.
Technical Specifications
| Specification | Details |
|---|
| Model Number | 330130‑080‑03‑CN |
| Product Type | Standard Extension Cable for 3300 XL System |
| Cable Length | 3.0 meters (9.8 ft) |
| Cable Construction | Shielded multi‑conductor industrial cable |
| Connector Style | MIL‑style 12‑pin (compatible with 3300 XL devices) |
| Operating Temperature | ‑20…80 °C (‑4…176 °F) |
| Storage Temperature | ‑40…85 °C (‑40…185 °F) |
| Environmental Suitability | Designed for industrial ambient conditions |
| Cable Diameter | Approx. 10.5 mm (0.41 in) |
| Weight | Approx. 0.34 kg (0.75 lb) |
Applications
This extension cable is ideally suited for:
-
Running distance extensions between proximity probes and 3300 XL machinery protection racks
-
Connecting accelerometer sensors on large machinery (turbines, compressors, pumps)
-
Industrial vibration and position monitoring in power plants, petrochemical facilities, and manufacturing sites
-
Complex sensor routing where fixed mounting locations restrict standard cable reach
-
Asset health monitoring setups with distributed sensor layouts
Its optimized length and industrial components make it a reliable choice for mid‑range extension needs within critical monitoring systems.
Advantages
-
Superior Signal Integrity — Shielded cable architecture protects against electrical noise and ensures clean data transfer.
-
Industrial‑Rated Durability — Rugged construction withstands temperature cycles, mechanical stress, and plant conditions.
-
Direct Compatibility — Designed for plug‑and‑play connection with 3300 XL series probes and chassis modules.
-
Service‑Ready Connectors — Molded connectors include strain relief for long service life.
-
Installation Flexibility — 3‑meter length offers practical reach without unnecessary slack.
This extension cable enhances your monitoring system’s flexibility while preserving the high‑quality signal transmission required for accurate diagnostics.
Technical FAQs
1. What system is this cable designed for?
It is specifically designed for use with the Bently Nevada 3300 XL vibration and position monitoring platform.
2. What type of connectors are used?
It features MIL‑style 12‑pin connectors that directly mate with 3300 XL compatible sensors and modules.
3. Is the cable shielded?
Yes — the cable is fully shielded to minimize electromagnetic interference.
4. Can the cable be shortened in the field?
Field length modification is not recommended as it may compromise shielding effectiveness and signal quality.
5. What environments can this cable operate in?
It is suitable for industrial ambient conditions; for outdoor use, additional protective conduit is advised.
6. What is the operating temperature range?
The operating range is ‑20…80 °C (‑4…176 °F).
7. Does the cable include strain relief?
Yes — molded connectors have integrated strain‑relief features for durability.
8. How should connectors be secured?
Use appropriate torque and retention tools to ensure secure and stable connections.
9. Will this cable work with legacy 3300 models?
It is optimized for 3300 XL products; verify compatibility if connecting to older legacy systems.
10. What are common uses for this cable?
It’s typically used to extend sensor connections in vibration and position monitoring installations for large rotating equipment.
