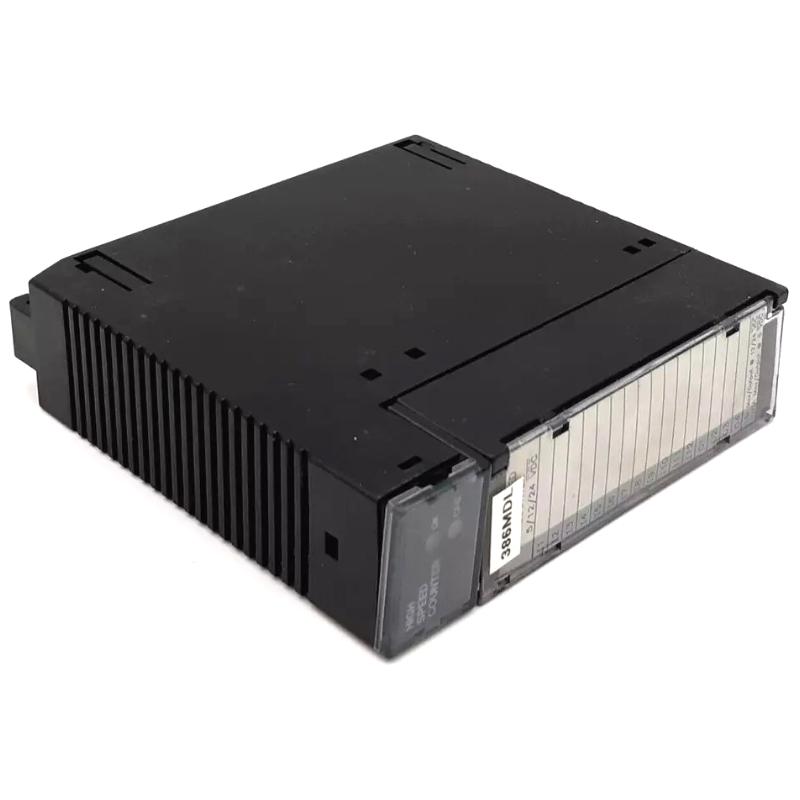

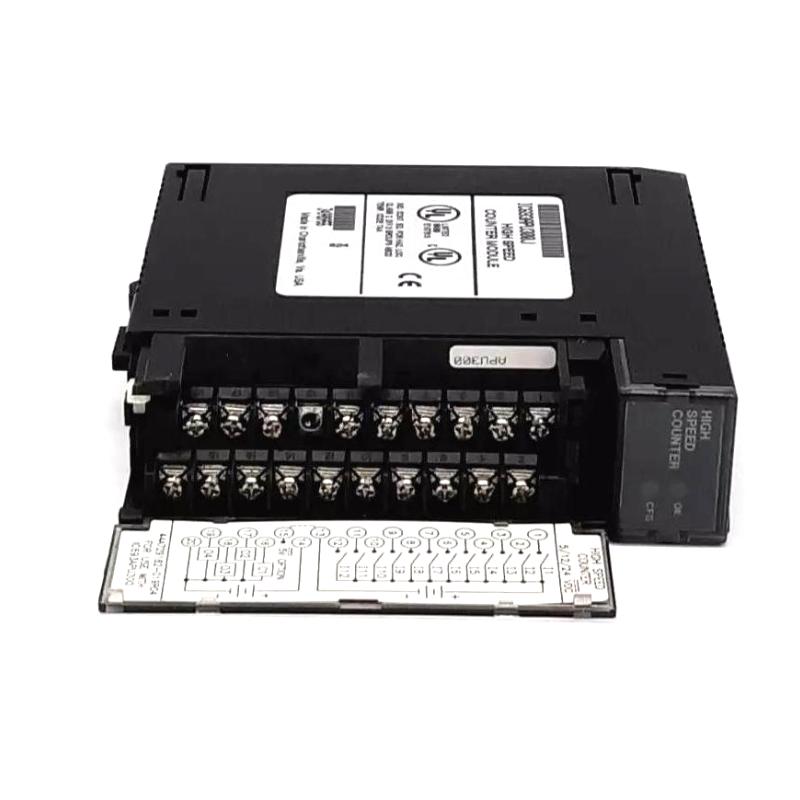

GE IC693APU300J High-speed counter module

Name: GE IC693APU300J High-speed counter module
Brand: GE Fanuc PLC
SKU: 4988
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:GE Fanuc PLC
Item No.:IC693APU300J
Product Origin:USA
Product Dimensions:120 mm × 40 mm × 90 mm
Product Weight:0.27kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The GE IC693APU300J High-Speed Counter Module is engineered for high-performance motion control and real-time counting applications in industrial automation. Designed for use with GE PACSystems PLCs, this module enables precise measurement of high-frequency pulses from encoders, sensors, and other input devices. Its rapid response, accuracy, and reliability make it ideal for manufacturing, material handling, and robotics applications where precise position and speed monitoring are critical.

Technical Specifications

Specification	Details
Brand	GE (General Electric)
Model	IC693APU300J
Type	High-Speed Counter Module
Input Channels	4 High-Speed Channels
Maximum Count Rate	1 MHz per channel
Input Signal Type	TTL / HTL compatible
Pulse Resolution	Up to 16-bit
Isolation	1500 V AC field-to-backplane
Power Requirement	5 V DC, 200 mA typical
Mounting	DIN Rail Compatible
Operating Temperature	0 °C to +60 °C
Storage Temperature	−20 °C to +85 °C
Humidity	5–95% non-condensing

Applications

The IC693APU300J is ideal for:

High-speed motion control in robotics and automation systems
Encoder pulse counting for motors, conveyors, and positioning systems
Manufacturing lines requiring precise speed and position measurement
Material handling systems for accurate product tracking
OEM machinery integrating high-speed digital inputs for process control

Its fast processing and reliable counting make it indispensable for applications where timing and accuracy are critical.

Advantages

High-Speed Performance: Handles up to 1 MHz per channel, suitable for rapid industrial processes.
Multiple Channels: Four high-speed inputs allow simultaneous counting and monitoring.
Flexible Signal Compatibility: Accepts TTL and HTL signals for a wide range of industrial devices.
Reliable Isolation: Protects the PLC backplane from field voltage transients.
Compact DIN Rail Mount: Easy to install in existing control panels and racks.

Technical FAQs

How many high-speed channels does the IC693APU300J have?
It provides 4 high-speed counting channels.
What is the maximum count rate per channel?
1 MHz per channel.
What input signal types are supported?
TTL and HTL compatible signals.
Is the module isolated from the backplane?
Yes, it provides 1500 V AC isolation.
What is the operating temperature range?
0 °C to +60 °C for industrial environments.
Can it be mounted on a DIN rail?
Yes, standard DIN rail compatible.
Is it suitable for encoder-based motion control?
Absolutely, ideal for high-speed encoder pulse counting.
Can multiple modules be used in one system?
Yes, multiple modules can be integrated for larger systems.
Does it support OEM machinery applications?
Yes, designed for precise, high-speed industrial automation systems.
How is maintenance performed?
Regular visual inspection and verification of input wiring ensures reliability.
