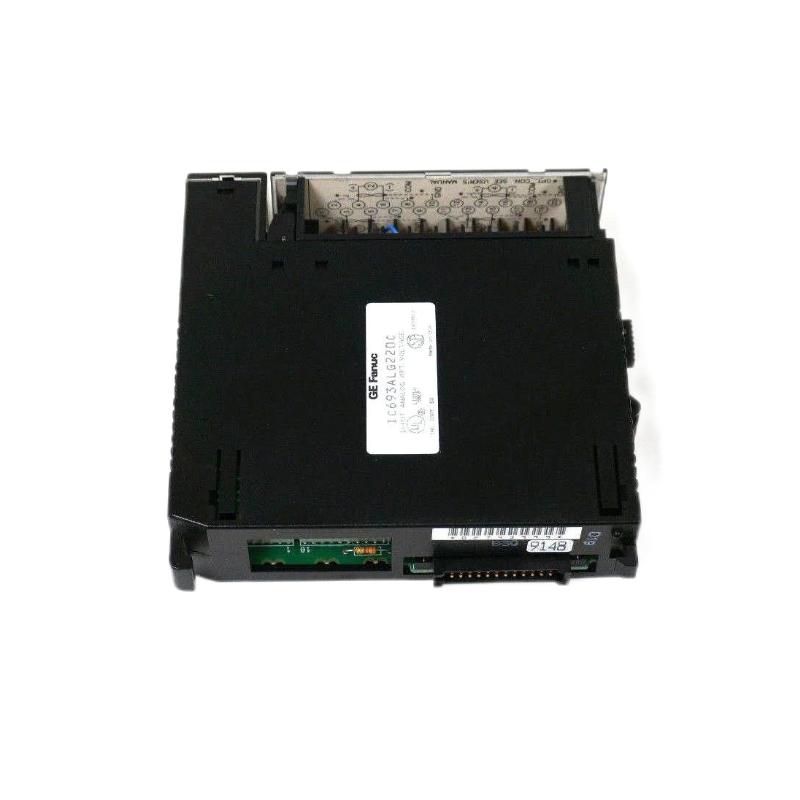

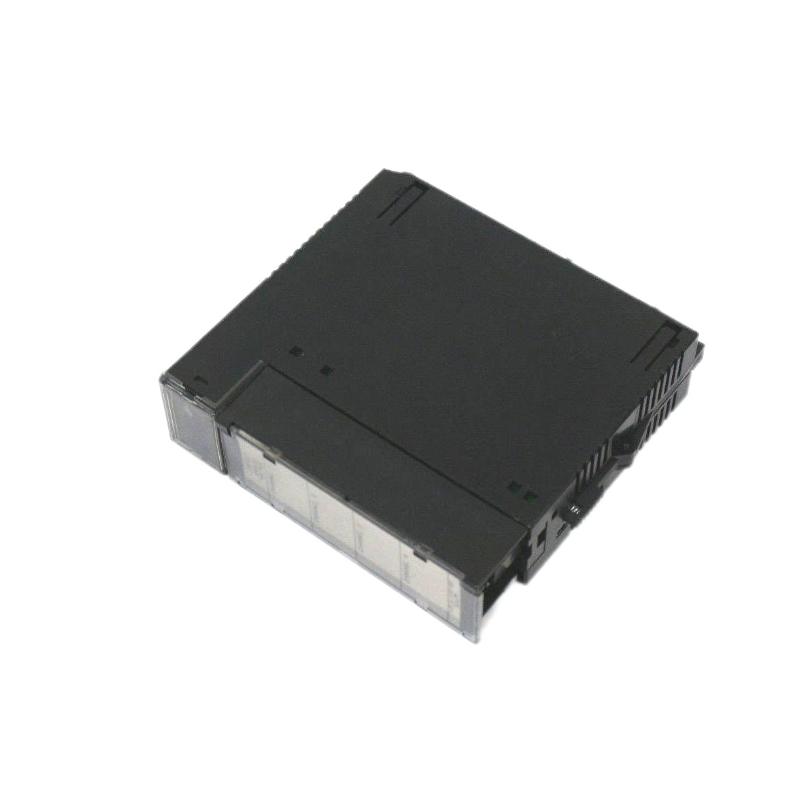

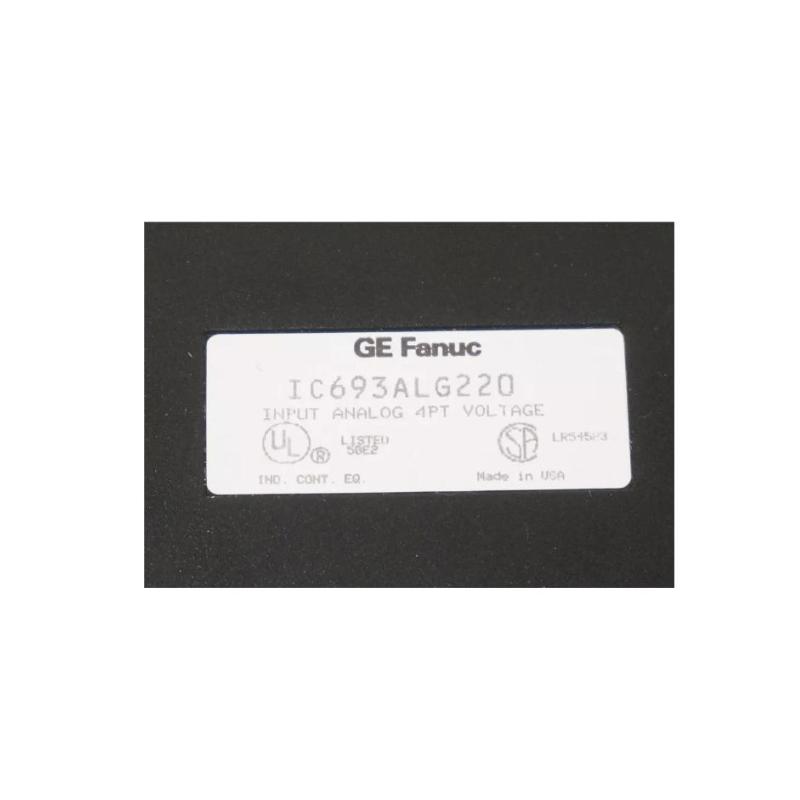

GE IC693ALG220 Analog Input Module

Name: GE IC693ALG220 Analog Input Module
Brand: GE Fanuc PLC
SKU: 4987
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:GE Fanuc PLC
Item No.:IC693ALG220
Product Origin:USA
Product Dimensions:120 mm × 40 mm × 90 mm
Product Weight:0.25kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The GE IC693ALG220 Analog Input Module is a high-performance device designed to acquire, process, and transmit analog signals from industrial sensors to PLC systems. Engineered for accuracy and reliability, it supports multiple input types, including thermocouples, RTDs, and standard voltage/current signals. The ALG220 is ideal for process automation, manufacturing monitoring, and distributed control systems where precise measurement and stable performance are essential.

Technical Specifications

Specification	Details
Brand	GE (General Electric)
Model	IC693ALG220
Type	Analog Input Module
Input Channels	8 Universal Analog Inputs
Supported Signals	Thermocouple, RTD, 0–10 V, 4–20 mA
Resolution	16-bit
Sampling Rate	250 Hz per channel
Accuracy	±0.1% of full scale
Isolation	1500 V AC field-to-backplane
Power Requirement	5 V DC, 250 mA typical
Operating Temperature	0 °C to +60 °C
Storage Temperature	−20 °C to +85 °C
Humidity	5–95% non-condensing
Mounting	DIN Rail Compatible

Applications

The IC693ALG220 is commonly used for:

Industrial process monitoring and control
Data acquisition from sensors and transducers in manufacturing plants
PLC-based automation for temperature, pressure, and flow measurements
OEM machines requiring high-precision analog input channels
Distributed I/O networks where multiple analog signals must be consolidated

Its universal input support allows one module to handle multiple sensor types, reducing system complexity.

Advantages

Universal Input Capability: Supports thermocouples, RTDs, voltage, and current signals in one module.
High Accuracy: 16-bit resolution and ±0.1% full-scale accuracy ensures precise data collection.
Reliable Isolation: Protects the PLC backplane from field voltage spikes.
DIN Rail Mountable: Compact design allows easy integration into control panels and racks.
Flexible Applications: Suitable for process control, automation, and OEM systems requiring accurate analog measurements.

Technical FAQs

How many input channels does the IC693ALG220 provide?
It provides 8 universal analog input channels.
What types of signals are supported?
Thermocouples, RTDs, 0–10 V, and 4–20 mA signals.
What is the module’s resolution?
16-bit resolution for high-precision measurements.
What is the sampling rate per channel?
250 Hz per channel, suitable for standard process control applications.
Is the module isolated from the backplane?
Yes, it provides 1500 V AC isolation between field inputs and backplane.
What is the operating temperature range?
0 °C to +60 °C for normal industrial conditions.
Can it handle multiple sensor types simultaneously?
Yes, it is designed to accommodate mixed input types on different channels.
Does it require special mounting?
No, it is DIN rail compatible for easy panel installation.
Is it suitable for OEM machinery?
Yes, ideal for compact and precise analog signal acquisition.
How should maintenance be performed?
Periodic visual inspections and verifying field wiring connections are recommended for long-term reliability.
