Introduction

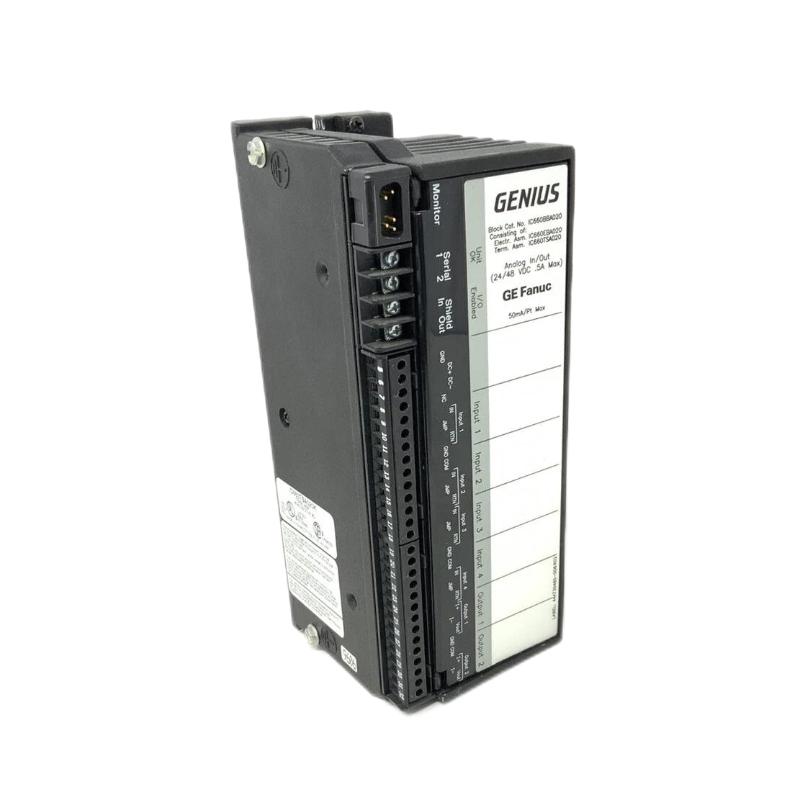

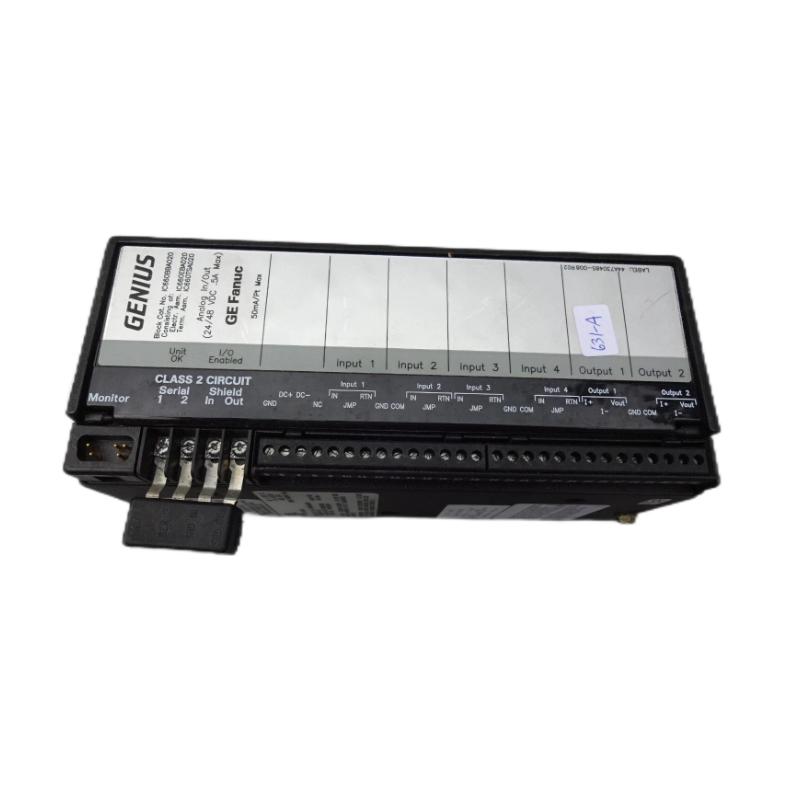

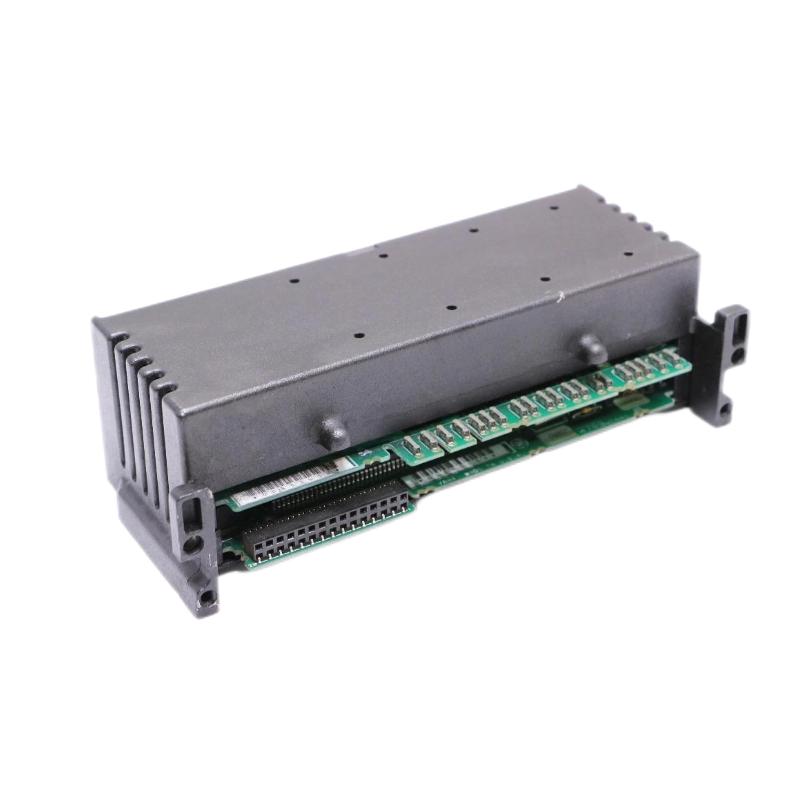

The GE Fanuc IC660EBA020 Analog I/O Modules are precision‑engineered components designed to deliver reliable analog signal interfacing within GE Fanuc PLC systems. Optimized for process control, monitoring, and automation tasks, this series of modules ensures accurate measurement and control of analog inputs and outputs across industrial applications. Built with robust industrial construction and seamless PLC integration, the IC660EBA020 family enables consistent performance in demanding environments — making it a trusted choice for system integrators and controls engineers alike.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | IC660EBA020 |
| Type | Analog I/O Module (Input/Output) |
| Channel Configuration | 8 Analog Inputs / 8 Analog Outputs (configurable) |
| Input Type | ±10 V, 0–20 mA, 4–20 mA selectable |
| Output Type | ±10 V, 0–20 mA, 4–20 mA selectable |
| Resolution | 12‑bit (±0.5 % typical accuracy) |
| Response Time | ~10 ms per channel |
| Mounting | PLC rack‑mount compatible |
| Connector | 50‑pin industrial terminal |
| Dimensions | 125 mm × 50 mm × 125 mm (L × W × H) |
| Weight | 0.48 kg (1.06 lbs) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | ‑20°C to 70°C (‑4°F to 158°F) |
| Vibration | IEC Standard Industrial Levels |
| Certifications | UL, CE, RoHS |
