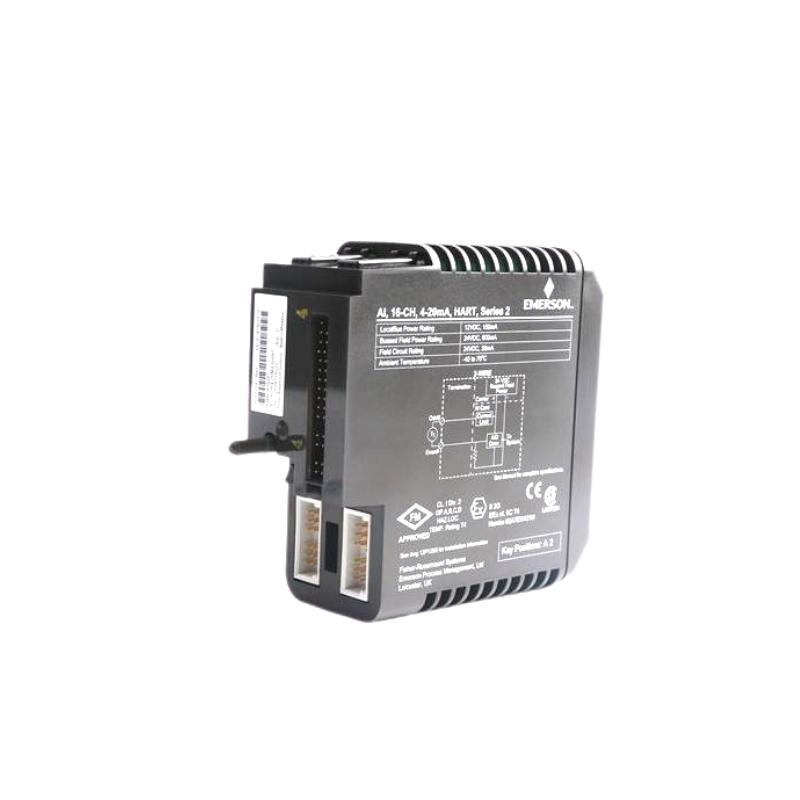

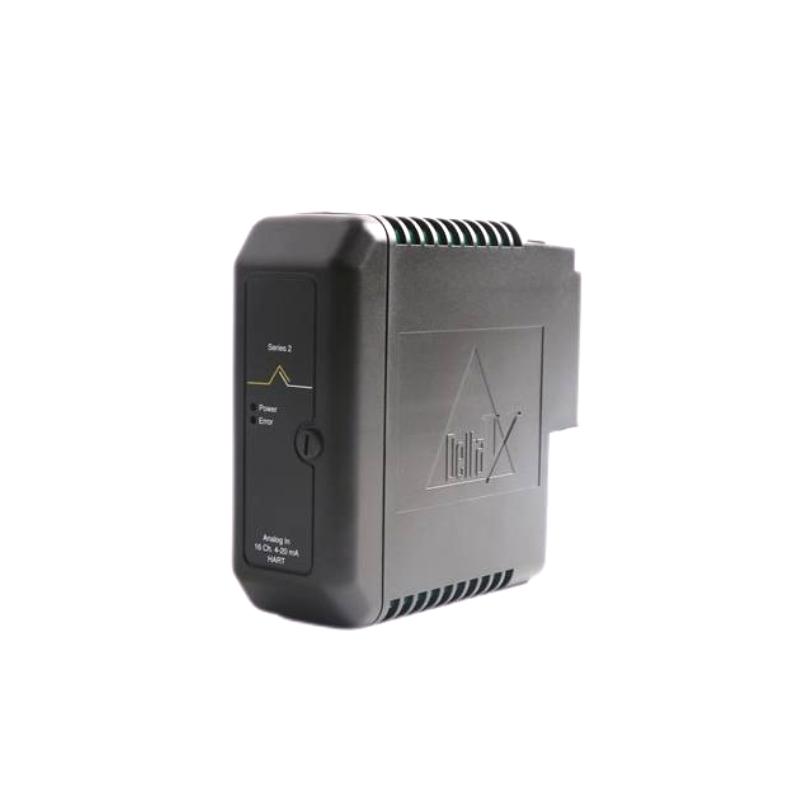

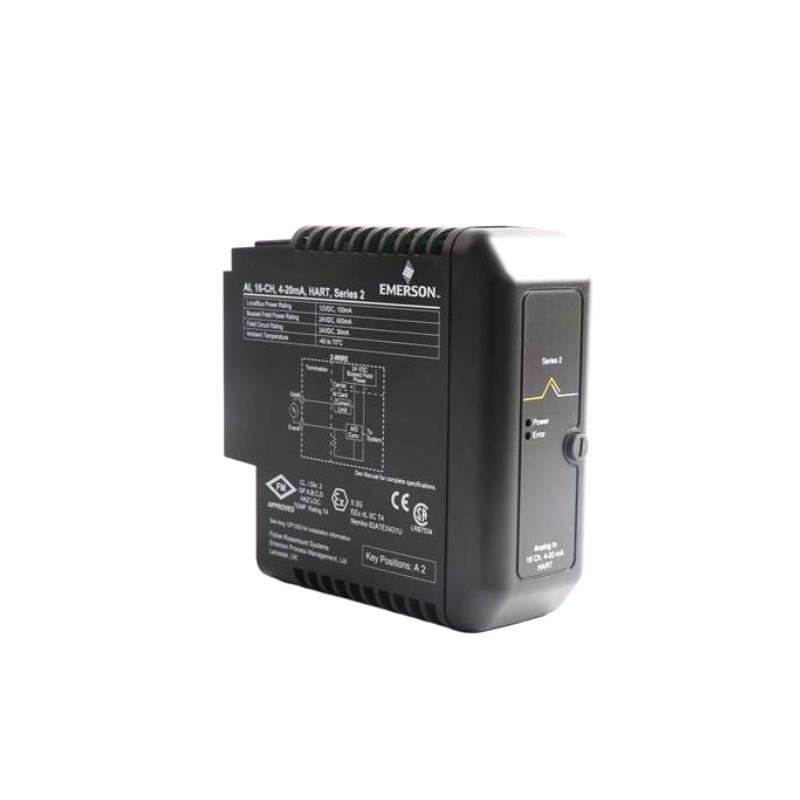

Emerson KJ3223X1-BA1 12P2871X012 Analog Input Module

Brand:Emerson Module
Item No.:KJ3223X1-BA1 12P2871X012
Product Origin:USA
Product Dimensions:210 mm × 45 mm × 160 mm
Product Weight:1kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

KJ3223X1-BA1-3KJ3223X1-BA1-1KJ3223X1-BA1-2KJ3223X1-BA1-4

Introduction

The Emerson KJ3223X1-BA1 12P2871X012 Analog Input Module is a high-precision, reliable component designed for process automation systems. Built for the robust DeltaV platform, this module ensures accurate signal acquisition, rapid processing, and seamless integration with Emerson’s control networks. Ideal for process industries such as oil & gas, chemical, and power generation, the KJ3223X1-BA1 delivers consistent performance in demanding industrial environments.

Technical Specifications

FeatureSpecification
ModelKJ3223X1-BA1 12P2871X012
TypeAnalog Input Module
Input Channels16 differential analog inputs
Input Range±10 VDC / 0–20 mA / 4–20 mA configurable
Resolution16-bit high-precision conversion
Update Rate10 ms per channel typical
Communication InterfaceDeltaV I/O network
Dimensions210 mm × 45 mm × 160 mm (L × W × H)
Weight1.0 kg (2.2 lbs)
Operating Temperature0°C to 60°C (32°F to 140°F)
Storage Temperature-40°C to 85°C (-40°F to 185°F)
CertificationsCE, UL, IEC 61131 Compliant


Applications

  • Process control in chemical and petrochemical plants

  • Oil & gas production and refining automation

  • Power generation instrumentation and monitoring

  • Environmental monitoring and industrial data acquisition

  • Integration with DeltaV and other Emerson automation systems

Its high resolution and configurable inputs make it versatile for a wide range of analog measurement needs.


Advantages

  • High Precision: 16-bit resolution ensures accurate analog signal acquisition.

  • Flexible Input Range: Supports ±10 VDC, 0–20 mA, and 4–20 mA signals.

  • Fast Response: 10 ms typical update rate for real-time control.

  • Seamless Integration: Plug-and-play with Emerson DeltaV control systems.

  • Robust Industrial Design: Withstands harsh industrial environments.

  • Compact and Lightweight: 210 × 45 × 160 mm, 1.0 kg, ideal for control cabinets.

  • Reliable Performance: Stable operation in electrically noisy or vibration-prone environments.


Technical FAQs

  1. How many analog input channels does the module support?
    16 differential analog inputs.

  2. What input signal ranges are supported?
    ±10 VDC, 0–20 mA, and 4–20 mA.

  3. What is the module’s resolution?
    16-bit high-precision conversion.

  4. What is the typical update rate per channel?
    10 milliseconds.

  5. Which control systems is it compatible with?
    Emerson DeltaV automation systems.

  6. What are the physical dimensions?
    210 mm × 45 mm × 160 mm (L × W × H).

  7. What is the module’s weight?
    1.0 kg (2.2 lbs).

  8. What is the operating temperature range?
    0°C to 60°C (32°F to 140°F).

  9. Is the module certified for industrial use?
    Yes, it is CE, UL, and IEC 61131 compliant.

  10. Can it operate reliably in electrically noisy environments?
    Yes, it is designed for high signal integrity in harsh industrial settings.
