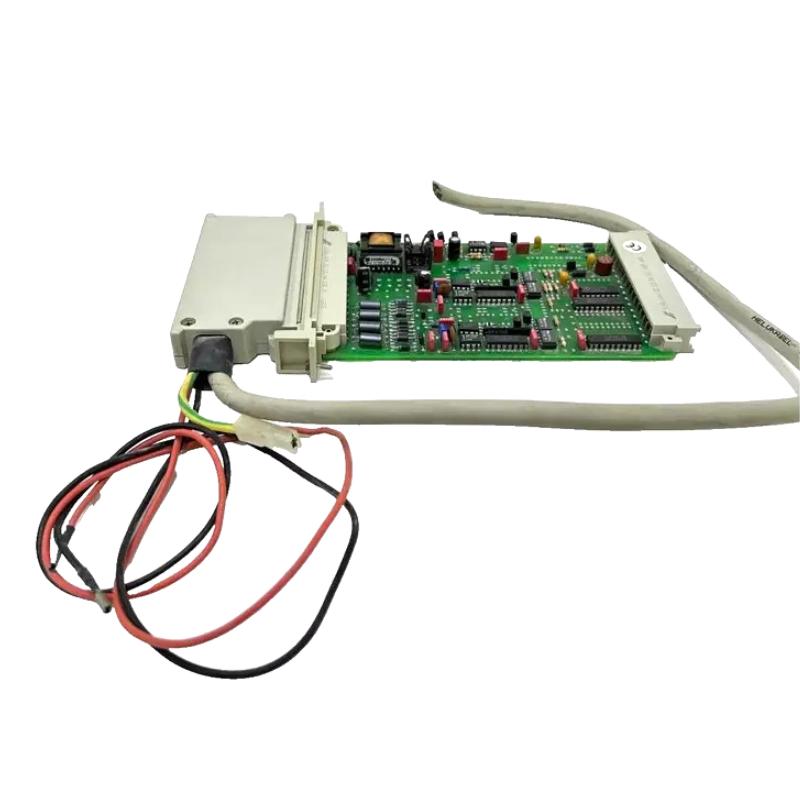

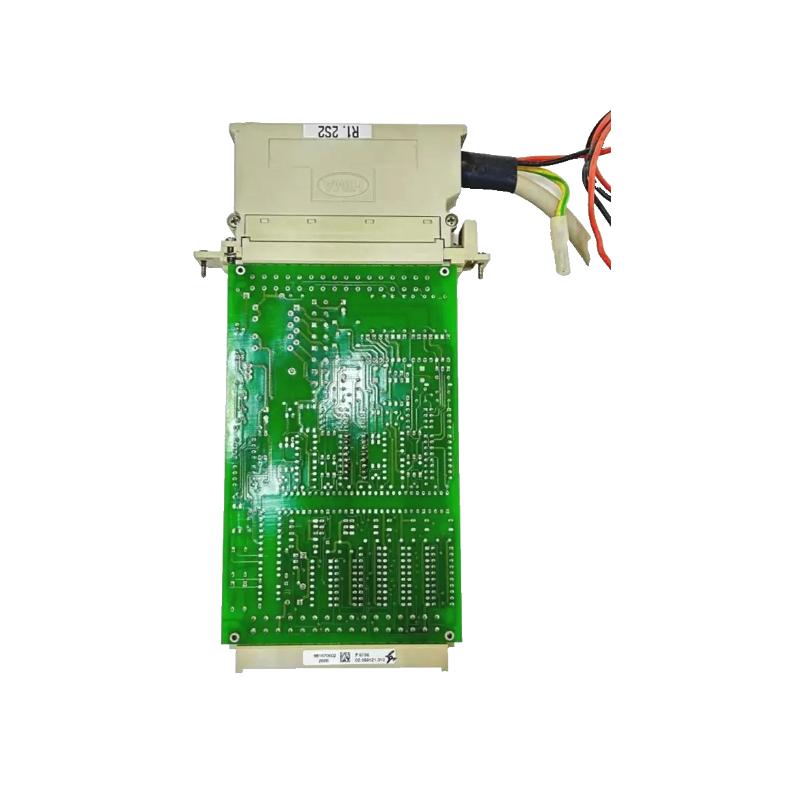

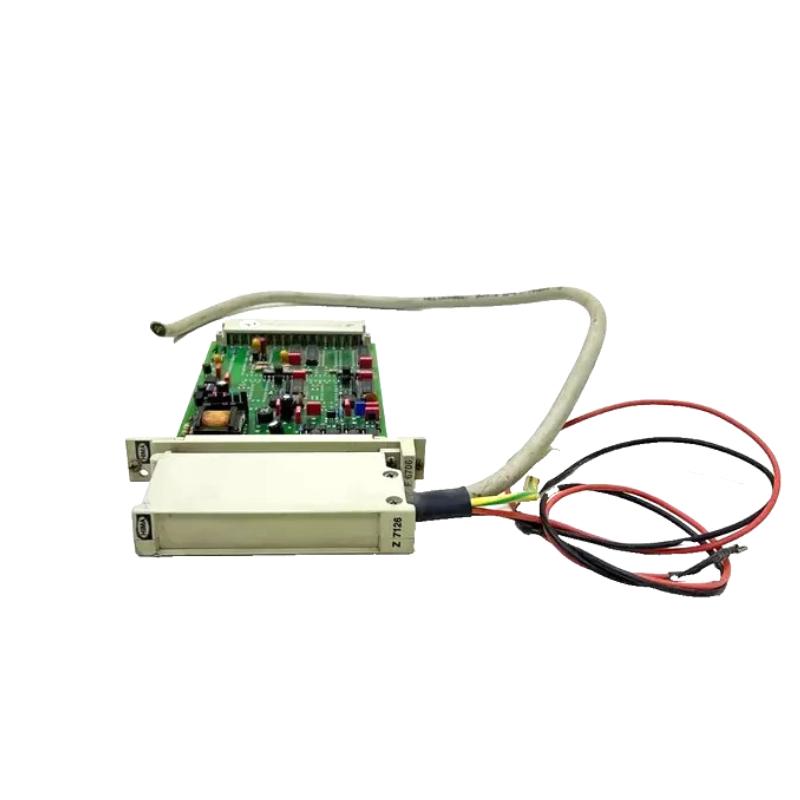

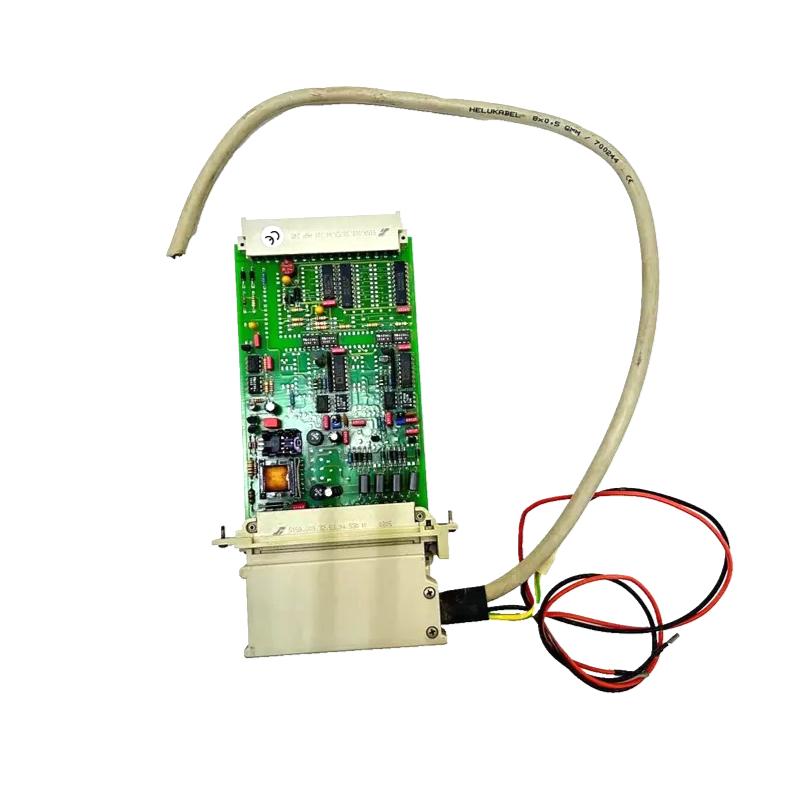

HIMA Z7126 Cable Plug

Brand:Hima DCS Modules
Item No.:Z7126
Product Origin:Germany
Product Dimensions:80 mm × 30 mm × 25 mm
Product Weight:0.1kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Z7126 2Z7126 4Z7126 3Z7126 5

Introduction

The HIMA Z7126 Cable Plug is a high-quality connector designed for reliable and secure signal transmission in safety-critical automation systems. Built for industrial durability, this cable plug ensures consistent connections between HIMA modules, maintaining system integrity even under challenging environmental conditions. Its compact, ergonomic design allows for easy installation and long-term dependability in SIL-rated safety applications.

Technical Specifications

FeatureSpecification
ModelZ7126
TypeCable Plug Connector
Compatible ModulesHIMA Safety Modules, Relay Modules
Pin Configuration26-pin configuration for multi-channel connections
Connector TypeIndustrial-grade plug with locking mechanism
Cable Compatibility0.25–1.5 mm² wires
Contact MaterialGold-plated for high conductivity and durability
Dimensions80 mm × 30 mm × 25 mm (L × W × H)
Weight0.08 kg (0.18 lbs)
Operating Temperature-20°C to 70°C (-4°F to 158°F)
Storage Temperature-40°C to 85°C (-40°F to 185°F)
CertificationsIEC 61508, SIL 3 Compatible


Applications

  • Connecting HIMA safety modules in SIS (Safety Instrumented Systems)

  • Multi-channel relay module interfacing

  • Redundant cabling for fail-safe automation systems

  • Critical process control signal transmission

  • Industrial panels requiring SIL-rated connectivity

Its robust design and 26-pin capability make it suitable for complex safety and control networks.


Advantages

  • Secure and Reliable: Locking mechanism prevents accidental disconnection.

  • High Integrity: SIL 3 compatible for safety-critical applications.

  • Compact yet Versatile: 80 × 30 × 25 mm fits tight cabinet spaces.

  • Durable Materials: Gold-plated contacts ensure long-term conductivity and resistance to corrosion.

  • Wide Operating Range: Performs reliably from -20°C to 70°C.

  • Multi-Channel Support: 26-pin configuration allows efficient connection of multiple signals.

  • Easy Installation: Plug-and-play design reduces setup time and maintenance.


Technical FAQs

  1. What is the pin configuration?
    26-pin multi-channel configuration.

  2. Which HIMA modules are compatible with Z7126?
    Safety modules, relay modules, and compatible interface modules.

  3. What cable sizes are supported?
    0.25–1.5 mm² wires.

  4. Is the Z7126 SIL-rated?
    Yes, SIL 3 compatible.

  5. What is the operating temperature range?
    -20°C to 70°C (-4°F to 158°F).

  6. What are the plug dimensions?
    80 mm × 30 mm × 25 mm (L × W × H).

  7. How much does it weigh?
    0.08 kg (0.18 lbs).

  8. Are the contacts corrosion-resistant?
    Yes, gold-plated contacts provide high durability and conductivity.

  9. Can it be used in redundant safety cabling systems?
    Yes, suitable for redundant and fail-safe networks.

  10. Is it suitable for vibration-prone industrial environments?
    Yes, designed for secure connections in harsh industrial conditions.
